double trigger Gmek frame

[rawbutter]

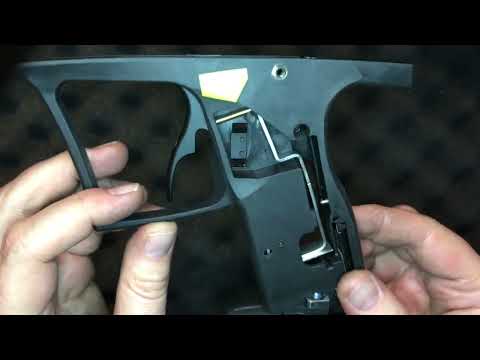

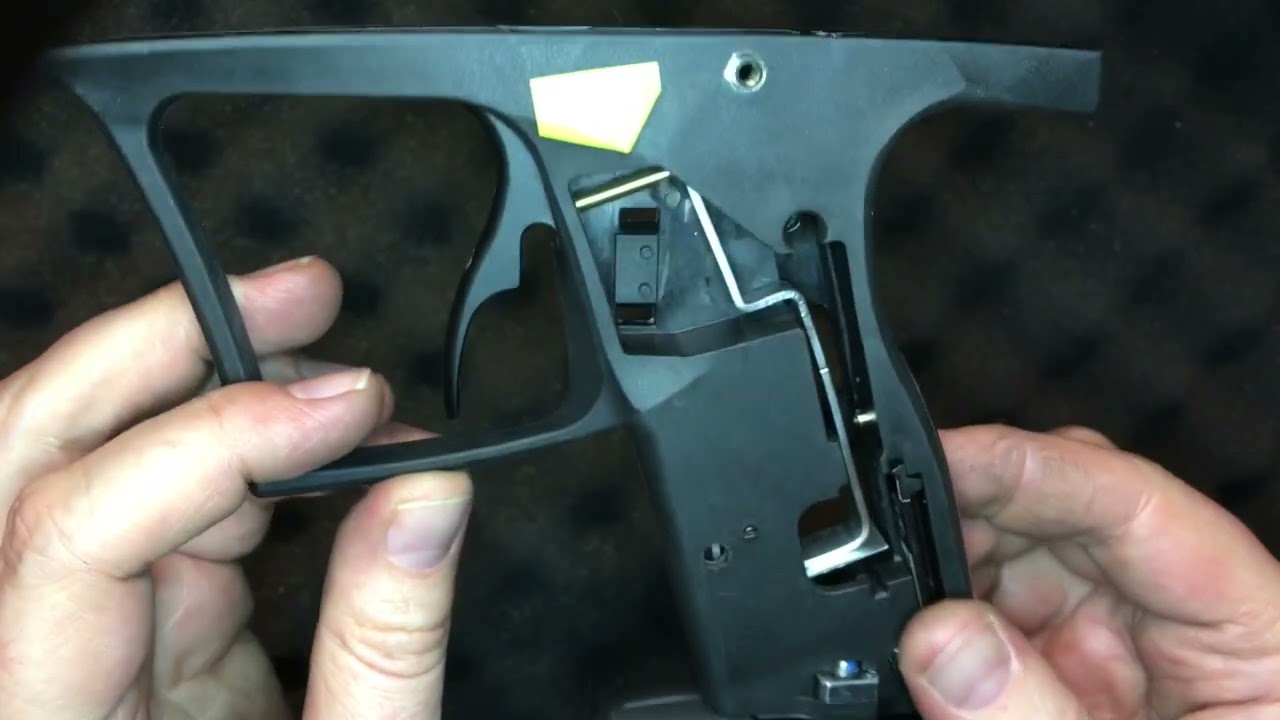

I had some free time today and finally got to do a cool project I've been saving since Christmas. It's a double-trigger Gmek frame! Basically just the electronic frame with all the electro parts stripped out and replaced with a big pivoting steel bracket. And some roller bearings. And a custom delrin pin. And a brass trigger rod.

It shoots great, of course. The only problem is that it's a little too easy to not fully release the trigger after a shot, so the 3-way doesn't reset and then the next trigger pull does nothing. So that will take some getting used to. But it was a fun project.

Now I just have to figure out how to do a safety. Or I'll just use the ASA. I'll probably use the ASA.

I also have thoughts about ditching the long rotating bracket and replacing it with hydraulics, but that will have to wait a few more months.

[Jonnydread]

Very cool, nice work man!

[Trbo323]

Do the gmek frames bolt up to a emek?

Sent from my motorola edge 5G UW (2021) using Tapatalk

[rawbutter]

I don't think so. But even if they did, Emeks route the air lines through the frames, not through the foregrip. So it wouldn't work for that.

[Ecapnation]

They do not

[BrickHaus]

Does the noid have a manual pilot button, or are you using an additional valve to actuate firing cycle? This is pretty sweet either way. It reminds me of the legacy mod.

I have A 160r, and I know I can't get a mech frame, but I have a legacy mod. Its essentially a replacement noid with a laser cut acrylic wing to hit the trigger.

You can rip some insane speeds on a mech with it. If I recall it was quickly banned from the mech tourneys when they first came out, and they quit getting made.

I can take some pics for you if you wanna try to use some of his ideas, or even source a manual noid yourself.

[rawbutter]

I bought an extra Gmek 3-way from PE to do this mod. That way I still have the original to keep with the slider frame.
