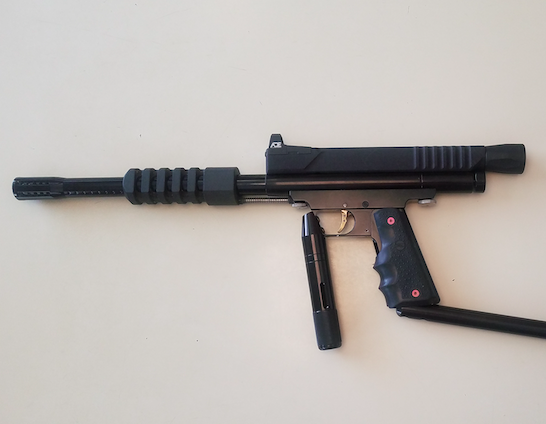

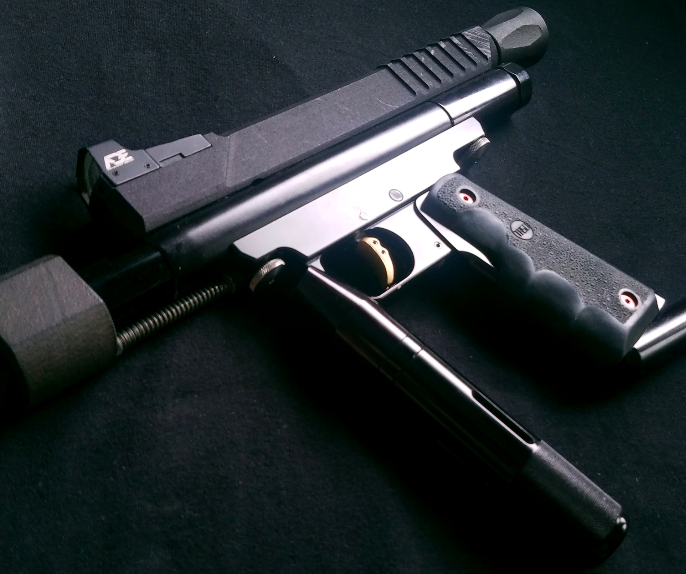

This is a one-piece feed with the lowest possible profile integrated reflex sight for the CCI Phantom paintball marker. The feed has a mount designed specifically for the 2014-2020 ADE RD3-006b reflex sight (available from Amazon for about 70$ USD). The sight IS NOT included and will need to be purchased separately.
This model accepts standard CCI feed caps as well as my feed caps. It will need to be attached with one 8-32 x 3/8 socket head hex screw (from the internet/hardware store), and one 6-32 x 5/16 flat head hex screw (available from CCI/internet/hardware store - CCI sells these for their sight rail / 45 grip panels). The screws ARE NOT included and will need to be purchased separately.
Tested/Compatible with most CCI Stock Class removable-barrel bodies. It might work with a unibody if that’s your thing (I haven’t tested that though). Compatible with ASP Roundhead bodies with some minor modification (file off the conical ramp on the front). Not tested and probably not compatible with Gearheads Phoenix Double Barrel Phantoms (it’s probably too wide to run side-by-side, maybe if one is offset, ymmv). Semi-Compatible but not recommended with CCI Revolution as the feed requires the valve screw to make a rigid connection to the marker (the feed will be unstable and will probably throw your POA off).
Why ADE, why not Trijicon (or one of those 30$ knock-off Trijcons) or something else? I've tried a few the cheep Chinese RMRs and SROs, they’ve all, without fail, had problems with dot distortion, weird lens colors and distortion, and even mounting footprint issues. The ADE is the cheapest, smallest, consistently usable sight with a green dot. And frankly, I wouldn’t want to put a legit 500$+ RMR on a plastic feed for a Phantom. Anyways, the ADE isn’t epic, but it doesn’t totally suck, and it’s just affordable enough to use for paintball.
Will other sights beside the RD3-006b fit? Probably yes, it’s highly likely. It was designed specifically to fit a 2014-2020 RD3-006b, but ADE uses the same mounting footprint as Vortex Venom, Burris Fastfire, Meopta, Docter, Insight, and Eotech MRDS. Sooo, I haven’t tested any of those with this feed and can’t guarantee they’ll fit, but there’s a pretty good chance they will.
