    Ecapnation does builds..... The Leviathan.

    So a bunch of years ago I experimented with with over under Tippmanns where the rt/blowback excess gas port goes into a ram to fire the upper gun.

    It was quite successful... I built two versions one still exists in my arsenal today. Which lead to the question.

    How far can this go? Technically infinitely so long as the guns all have enough gas to fire the next.

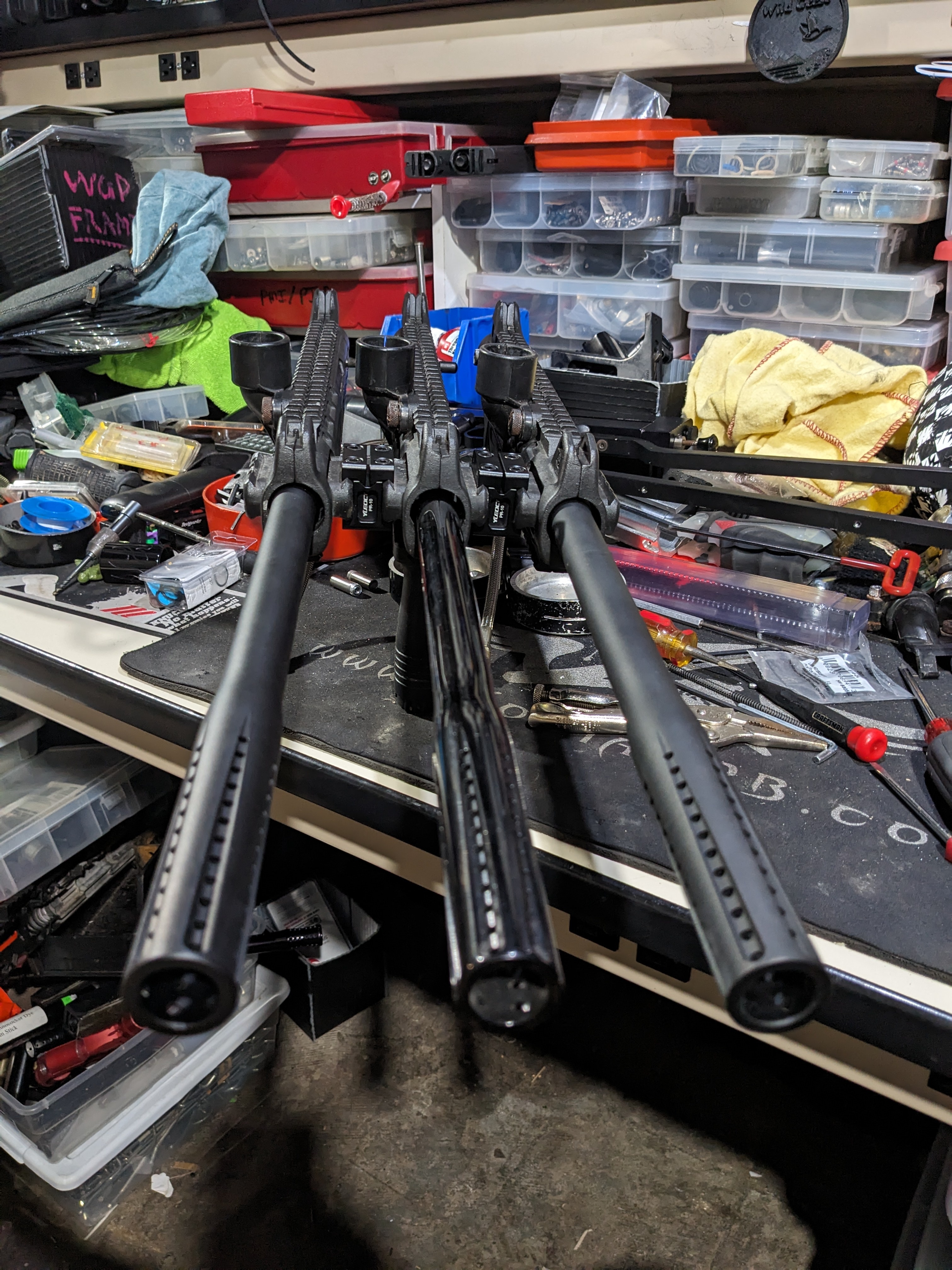

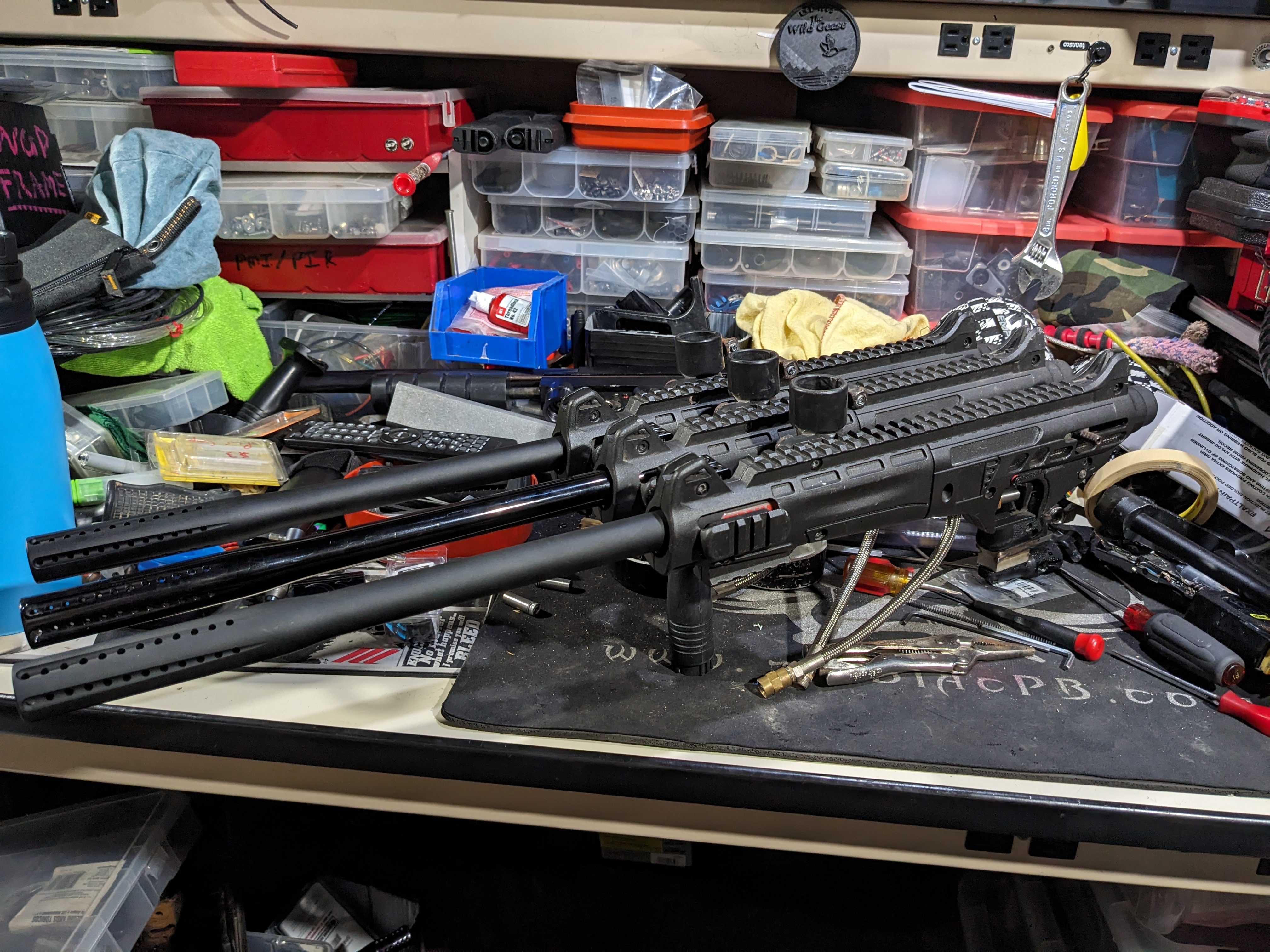

    Right now it's a triple but I might work it into a quad.

    There's still lots to do though

    Attached Files

    #2
    So. In its current state. You fire the center one, and a split second later the outer two fire together? Or are you plumbing it that the first fires the second fires the third?
    https://www.mcarterbrown.com/forum/b...khaus-feedback

    Comment


    • Ecapnation

      Ecapnation

      commented
      Editing a comment
      It will be set up center fires the right, right fires the left. There's a slight delay between shots.

    #3

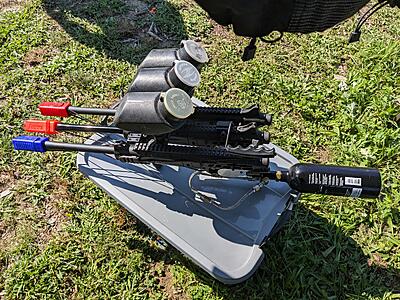

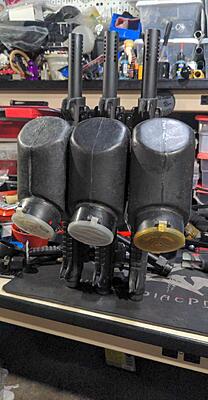

    Well.... They all work and best yet hoppers fit no mods!

    Comment


      #4

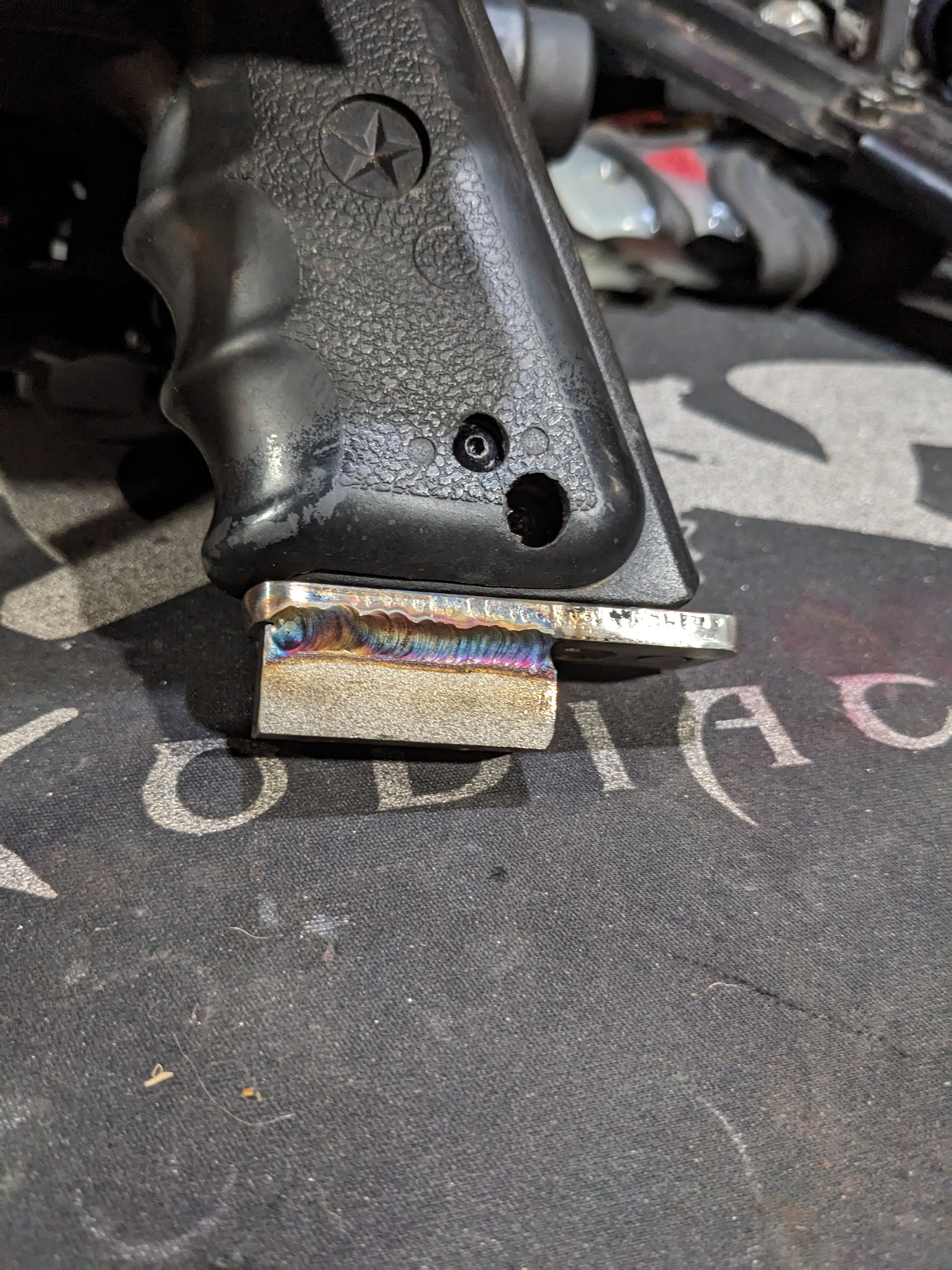

      Fun little rework piece.... The clunky steel bench mount has some stainless on it so I sanded off the paint and welded on a block to mount and clear an asa.

      It's the little things... And this was scrap bin free!
      Attached Files

      Comment


      • Spider!

        Spider!

        commented
        Editing a comment
        I'll have to look at mine again. It seemed pretty rusty. I've been printing a 2" bottle cuff.

      #5
      A better weld on your poo ASA than Ive been seeing on my stainless cabinets as if late.
      https://www.mcarterbrown.com/forum/b...khaus-feedback

      Comment


      • Ecapnation

        Ecapnation

        commented
        Editing a comment
        If it's worth doing it's worth doing good.

      • Brokeass_baller

        Brokeass_baller

        commented
        Editing a comment
        *well

      • Cdn_Cuda

        Cdn_Cuda

        commented
        Editing a comment
        **gooder

      #6

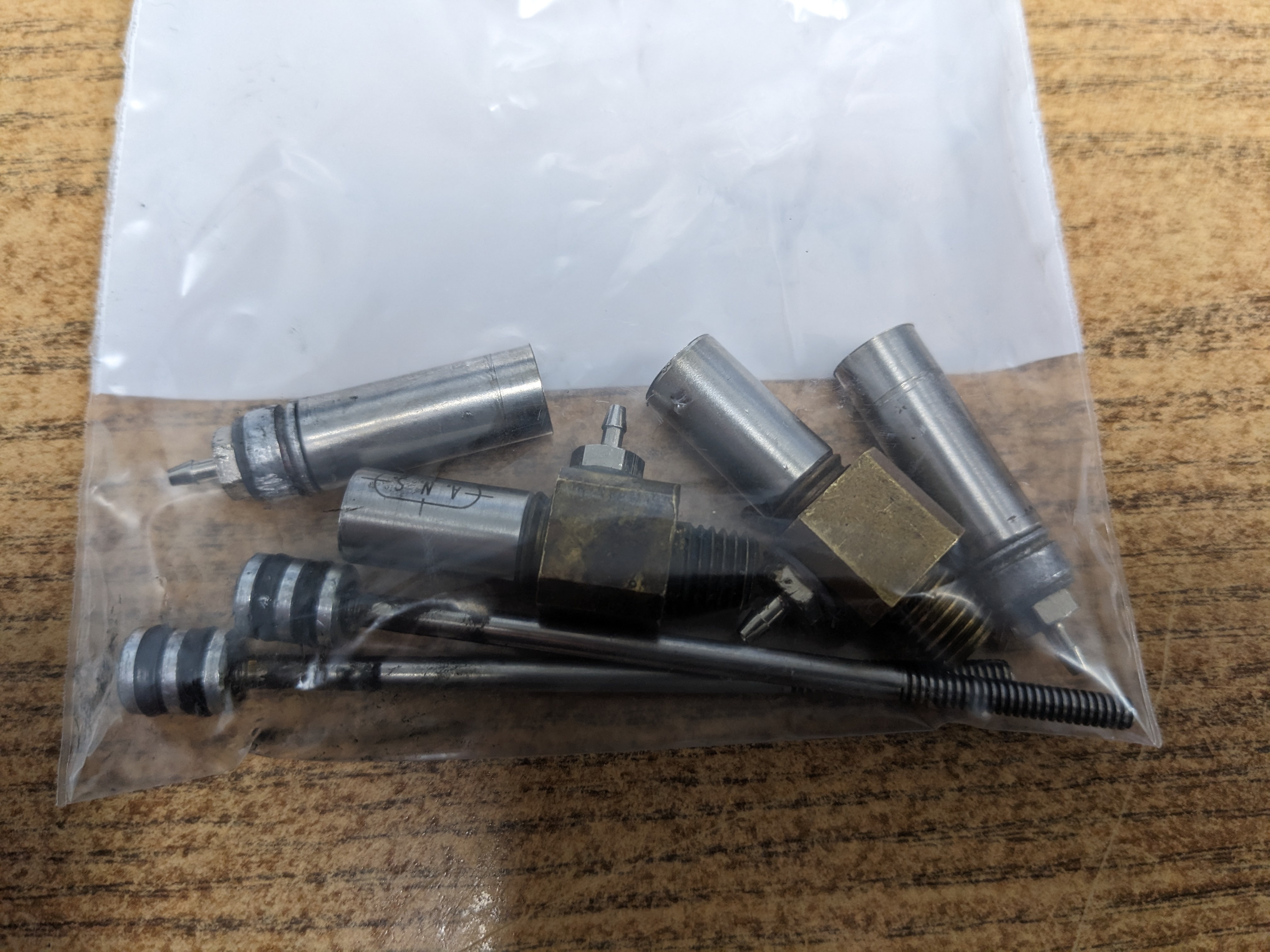

      Cutting, crowning and rehoning crap ans rams into single action trigger pistons with nose mount threads!

      Attached Files

      Comment


        #7

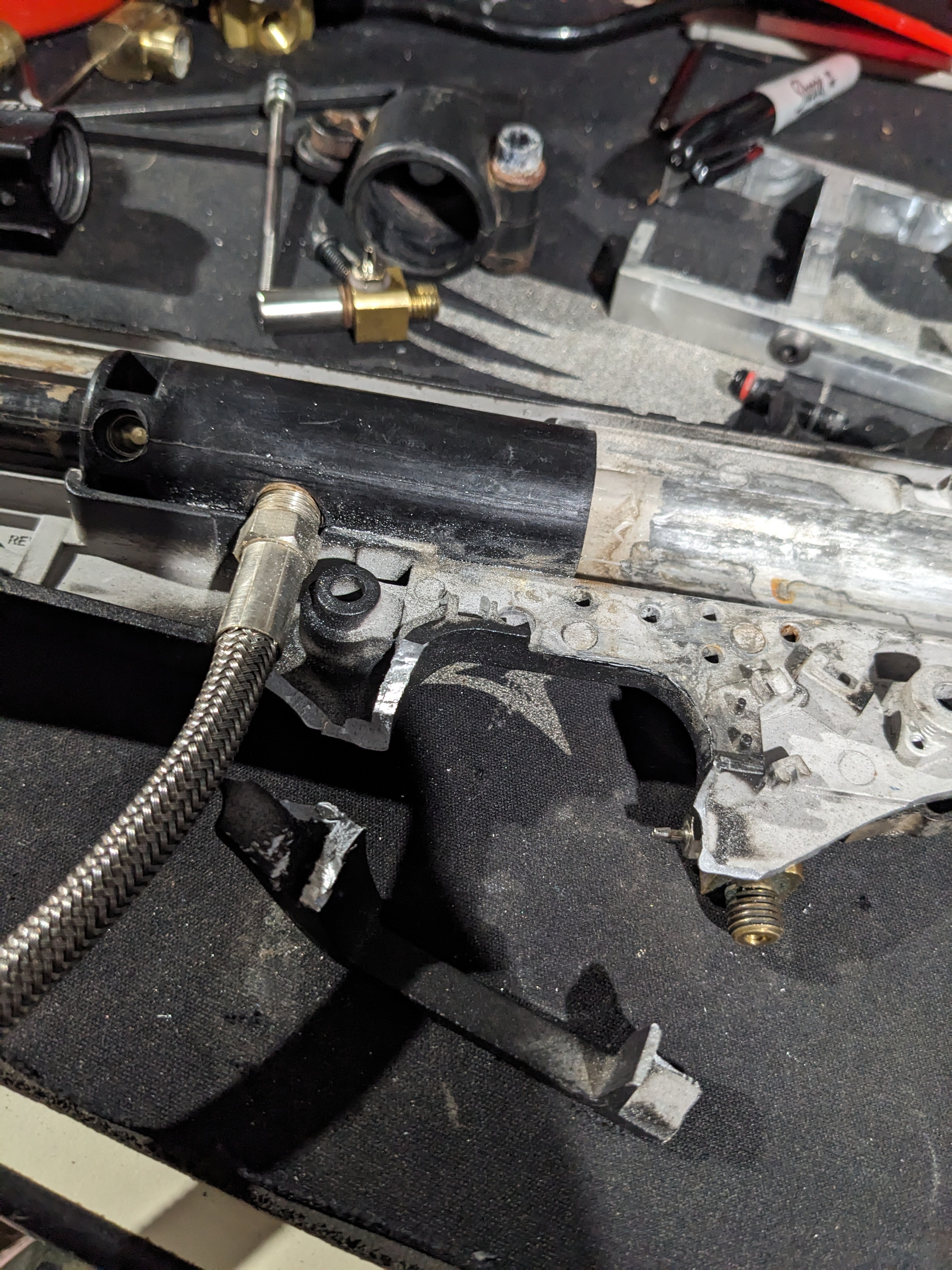

        Welp.... I broke one. Badly.

        Tried to cut a bit aggressively and broke a body
        Attached Files

        Comment


        • Spider!

          Spider!

          commented
          Editing a comment
          Maybe put it in the middle with a squeeze-grip trigger?

        • Ecapnation

          Ecapnation

          commented
          Editing a comment
          Nope.... It got cut in half and tossed. It won't work broken

        #8

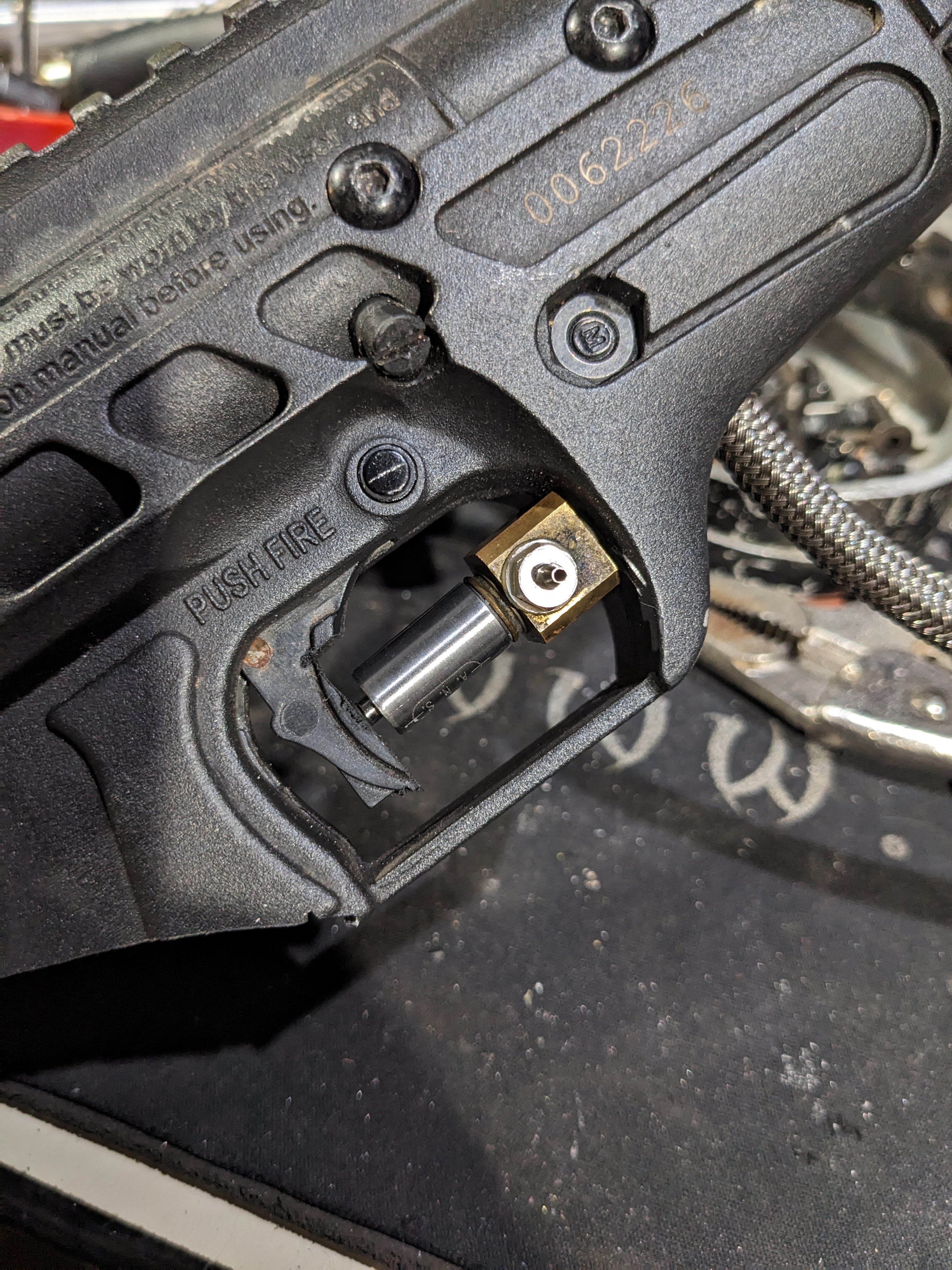

        Recovered from last week with and extra free body half.

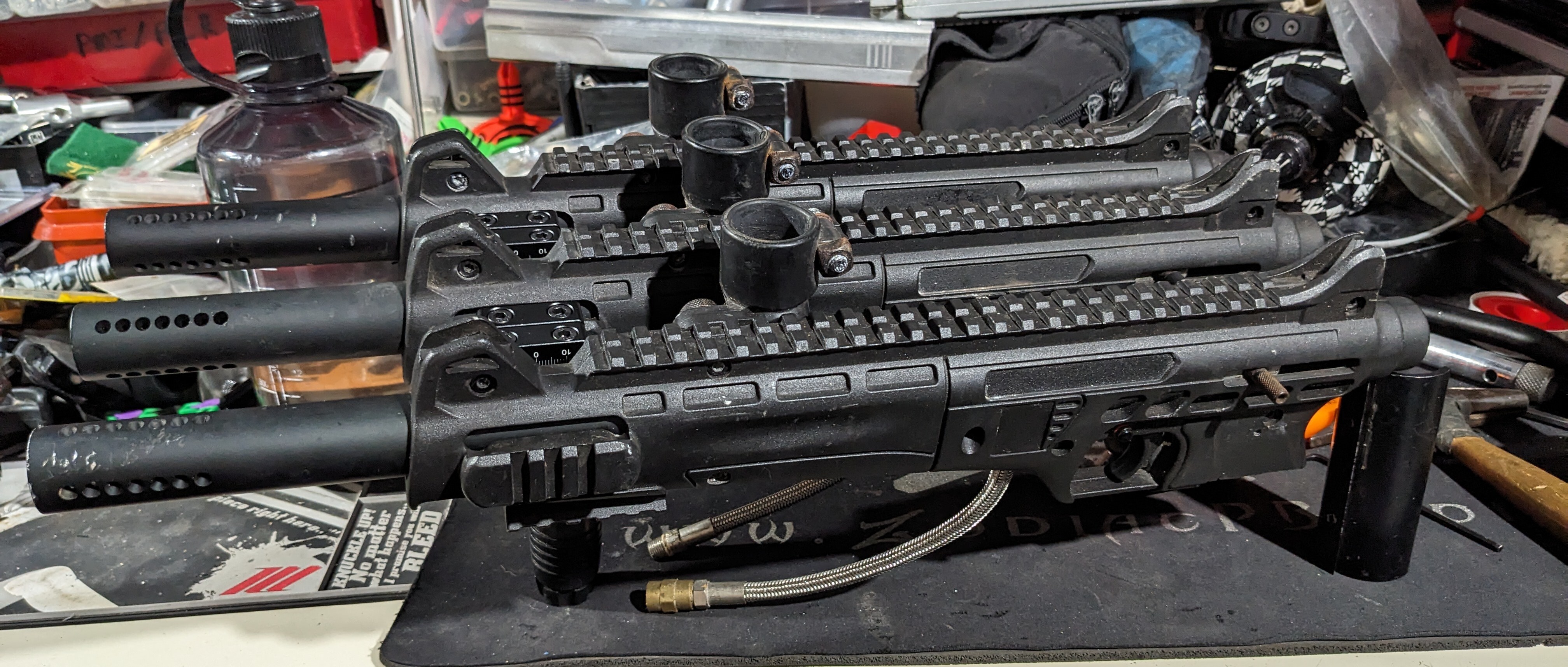

        One third is all fixed up shooting and has the piston mounted!
        Attached Files

        Comment


          #9

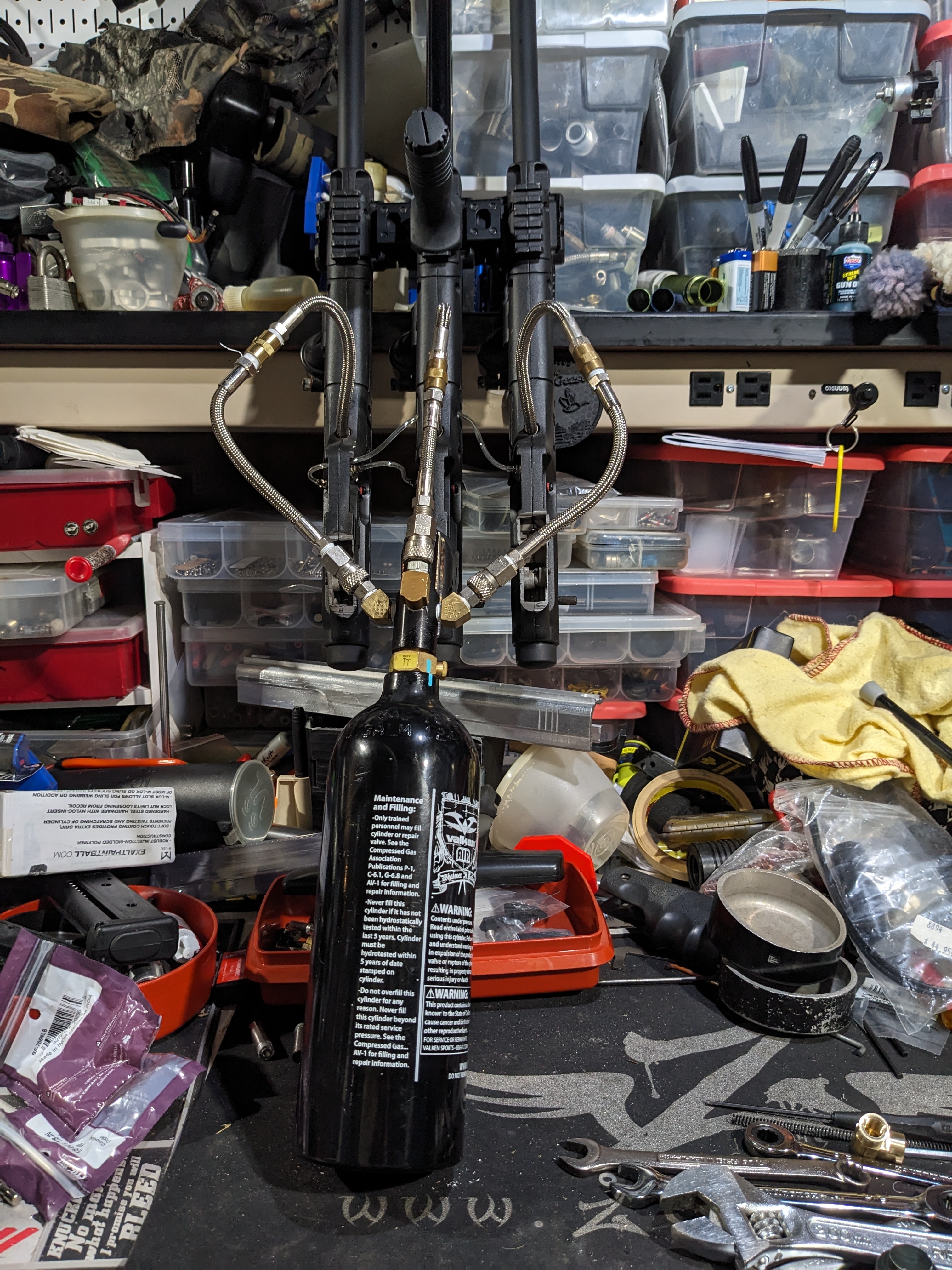

          Oh she's coming together nicely...

          Only thing left is sorting out plumbing this thing. I left the stock braided line on because I'm not resealing the valve for the third time on one of them.

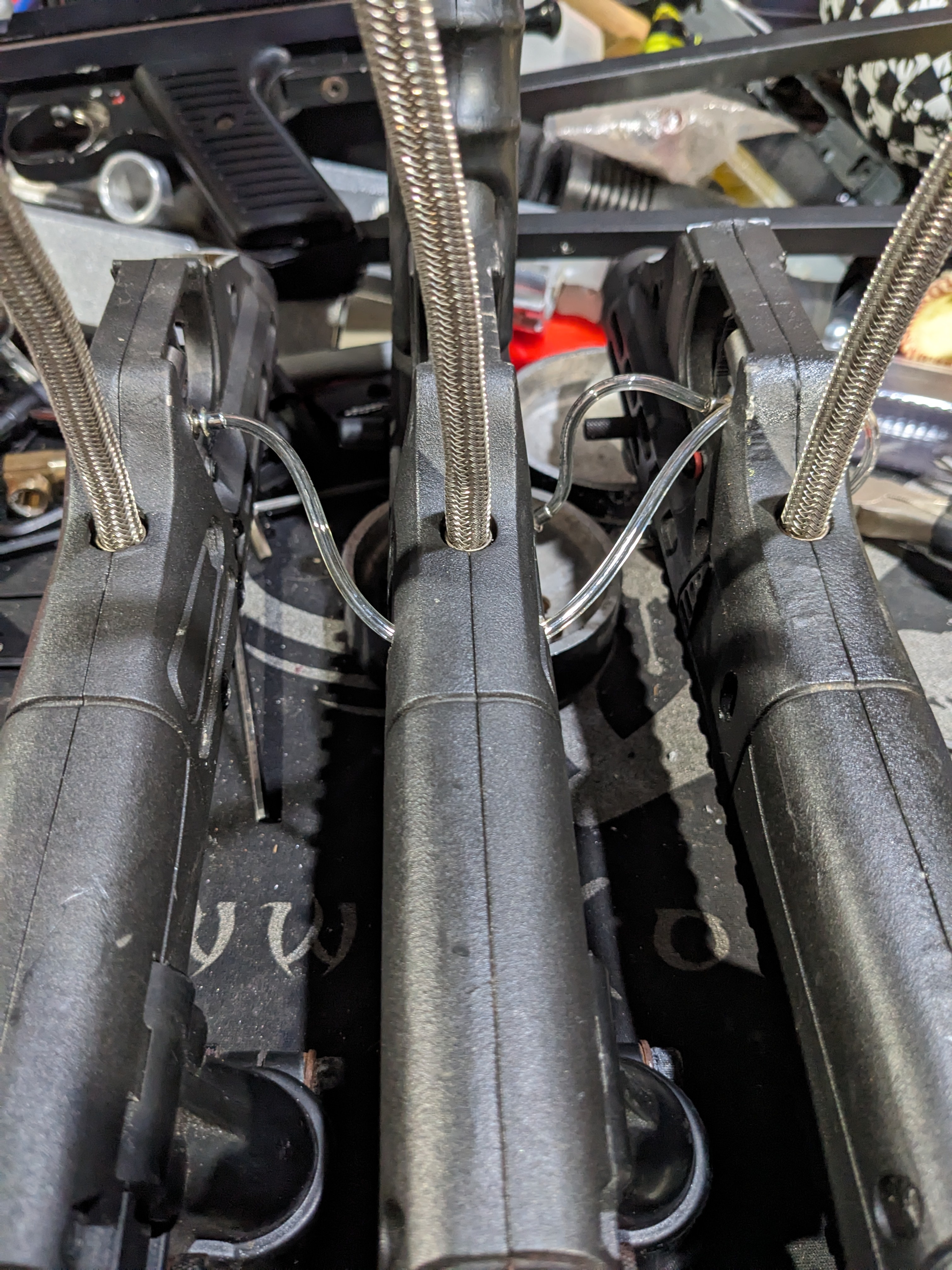

          You can see the pneumatic routing of center shoots right rights shoots left. I decided to keep it clean by drilling through the center guns body
          Attached Files

          Comment


            #10
            This is so ridiculous I love it. I really want to see a video.

            Is there a slight delay for each one to fire?

            Sent from my motorola edge 5G UW (2021) using Tapatalk

            I use Tapatalk which does NOT display comments. If you want me to see it, make it a post not a comment.

            Feedback
            https://www.mcarterbrown.com/forum/b...323-s-feedback

            Comment


              #11
              Originally posted by Trbo323 View Post
              This is so ridiculous I love it. I really want to see a video.

              Is there a slight delay for each one to fire?

              Sent from my motorola edge 5G UW (2021) using Tapatalk
              In my previous over unders there was a slight delay that was more audible than visual. It was very barky.

              This is slightly uncharted waters for me as I never did a linked triple. The idea with the firing order was if the center gun clears the bunker than the rights already out.... I guess if I reversed it with the right firing last it would be like a fading sneaky shot.

              there will be video once I get it totally together and running.

              ​​​​​

              Comment


              • BrickHaus

                BrickHaus

                commented
                Editing a comment
                Perfect the 3 ball snap with your shot sequence. Over expose, shoot, 1,2,3 as you tuck back in.

                Id also love to see a tiny solenoid block with a custom board to fire many different modes. 1,2,3,3,2,1,1,2,3 would be fun too.

              #12
              Yes.... Yessss good.

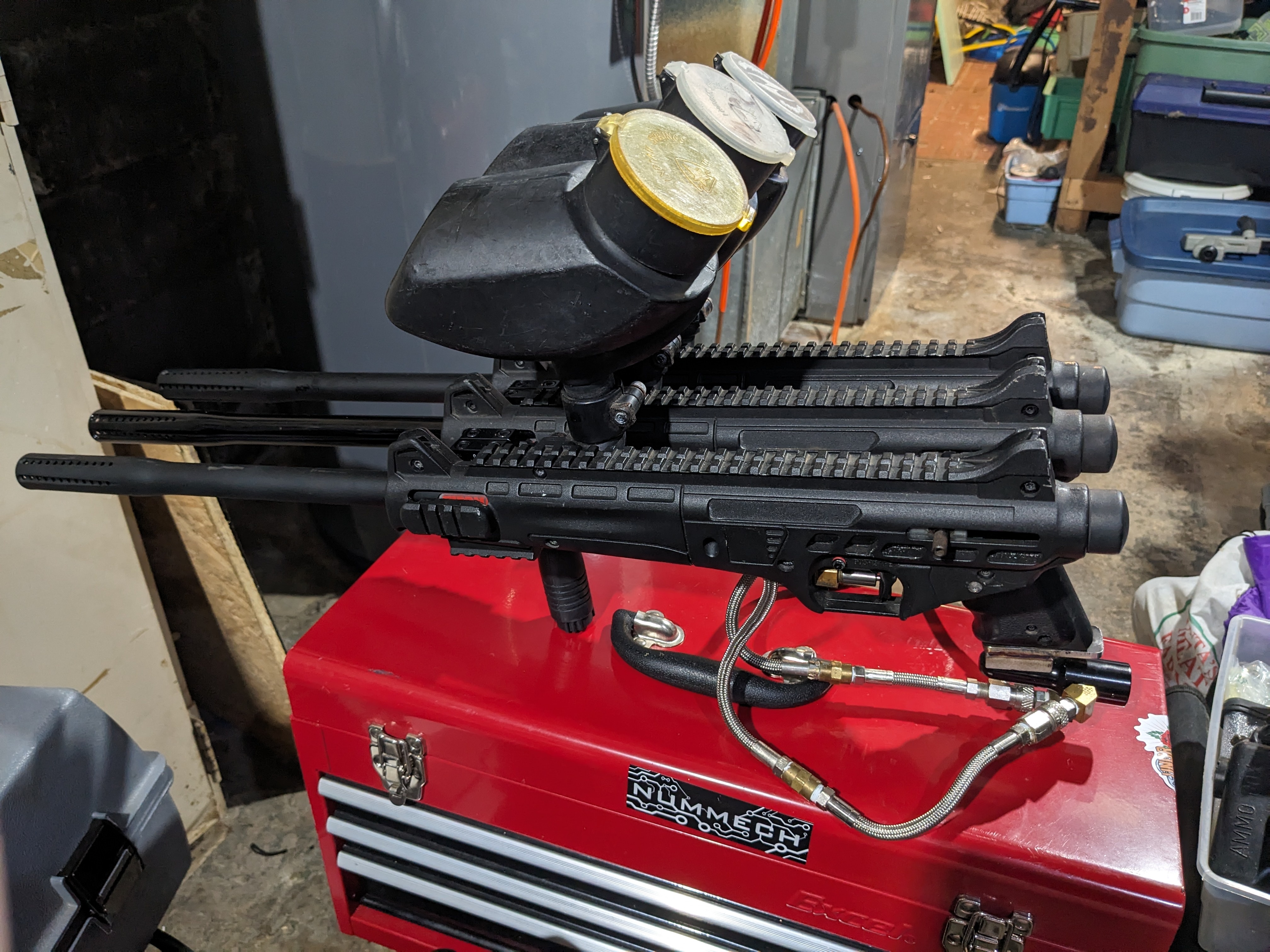

              It works and the delay is such that the thing sounds like it's running out of air.

              It's somehow both heavy and comfortable to shoot.

              Attached Files

              Comment


              • BrickHaus

                BrickHaus

                commented
                Editing a comment
                Alright, Ill get back to mine now... nice shit here. Maybe angle the 2 outside ones back in to center a hair to tighten up the grouping? Hehe.

              • Ecapnation

                Ecapnation

                commented
                Editing a comment
                If I didn't just sell my adjustable Tiberius risers that would be fun to mount them on

              #13
              This is fantastic. Video is a must. Are you going to paint it or anything?
              I use Tapatalk which does NOT display comments. If you want me to see it, make it a post not a comment.

              Feedback
              https://www.mcarterbrown.com/forum/b...323-s-feedback

              Comment


              • Ecapnation

                Ecapnation

                commented
                Editing a comment
                End of the month I'll.have full vids

              #14
              Ok... Now we're done.

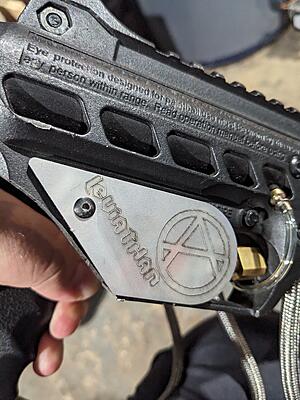

              Bribed my night shift laser guy with dinner with the last $20 I had and had him cut and engrave some side plates

              Comment


                #15
                Oh she's scary.....
