I am not finding the owners manual for my Radio Shack Discovery 3 metal detector. I am certain in is in the misplaced box along with the spare head.

I am not finding a manual for free download or viewing online. My Google-Fu is known to be weak. Perhaps one of you who have mastered the ways of search engines can find a PDFsource for me?

A search indicates that the full name may be: RadioShack Discovery 3 Metal Detector 630-3008

Any help is greatly appreciated.

ADDENDUM: I found a sight with the text of the manual, but no photos. Better than nothing, but still hopeful of a PDF of the actual manual. https://www.findmall.com/threads/que...dave-j.175658/

un2xs

[Sneak Miester]

Is this not it

https://m.media-amazon.com/images/I/A1RtWjYan3S.pdf

[un2xs]

Sadly, no. The Discovery 3 is apparently a predecessor to the Discovery 3300. If it helps, mine was originally purchased about 1996.

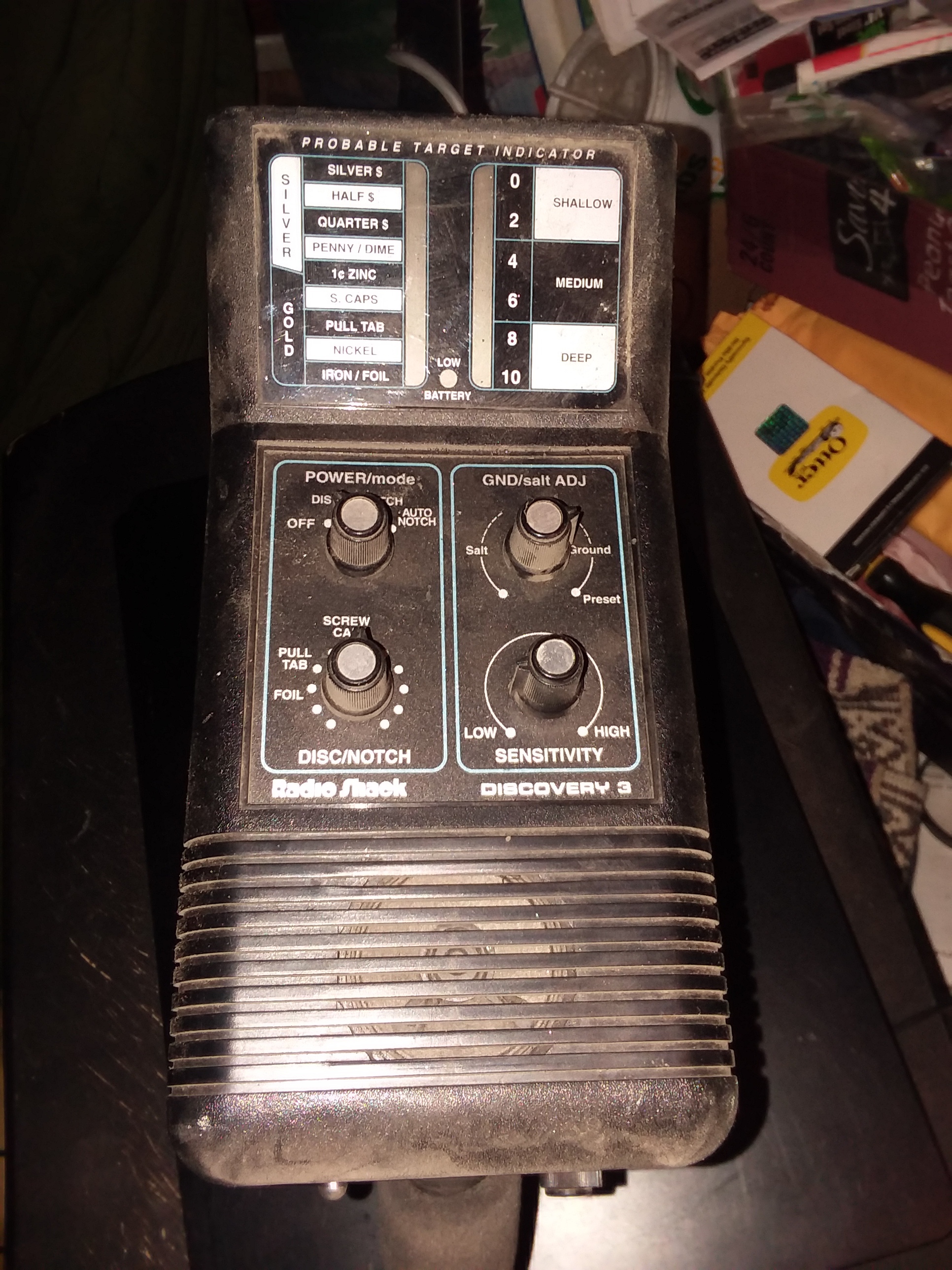

Here is what mine looks like:

[Sneak Miester]

Here is the manual:

Discovery 3 Metal Detector
(630-300 Specifications Faxback Doc. # 32363

Weight: .................................................. ......... 3 lbs.

Power Requirement: ..................................... Two 9 V Batteries

Search Coil Size: ............................................ 7.25 Inches

Operating Frequency: ..................................... 6.6 kHz +/- 10%

Specifications are typical; individual units might vary. Specifications are
subject to change and improvement without notice.



Discovery3 Metal Detector
(630-300 Features Faxback Doc. # 17722

Your Radio Shack Discovery3 Metal Detector is designed for versatility in
all areas of metal detecting and treasure hunting. The Discovery3 lets you
identify and locate precious metals with pinpoint accuracy. It can
distinguish between different types of metals and "tune out" the ones you
don't want to search for. You can use it to hunt for coins, relics,
jewelry, silver or gold, just about anywhere-even near the ocean!

The Discovery3's features include:

Dual LCD Displays - displays the type of metal being
detected and the depth reading at
the same time.

Ultra Slow Sweep VLF Discrimination - distinguishes between different
metals efficiently, even when the
detector is swung at slow speeds.

Three Tone Audio Discrimination - sounds distinctive tones for
different categories of metal
objects to make target
identification easier.

Notch and Auto Notch - let you distinguish between junk
and valuable metal objects, and
automatically reject junk targets.

OPTIONAL ACCESSORY

The best coil to use depends on where and what you will be targeting when
you are in the field. If you are looking for deeply-buried objects, a
medium sized coil, such as the standard coil that came with your detector,
is more efficient. If you are looking for tiny objects and coin-sized
objects that are not buried too deeply, a 4-inch coil might work better.

The Discovery 4-Inch Coil System (Radio Shack Cat. No 63-3009) is highly
sensitive and offers superior performance when hunting for small objects
(such as gold nuggets or small pieces of jewelry), or in mineralized or
highly trashed areas.

Because of its smaller size, the 4-inch coil has a narrower detection field
and is less susceptible to interference from trash items. This makes it
better able to isolate precious metals in trashy areas.


(JC/all-11/02/95)

Discovery3 Metal Detector
(630-300 Assembly Faxback Doc. # 17723

Assembling your Discovery3 Metal Detector is easy and requires no special
tools. Just follow these steps:

1. Using the supplied bolt and nut with knobs, attach the searchcoil to
the lower stem.

2. Press the button on the upper end of the lower stem and slide the
lower stem into the upper stem.

Adjust the stem to a length that lets you maintain a comfortable
upright posture, with your arm relaxed at your side and the searchcoil
level to, and about 1/2 to 2 inches above the ground.

3. Wind the searchcoil cable around the stem. Leave enough slack in the
cable to let you adjust the coil when you are hunting on uneven
ground. Then tighten the knob at the end of the searchcoil.

NOTE: To adjust the coil, simply loosen the knob.

4. Insert the coil's plug into the matching connector on the control
housing. Be sure the holes and pins line up correctly.

CAUTIONS: Do not force the plug or you might damage it.

To disconnect the cable, pull out the plug. Do not pull on
the cable.

INSTALLING THE BATTERIES

Your metal detector requires two 9-volt alkaline batteries, such as Radio
Shack Cat. No. 23-553.

Follow these steps to install the batteries.

1. Press the battery compartment covers in the direction of the arrows.

2. Snap one battery onto each of the terminals, and place the batteries
inside the compartments.

3. Replace the compartment covers.

CAUTION: Only use fresh batteries of the required size and type.

NOTES: The low battery indicator lights briefly when you turn on
power, so you know the detector is working properly and the
batteries are good.

If the low battery indicator stays on continuously, replace the
batteries.

Many metal detector problems are caused by weak, dead, or
improperly connected batteries. If the detector does not come
on, has weak volume, will not tune properly, has erratic
operation, or drifts, replace the batteries.

You can extend battery life by using headphones.

Remove the batteries if you do not plan to use the detector for
a week or more.

USING HEADPHONES

Using headphones (not supplied) with your metal detector makes it easier to
identify subtle changes in the threshold levels for better detection
results, and also reduces drain on the batteries.

The detector has a stereo headphone jack. For the best sound, use stereo
headphones (such as Cat. No. 33-1029 or 33-1125).

To connect headphones, insert the headphones' 1/4-inch plug into the
headphone jack on the side of the detector's control housing.

Listening Safely

To protect your hearing, follow these guidelines when you use headphones.

Set the volume to the lowest setting before you begin listening.
After you begin listening, adjust the volume to a comfortable level.

Do not listen at extremely high volume levels. Extended high-volume
listening can lead to permanent hearing loss.

Once you set the volume, do not increase it. Over time, your ears
adapt to the volume level, so a volume level that does not cause
discomfort might still damage your hearing.

Traffic Safety

Do not wear headphones while operating your detector in traffic areas. This
can create a traffic hazard and is illegal in some areas.

Even though some headphones are designed to let you hear some outside
sounds when listening at normal volume levels, they still present a traffic
hazard.


(JC/all-11/02/95)
Discovery3 Metal Detector
(630-300 Operation Faxback Doc. # 17724

Once your metal detector is assembled, it's time to learn how to use it.
Please read this section thoroughly before you use your Discovery3.

TURNING ON YOUR DETECTOR

Hold the detector in a comfortable position and turn it on by rotating
POWER/mode to DISC, NOTCH, or AUTO NOTCH. The detector sounds three beeps.

SETTING THE MODE

Your Discovery3 has two operating modes: ALL METAL and DISC
(discriminating).

In the ALL METAL mode, the detector sounds a tone for as long as the target
is under the searchcoil. For ALL METAL tuning, push the toggle switch to
TUNE, then release it to the center position.

In the DISC mode, the detector must be in motion to accurately detect an
item, and you can set it to reject iron and various levels of junk item.
For fine tuning, set the toggle switch to DISC (discriminate).

If you set the toggle switch to DISC, use POWER/mode to select the search
mode (DISC, NOTCH, or AUTO NOTCH). See "Fine Tuning" for instructions about
how to use the discriminate mode.

READING THE DISPLAY

The LCD display is located at the top of the control housing. The display
shows a probable identification of the object (on the target ID meter), as
well as its approximate depth (on the depth meter).

The target ID meter displays various coins and metal objects, and a range
from SILVER to GOLD. When the detector senses a target, <--- appears next
to the name of a coin or metal object to show you the type of object it
thinks it is detecting.

NOTE: When the arrow points to a coin, the detector could be sensing
either a coin or another type of metal (such as jewelry, tokens,
medals, or even junk metal).

The depth meter shows about how deep the object is. The window shows
numbers representing inches (from 0 to 10). Two arrows on the display point
to numbers to show a range of possible depths (SHALLOW, MEDIUM, or DEEP).
When the arrows point to 0 and 4, for example, this means the target is 4
inches or less below the surface.

NOTES: Sometimes only one arrow appears to indicate depth.

The depth meter is more effective at detecting small objects than
larger ones.

SWEEPING

Hold the detector in a position that is comfortable for you, as close to
the ground as possible without touching the ground. Sweep from side to side
in about a three-foot arc, at a pace that doesn't wear you out.

Sweep in a slightly overlapping pattern. The search signal peaks as you
pass a target's center.

Try to keep the searchcoil parallel to the ground at all times and avoid
lifting the coil off the ground at the end of each swing.

When you use the detector, some false signals can occur at the end of your
swing. The detector is most susceptible to "ghost" noise when the coil
reverses direction. "Ghost" signals do not repeat as you swing the
searchcoil over the suspected target several times; true target responses
repeat.

Very large (or many closely spaced) junk targets can also cause the
detector to emit "ghost" sounds. Generally these signals sound chopped and
do not repeat, and you can learn to recognize them.

In the ALL METAL mode, if the response is weak, it might be a good deep
target, but if it is very strong, the target is probably junk. When in
doubt, DIG. If you don't dig at all, you are surely passing up some good
finds!

HINTS: Hitting the ground or rocks can cause a false signal similar to the
sound of detecting a target.

If you sweep the coil too high above the ground, you will only be
able to detect targets near the surface.

If you receive a signal and you cannot determine the target, you
might have detected a combination of targets.

THREE TONE AUDIO TARGET IDENTIFICATION (ATI)

When the Discovery3 is in the discrimination (DISC) mode (with the toggle
switch to the left), its Audio Target Identification (ATI) system
automatically classifies metal objects into three categories, to make it
easier to identify your target.

The detector sounds three different tones to distinguish between categories
of detected items: a low tone for small gold and nickel; a medium tone for
most old and new pull tabs and some gold; and a high tone for copper,
silver, and brass.

NOTES: In the DISC mode, the detector does not sound a tone for iron and
steel.

The detector must be in motion to make a detection in the DISC
mode.

ADJUSTING GROUND AND SALTWATER BALANCE

In the ALL METAL mode (with the toggle switch in the center position), the
detector senses any metal, ferrous ( containing iron) or nonferrous.

When you use this mode, you must set GND/salt ADJ to distinguish between
elements commonly found in the ground and metal objects, and to balance the
effects of saltwater when you search near the ocean.

NOTE: If there is metal on or under the ground where you perform this
adjustment, you cannot tell whether any tones you hear are caused by
the metal or by elements in the ground (or salt in the water).
Before you start, be sure there is no metal visible on the ground.
If you think there might be metal under the ground, move to another
spot and proceed.

1. Begin with GND/salt ADJ adjusted toward Salt (if you are searching near
saltwater) or Preset (if you are searching elsewhere), and lift the
searchcoil about waist high in the air.

2. Push the toggle switch toward TUNE and release. The switch springs back
to the middle position.

3. Lower the searchcoil to about one inch above the ground. If the
detector emits a tone, lift the searchcoil waist high in the air and
try again.

4. Turn GND/salt ADJ counterclockwise slightly, about an eighth of a
turn. Push the toggle switch toward TUNE and release again. Then lower
the searchcoil as described in Step 3. If the detector still emits a
tone, repeat this procedure.

When the detector no longer emits a tone when you lower the searchcoil
to the ground, it is properly ground balanced for that area.

IMPORTANT: To assure you achieve an optimum threshold level when adjusting
GND/salt ADJ, turn it in small increments. If you think you've
turned GND/salt ADJ too far counterclockwise, turn it clockwise
until the detector emits a tone, then turn it counterclockwise
slightly until the detector no longer emits a tone.


(JC/-11/02/95)
Discovery3 Metal Detector
(630-300 Fine Tuning Faxback Doc. # 17727

Once you become familiar with how your metal detector works, you can fine
turn it to make it less sensitive to interference and more selective in
what it finds. For example, you can make it tune out undesirable objects
and tune in precious metals, such as having it distinguish between iron and
gold.

ADJUSTING SENSITIVITY

Use SENSITIVITY to adjust the detector's sensitivity to conditions that can
cause it to respond erratically. For example, broadcasting antennas and
power lines can cause false signals.

Although SENSITIVITY does not affect the detector's sensitivity when the
toggle switch is set to ALL METAL, the target ID and depth readings might
be erratic if the sensitivity is set too high when the toggle switch is set
to DISC.

Rotate SENSITIVITY clockwise to increase, or counterclockwise to decrease
the detector's sensitivity. Always set SENSITIVITY as high as possible
while minimizing "ghost" signals.

ADJUSTING DISC/NOTCH

You can set DISC/NOTCH so the detector distinguishes between junk and
valuable metal objects, and only detects the types of objects that you want
to search for.

Using DISC

With POWER/mode set to DISC and the toggle switch in the left (DISC)
position, the control functions as a standard variable discriminator. As
you rotate DISC/NOTCH clockwise from its full counterclockwise position, it
rejects iron, foil, nickels, pull tabs, and screw caps (in that order).

Using NOTCH

When you set POWER/mode to NOTCH with the toggle switch in the left (DISC)
position, DISC/NOTCH functions as a variable notch rejection window. Then
you can adjust DISC/NOTCH to reject (or "notch out") selected types of pull
tabs or other trash.

For example, many types of gold rings are rejected along with nickels, but
you can eliminate some pull tabs without rejecting nickels.

NOTE: Some pull tabs or tab pieces cannot be distinguished from nickels
and gold rings.

To set the DISC/NOTCH position, use a pull tab or other object of the type
you want to reject.

1. Adjust DISC/NOTCH to FOIL.

2. Slowly turn DISC/NOTCH clockwise until the detector emits no sound.

NOTE: Check a nickel to be sure the Discovery3 still detects it.

With DISC/NOTCH properly adjusted, the Discovery3 detects nickels while
rejecting pull tabs.

Using AUTO NOTCH

With the toggle switch in the left (DISC) position and POWER/mode set to
AUTO NOTCH, the detector rejects most trash items and emits a low tone (for
gold and nickel) or a high tone (for copper, silver, and brass).

Expect some targets to be junk items, even if the detector emits a tone.
Besides nickel, other items that might emit a low tone include foil, some
pull tabs, and small gold rings. Besides copper and silver, other items
that might emit a high tone include brass and medals.

You can use DISC/NOTCH to widen the spectrum of discrimination. For
example, as you turn DISC/NOTCH clockwise, the detector rejects zinc
pennies.


(JC/all-11/02/95)
Discovery3 Metal Detector
(630-300 Care and Maintenance Faxback Doc. # 17726

Your Discovery3 Metal Detector is an example of superior design and
craftsmanship. The following suggestions will help you care for your metal
detector so you can enjoy it for years.

Handle the metal detector gently and carefully. Dropping it can damage
circuit boards and cases and can cause the metal detector to work
improperly.

Use and store the metal detector only in normal temperature
environments. Temperature extremes can shorten the life of electronic
devices and distort or melt plastic parts.

Wipe the metal detector with a damp cloth occasionally to keep it
looking new. Do not use harsh chemicals, cleaning solvents, or strong
detergents to clean the metal detector.

The coil is waterproof and can be submerged in either fresh or saltwater.
Be careful to prevent water from entering the chassis. After using the coil
in saltwater, rinse it (the coil) with fresh water to prevent corrosion of
the metal parts.

Modifying or tampering with the detector's internal components can cause a
malfunction and might invalidate your detector's warranty. If your detector
is not performing as it should, take it to your local Radio Shack store for
assistance.


(JC/all-11/02/95)
630-3008 LCD PRO METAL DETECTOR Faxback Doc. # 25575

To order parts call 1-800-843-7422 or visit your local RadioShack store.

Reference # Cat.No. Description NP Part #
------------------------------------------------------------------------
915-855-4206 AA0000X
11455466 LOWER PANEL DB1782
10641918 TAPE G0046
11455748 INSERT HL0288
11455771 3-THUMBSCREWS/1-BOLT HW6303008
11455813 HOUSING J1357
11455821 ATTACHMENT J1369
11455920 KNOBS,CONTROL K4921
11455953 CONNECTORS L0556
11456019 ISOLATOR MB0368
11885720 LOWER STEM MB90008
D318 11452786 MANUAL USERS PHOTO COPY MU6303008
11452786 WARRANTY IS CORRECT MU6303008
11456324 OF CONTROL HOUSING P1614
11456332 CONTROL HOUSING P1615
11456423 DISC/NOTCH/AUTO NOTCH S0802
11456431 SWITCH,MODE TOGGLE S0803
11572708 SPEAKER,2" 8 OHM SP0308
STOCKED XB0000X
11456738 UPPER CASE WITH LABEL Z5393
11456746 INSERTS AND LABELS Z5397
11456753 WITH MALE PLUG & LABEL Z5416

(This list was generated on 07/08/2005)

[Sneak Miester]

Did it come in a blue box
dang that the same web site you posted, sorry dude

https://www.findmall.com/threads/question-for-dave-j.175658/
