Springing a mag trigger..

[Ecapnation]

I know it's not needed but I've felt it done one few. Mostly Carter mags. I have my buddies to look at but don't necessarily want to reglue grips if it isn't something simple.

So.....

In theory could I drill the back part of the sear and attach an extension spring down to a notch in the frame?

Yeah yeah hardened sear I have drills that will get through them.

I need the trigger on this to be less sloppy feeling and since I'm already grinding shims figured springing is the next move

[Araphel]

I know it's not needed but I've felt it done one few. Mostly Carter mags. I have my buddies to look at but don't necessarily want to reglue grips if it isn't something simple.

So.....

In theory could I drill the back part of the sear and attach an extension spring down to a notch in the frame?

Yeah yeah hardened sear I have drills that will get through them.

I need the trigger on this to be less sloppy feeling and since I'm already grinding shims figured springing is the next move

Torsion spring around the sear pin or maybe a magnet in the rail/body?

[Trbo323]

The only problem I see is the sear isn't really connected to the trigger so if your problem is trigger slop that may not do anything for it

Sent from my motorola edge 5G UW (2021) using Tapatalk

[Ecapnation]

Yeah it's not but because I have modified the linkage it's pinned to move only one way.... It would give some resistance.

I need something more than the valve for return force strictly for haptic reasons

[scottieb]

Terry from G3 used to add a spring to 'mag triggers.

[Alexndl]

My main Automag have a spring between the sear and one hole in the benchmark frame, will post some picture soon on how it was done. Was already done when I got it and I like the feel so kept it since.

[Alexndl]

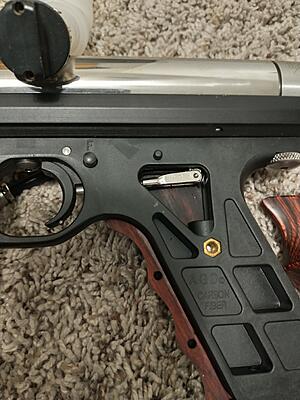

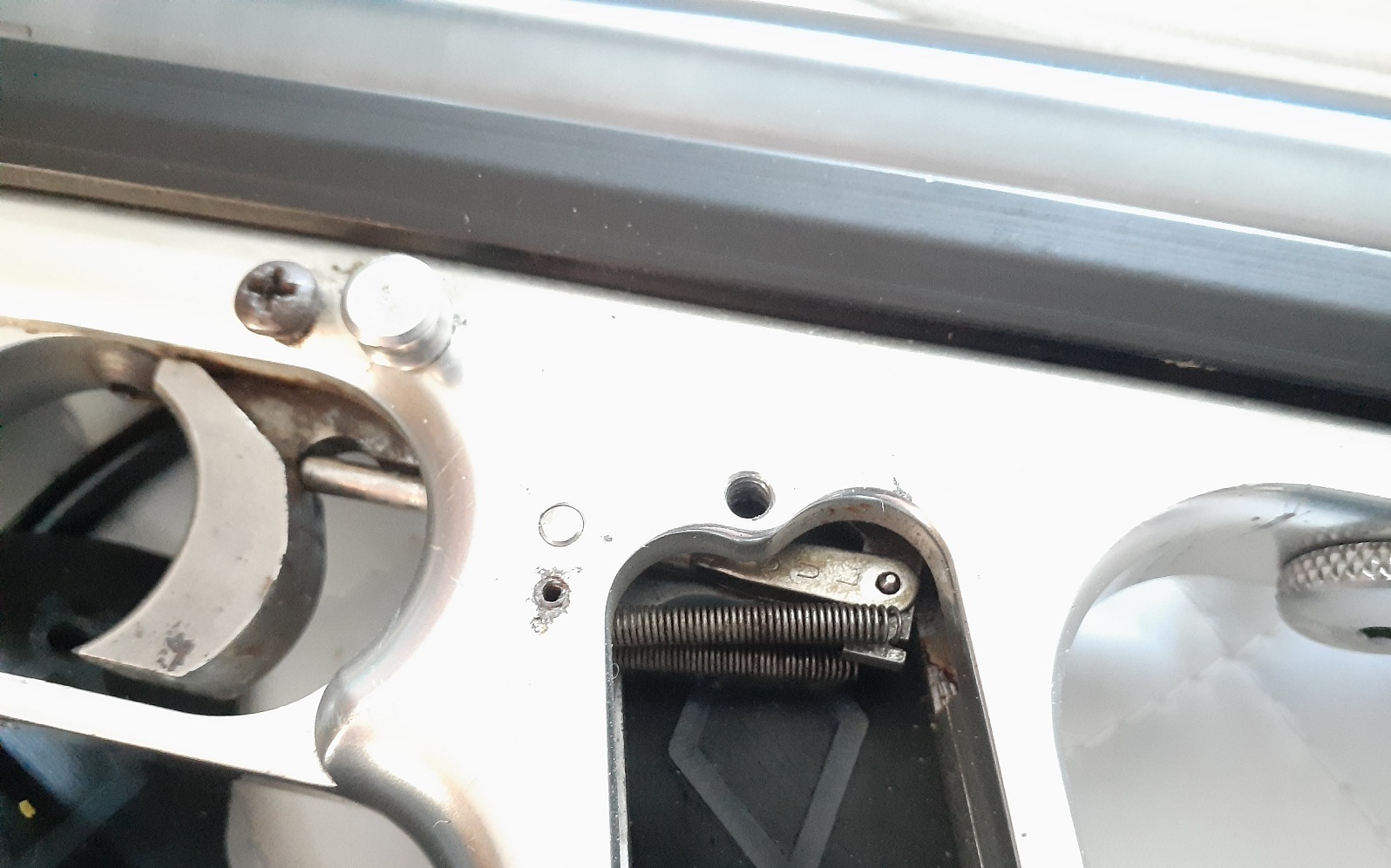

Here is how it was done on my frame
a pin was added to secure one side of the spring. No hole was drilled in the sear but there is a small 3/32 section protruding under the sear arm pivot and the spring is hook there.

[Ecapnation]

Dang it... My sear is an inch more forward

[Spider!]

This is a spring on a ult experiment. That might have been an existing pocket. It hasn't moved.
