Recovered from the old digs. Originally posted by Redneck Sniper and credits below for what I could dig out of the src. Add to this as needed.
NOTE: an original, never-scanned version of the CCI Phantom manual is available online at PaintballManuals.com, here:

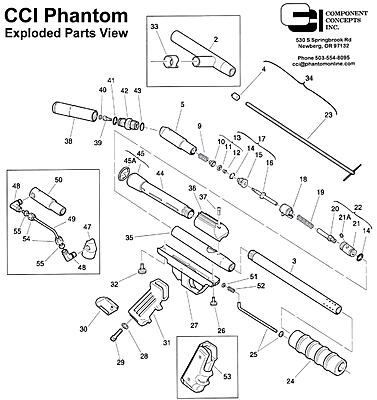

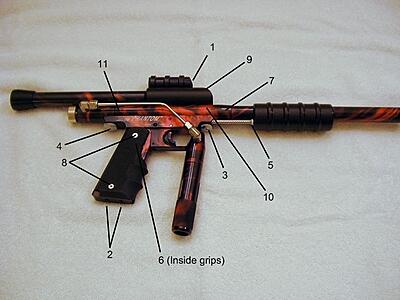

A scan of the official Phantom exploded parts diagram is attached (the highest resolution we've seen thusfar) as well as a photo with legend typed out below.
The exploded parts diagram is keyed to a parts list on CCI's web site, here:
the phantom paintball gun CCI
1.) Ghost rings: 3-56 thread. The posts are available through Mike at CCI. Also you use certain hiviz sites to replace these posts such as: Cabela's -- HiViz Spark Sight
2.) Bottomline screws: 10/32 and depending on accessories are usually 1/2" to 1" long
3.) Front body screw: 8-32, length will depend on what cocking system you use.
-Stock O/C: 1/2" Thumb screw
-Wevo U/C kit: 5/8"
-OLD Style Rainman U/C kit: 1" BUT you will need to use a small brass nut and a small washer to make sure that it fit properly without going into the breach. The nut it probably 1/8" and the washer is probably 1/16"
-NEW STYLE Rainman Kit: 5/8"
4.) Rear body thumb screw: 10-32 (length?)
5.) The nut for the pump arm: 10-32
6.) Grip frame screw: 1/4"-20 x 3/4" SHCS
7.) Barrel threads: 14 TPI acme stub
8.) Grip screws: 6-32 x 1/4"
9.) Feed tube screw: 8-32 x 5/8"
10.) Nylon set screw inside the bolt: 10-32 x 1/8"
11.) Retainer screws (A.K.A. Valve Seat): 9/16"-20
Vertical ASA Screws: 8-32 x 1/4
Odd Stuff:
Check Valve: 3/16 ball bearing, spring from a ball point pen and buna o-ring -004
Please add your input
Thanks so far to: RedneckSniper, Angelballer, Thisissparta, Timmycuddler, Stilgar, Slinger and Bradys71!
