Anyone have the manual to a Raven Primal?

Collapse
X
Collapse

  • Page of 1
  • Time
  • Show
Clear All
new posts
Previous template Next
  • ChoSanJuan
    I do things... and stuff
    • Jul 2020
    • 797
    • Milwaukee
    #1

    Anyone have the manual to a Raven Primal?

    Either that or how to set the bps on this in semi?
    Fred aka ChoSanJuan
    Team: With Intent
    Paintball parts and 3D Printed items! (Rebuilding and updating for 2025!)
    Tags: None
    • Rolling Thunder 67
      Old Mech Warrior
      • Jul 2020
      • 216
      • Cobourg,Ontario,Canada
      #2
      Question,you running a CAMD board or dips.Retail market shows both. Retail show boards that are compatible to the Spyder EM1/ Raven Primal. The CAMD refers to a Ver 2.0 Spyder Board, which covers a lot of the Spyder line up. You've likely ran down this avenue,but thought i'd at least throw it out there. Good luck.

        Comment

        • ChoSanJuan
          #2.1
          ChoSanJuan commented
          07-31-2021, 11:40 AM
          Editing a comment
          Yeah, I did. It's the CAMD board.
        • pghp8ntballer
          Just a Member
          • Jul 2020
          • 505
          • Pittsburgh
          #3
          I found out using the AMG manual that LCD boards in the various other spyders with LCDs are NOT adjustable in semi only.
          Only the full auto and burst modes allow you to adjust ROF. It wouldn’t surprise me if the primal/em1 boards had the same stupid logic.

          can anyone confirm this in non-LCD boards? It’s been so long since I have tinkered with them.
          My feedback

            Comment

            • ChoSanJuan
              #3.1
              ChoSanJuan commented
              07-31-2021, 11:42 AM
              Editing a comment
              It's the CAMD board. No dip switches. Just the tournament lock jumper. If this doesn't have rof settings on semi, it's so hard to believe that my og em1 red board is "better" then the primal board.
            • scottieb
              Member since 2004
              • Jul 2020
              • 4184
              • Lincoln, Nebraska
              #4

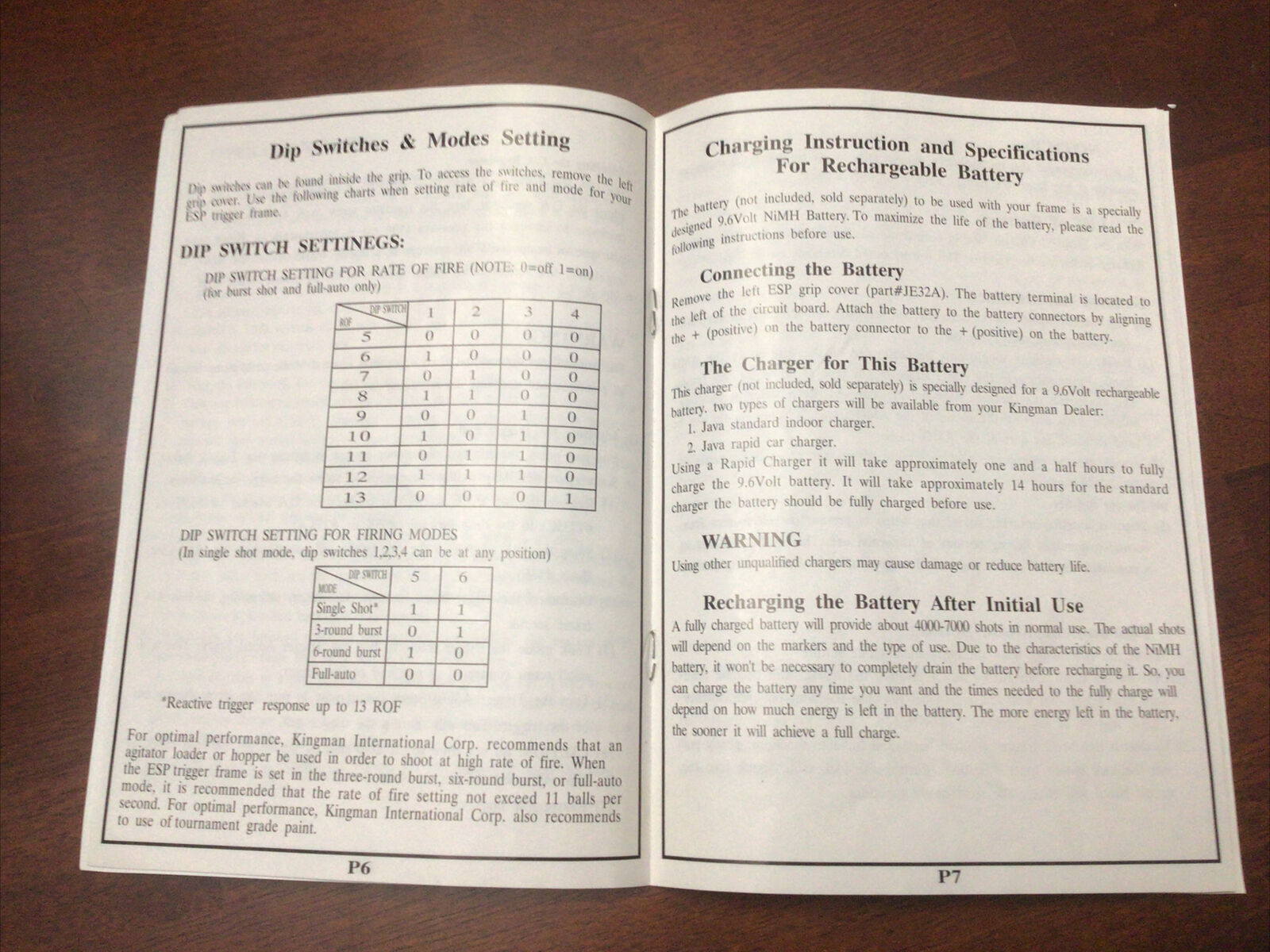

              Here is the settings diagram per the manual for my AMG with the non-LCD board.

              Click image for larger version Name: spyder amg dip switch settings in owners manual.jpg Views: 0 Size: 320.5 KB ID: 156243
              Last edited by scottieb; 07-31-2021, 08:59 AM.
              FEEDBACK - https://www.mcarterbrown.com/forum/b...k-for-scottieb

                Comment

                • ChoSanJuan
                  #4.1
                  ChoSanJuan commented
                  07-31-2021, 11:43 AM
                  Editing a comment
                  Thanks, but no dip switches on my board. 😟
                  • scottieb
                    #4.2
                    scottieb commented
                    07-31-2021, 02:01 PM
                    Editing a comment
                    Oh yes, I'm aware. And I apologize for the hijack. I was posting the pic for Tony. I should have quoted his post. That would have been a more clear way to answer his question.
                  • Rolling Thunder 67
                    Old Mech Warrior
                    • Jul 2020
                    • 216
                    • Cobourg,Ontario,Canada
                    #5
                    Did a quick follow up on a CAMD Ver 2.0 board,(Spyder Pilot ACS) from what i read and understand that you can only adjust ROF within the set parameters of 6-13 using the jumper or tournament lock. without it you stuck in Semi with a max. ROF of 13BPS.

                    Here's the link to the manual i drew my conclusion from.
                    https://manualzz.com/catalog.

                    Doesn't sound like the CAMD board is going to achieve what you would like. Might be able to put a CAMD Ver 3.0 if it has the features your looking for, i haven't wandered too far into electors, but have had to troubleshoot a couple from time to time back in the day.

                      Comment

                      • SpyderManP
                        Older Newbie
                        • Sep 2020
                        • 5
                        • Northeast Pennsylvania
                        #6
                        I know it is an old thread, but here it is in case someone needs it. I made a PDF from the physical manual I have. Enjoy.
                        Attached Files

                          Comment
