PPS Technical Repository

[netsurferdude2]

We should have a sticky thread where all the tech info resides.

I have a few exploded views of PPS guns at home. I will upload them later.




From Tim Firpo:

[Stilgar]

Anyone know the thread/ length of the front frame screw? Mine has gone Awol

[Carp]

Anyone know the thread/ length of the front frame screw? Mine has gone Awol

If you asking about a blazer frame screw...The front and back screws are the same. 😉

[Jordan]

Anyone know the thread/ length of the front frame screw? Mine has gone Awol

Should be 8-32.

[Stilgar]

Tank you

Adding ten characters

[sunfisher89]

Hurricane Exploded View. I don't know who to credit with this image, downloaded from the old MCB long ago.
~edit~ probably should have just looked at the image... proper credit is in the image.

[Carp]

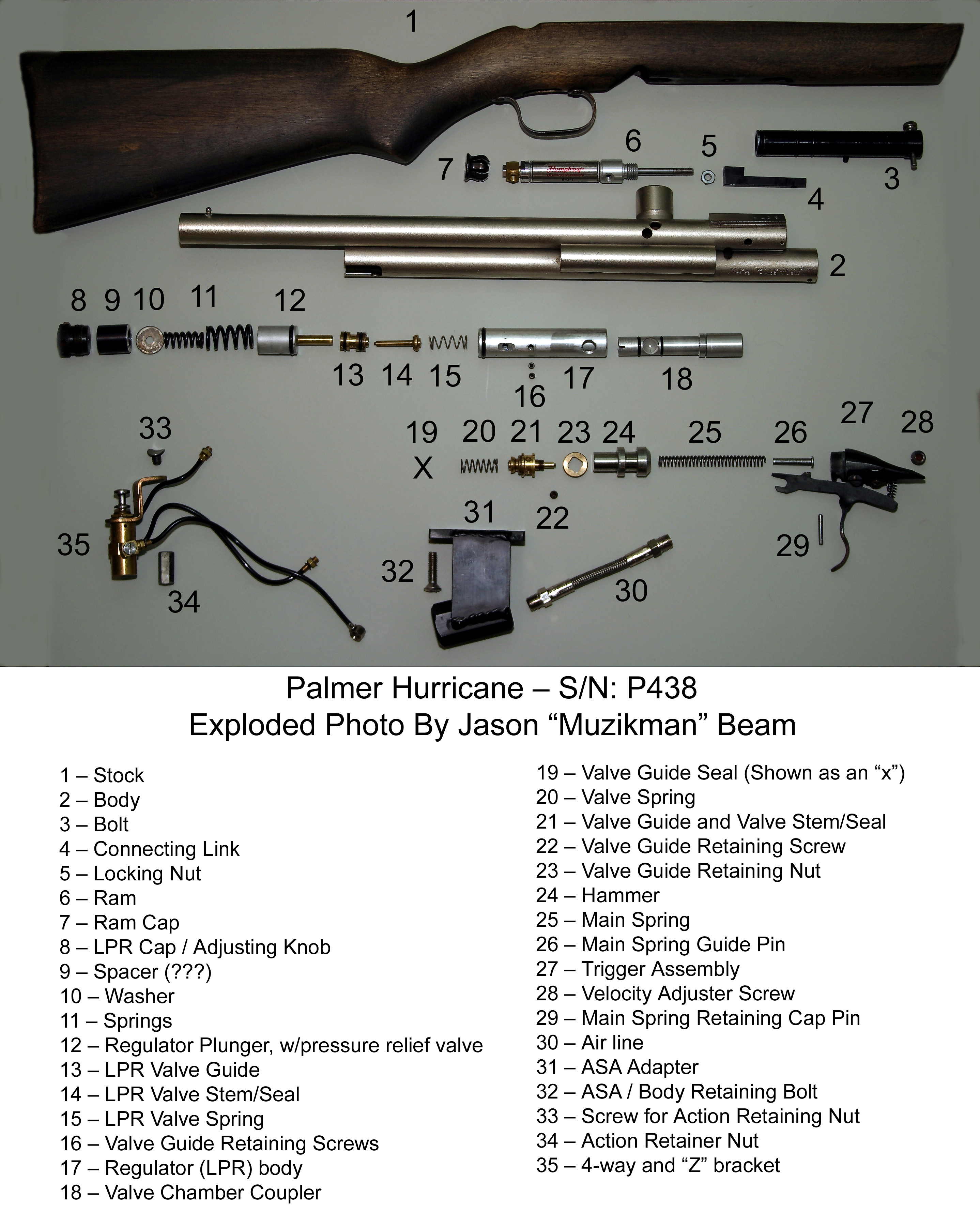

Palmer Hurricane - S/N: P438
Exploded photo by Jason "Muzikman" Beam

😉...👍

[Interl0per]

I've lost my part #22 any idea what size it is?

[Stilgar]

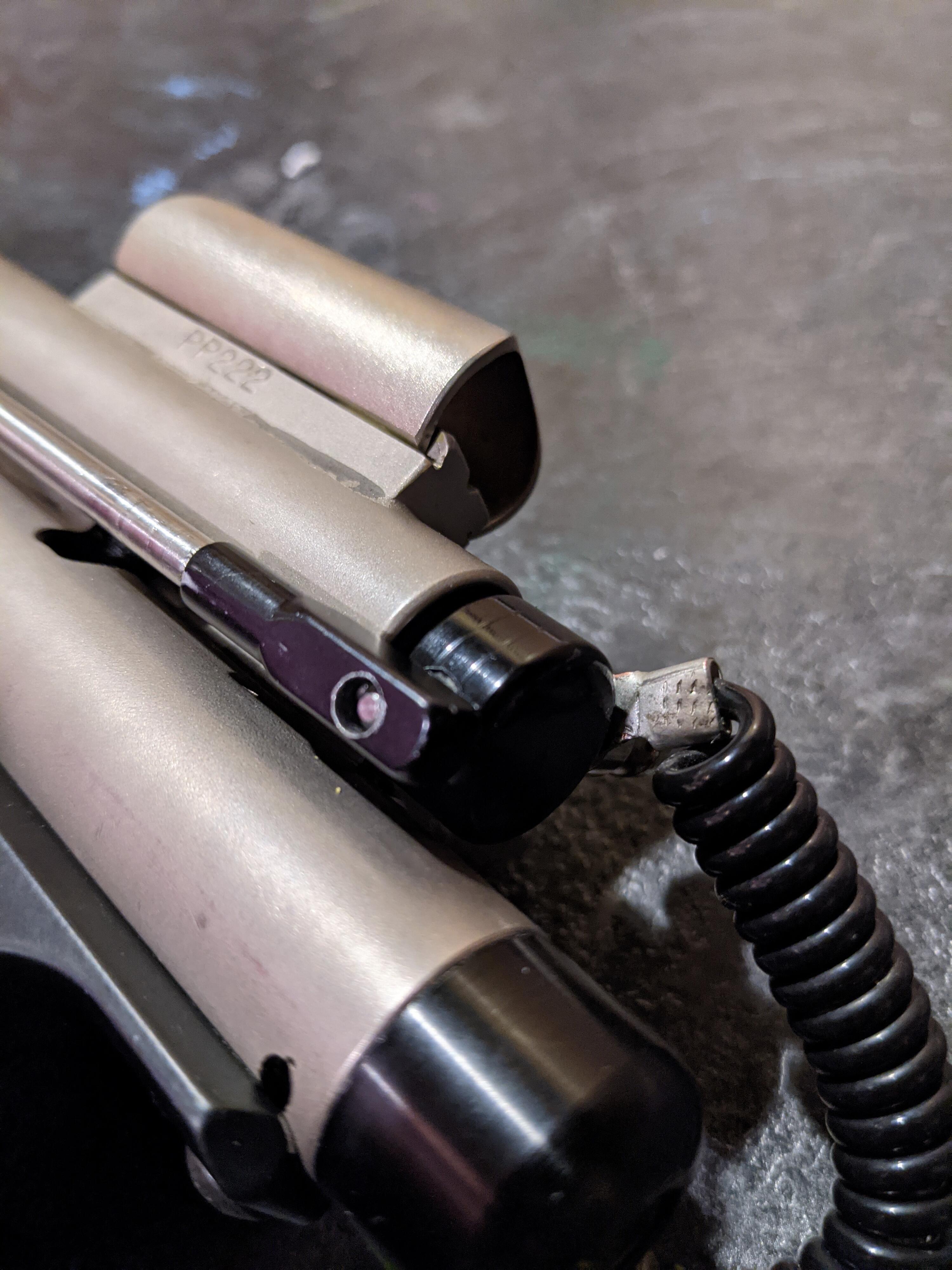

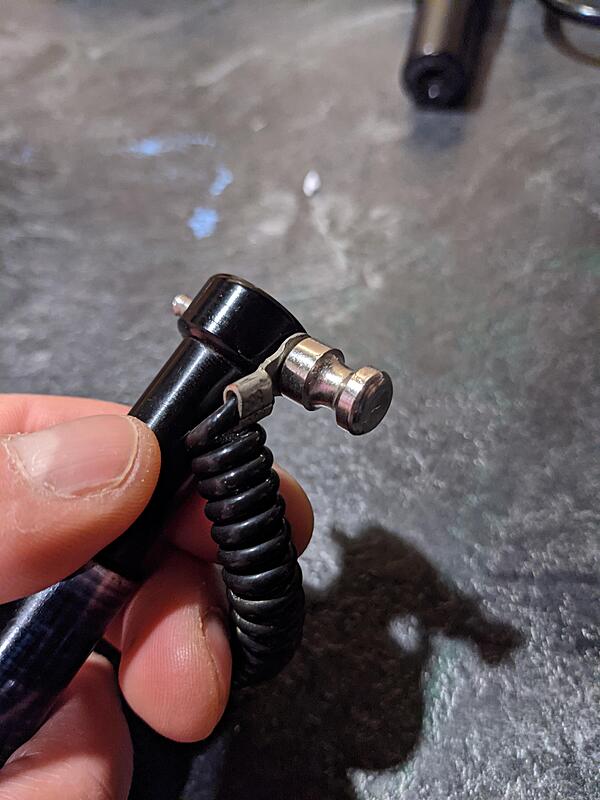

How do I remove the spring loaded pump arm/bolt pin?

The pump arm keeps coming off the pin despite having been tightened down. I believe it is because the feed tube lanyard is getting in the way.

Is there a trick to removing this pin?

[netsurferdude2]

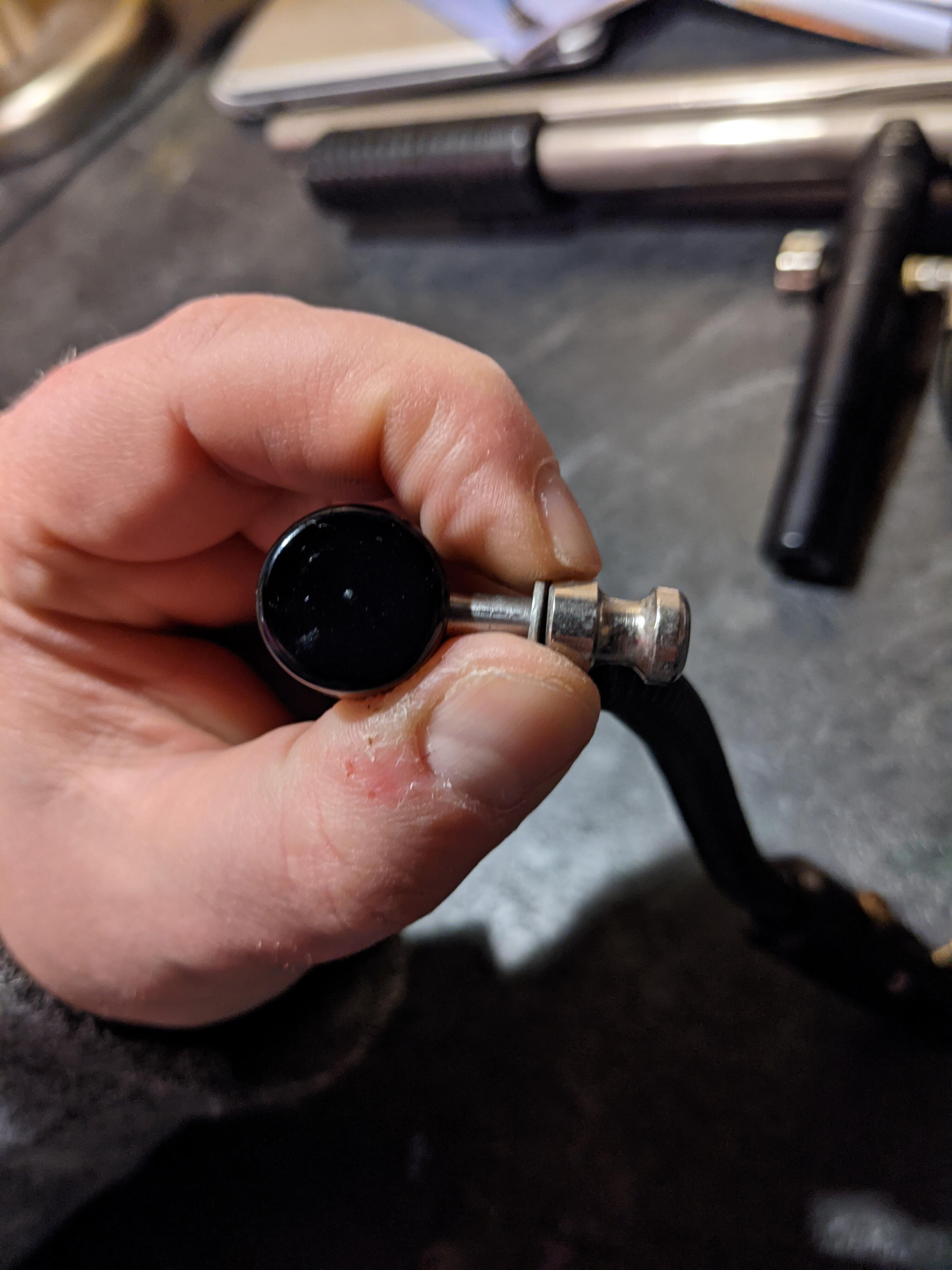

I am pretty sure that the pin is threaded into the knob. Have you tried giving it a little heat?

[Jordan]

I am pretty sure that the pin is threaded into the knob. Have you tried giving it a little heat?

Yup, it is.

A few minutes with a lighter shouldn't harm the finish.

[Loophole]

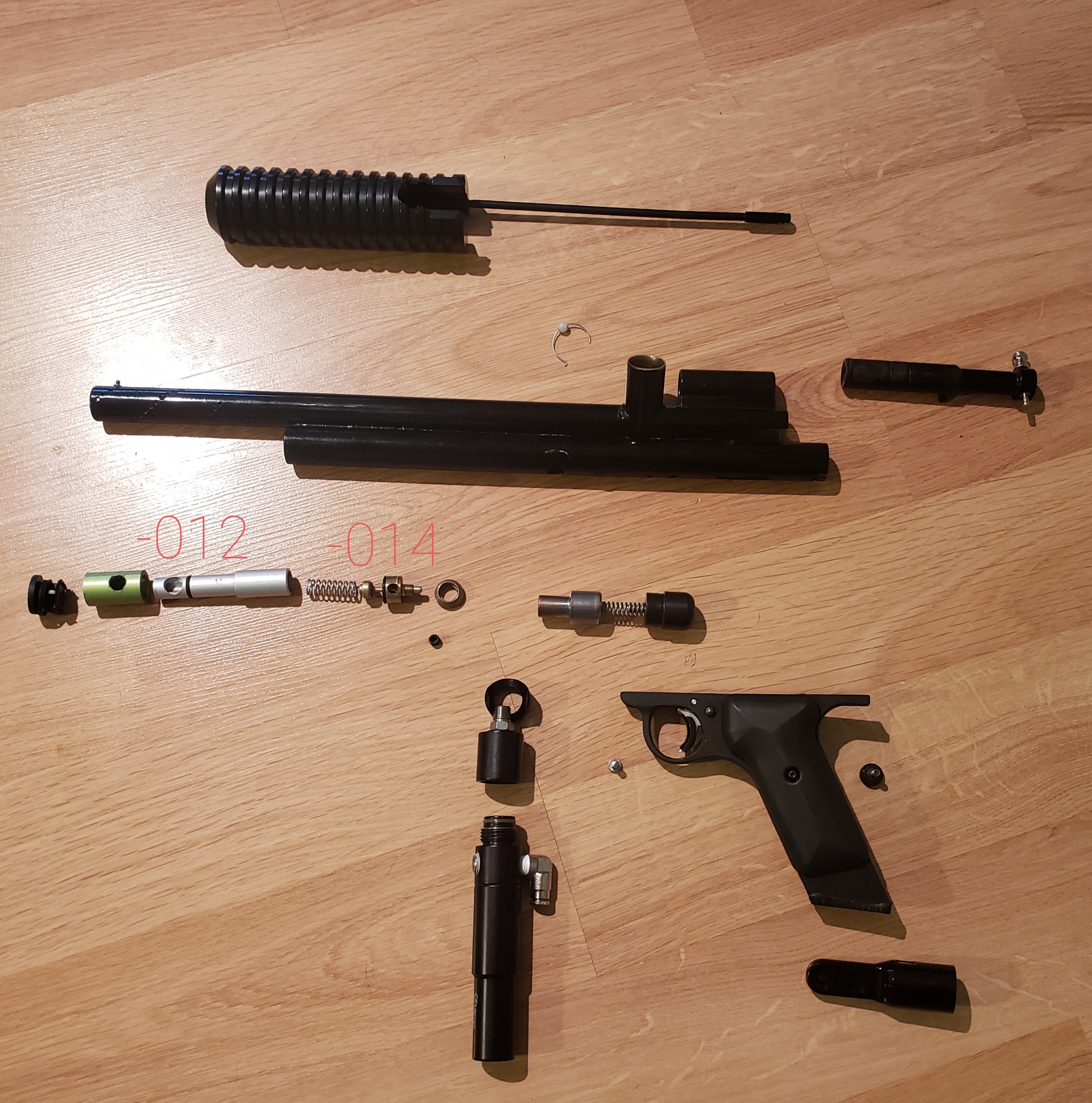

Exploded view of a Houndstooth

[stockclass48]

Do you happen to know if this break down is similar to the Super Stocker? likewise, will a PGP tool work, or is there another type of disassembly tool needed? Thanks in advance.

[netsurferdude2]

Yes a sheridan valve tool will work.
Does your Superstocker have a vertical ASA?

[Loophole]

Yep, it should be the same if it has a VASA and as Netsurferdude2 stated, a Sheridan tool will work. Where is your leak coming from?
