Odd Older MaxFlo

[Toestr]

I got this older MaxFlo in a lot yesterday. It's the screw in kind but the tank I tried wouldn't screw in. It wouldn't even drop into the threads. I don't know if the threads are screwed up or if it's meant for a proprietary tank valve. The screw in manifold doesn't look like any of the others I've seen. There also looks to be a proprietary seal in the bottom of the piston instead of the 003 orings there normally are. It looks to be a high pressure version given the smaller piston, not sure if that makes a difference.

Sent from my Pixel 4a using Tapatalk

[pghp8ntballer]

Look closely at the threads. They are likely left hand threaded. It requires the special bottle adapter that matched.

[DocsMachine]

Yep, probably left-hand threads. Takes a 3K PSI, unregulated tank, directly. I have a couple, myself. (Tanks are of course long out of date.)

Before the advent of what we now know as screw-in HPA systems, you had the option of getting your Shocker set up with an HPA-capable Max Flow. That got you a 3K fiber-wrap tank, with an on/off pinvalve, that was identical to a normal pinvalve, except left-hand threaded so you couldn't accidentally screw it into an old Pro-Lite or something, and kill four nuns and a duck with the resulting explosion.

They're fairly rare, and were often separated from the tanks. Most of the tanks have probably been chucked by now, so it'd likely take a bit of work to find one of the valves.

However, the reg itself will plug right in to a much-more-common CO2/screw-in-HPA manifold, which should be common and easy to find.

Doc.

[DocsMachine]

Addendum: This Shocker has one of the even more rare lefty-thread bottomlines, connected through stainless instrument tubing to the vertical-mount Max Flow:



That tank is left-hand thread, and sends unregulated tank pressure to the reg. The stainless line has a working pressure of something like 6K PSI, so it's 100% legit.

Doc.

[scottieb]

My first PV1 came with the reverse threaded MaxFlo with an on/off on the valve. 3000 psi tank.

[Toestr]

Alright thanks guys, I figured it was something like that. Any thoughts on the piston/seal?

Sent from my Pixel 4a using Tapatalk

[DocsMachine]

Early model Max. The later ones used an easier-to-source common O-ring.

Doc.

[Toestr]

Early model Max. The later ones used an easier-to-source common O-ring.

Doc.

Alright thanks Doc.

Sent from my Pixel 4a using Tapatalk

[Toestr]

Is anyone familiar with what the oring size for the piston is on this model. It looks to either be an 011 or 012 but I can't tell. Also any idea of the one on the plastic sealing piece that goes in the piston?

[scottieb]

Is anyone familiar with what the oring size for the piston is on this model. It looks to either be an 011 or 012 but I can't tell. Also any idea of the one on the plastic sealing piece that goes in the piston?

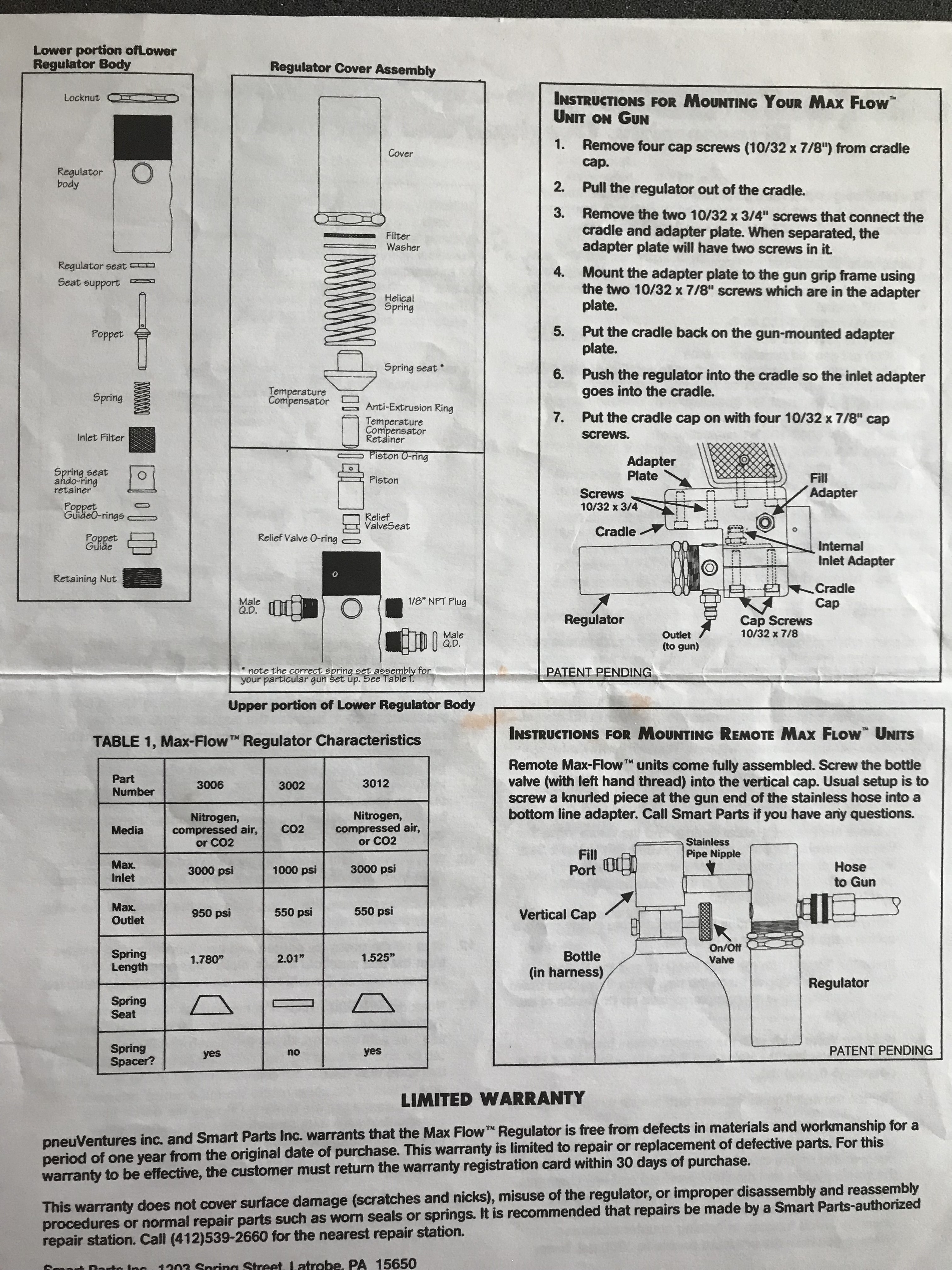

This is what I can dig up. The original owner's manual I have does not state an oring size. It only states that the overhaul kit comes with them. I can get more pics of the remainder of the instructions if you need them.

[Toestr]

This is what I can dig up. The original owner's manual I have does not state an oring size. It only states that the overhaul kit comes with them. I can get more pics of the remainder of the instructions if you need them.

I'm fine with this thanks. I appreciate the offer. None of the manuals online are for this gen of MaxFlo. None of the Shocker manuals even had diagrams of it.

Sent from my Pixel 4a using Tapatalk

[Brokeass_baller]

scottieb I would like pics, if you wouldn't mind. Just for archival, in case this comes up in the future.

[scottieb]

I'll see about getting them tomorrow then.

[Brokeass_baller]

You da man.

[scottieb]

Brokeass_baller I made a new thread for the instruction manual. Here it is: https://www.mcarterbrown.com/forum/p...ruction-manual
