Nova Balanced Autococker Valve

[Frmrspec]

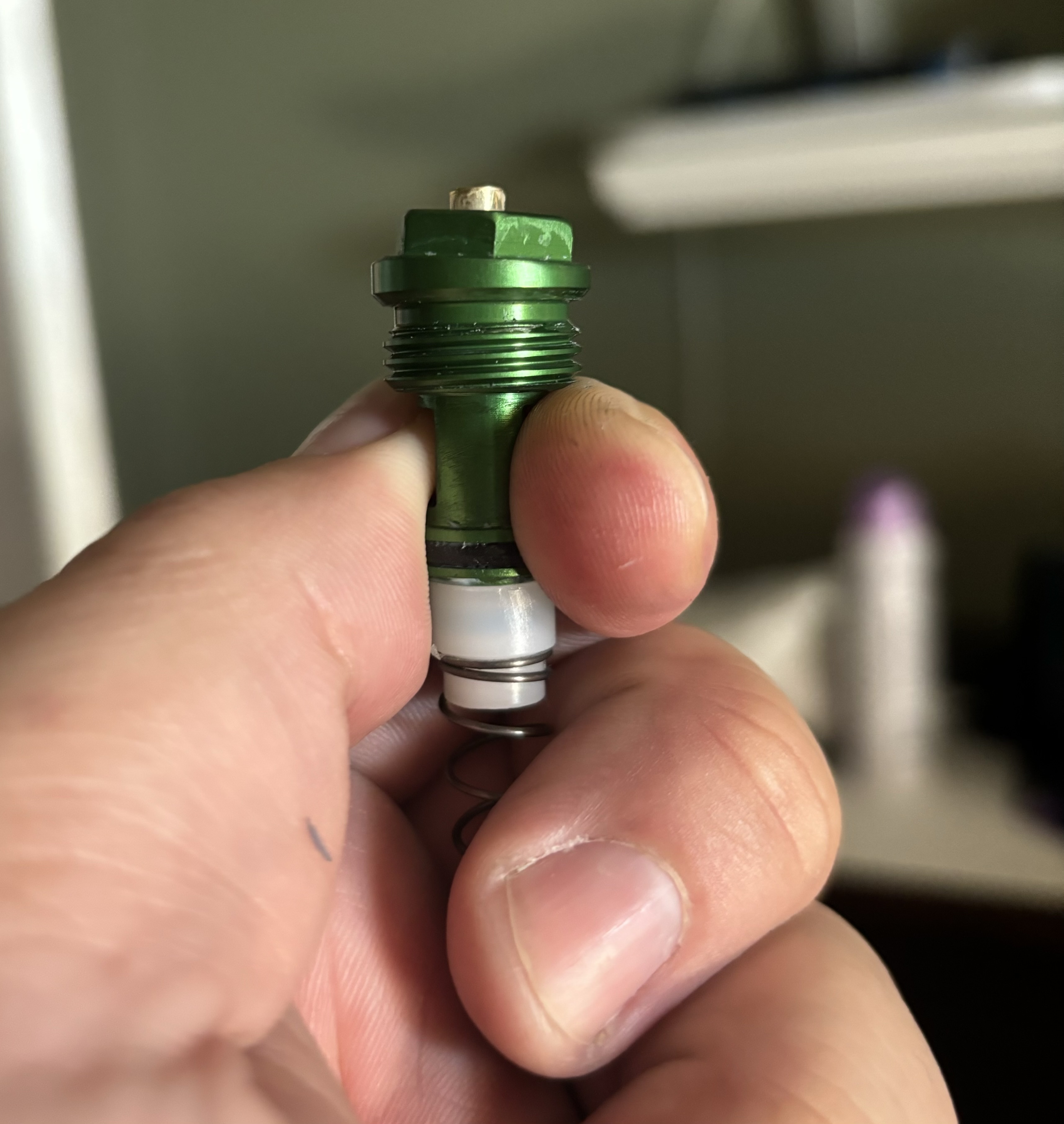

One of my three valves was also massively cockeyed as well. They said they would send another out immediately so #fingerscrossed…

Ive noticed the resistance I feel on the valve stem is different on each of the three valves, the cockeyed one having the most drag of the three. I haven’t bothered to spec them to see if there’s any dimensional differences..

I couldn’t tell a sound difference between my test mule marker and my ccm S5 (built with identical parts except provided nova parts)

[Myrkul]

The resistance on mine felt kinda weird too until I squared it off. Once the top was actually flat the resistance felt MUCH better.

[Frmrspec]

My big concern is that the hole for the valve stem is established when the hex is milled, meaning it’s likely off center/poor concentricity. Maybe I’ll bring my fubar’d vakve into work

[superman]

I was thinking the same.

[ChuckLove]

Great news! I've found the right combination of parts and have some interesting results to share.

First the parts used:

• Nova Balanced Valve with supplied valve spring
• Angry Paintball (Jason Antle) "Jenni Kraig" Delrin Hammer and supplied main spring

Results yielded a similar to CCM quality pump stoke. Shot signature is very quiet while shot feel is similar to that of a properly tuned sniper. On a 2k mini body the reg sweet spot is right at 350psi. Efficiency seemed pretty solid on my FS 15/4500 tank. I could shoot 80-100 balls and drop roughly 1k psi. This seems similar if not slightly better than the same sniper with CCM lowers.

Conclusion: it's a pretty nice valve when setup with the right parts. Time will tell on maintenance intervals. I'll be making a video with it soon and will report back if I have any more updates.

[ChuckLove]

Grendel I think it fills the same niche as the Morph & Lazarus. It's not for most and doesn't offer significant advantages. Some have ran this valve in the low 200psi range but like the other LP setups, air efficiency will suffer. I didn't mention it in my post but the shot does seem a bit softer despite the operating pressure. This wasn't mentioned because I didn't test it next to another traditionally set-up 2k sniper.

[Myrkul]

Grendel keep in mind, chucklove did say it was on a mini-body, those typically run at higher pressures.

[William the Third]

Of the two I've installed, one was installed in a Mini-Cocker (Shocktech SFL), and needed 300+ PSI to reach velocity (Nova valve spring, but a different main spring). The other was in a 04 ProStock bodied Sniper build, and was able to get to velocity sub-200 PSI (Nova valve spring, but a different main spring).

[Frmrspec]

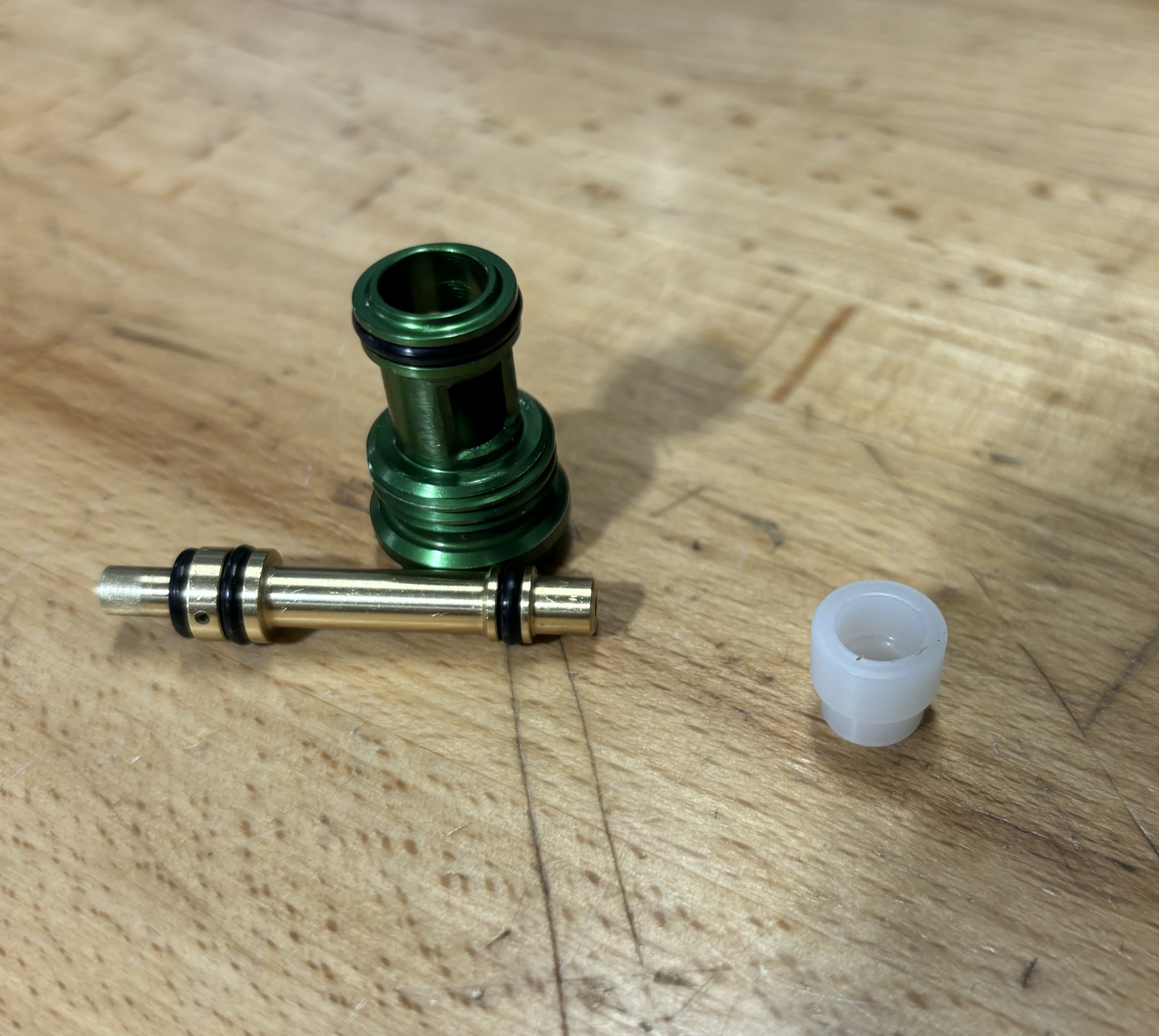

Did anyone else realize the cupseal isn’t threaded? It’s slip fit over the valve stem with an oring being used for retention.. probably why it needs a more firm valve spring

[William the Third]

I did, when I was chasing down a leak. It's actually one of the design choices I'm not fond of. The o-ring is needed to seal since the cup seal isn't solid, but some threads would have been nice to better secure the cup seal on the stem.

[Frmrspec]

After correcting the bad machining my valve is about .05” shorter than stock, which means much more valve lift/mechanical dwell. If it yields good results I’ll probably machine the rest of my valves shorter

[Frmrspec]

With CCM bolt, CCM hammer, nova valve, and supplied springs. Zero FPS change between standard and shorter valve…. Consistency was better but that could just be because different barrel, different day… sound change, minimal at best… pump stroke, much softer/smoother.

I've noticed that the valve does have a tendency to fart if I hold the pump handle forward. I have Angry Antle delrin hammers and spring system, may throw that in and see how that performs. Hopefully find a way to get rid of the fart. Also want to change over to a bolt with orings. But I wanted a side by side comparison with CCM parts first.

[Myrkul]

Wait...so if I'm reading this correctly, you DID get better consistency out of the misaligned valve that you shortened, correct? That is both odd and really intriguing.

[William the Third]

Modified Nova valve in a RaceGun HalfBlock. Marker belongs to shrompman420.

[shrompman420]

william you sexy MF, i cant tell if im crying or i may have skeeted, my baby looks damn good, you good sir have earned 1 extra red headed lady boy next time i see you!!!

[Carp]

[docfire]

[Greaterthenjake]

So what orientation are these things supposed to be in? The open portions facing the valve retaining grub screw? The nova videos show it in the opposite orientation in the cutaway. I also got a cockeyed valve they sent me a used replacement....

[Cdn_Cuda]

Nut to the rear of the marker. Cage to the front. Insert through the rear. (Phrasing…)

[Jivesauce]

He means the rotational orientation. It’s something I’ve wondered about with these also. Their video, linked here:

https://m.youtube.com/watch?v=OmJd4nZkR5k

shows a cutaway cocker body with the valve installed and the bars of the cage are oriented in such a way that it seems like they would occlude the port to the bolt. Maybe there’s enough space that it doesn’t matter though, I don’t know.

[Cdn_Cuda]

That make much more sense! Be hard to install the valve backwards.

[RedLeaderSB]

Anyone tried this on a pre2k body?

[Impactfour]

I just order the valve and Jenni Kraig hammer for my pre-2k. I'll report back on how it goes, but I don't have a pressure tester so it will just be vague results.

[Impactfour]

Just installed the valve with the Jenni Kraig hammer in my pre 2k, it airs up and seems to shoot at velocity. I plan to play tomorrow so I'll get more info then.

[Impactfour]

I'm interested in running the Jenni Kraig hammer with the nova valve in my sniper after reading everyone's results. It seems angry antle's website is down, does he do business through FB?

[iamthelazerviking]

Seems like he only does business through Facebook

[Impactfour]

Good to know, thanks! I just sent him a message on there
