Hey guys,

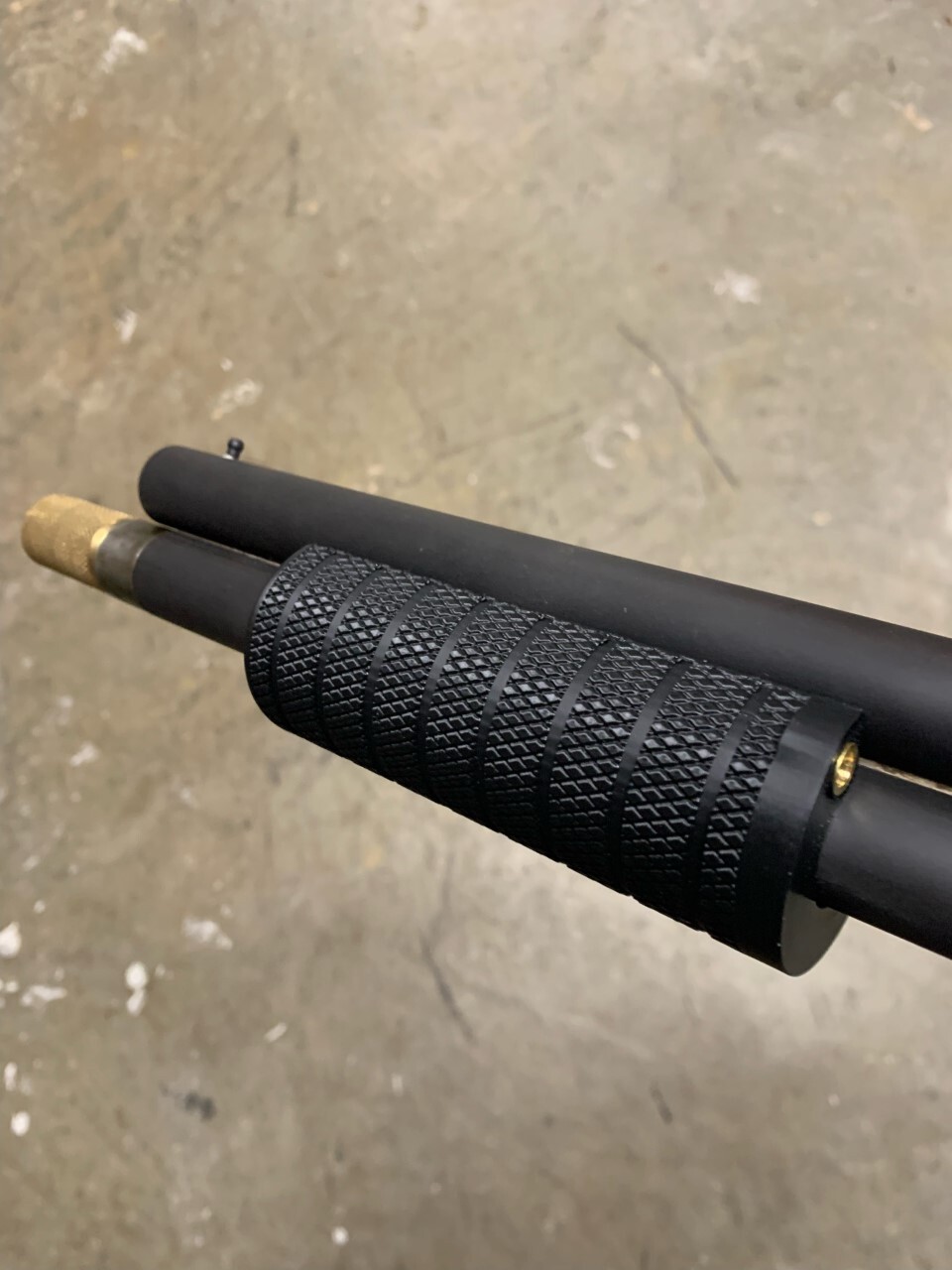

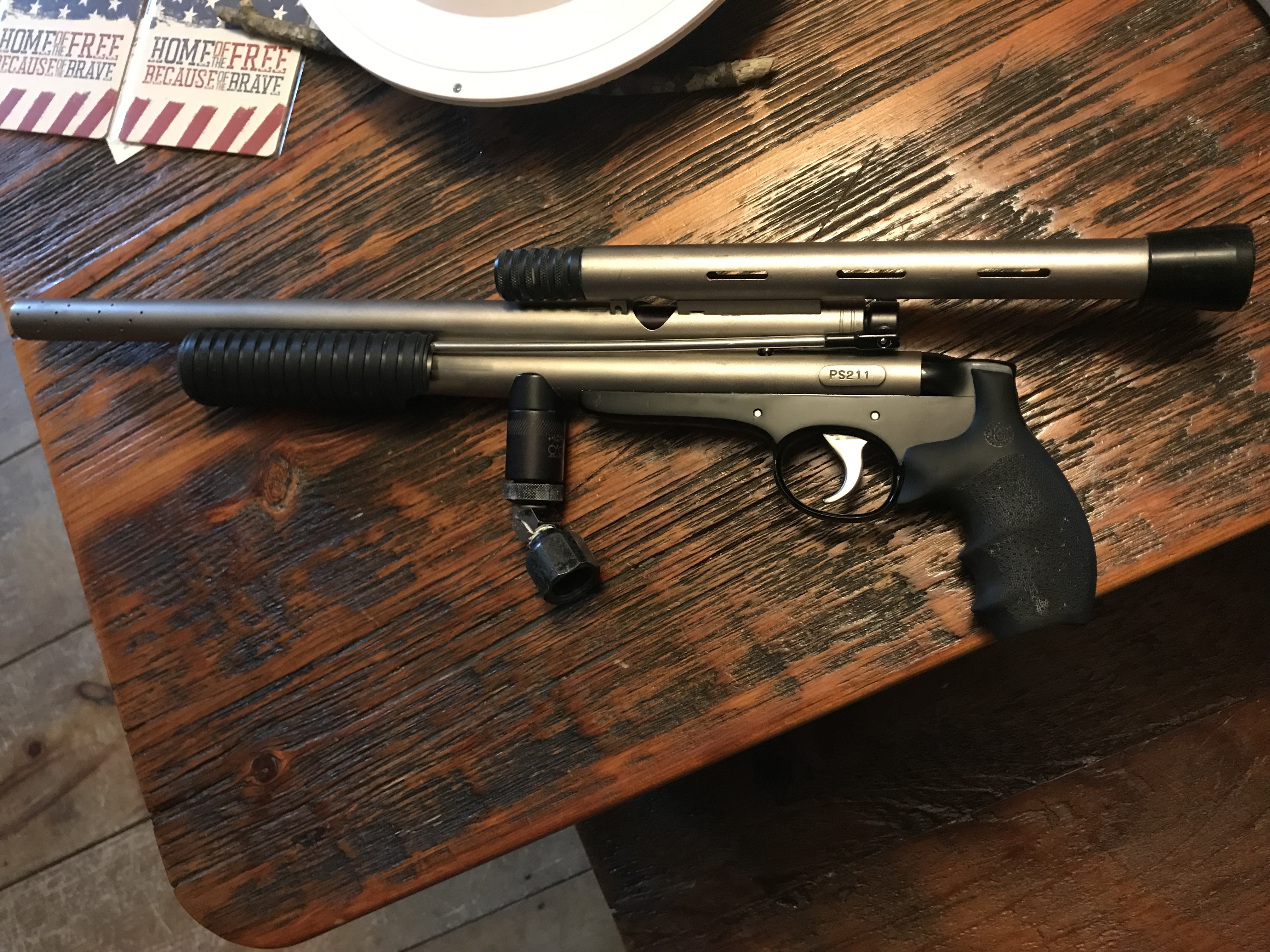

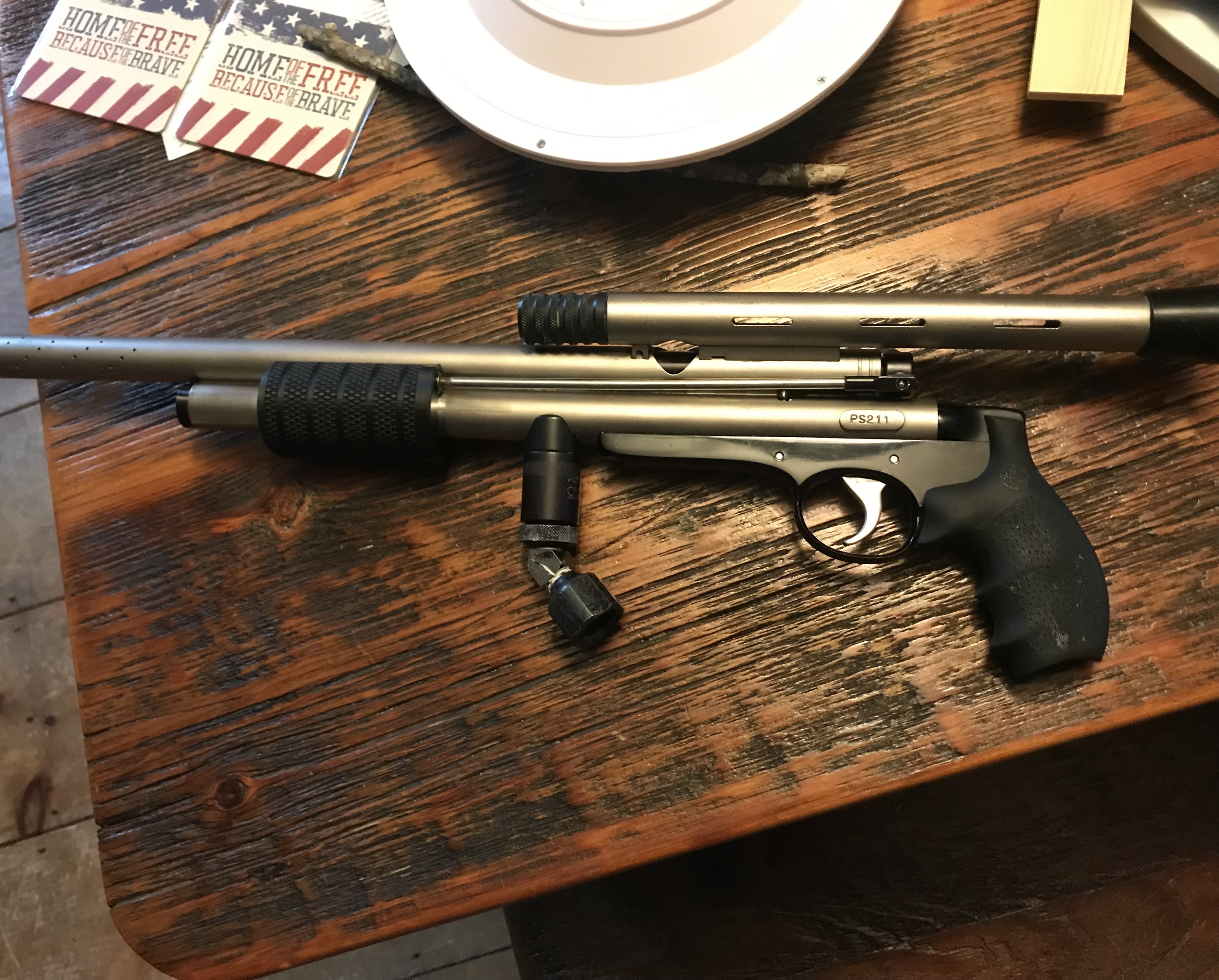

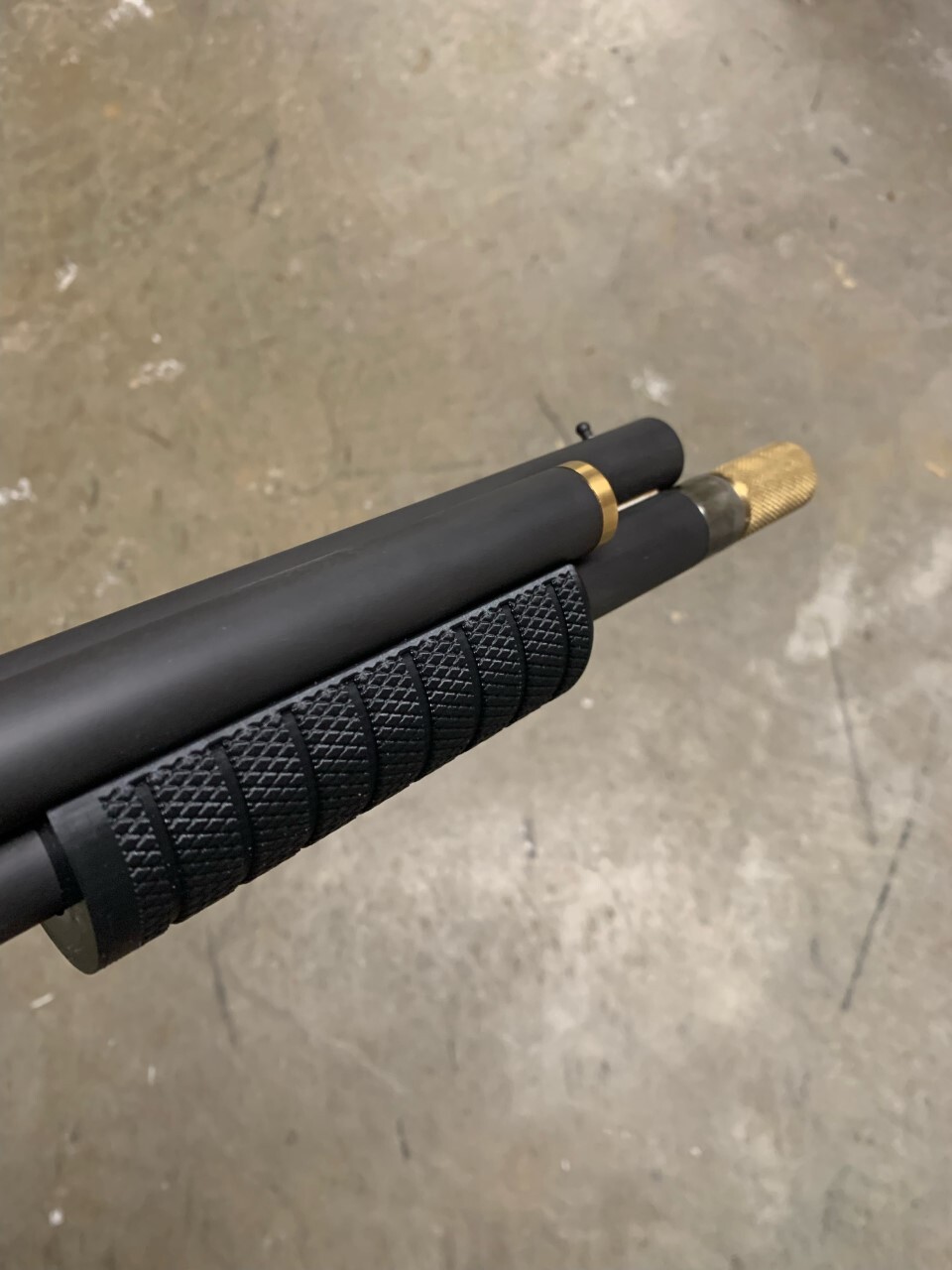

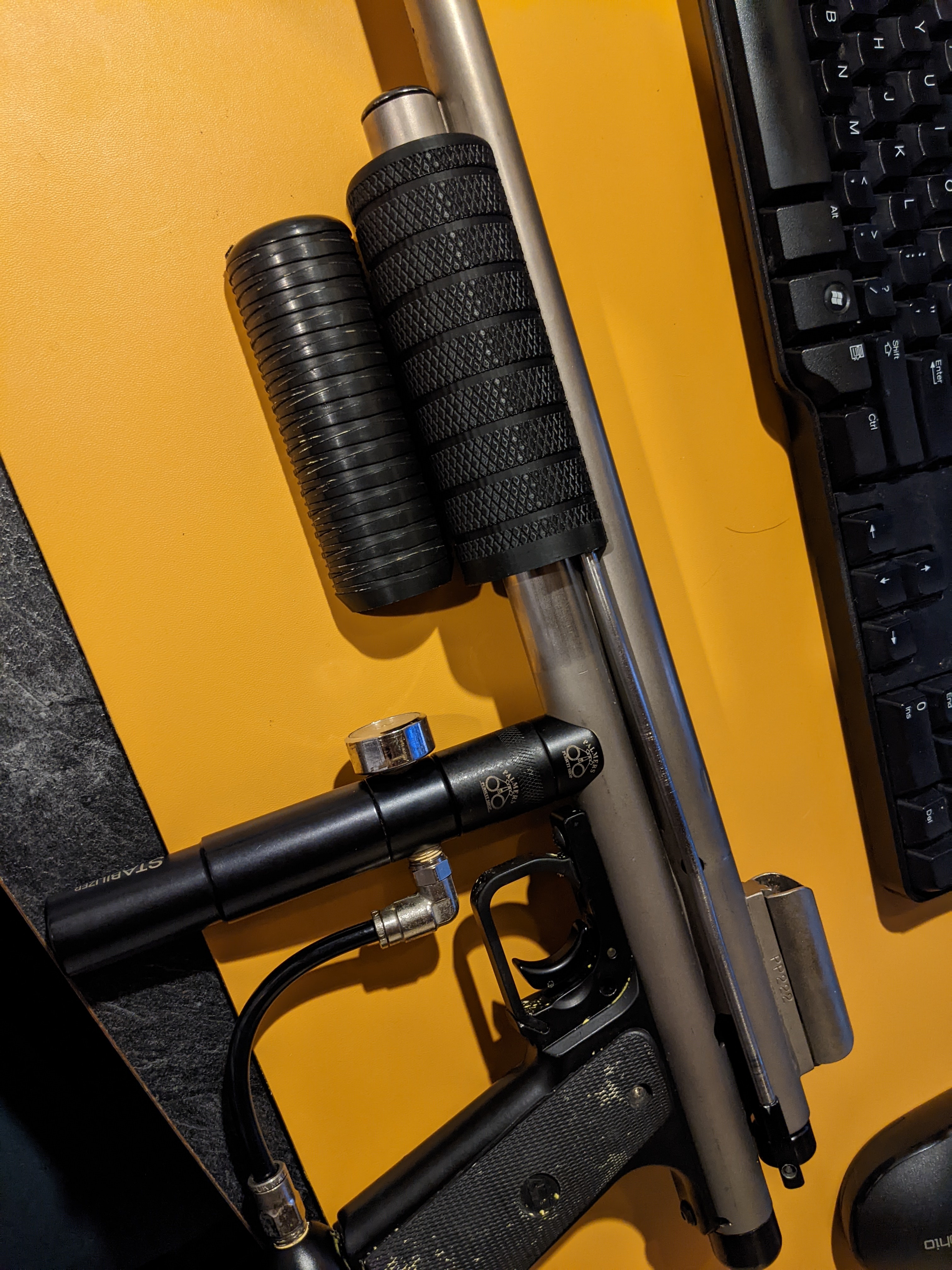

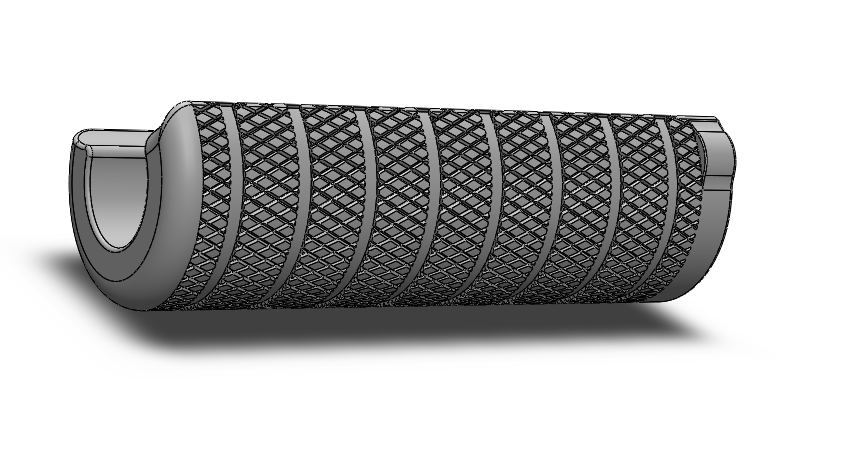

I posted on the FB group with a few Sheridan/PMI handles I made and there seemed to be some interest so I made a batch. These are 100% infilled PLA+ printed pump handles. There are three flavors:
Qty. Model: Price:
(1 left) SB Knurled Pump --> 1.75" OD x 2.85" Length (Standard) $30 shipped US
(2) LB Knurled Pump --> 1.75" OD x 5.18" Length (Long Boi) $35 shipped US
(2) ST Knurled Pump --> 1.75" OD x 2.85" Length (Side tube) $30 shipped US
The SB and ST Pump handles are plug and play on PMI LBs, P68s, PMI1+2s, and KPs. None of these have a frame cut, so whichever platform you use it on, you need to make sure your pump arm is long enough to clear when cocked back. This also means the SB would not currently work on a PGP. I may offer a cut one if there is enough demand in the future. The LB handle is long and is made to look the best on a PMI LB or P68. However, it requires a shortened pump arm (1-1.375" shorter). I make all of my arms out of brass which is super easy and looks great, so if you need help, lmk. These have a 10-32 brass heat set insert so no worries on stripping threads. I have pull tested and have yet to pull one out by hand. These are printed and I have gotten the program and quality as good as I can get, but note, there may be some small imperfections on the bottom edges due to the first few layers. I will ship to Canada but we will have to figure something out. A small flat rate was $30 to Ontario when I just checked, so maybe we take $10 off the price and pay actual shipping. Whatever we can figure out.
If you want one, please post below first, then message me. I only have the above quantities currently. If you want something custom such as a longer ST or slightly shorter LB, message me. Thanks-
I posted on the FB group with a few Sheridan/PMI handles I made and there seemed to be some interest so I made a batch. These are 100% infilled PLA+ printed pump handles. There are three flavors:
Qty. Model: Price:
(1 left) SB Knurled Pump --> 1.75" OD x 2.85" Length (Standard) $30 shipped US
(2) LB Knurled Pump --> 1.75" OD x 5.18" Length (Long Boi) $35 shipped US
(2) ST Knurled Pump --> 1.75" OD x 2.85" Length (Side tube) $30 shipped US
The SB and ST Pump handles are plug and play on PMI LBs, P68s, PMI1+2s, and KPs. None of these have a frame cut, so whichever platform you use it on, you need to make sure your pump arm is long enough to clear when cocked back. This also means the SB would not currently work on a PGP. I may offer a cut one if there is enough demand in the future. The LB handle is long and is made to look the best on a PMI LB or P68. However, it requires a shortened pump arm (1-1.375" shorter). I make all of my arms out of brass which is super easy and looks great, so if you need help, lmk. These have a 10-32 brass heat set insert so no worries on stripping threads. I have pull tested and have yet to pull one out by hand. These are printed and I have gotten the program and quality as good as I can get, but note, there may be some small imperfections on the bottom edges due to the first few layers. I will ship to Canada but we will have to figure something out. A small flat rate was $30 to Ontario when I just checked, so maybe we take $10 off the price and pay actual shipping. Whatever we can figure out.
If you want one, please post below first, then message me. I only have the above quantities currently. If you want something custom such as a longer ST or slightly shorter LB, message me. Thanks-
