KAM Designs Riot Rail

[cougar20th]

This is the Riot rail. Named after Riot because he was silly enough to ask me what the lightest rail I could design was. This is the result.

Production run is limited to 15 Rails

Specs

• Shaped to match AGD carbon frames as they are the lightest out there still.
• ULE body only only. These do NOT have twistlock detent capacity.
• Minimag length
• Minimag sear & sear pin
• Intergrated carbon foregrip mount.
• Forgrip bottom cap
• Electro polished
• Gloss Black Anodize. only.
• There will be a small gap between the rail and a normal Ule body where the body mount is. This is due to the flat on the bottom of the bodies.

Weight

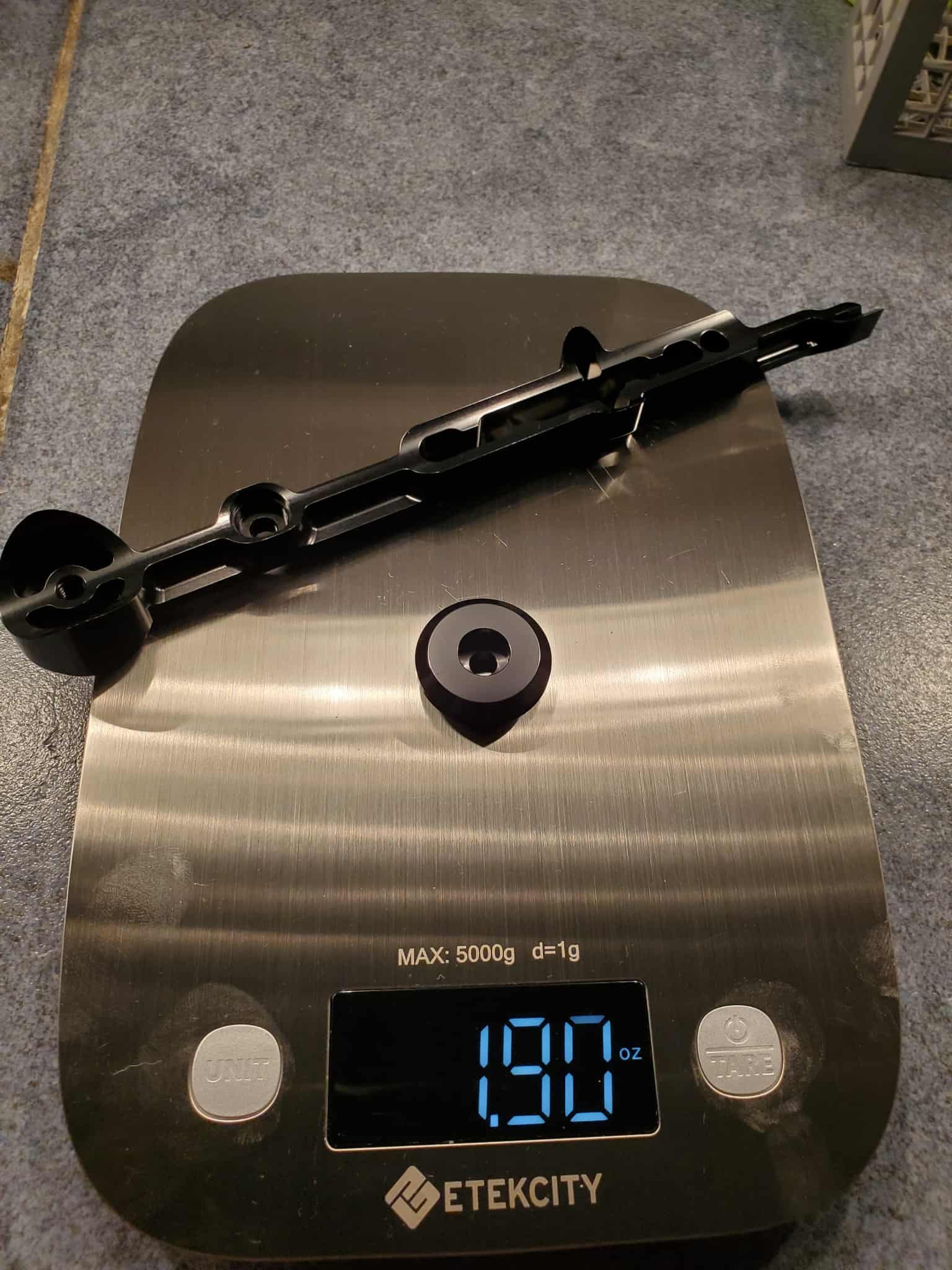

• Rail & Cap = 1.90 ounces

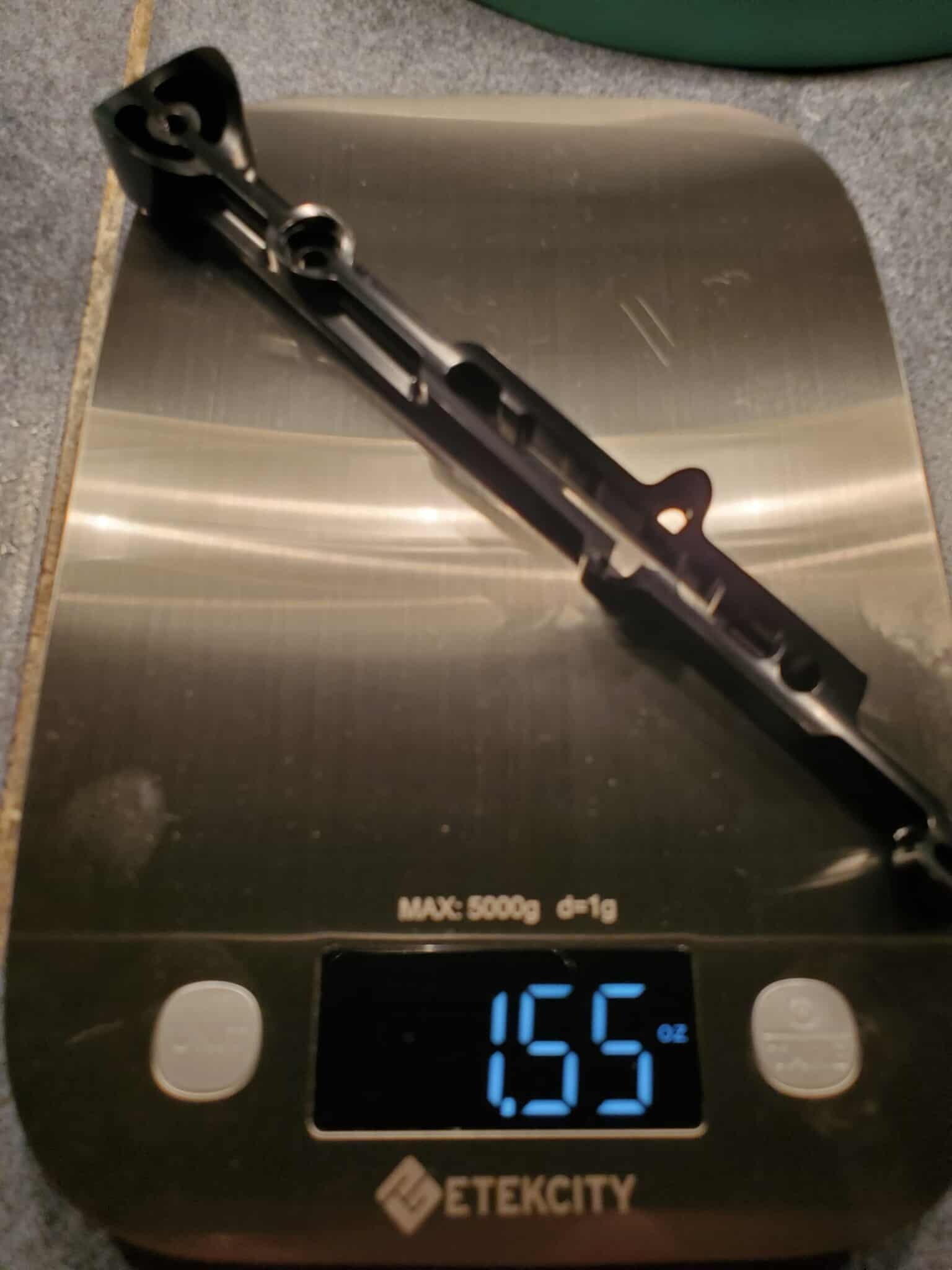

• Rail only = 1.55 ounces

I have had prototypes for a couple weeks. I have tested them and check and rechecked them. Everything is as expected.

The production ones will be coming shortly.

Price is $225 plus shipping for the Rail, Foregrip bottom cap & a long screw (to fit a 3" lg tube).
Foregrip tube NOT included

Foregrip tubing needed is 7/8" ID x 1" OD

This will not be a pre-order. I am creating a list of people that want them and will take payment when I have the Riot rails in hand and ready to ship.

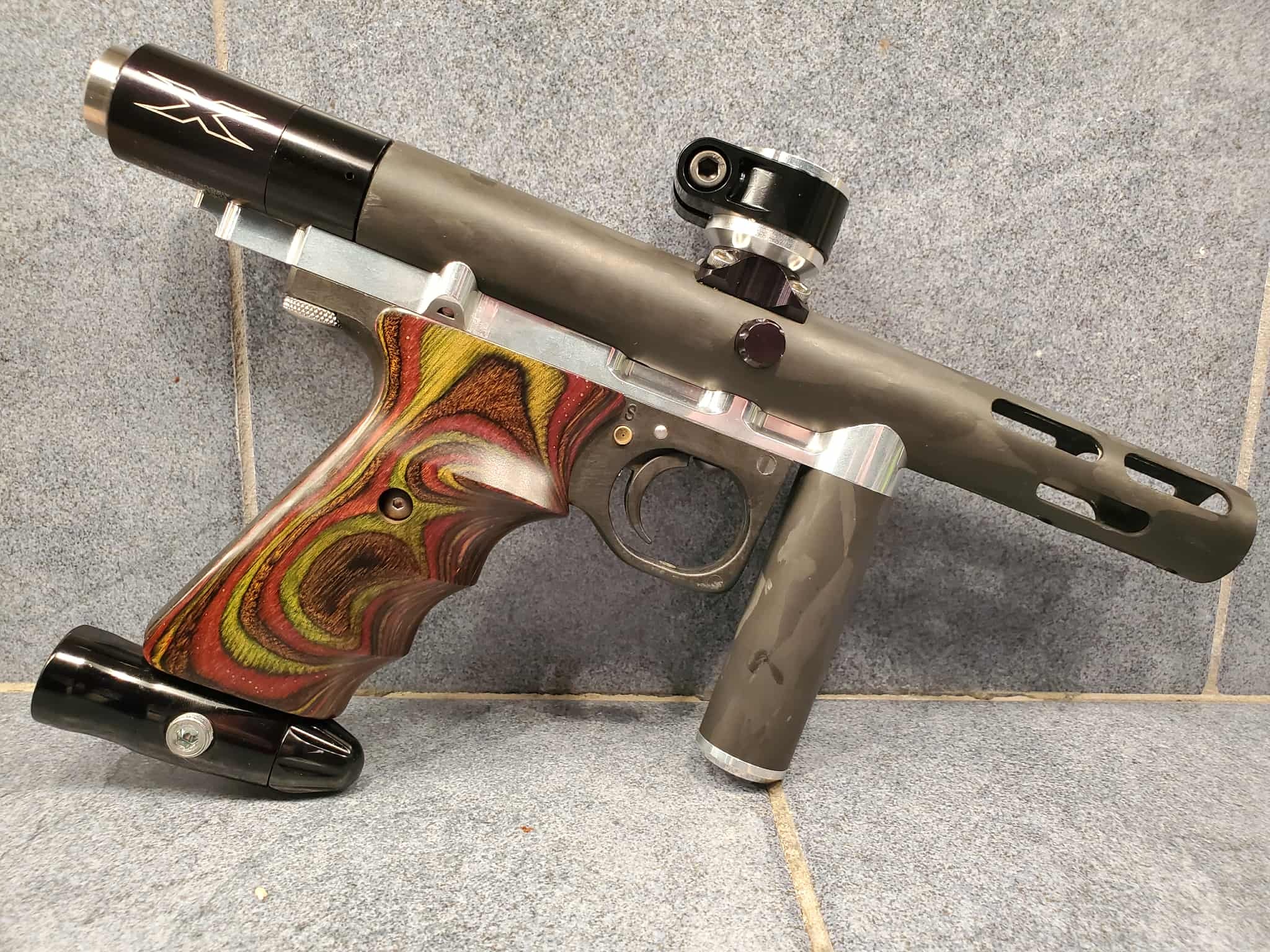

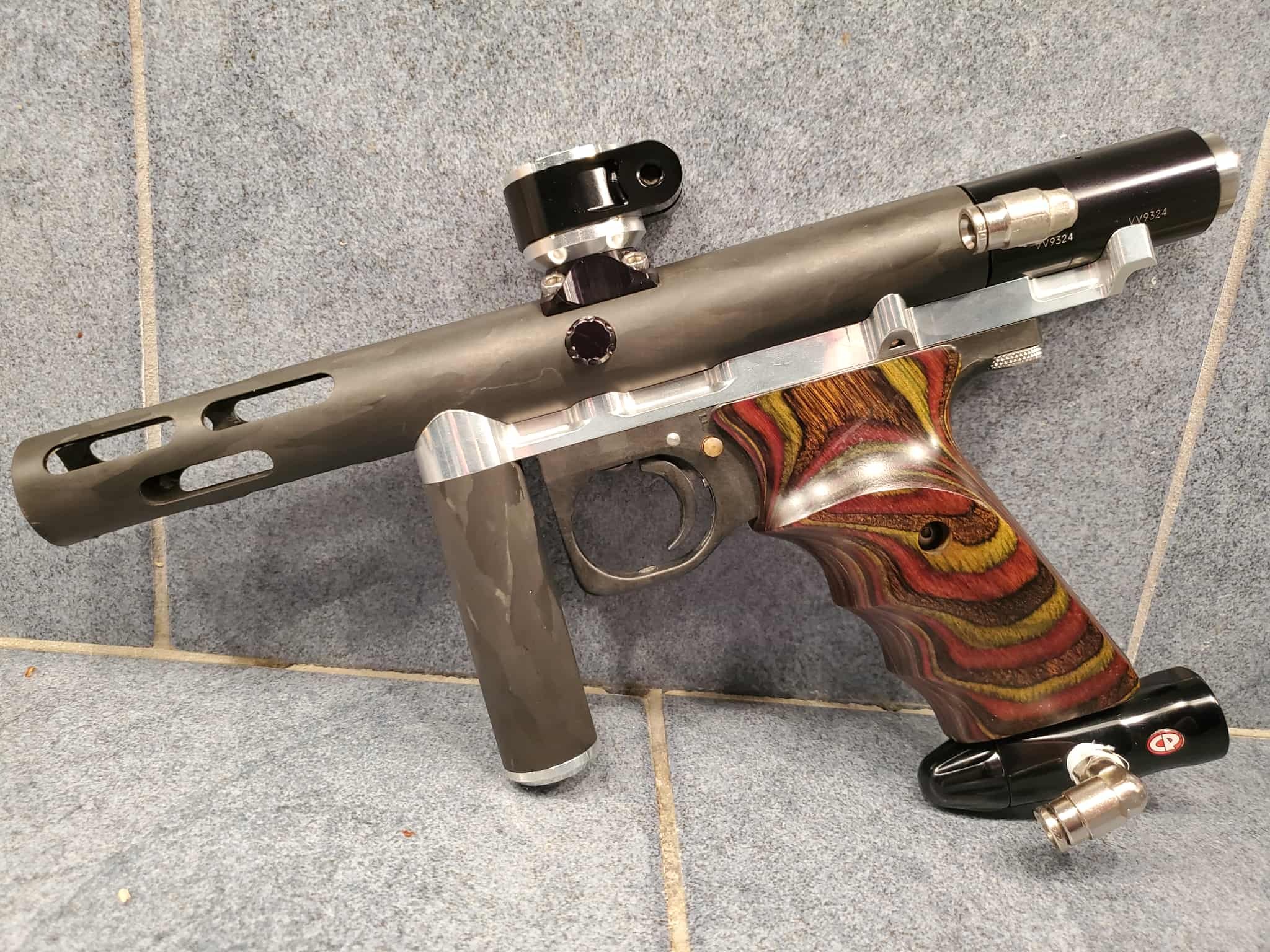

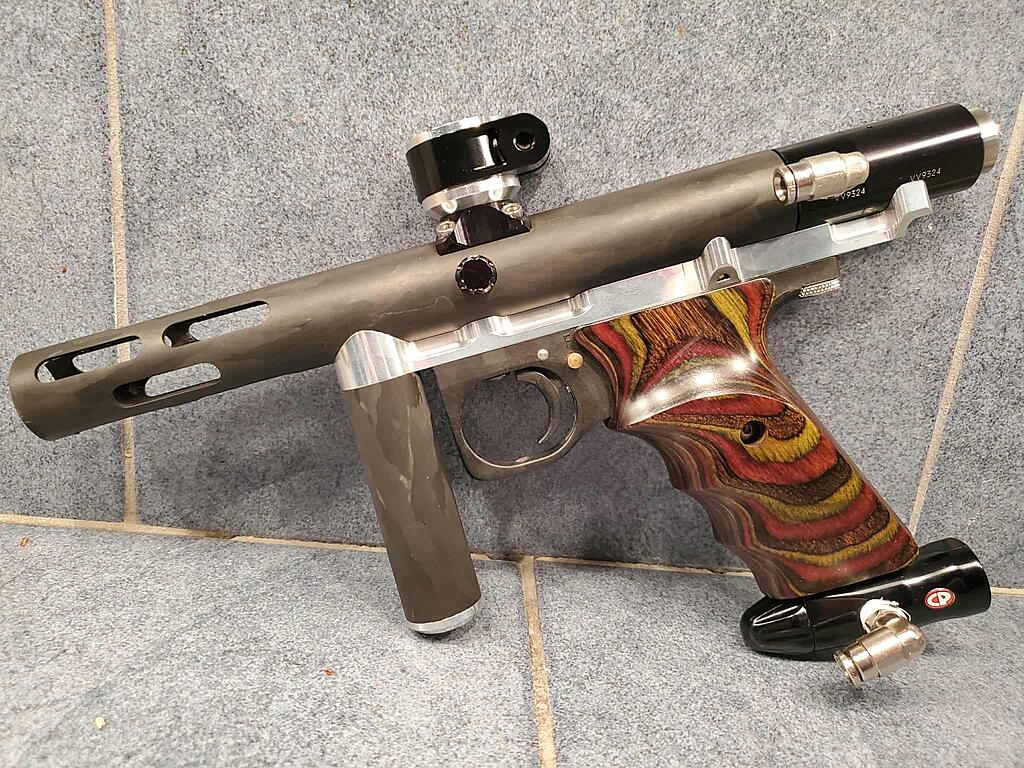

Note: Gun to show how it looks. Definatly not for sale and I dont have anymore Camo Carbon parts available.

[Olsson]

May 10.000 ants step on Riot's and your balls, cougar20th. The two of you surely were in cahoots just to fleece me out of $225.

I'll only take the one, though. I won't fall for this gag more than once - and that's final!

[cougar20th]

Olsson I'll add you to the list and reach out when ready.

And don't worry I won't hold you to you last statement.

[Grendel]

I will take one when you are ready to take my money.

[cougar20th]

Grendel added to the list

[Swedgin!!]

That is sweet 🤘🏽

[shrompman420]

sign me up for 1

[cougar20th]

Added to the list

[William the Third]

I can haz one?

[cougar20th]

Yes you may, Added to the list

[Cdn_Cuda]

Someone’s just in it for the long screw….

[William the Third]

[Hairball1969]

9.1 inch?

[cougar20th]

It's standard automag/minimag length. I can measure it tomorrow.

[cougar20th]

9.1 inch?

Sorry I didnt recall what it was last night, been working on way to many things.


The Riot Rail is a modified Automag/Minimag Spec at a length of 7.5". The missing 1/2" came off the rear of the rail. So there is more valve hanging off the back of the rail . BUT the zlock slot is still fully functional. The zlock slot on tht Riot Rail is like what AGD used on xmags instead of the old minimag "Z" shaped channel.

The AGD Rail lengths

• AGD Spec Automag/Minimag rails are 8" in length.
• AGD Spec RT rails are 9.1" in length.

[Shark]

If spot available put me down, thanks!

[cougar20th]

Shark I have added you to the list.

[binson]

Dang it. This makes me want one even when I don't have an automag anymore.

[Shark]

Thanks cougar20th

[Lobo Fuerte 2.0]

If any spots left please add me to the list thank you.

[cougar20th]

Lobo Fuerte 2.0 Added

[Mini-Xmag]

Shot you a PM

[cougar20th]

Foregrip tubing needed is 7/8" ID x 1" OD

[cougar20th]

Been a couple questions about frames other than the Agd carbon frames. The Riot rail was designed around the Agd carbon frame.

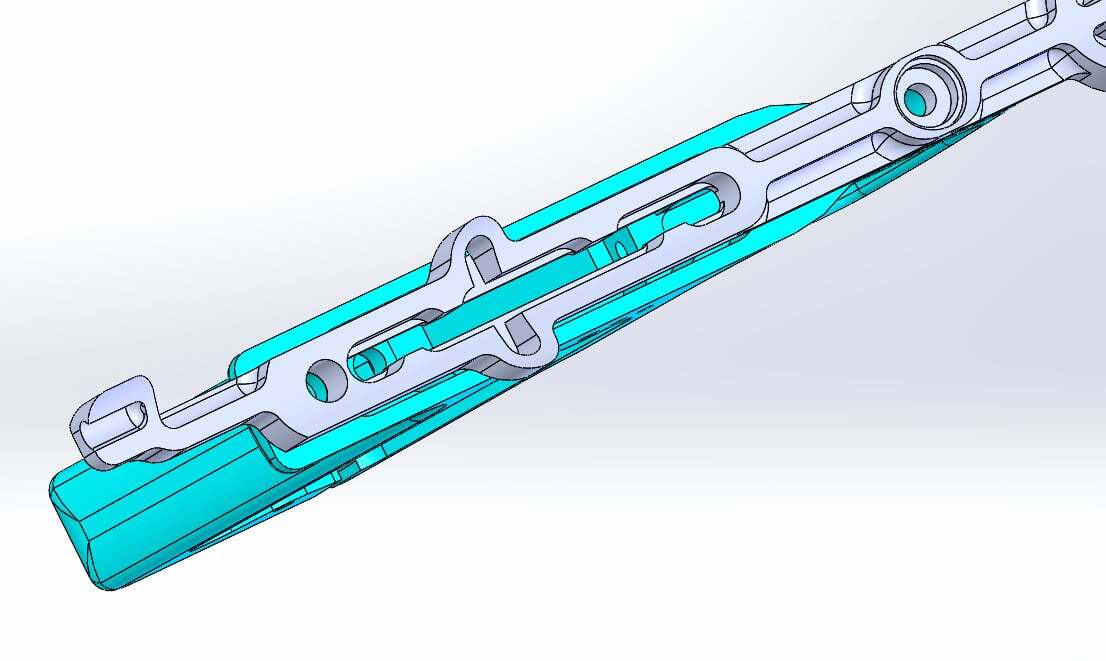

This is a rendering of what a AGD Xframe or M86 will be like on the rail.

I just want to make sure everyone understands.
