*NEW* Mini Dye Rotor 90 Round Complete Hopper Conversion Kit

[Xennocide]

Is it possible to go even smaller? lol I run with them ASP? pods that hold maybe 50-60 rounds. Currently have a JELO hopper and it’s annoying to load and there’s like 5-8 balls left in the pods.

BubbleHead87

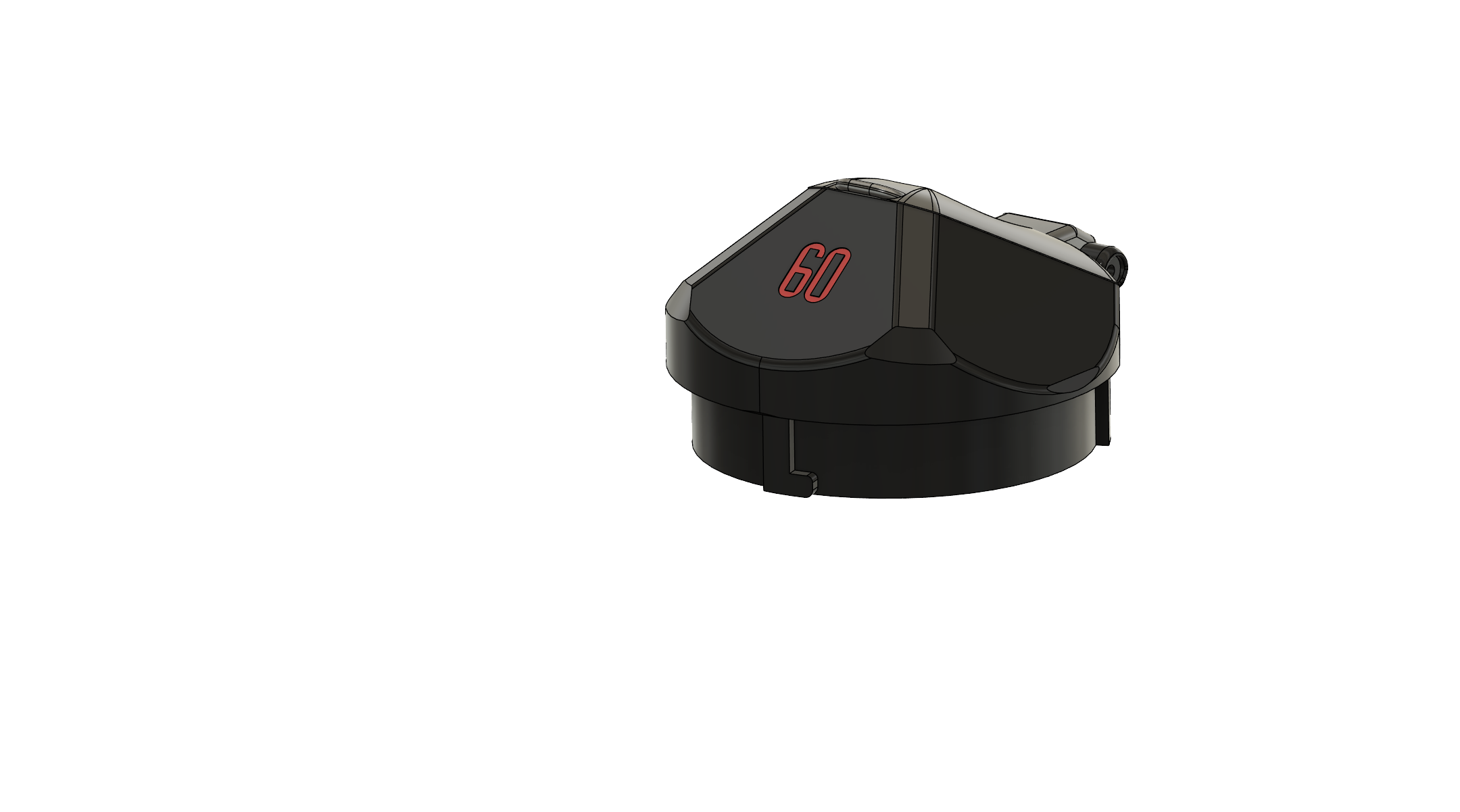

New upper in the works. I did a redesign and was able to get the round count lower while still keeping the other features consistent and the magnetic lock open.

There will also likely be a larger 85-90 round version for people who didn't like the curved top and preferred a more angular look

[CavemaN]

Looks great

[BubbleHead87]

BubbleHead87

New upper in the works. I did a redesign and was able to get the round count lower while still keeping the other features consistent and the magnetic lock open.

There will also likely be a larger 85-90 round version for people who didn't like the curved top and preferred a more angular look

Ooohh. I like that look for the 60.


Sent from my iPhone using Tapatalk

[screwloose45]

That's awesome. What would a 50 round look like?

[Xennocide]

screwloose45 BubbleHead87 60rnd demo from 50rnd pod https://www.youtube.com/shorts/YcdHN8BGoBE
still reworking the lid a bit as the spring drags on the sled.

[BubbleHead87]

That's pretty neat. Lol I was surprised you didn't have to lean the hopper slightly nose down to get fit all the balls. Definitely interested once you're done tweaking it.

[Xennocide]

Added assembly video to the main page

[Xennocide]

New Upper preview

[Xennocide]

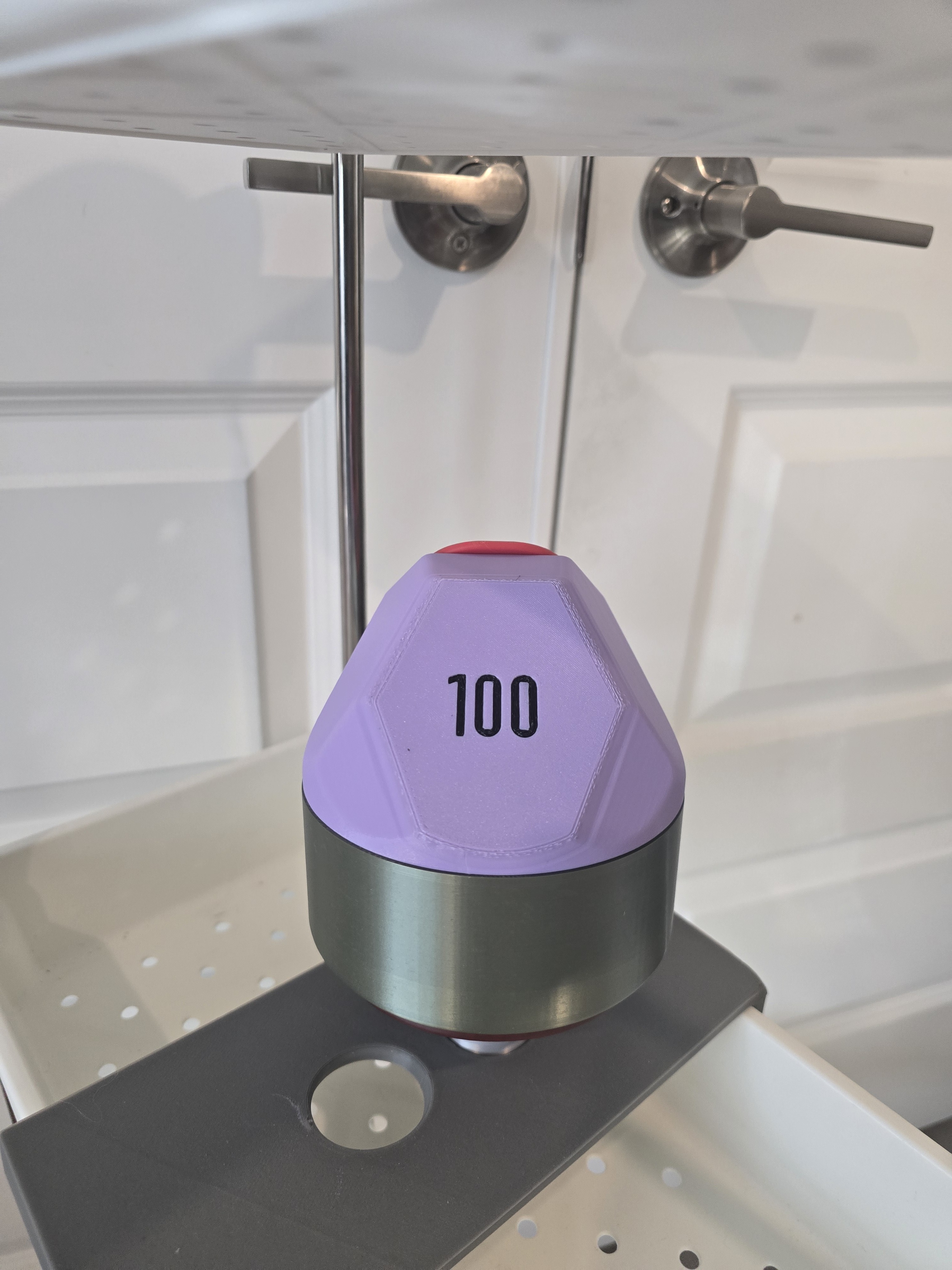

Added testing videos of the hopper being hit
Shooting Videos (from 10m, 280fps):
Marker View

https://www.youtube.com/watch?v=E21c9z0BAUA&list=PLJLEv8j9NccCwWzskyQG6SHZ V34R5-8b6&index=1
Close up

https://www.youtube.com/watch?v=c8Xs9DYADeA&list=PLJLEv8j9NccCwWzskyQG6SHZ V34R5-8b6&index=2

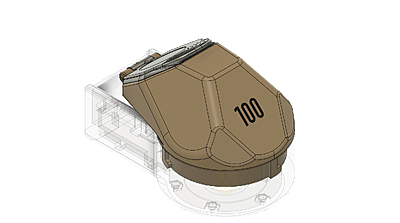

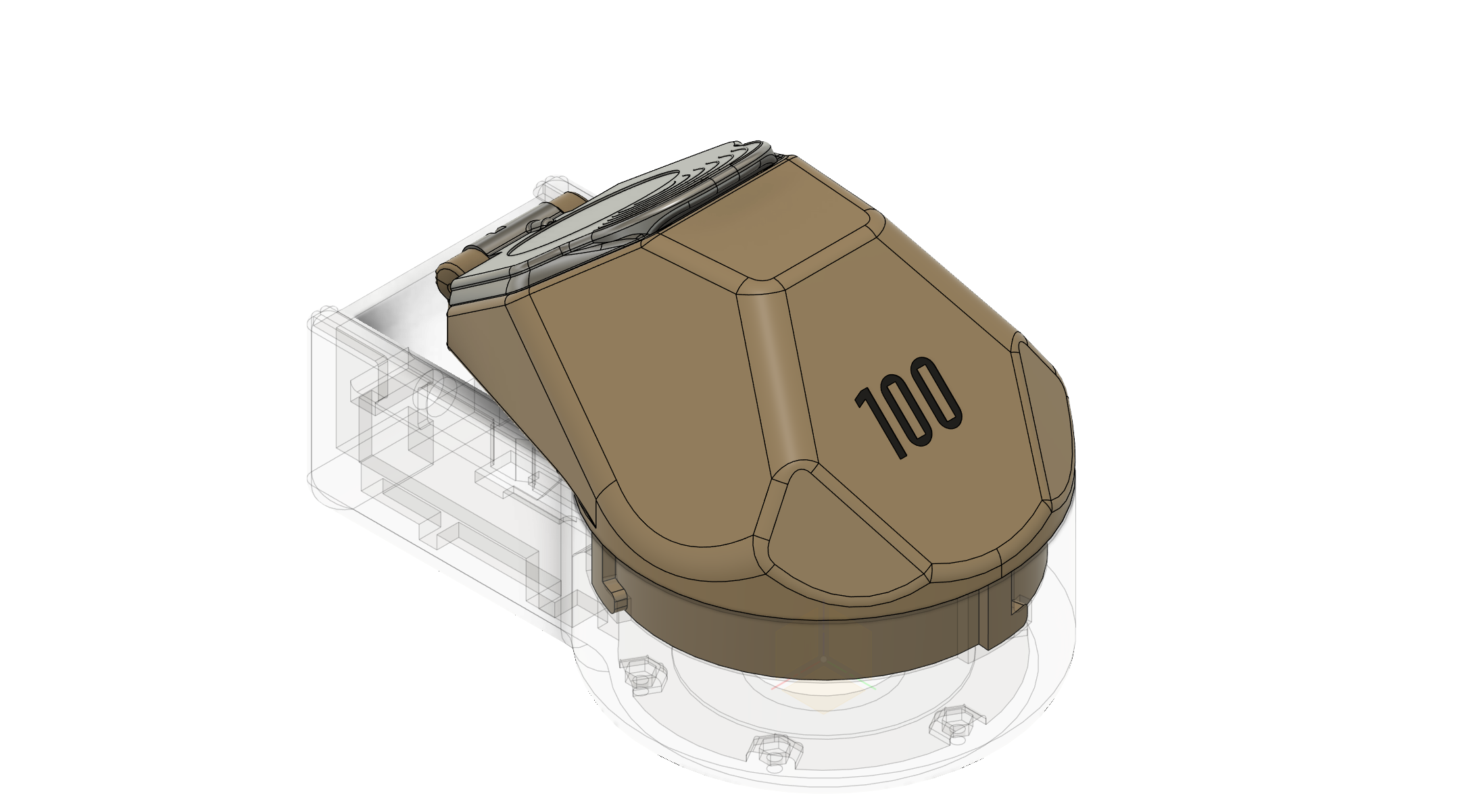

100 Round Upper now ready

[nerdcore]

Oh I'm gonna come back in here when i get colors selected.

[Ramfaux]

What's the approximate weight of one of these?

[Xennocide]

What's the approximate weight of one of these?

I'll put them on the scale for you.

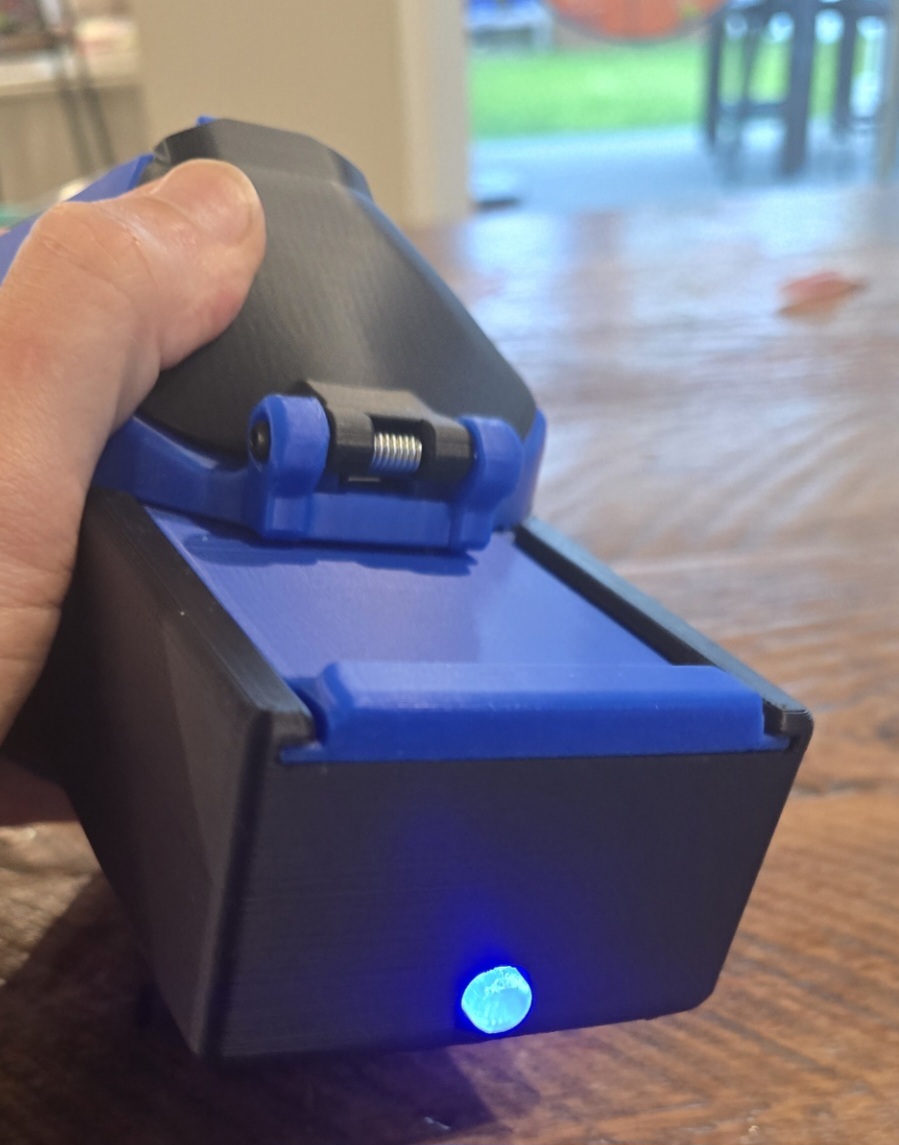

Also for anyone following this thread, ill be releasing a large update by the end of the week. Thanks to feedback, I've made a lot of improvements including a new closing system, clear power button, ability to mount a go pro or camera system, and 5 capacity choices which all work on the same lower body

Teaser

[tyronejk]

Have you considered redesigning the battery tray/motor housing assembly to reduce the size further? Maybe integrating those parts into the shell? It'd probably be pretty involved but I imagine there's a lot of space to save there.

[Xennocide]

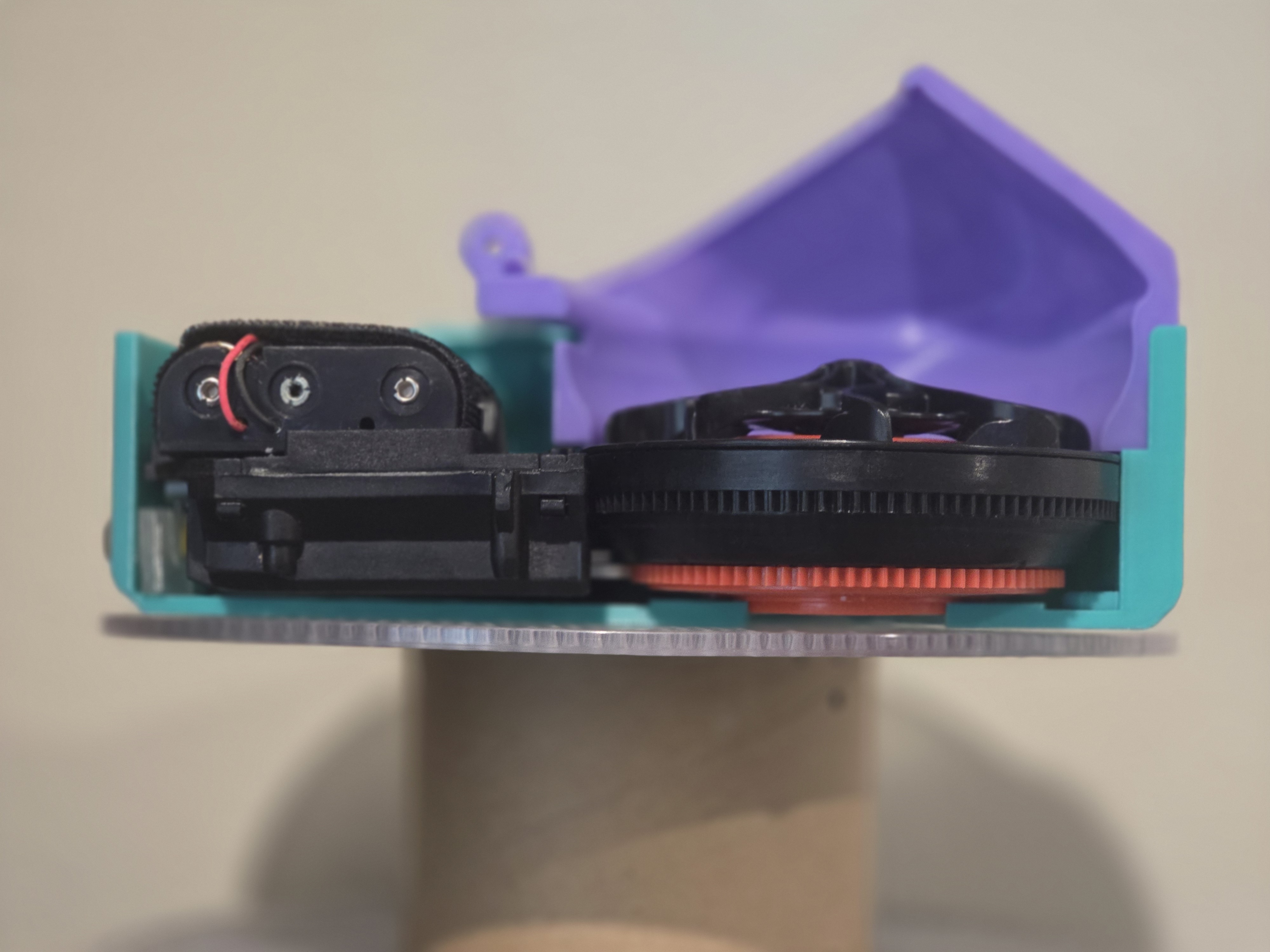

Heres a cutaway of how everything fits inside. If I had a battery plug extender I could move them underneath to lower the profile and make the shark fin more of an charging handle style or forgo entirely

[Xennocide]

Ramfaux
Weight including guts and batteries - no paint
60 = 18.8oz
75 = 19.8oz
80 = 19.4oz
100 = 20.0oz
130 = 21.7oz
Dye = 21.7oz

[Ramfaux]

Cool thanks man, gonna go weigh my rotor now lol
