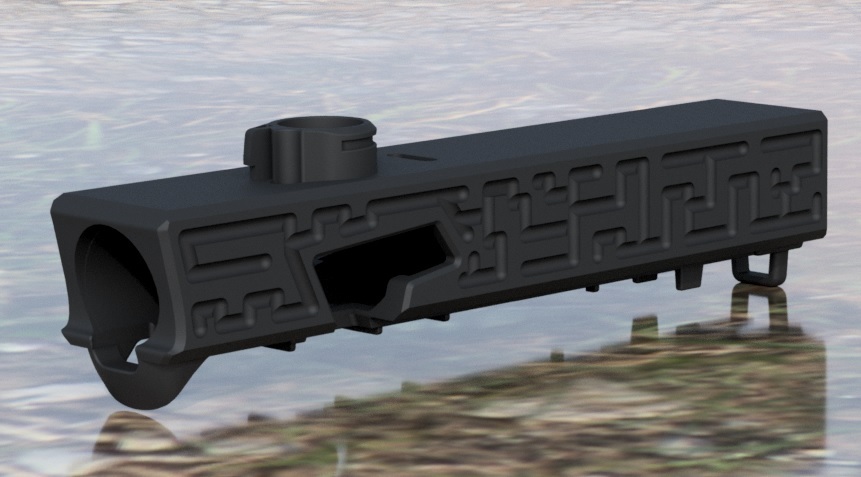

    This may be hitting the printer soon...

    Rainmaker's feedback: https://www.mcarterbrown.com/forum/b...maker-feedback

      Comment

      • Rainmaker
        Der Printermeister
        • Jul 2020
        • 1585
        • Cincinnati
        #17

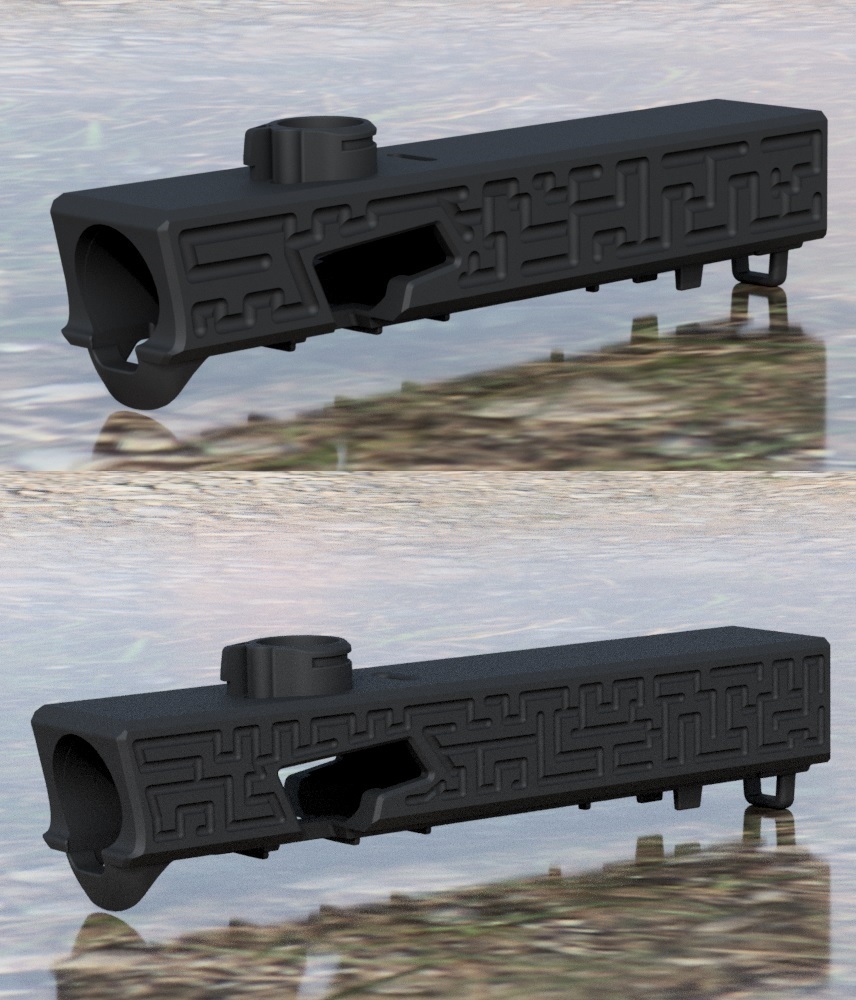

        What do you guys think, does the tighter pattern (bottom) look better?

        Rainmaker's feedback: https://www.mcarterbrown.com/forum/b...maker-feedback

          Comment

          • KMDPB
            #17.1
            KMDPB commented
            01-18-2022, 07:12 PM
            Editing a comment
            Awesome body! I think the top one is better looking imo
            • Alexndl
              #17.2
              Alexndl commented
              01-18-2022, 07:15 PM
              Editing a comment
              1 vote for the tighter pattern
              We meed to see both of them side by side once complete! Good work
              • Spider!
                #17.3
                Spider! commented
                01-18-2022, 10:12 PM
                Editing a comment
                I would think the larger pattern would look better at a distance, compared to the tight pattern at the same distance.
              • devilzcall
                Mod everything
                • Jan 2022
                • 177
                • Dresden, Saxony, Germany
                #18
                3D printed barrel shenanigans

                If it doesn't have the [F] i don't want it. - Europoor

                  Comment

                  • Rainmaker
                    Der Printermeister
                    • Jul 2020
                    • 1585
                    • Cincinnati
                    #19

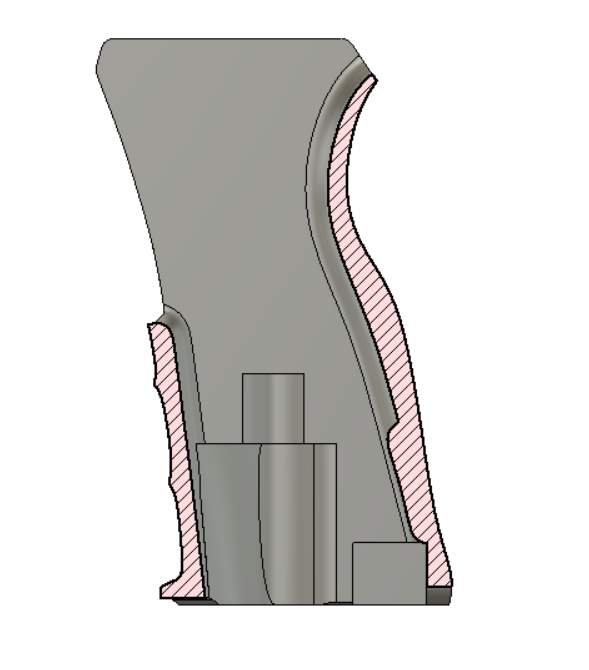

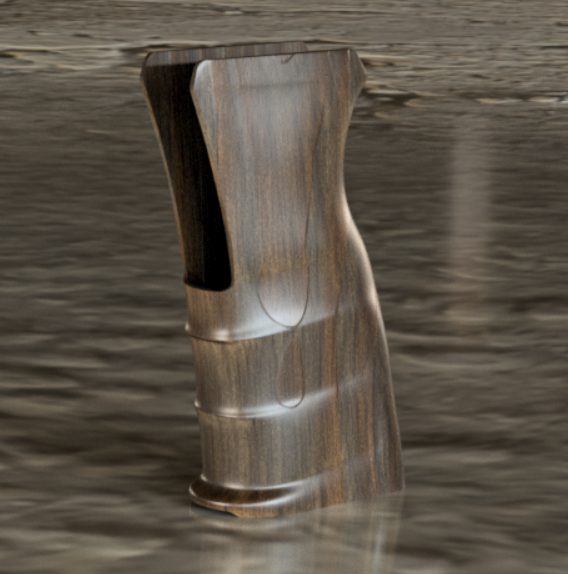

                    In my pursuit of making a Relic-ized EMEK, I'm CADing up some EMEK grips... and falling down the rabbit hole that is CNC routers, so I can try to make these out of wood...
                    Would you think folks would be interested in wood EMEK grips, or would they not?


                    Rainmaker's feedback: https://www.mcarterbrown.com/forum/b...maker-feedback

                      Comment

                      • Spider!
                        #19.1
                        Spider! commented
                        02-02-2022, 06:54 PM
                        Editing a comment
                        Yeah, I expect that I would be interested. I'm trying to stay away from CNC routers myself. Mainly a lack of space. Better to fund your weakness as long as I can.
                      • jeramiej
                        MCB Member
                        • Aug 2020
                        • 224
                        #20
                        Those look very good. Don’t have an EMEK, but if I did, would love the AK look if wood and steel. I always wondered why other wood and such were never implemented to the Sheridans, such as pump handles etc. exotic woods, such as stabilizing spalted maple and other woods. I do this with bowls and platters.
                        Last edited by jeramiej; 02-04-2022, 10:33 AM.
                        Old school brass........

                          Comment

                          • Rainmaker
                            Der Printermeister
                            • Jul 2020
                            • 1585
                            • Cincinnati
                            #21
                            Can anyone guess the purpose of this little test section?

                            Rainmaker's feedback: https://www.mcarterbrown.com/forum/b...maker-feedback

                              Comment

                              • Spider!
                                #21.1
                                Spider! commented
                                06-02-2022, 04:42 PM
                                Editing a comment
                                Pump emek?
                                • grendal50
                                  #21.2
                                  grendal50 commented
                                  06-03-2022, 04:49 AM
                                  Editing a comment
                                  single shot emek?
                                • Rainmaker
                                  Der Printermeister
                                  • Jul 2020
                                  • 1585
                                  • Cincinnati
                                  #22

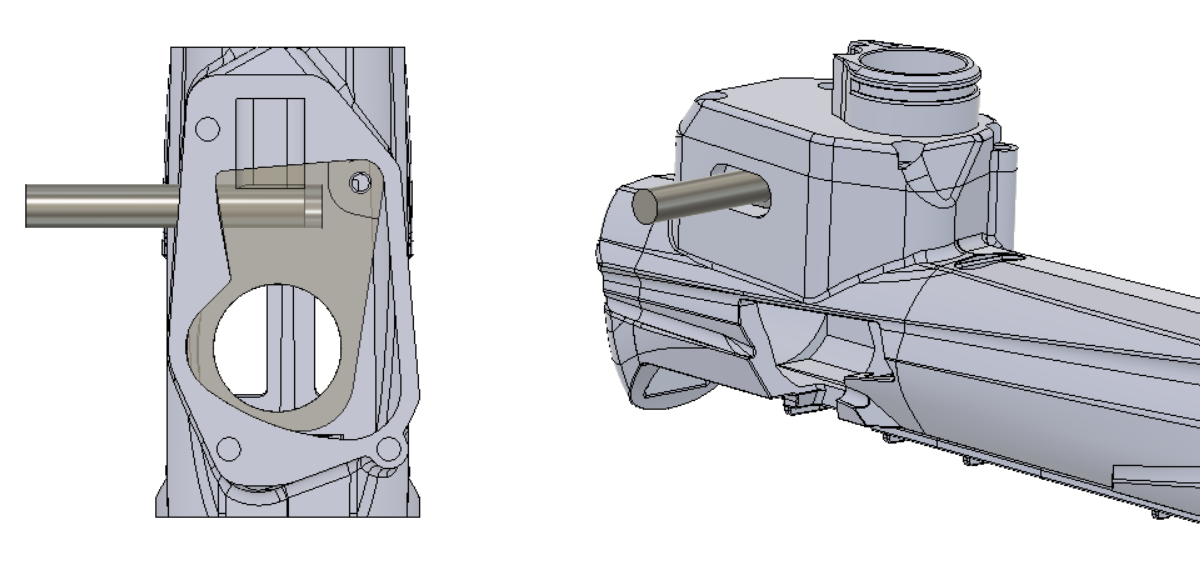

                                  2nd try - going with a pivoting block this time...
                                  Rainmaker's feedback: https://www.mcarterbrown.com/forum/b...maker-feedback

                                    Comment

                                    • Siress
                                      #22.1
                                      Siress commented
                                      06-10-2022, 05:37 PM
                                      Editing a comment
                                      Validating the offset stack design that claims to reduced ball stack bounce? "Pump" kit for any semi?
                                    • zinger565
                                      Bang Head Here
                                      • Apr 2022
                                      • 960
                                      • Wisconsin
                                      #23
                                      First prototype of a B2K bolt, with some airflow shenanigans. I'm torn between turning the 90deg into more a sweep, but that would decrease the conical length for expansion.

                                      Screenshot from 2022-06-17 06-05-06.png
                                      MCB Feedback

                                        Comment

                                        • Spider!
                                          #23.1
                                          Spider! commented
                                          06-17-2022, 08:58 AM
                                          Editing a comment
                                          On the topic of expansion in the bolt, I've always been curious about changing the expansion area with different parabolas and surface treatments. It kind of goes to poop as the flow stacks up behind the ball, but I would like to see what happens.
                                          • zinger565
                                            #23.2
                                            zinger565 commented
                                            06-17-2022, 09:07 AM
                                            Editing a comment
                                            I can definitely try some stuff. I have marker stand and chrono, so will do some testing for sure once I get prints dialed in. Thinking of testing:
                                            Valve port size
                                            Angle or no?
