Planet Eclipse Feedneck boss Dimensions?

[superman]

Anyone have a PE feedneck boss they can measure for me? This is what i am getting off of the feedneck itself, but some verification would be nice since it is hard to measure the internal locking groove.

0.885" OD
0.875" Groove OD
0.125" up
0.050" groove height

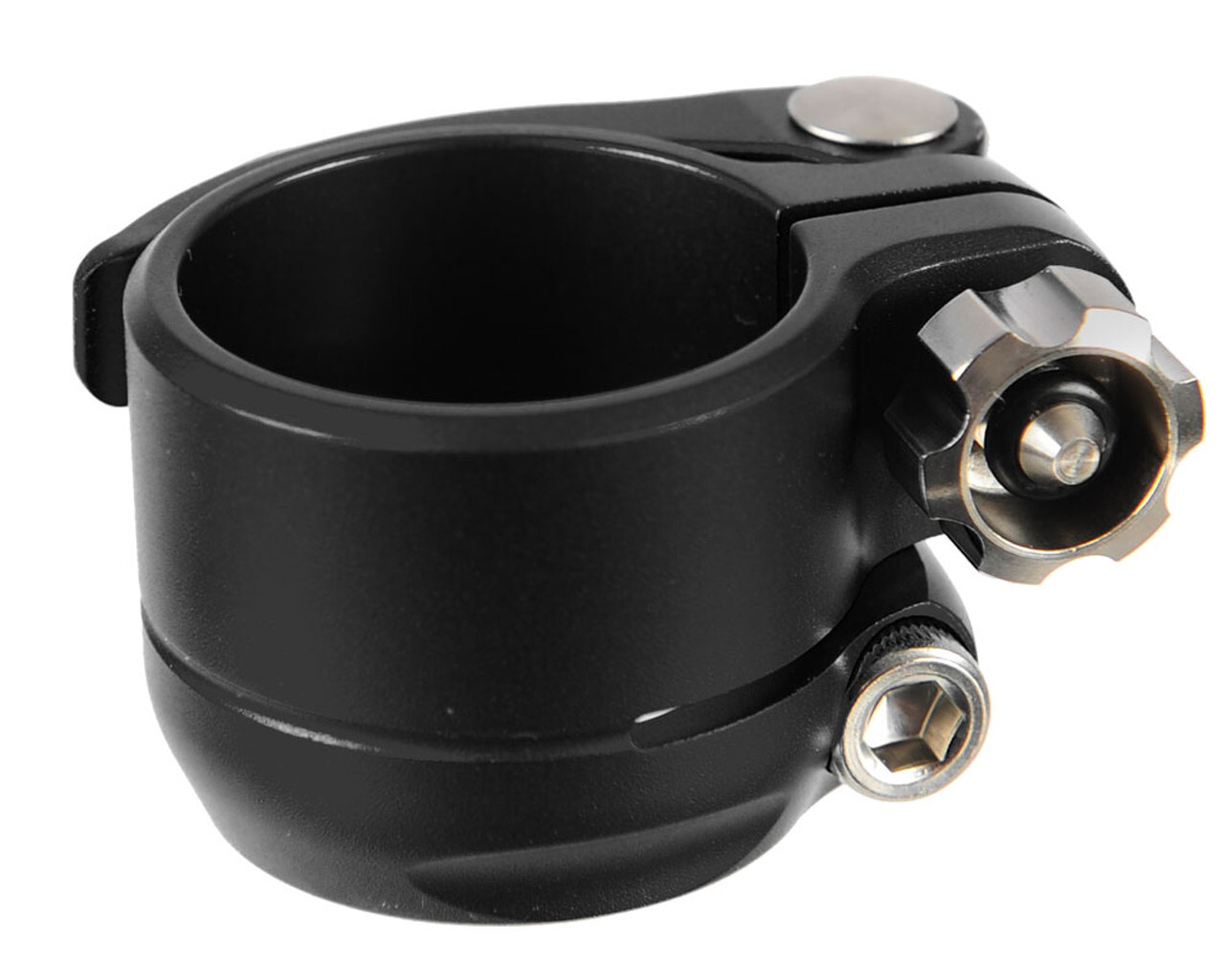

This style.

[Jordan]

Andy has some files here:

https://www.zdspb.com/tech/misc/cadf...feednecks.html

[superman]

I will double check the etek file. The emek one did not show the groove. I thought the etek one had the groove all the way at the bottom, but I guess I didn’t zoom in enough.

[superman]

The Etek one andy had up was not correct either for this feedneck.

[superman]

I will report back, but Frmrspec was kind enough to shoot me over a file. Thank you sir. I will get this cut in the next day or so to confirm this fits properly. Metric dimensions make this look alot cleaner than it is.....But freedom units and stuff.

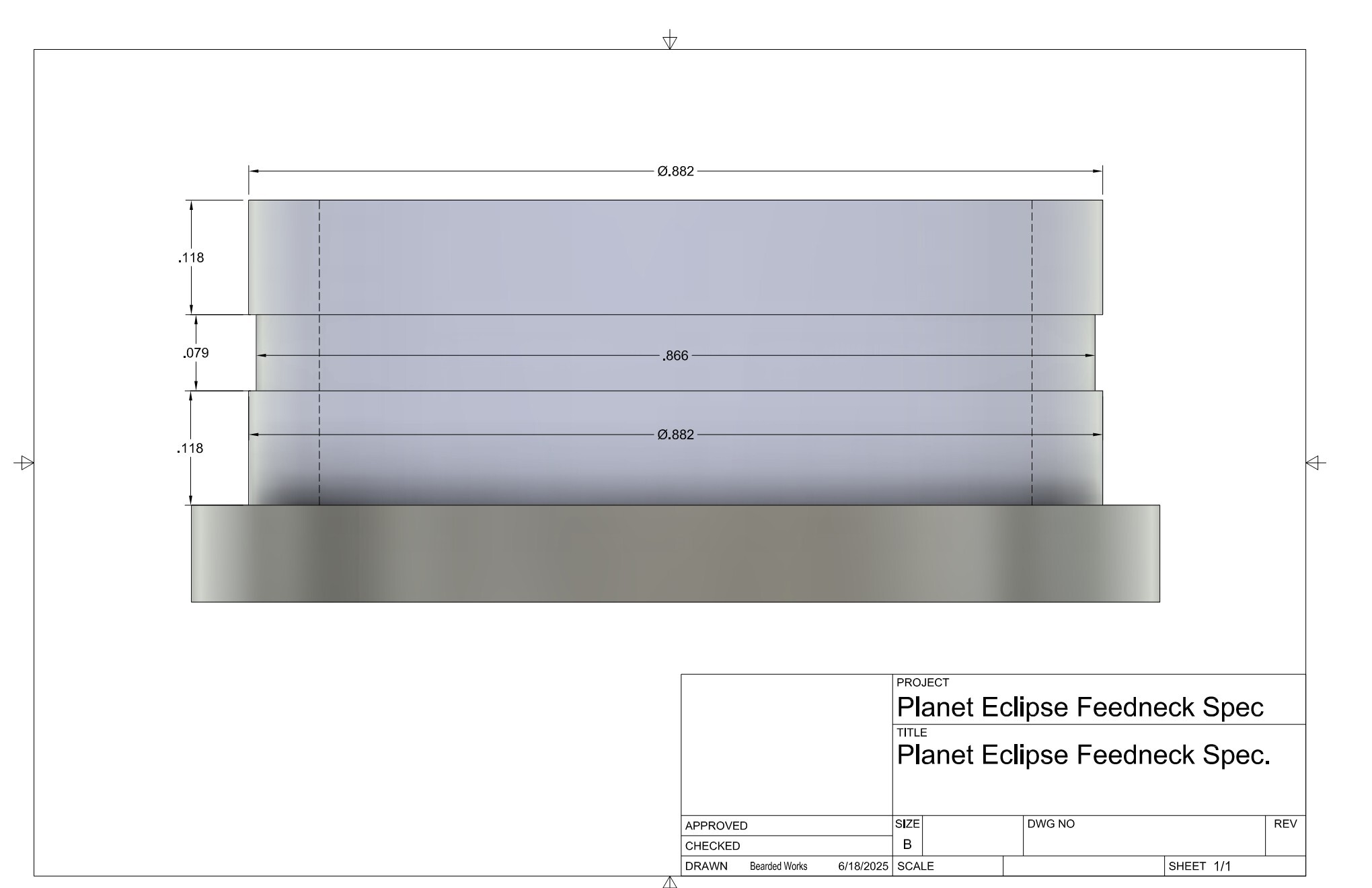

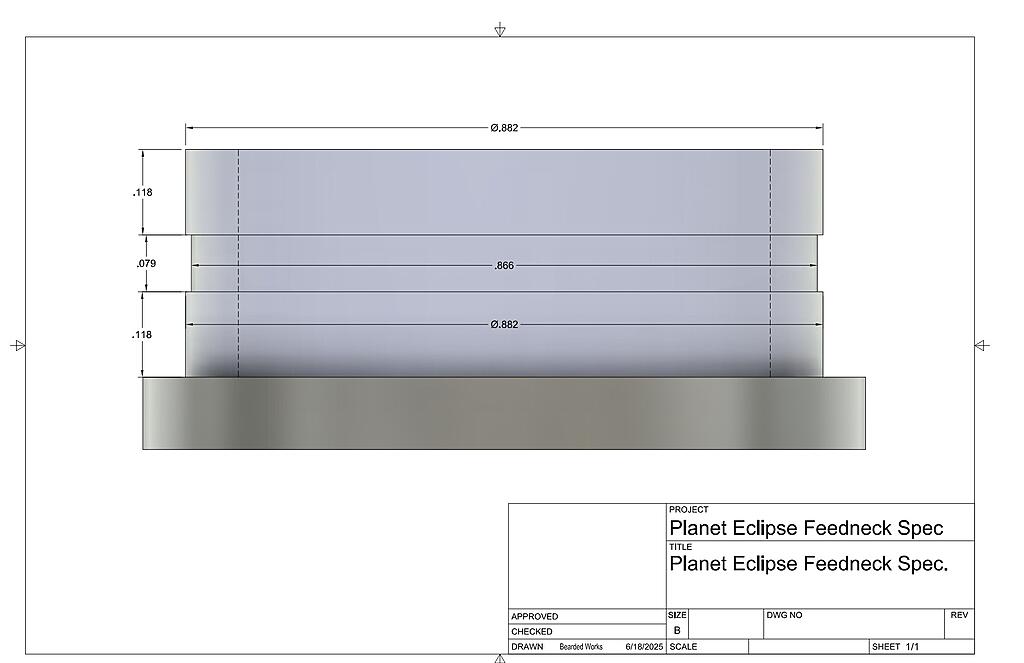

PE Feedneck Spec.jpg

[superman]

These dimensions work. I need to double check that .079 dimension though. As it had a bit more vertical movement than i would prefer.

[tyronejk]

superman Did you ever double-check the dimensions for this?

[superman]

I did not.
