    Simunition goggles, helmet and face protection

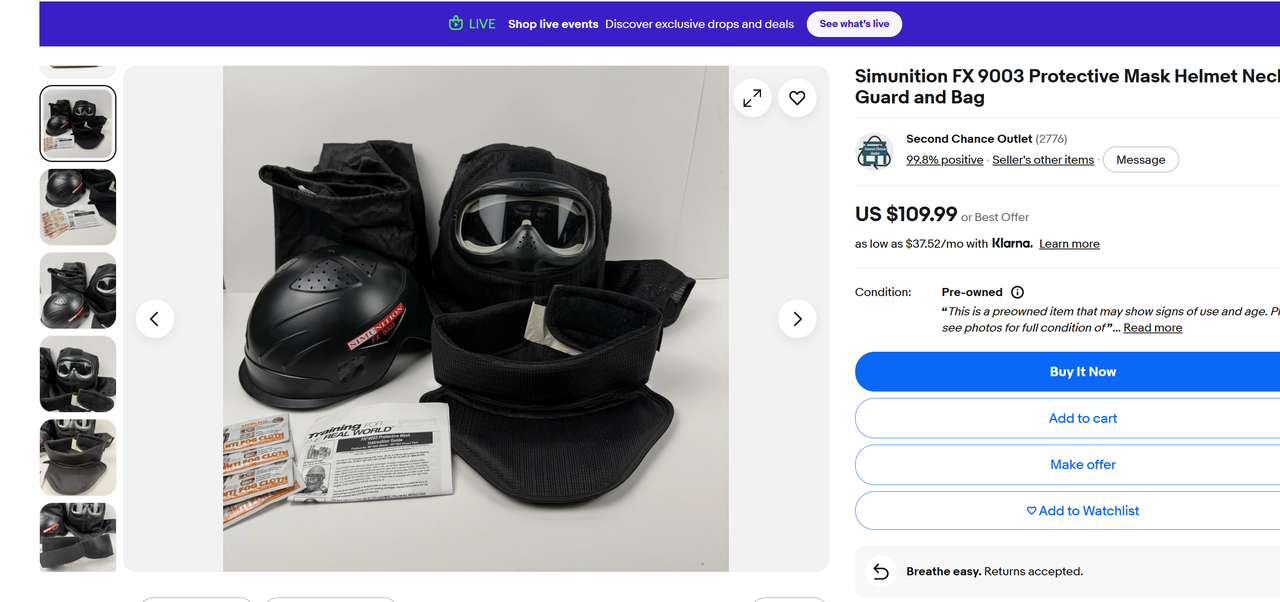

    I'm not sure why I'm surprised, but these don't appear to be reinforced paintball goggles at all and have a lot more cushioning and overall protection.

    https://www.ebay.com/itm/318301907499

    I shudder to think what these things cost the taxpayers new.









  • Shrek5595
    Ricky Bobby
    • Jun 2025
    • 16
    • Southern California

    #2
    they are probably used with soap bullets. i think is what they are called. if you zoom in you can kinda see the cartridges used with those goggles. we used those in the Navy for simulation

    Comment


    • otar
      otar commented
      Editing a comment
      Yeah, zooming in on the manual it says "For use in FX interactive training with 9mm, .38, or 5.56 simulation FX marking cartridges ONLY. Do not use with any other type of caliber or ammunition"

      I wouldnt try it with paintballs

    • StaticShocked
      StaticShocked commented
      Editing a comment
      Interesting sounding stuff. Really light weight but fast. 0.23 grams at 623 FPS. https://simunition.com/fx-training-system/

      FX® Marking Cartridge Caliber 5.56mm Projectile mass* Approx. 0.23g (3.5grains)
      Projectile material Plastic
      Cartridge case Copper alloy
      Marking compound Non-toxic, detergent-based, water-soluble Marking colors Red, blue, white and yellow
      Primer Small rifle primer or ToxFree® primer
      Propellant Single or double-base smokeless powder BALLISTIC DATA*
      Velocity at 3.5m (12ft): 21ºC (70ºF) Approx. 190m/s (623fps); depending on the weapon used
      Accuracy at 21ºC (70ºF) 20cm (8in) at 30m (100ft) shoulder fired, depending on the weapon used
      Maximum range (no wind, no elevation) Approx. 64m (210ft)
      Penetration in 20% gelatin at 1m (3ft) None
      Energy at 3.5m (12ft) Approx. 4.2 joules (3.1ft-lbs)
      Ballistic match Nominal -20cm (-8in) at 30m (100ft) shoulder fired
      Lethality Non-lethal bruises, welts or scrapes
      General For use with Simunition® conversion kit only Operational temperature range-8ºC (18ºF) to +40ºC (104ºF)
      Mandatory Personal Protective Equipment, Simunition® approved Head, throat, groin and full body covering, including hands
      Firing modes Single shot, burst and fully-automatic

      "The “impact awareness” delivered by its round contributes to the realism of FX interactive training.". Impact awareness. Fancy way of saying it hurts.
  • Chaos
    I'm Comin' To Getcha
    • Jul 2020
    • 849

    #3
    Had one of these...you had to be Military or Law Enforcement to be able to buy them. LUKE (RIP) helped me buy a set back in 2011. I had Thyroid surgery and wanted to be able to play during my recovery and absolutely NOTHING had better throat protection than these. I had to mod the mask to use JT goggles as the standard lense in it wasn't rated for paintballs, the field of view was tiny and they fogged up badly. New they were only around $100 if I remember correctly
