Help: need Shocker /Nerve frame mounting screw spacing

[XEMON]

Hello MCB,

I'm needing the Shocker /Nerve frame mounting screw spacing for a project.

Anyone got a frame they can do a quick measurement?

Thanks y'all,
X

[Spec]

10-32 x 11/16" unless a Dark, Tonton, or Nerve then only 1/2" in the back

Courtesy of Andy (zdspb)

[XEMON]

Thanks for the info.
I was hoping to get the distance between the mounting screw.

[Jordan]

Have you checked the CAD section on zdspb.com? Andy's got a bunch of Shocker SFT/NXT drawings in there.

[XEMON]

No, didn't knew ...
I'll check it out and see if I can find it, thanks 👍

[Jordan]

Here's the Shocker SFT page: http://www.zdspb.com/tech/misc/cadfi...hockersft.html

And the CAD page: http://www.zdspb.com/tech/misc/cadfilepost/index.html

[Roger7pball]

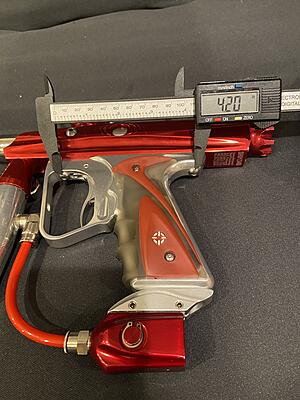

Rough measurement

[WORR13]

4 3/8" on center (sft)

[XEMON]

Awesome thanks everyone, it will work with a bit of sanding 👍
