    Sovereign bolt

    How do you pull the bolt apart to replace the brass center piece?
    Thanks in advance
    Click image for larger version Name: IMG_20220512_151535162.jpg Views: 420 Size: 2.46 MB ID: 272349 Click image for larger version Name: IMG_20220512_151525048.jpg Views: 352 Size: 3.04 MB ID: 272350
    Tags: None
    • WORR13
      MCB Member
      • Jul 2020
      • 369
      • NY
      #2

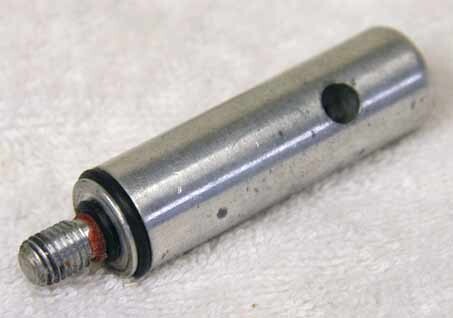

      Click image for larger version Name: sov1.jpg Views: 212 Size: 90.7 KB ID: 272384

        Comment

        • WORR13
          #2.1
          WORR13 commented
          05-14-2022, 06:48 PM
          Editing a comment

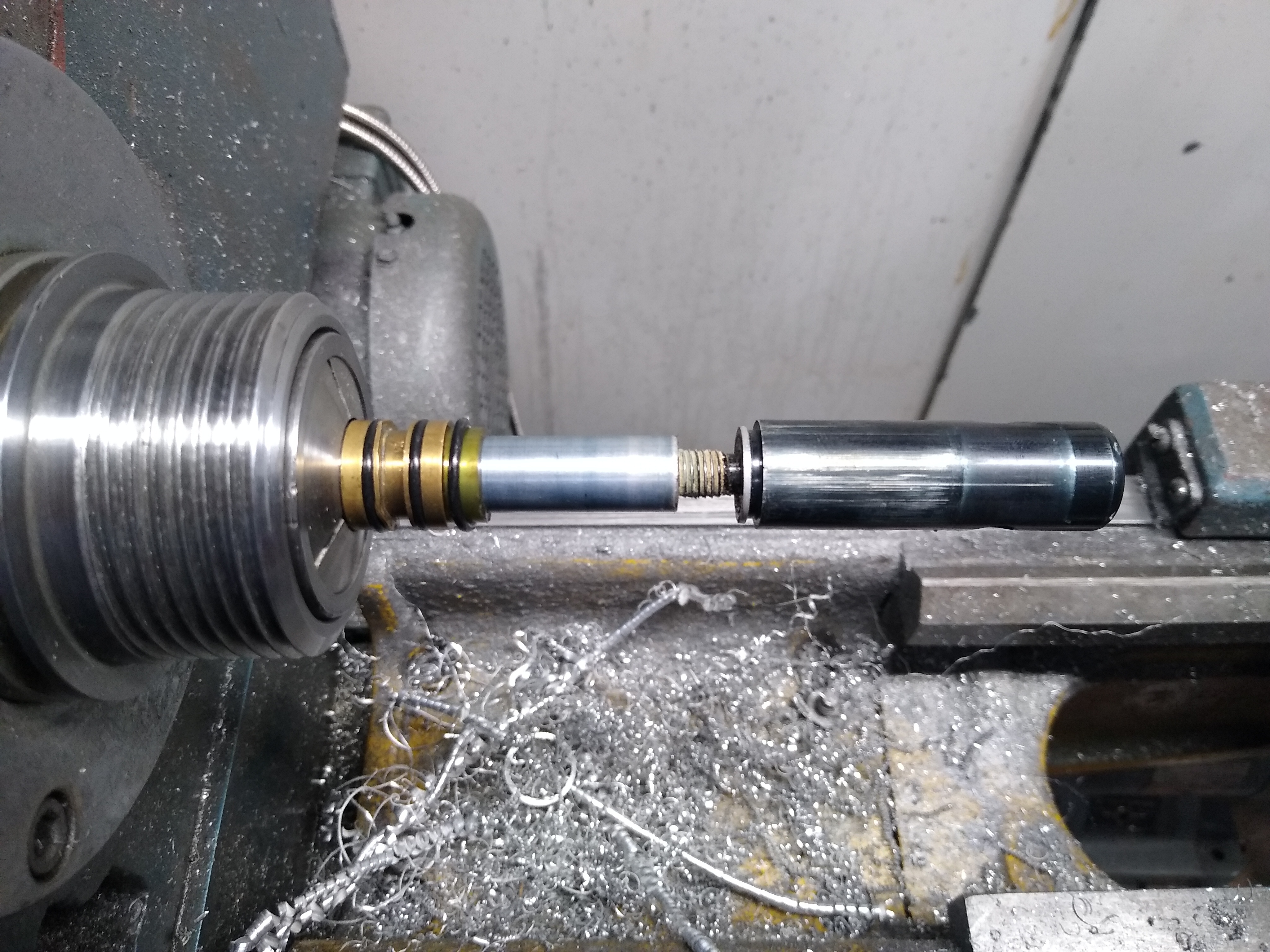

          its threaded, i used a proper sized punch through the bolt pin hole to get apart. its been a while since i did it though, think i needed heat to get apart, loctited
        • WORR13
          MCB Member
          • Jul 2020
          • 369
          • NY
          #3
          nice barrel btw

            Comment

            • WORR13
              MCB Member
              • Jul 2020
              • 369
              • NY
              #4
              Click image for larger version Name: sov004.jpg Views: 387 Size: 15.6 KB ID: 272400

                Comment

                • Kit
                  #4.1
                  Kit commented
                  05-14-2022, 08:39 PM
                  Editing a comment
                  Thanks, exactly the info I needed.
                • Kit
                  MCB Member
                  • Jul 2020
                  • 452
                  • Cali
                  #5

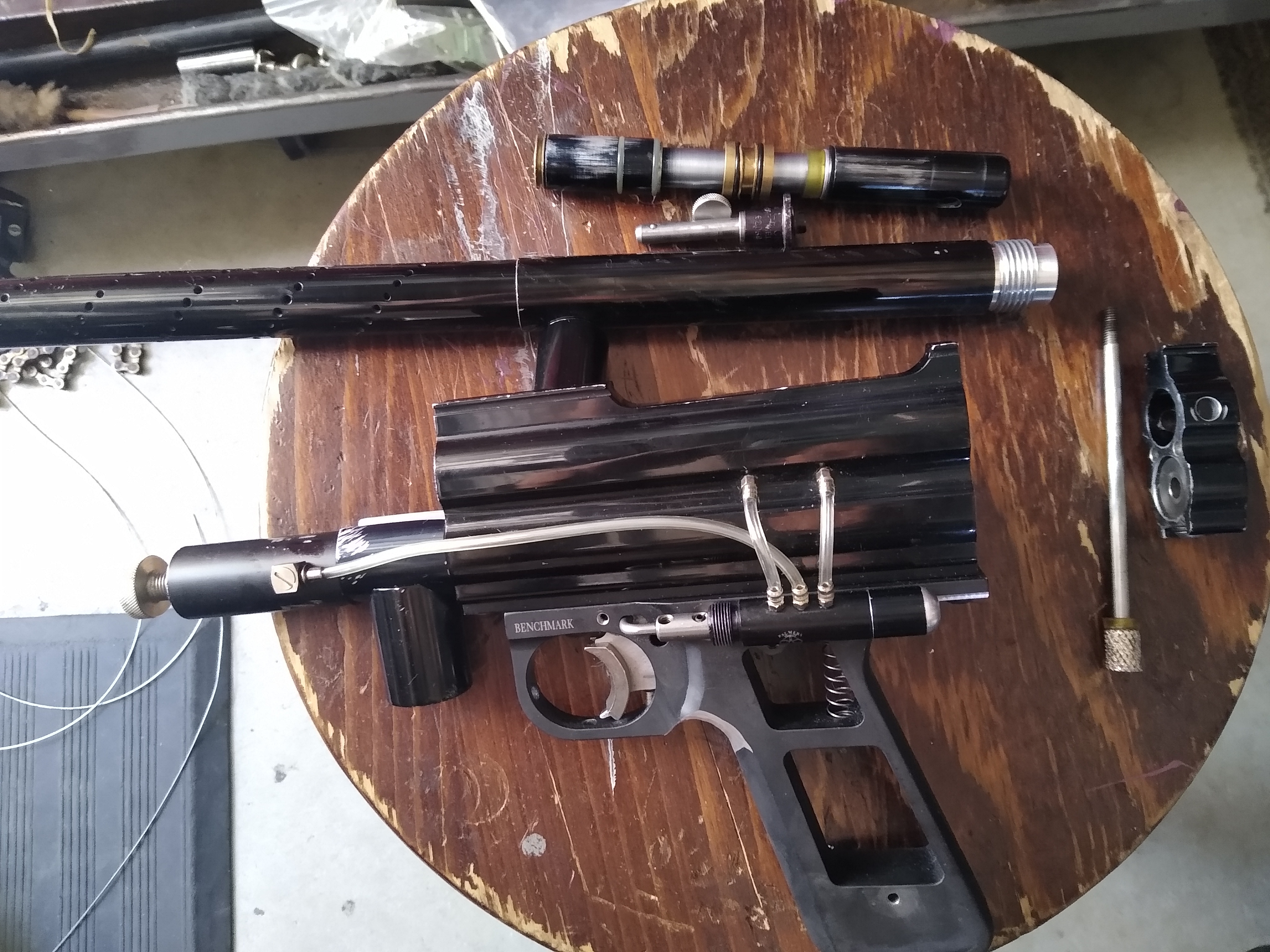

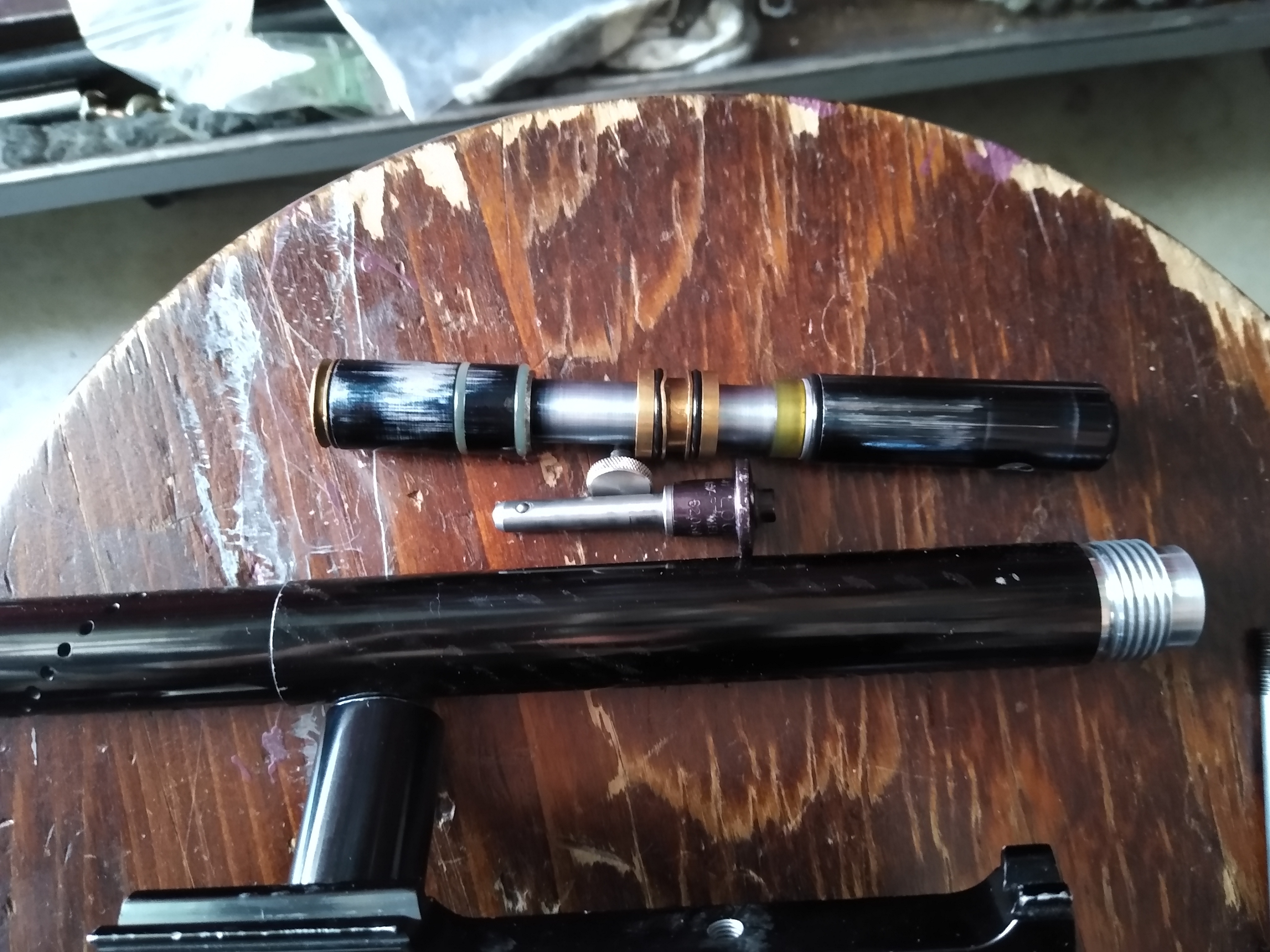

                  Click image for larger version Name: IMG_20220514_183353155.jpg Views: 345 Size: 3.16 MB ID: 272465

                    Comment

                    • WORR13
                      MCB Member
                      • Jul 2020
                      • 369
                      • NY
                      #6
                      no prob. i know how hard it is to find any kind of info or parts for these things

                        Comment

                        • DocsMachine
                          MCB Member
                          • Jul 2020
                          • 2700
                          • Alaska
                          #7
                          Glad to know I'm not the only one that uses lathe chucks and collets to hold round things while I pry 'em apart.

                          Doc.
                          Doc's Machine & Airsmith Services: Creating the Strange and Wonderful since 1998!
                          The Whiteboard: Daily, occasionally paintball-related webcomic mayhem!
                          Paintball in the Movies!

                            Comment

                            • WORR13
                              #7.1
                              WORR13 commented
                              05-17-2022, 06:23 PM
                              Editing a comment
                              actually did that with a barrel couple weeks ago
                              • Araphel
                                #7.2
                                Araphel commented
                                05-17-2022, 10:04 PM
                                Editing a comment
                                I've got dedicated 5c blocks for exactly that purpose.
                              • Kit
                                MCB Member
                                • Jul 2020
                                • 452
                                • Cali
                                #8

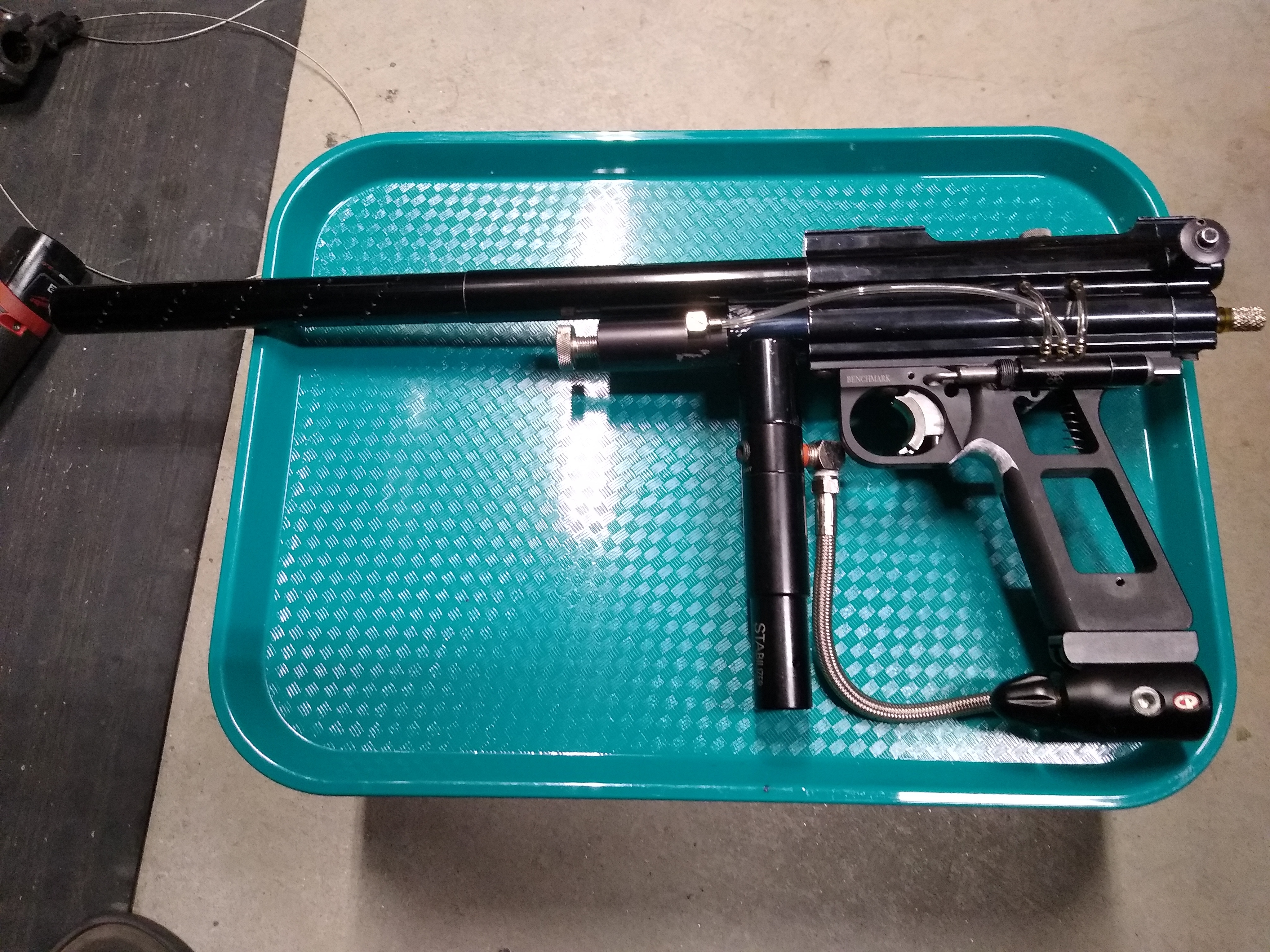

                                Got it sealed up and shooting. Ended up just changing the o-rings under the brass piece. If the broken o-ring flanges give me trouble, I'll make a new piece. Until then,... Also need to bore the barrel for inserts or add a ball detent to the body. Or both.
                                Click image for larger version Name: IMG_20220515_203718193.jpg Views: 309 Size: 4.11 MB ID: 272939

                                  Comment

                                  • WORR13
                                    MCB Member
                                    • Jul 2020
                                    • 369
                                    • NY
                                    #9
                                    nice, i should get mine running too

                                      Comment

                                      • MrBarraclough
                                        Returnee
                                        • Dec 2020
                                        • 587
                                        • AL Gulf Coast
                                        #10
                                        Such cool looking machines. I wonder if anyone has tried using a 90 degree elbow on the air line from the LPR to the 3-way, so that it would lay flatter against the body. A hardline there would look badass, but probably be pretty fiddly to install.
                                        The Automag: Not as clumsy or random as an electro. An elegant marker for a more civilised age.

                                        www.reddit.com/u/MrBarraclough

                                          Comment

                                          • WORR13
                                            #10.1
                                            WORR13 commented
                                            05-20-2022, 06:40 PM
                                            Editing a comment
                                            they came with a hardline there. Kits is modified
                                            • k_obeastly
                                              #10.2
                                              k_obeastly commented
                                              05-22-2022, 11:25 AM
                                              Editing a comment
                                              ans LPRs were supposed to be the correct length to use the factory hard line.
