What type of Mag is this?

[Junglepeanut]

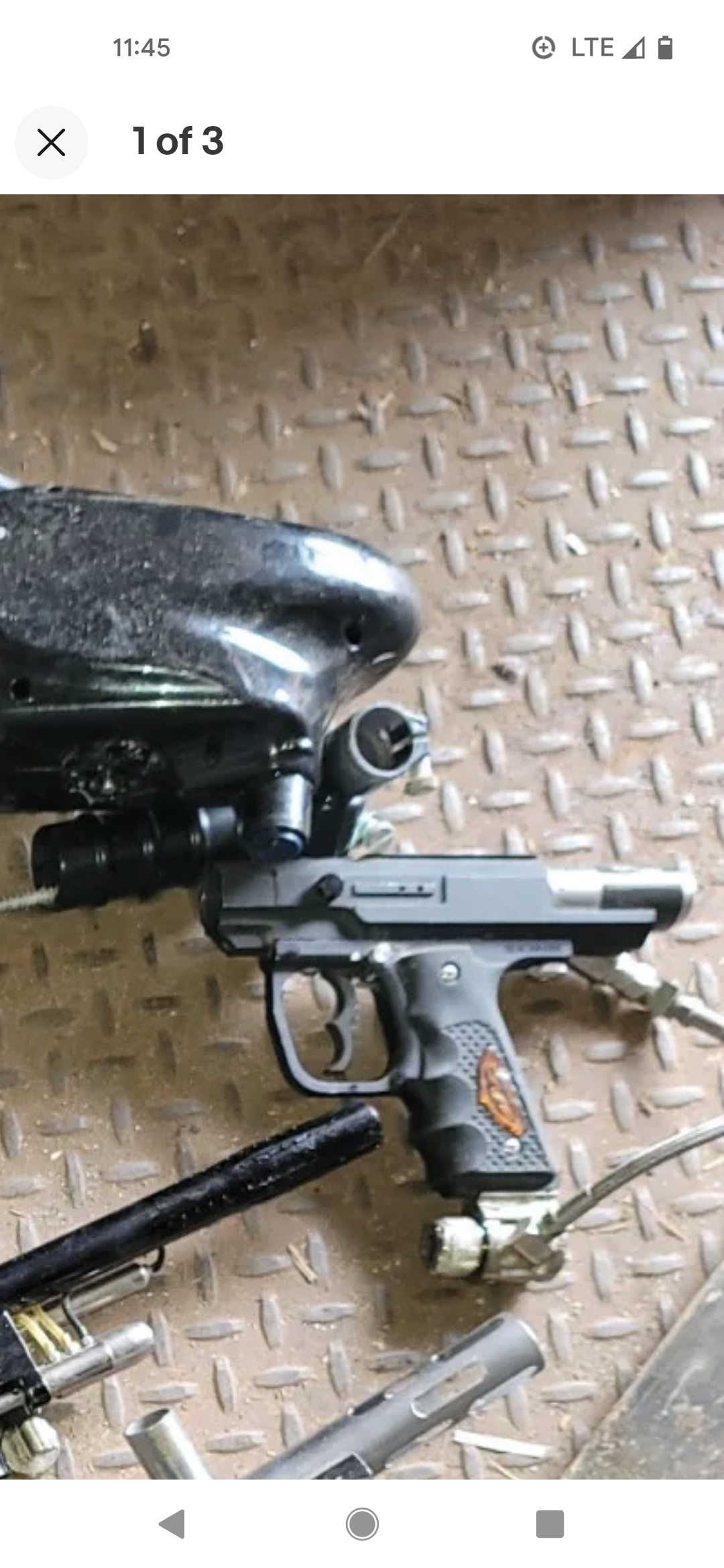

Sorry for the crappy pic, it's all I have. Wanted to see if anyone can ID this mag body for me

[Ecapnation]

A micro mag with a retro valve or a aluminum back half

[Junglepeanut]

What year/type? I dont recognize it from the Micros i have seen but then again i am not a Mag guy.....Is it a knockoff version?

[scottieb]

It looks like a customized micro mag body. Other than that I can't offer any more information. I've never seen another like it.

[pghp8ntballer]

That looks like it might be one of the oddball knock off micro mag bodies? I can’t remember any details about them though besides actually existing.

[Ecapnation]

It looks like someone ditched the finger ball detent and drilled it for a ball type

[Riot]

cougar20th

[cougar20th]

I'm leaning towards it starting lif as a Micromag as it jas the milling for the ptp style detent. Every clone I am aware of used a different type of detent. My guess would be the ptp detent broke and they machined it for what looks like a cocker detent. It is also missing some of its milling. It wouldn't be the first time I have seen micromags that people milled them smooth.

[Junglepeanut]

Hopefully I will have my hands on it sometime next week and I can post better pics. Its the smooth sides that threw me off, i have never seen one like that before. Thank you for the info

[maggot]

This is a real gen2 micro that's been butchered (milled flat sides and cocker detent added instead of PTP detent).
I'd be leery, high likelihood of stripped threads and sub-par finish (paint/powder).

[Junglepeanut]

It's included with some other stuff I bought so it's coming.... It just threw me off trying to ID it

[Ecapnation]

The whole lot looks crunchy.... But yeah definitely a messed with micro mag

[Junglepeanut]

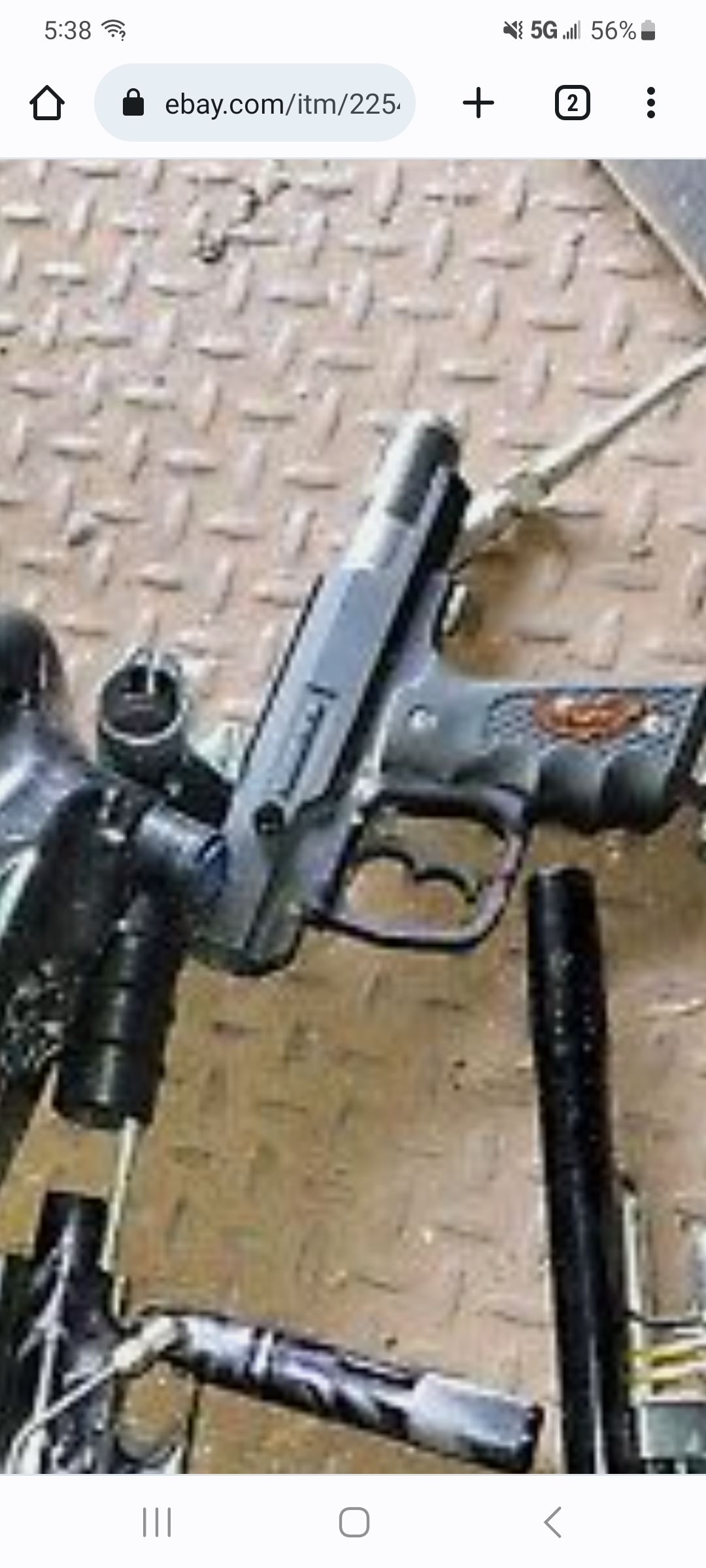

Wow, much better pic then I pulled woth my phone, thank you.... And yea it looks crunchy but I had to swing the bat..... Hoping it's a needs a good cleaning type grunge and not a left out in the rain type grunge

[Walker]

The shaved ones are out there.....

[superman]

see if the front frame screw and the foregrip mount have had the threads repaired. I did one awhile back, but also cut out above the frame. https://imgur.com/a/h6K8yjd

[Walker]

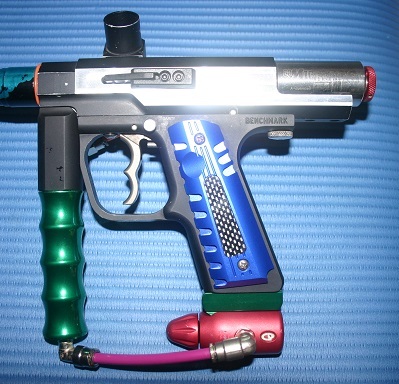

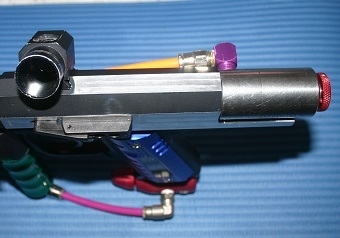

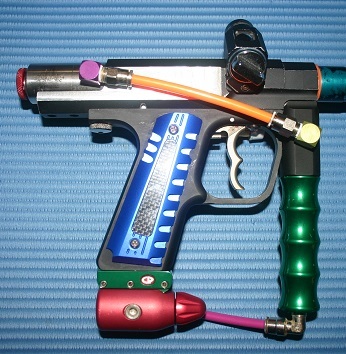

vert asa threads and front frame screw were stripped, blemishes on the side, stripped detent threads to name a few.

I cleaned up the faces, used stainless thread inserts to repair the frame and vert asa threads. Had the detent threads welded, redrilled and tapped for the detent threads. cut a little meat out of the bottom of the body. to make it a bit lighter.

The thread inserts have not been loctited in place in case someone wants to have the body anodized,

I like it.......

[Walker]

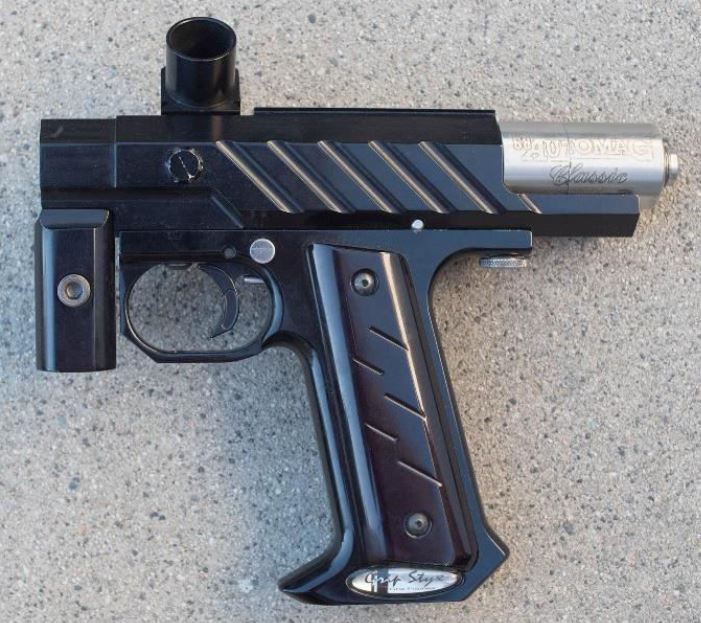

MicroMag Clone

[Junglepeanut]

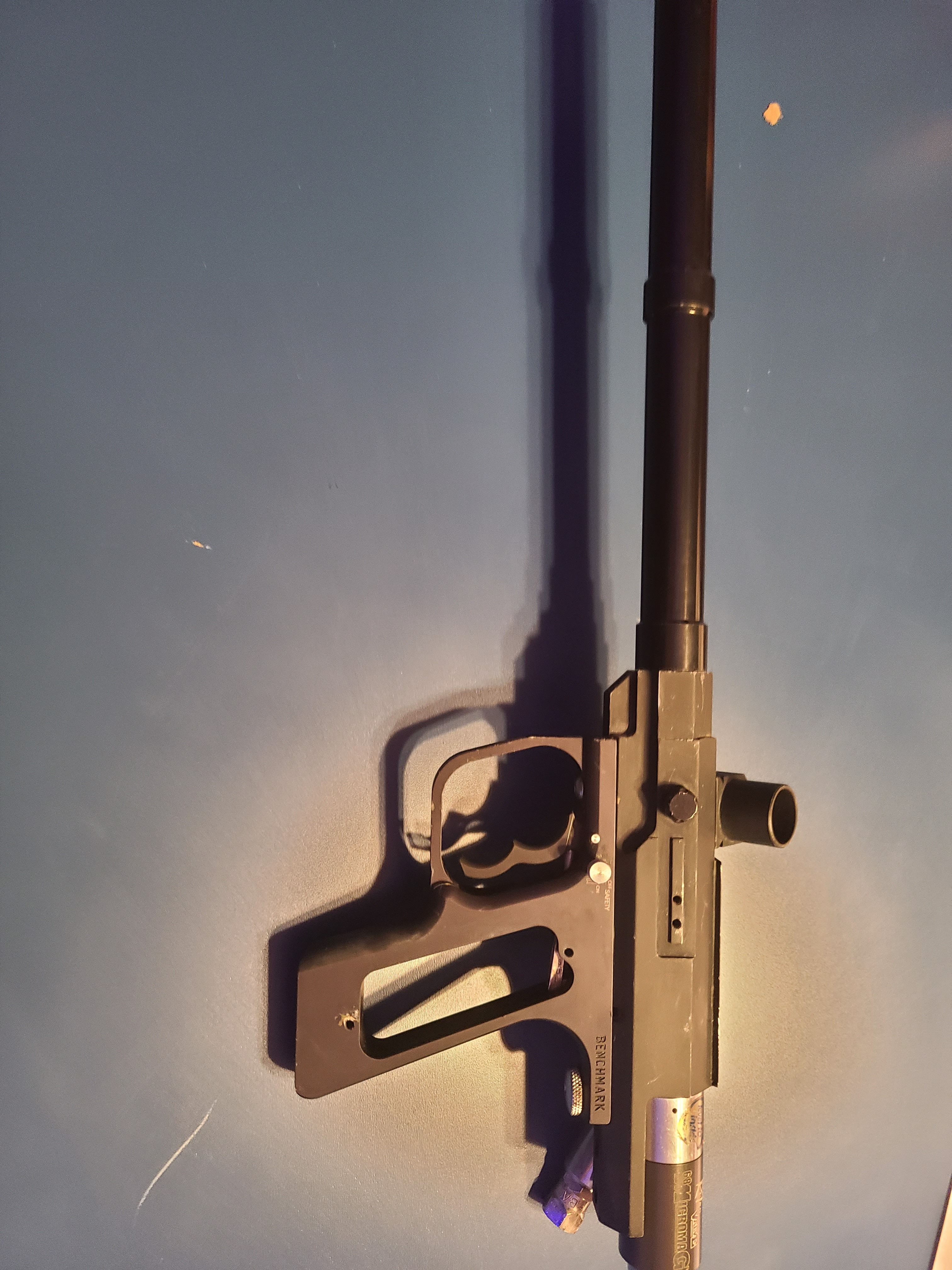

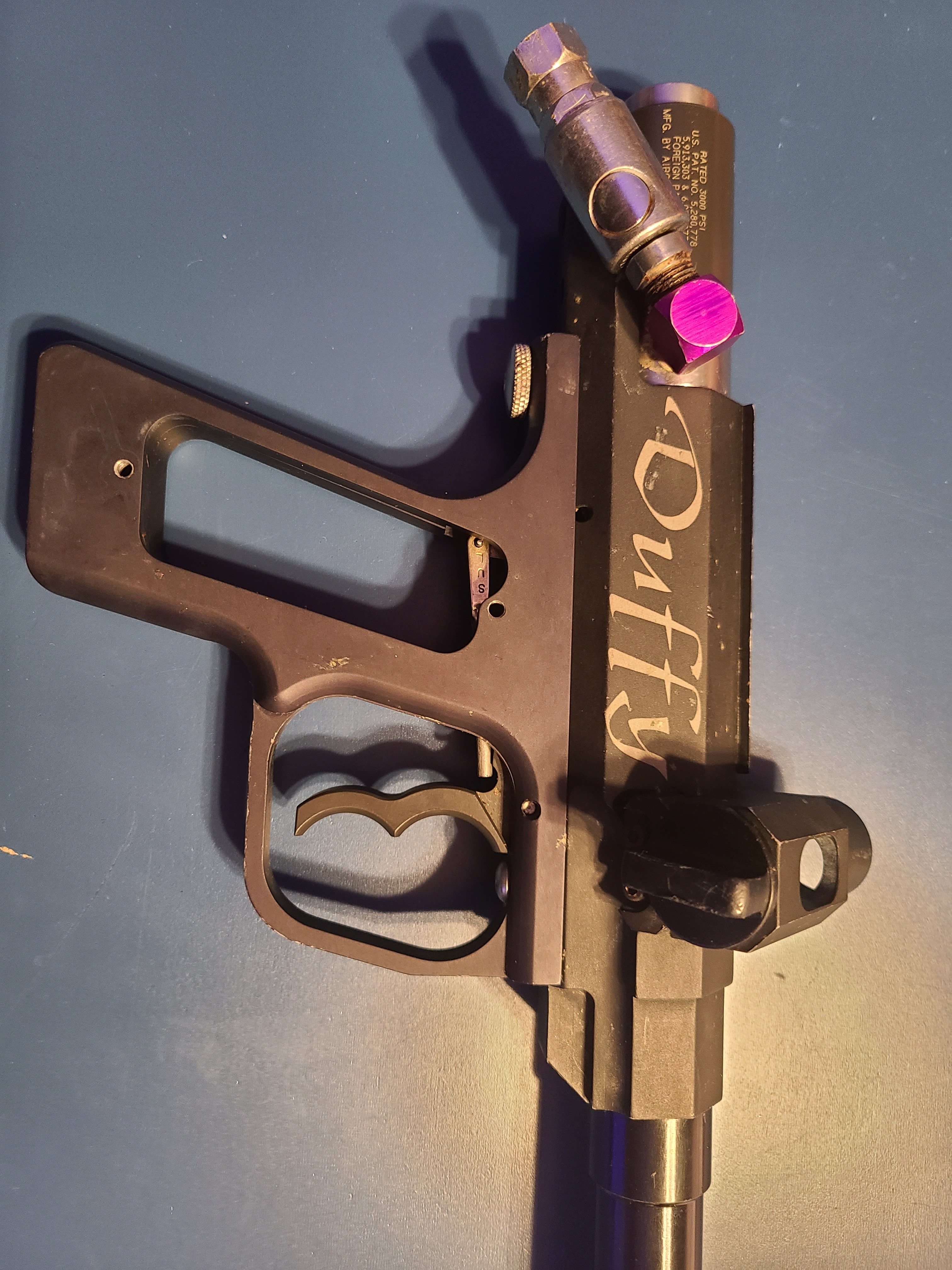

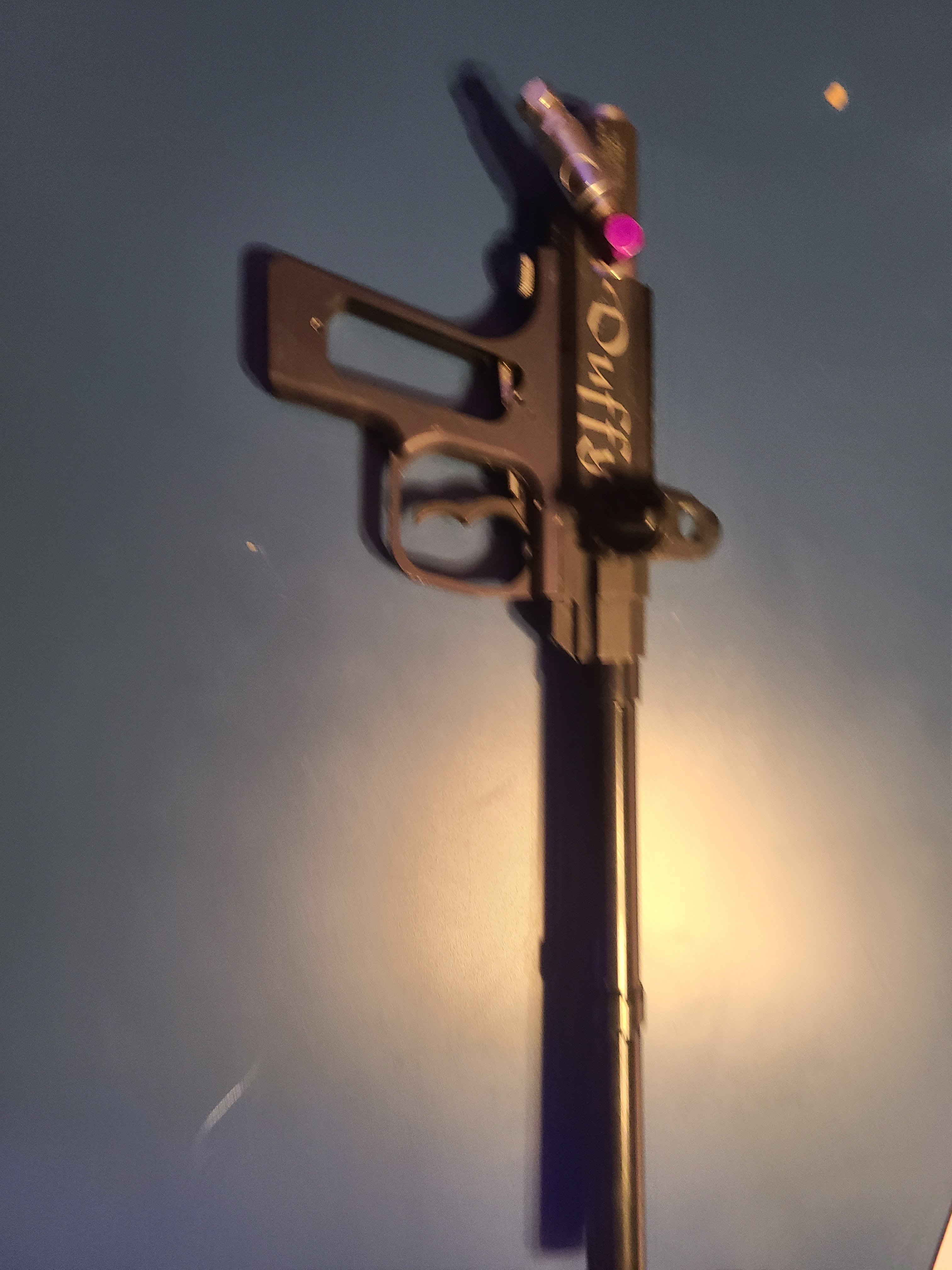

Got the mag..... It is worn but actually very well built. No stripped threads and the dust anno looks as good as factory. Does have a name in the side.... anyone know "Duffy"?

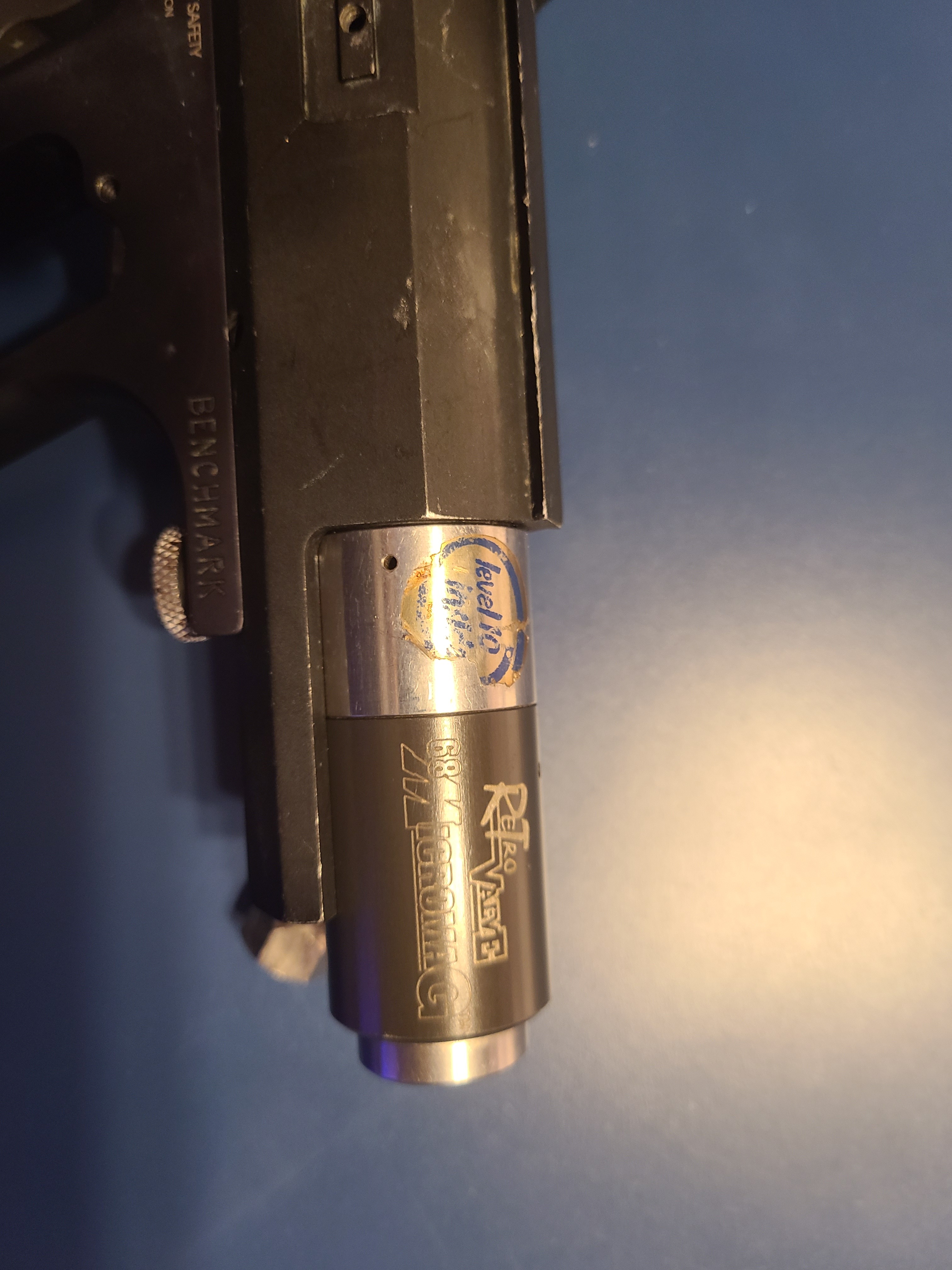

And any idea on value as is? I am sure it will need to be completely pulled apart and serviced. I assume the valve is the most valuable part? Being labeled as a Micromag RT valve hurt or add anything to it?

[maggot]

Cool! That worked out well. Worth a few hundred bucks. Valve adds to it slightly.

There's a user named Duffy on PBnation... otherwise I have no idea who that would be.

[Alexndl]

To give you an idea for the valve price by itself, here is the price if you want to buy one from Superman
Xvalves $280 each
Emag/rt valve with Level 10 $260
Emag/rt valve with Level 7 $220


There is a level 10 sticker on yours so if you confirm its a level 10 bolt it would be worth around $220-$260 for the valve alone. But please keep it with the micromag body it make a complete kit.

The push quick disconnect is fun to use too if it hold air. You can remove it if you want too.

Just put some grip and ASA on it and try it first you will probably like it.
