I am in search of a tiny high-pressure solenoid valve capable of withstanding the pressure of a 12-gram Co2 cartridge or more. I'd love to run it off a 9V battery or two but as space is limited the fewer batteries I need to power this the better. Even if you can help point me in the right direction that would be greatly appreciated!
-
-
800psi, micro? I'd be surprised if they exist.
You'll need to regulate it somehow or come up with a different design.
-
CO2 isn't solenoid valve friendly. The liquid phase transition wreaks havoc on seals.
I'd consider something like an MQ or uprising frame. Use a solenoid plunger to drive your valve, instead of using an off- the- shelf valve. Then you can design for the pressure, and build in a relief and account for thermal shocks.Feedback
www.PhrameworkDesigns.com < Nelspot, Sterling, and Phantom parts, plus the occasional big project.Comment
-

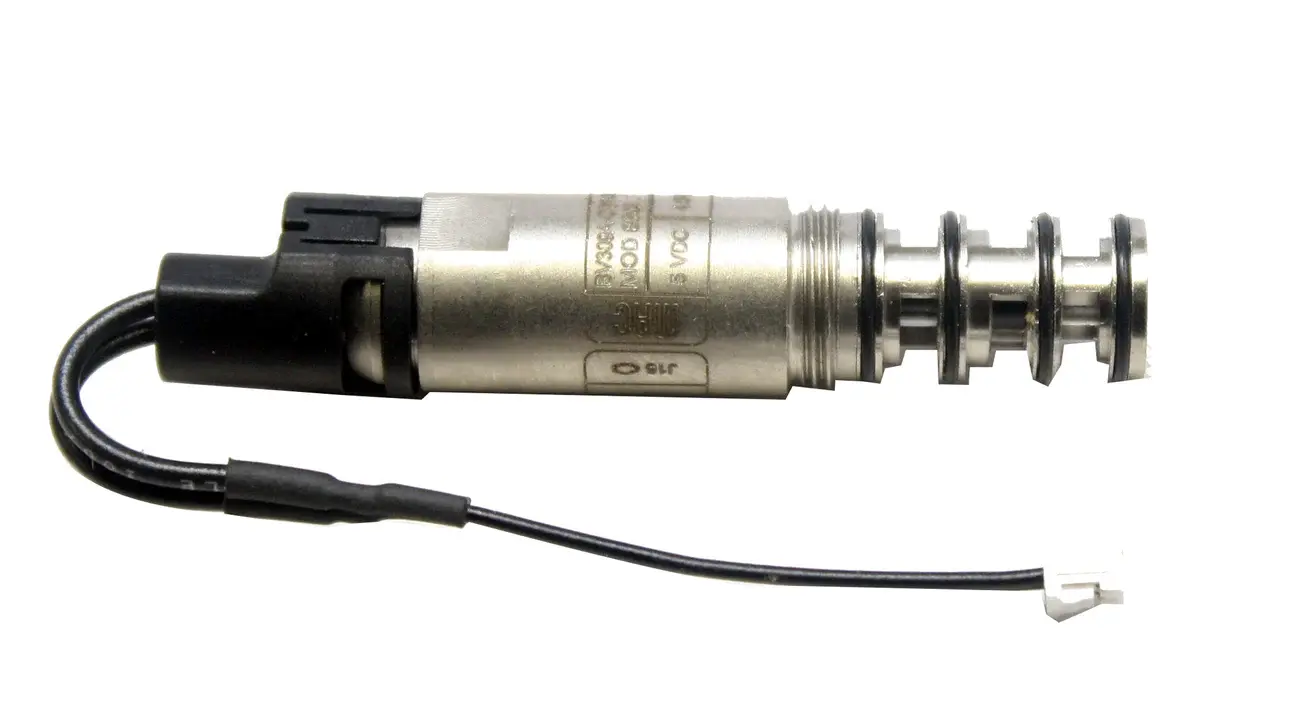

looks like the same solenoid used in the bob long insight/onslought. this is the picture from field ones siteOriginally posted by Price
Attached FilesComment
-
-
You might need to use a pilot driven solenoid where you are regulating the air down to push a pilot valve to trigger a 5-way valve.Comment
Comment
