    AA Vigilante leaks

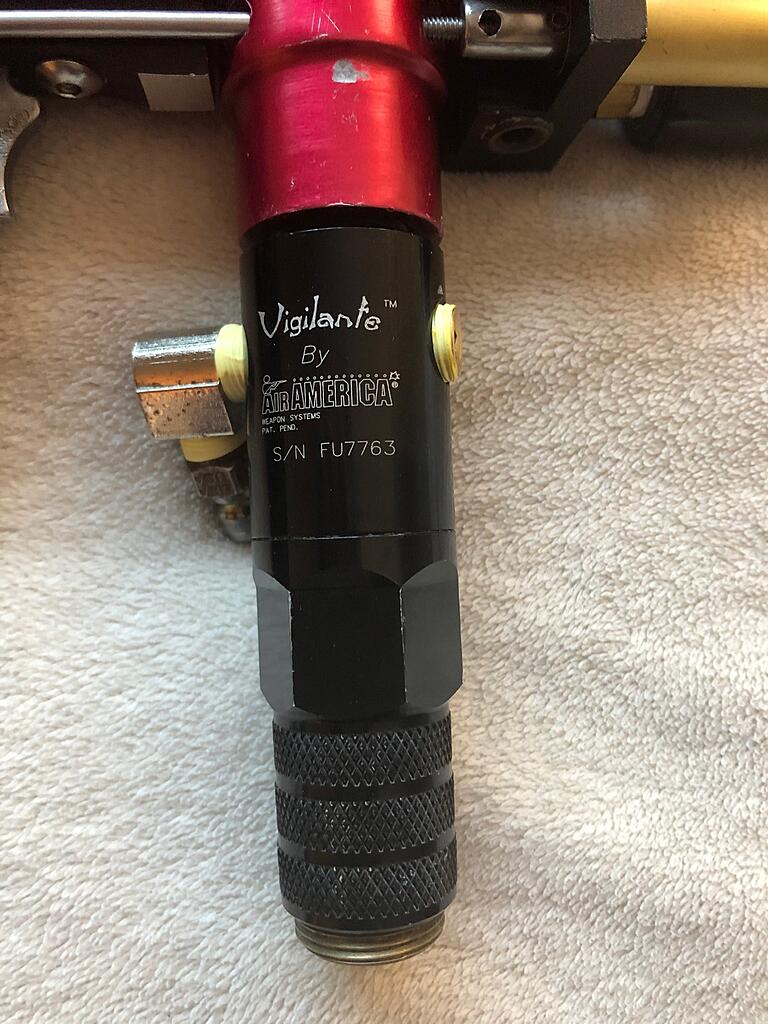

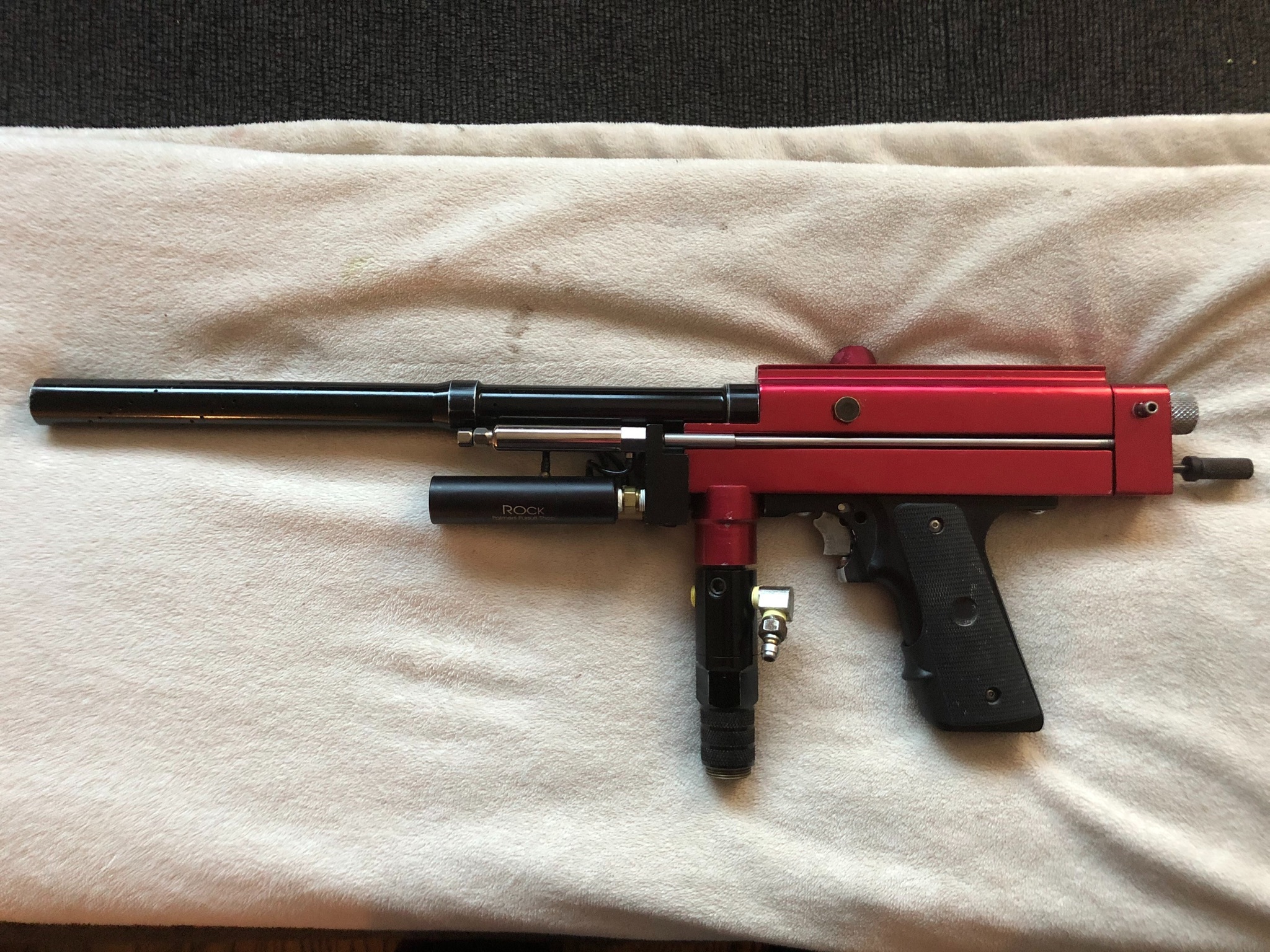

    hey, a few questions about the Vigilante, there are three ports on this reg, are the two lower ones both inputs?

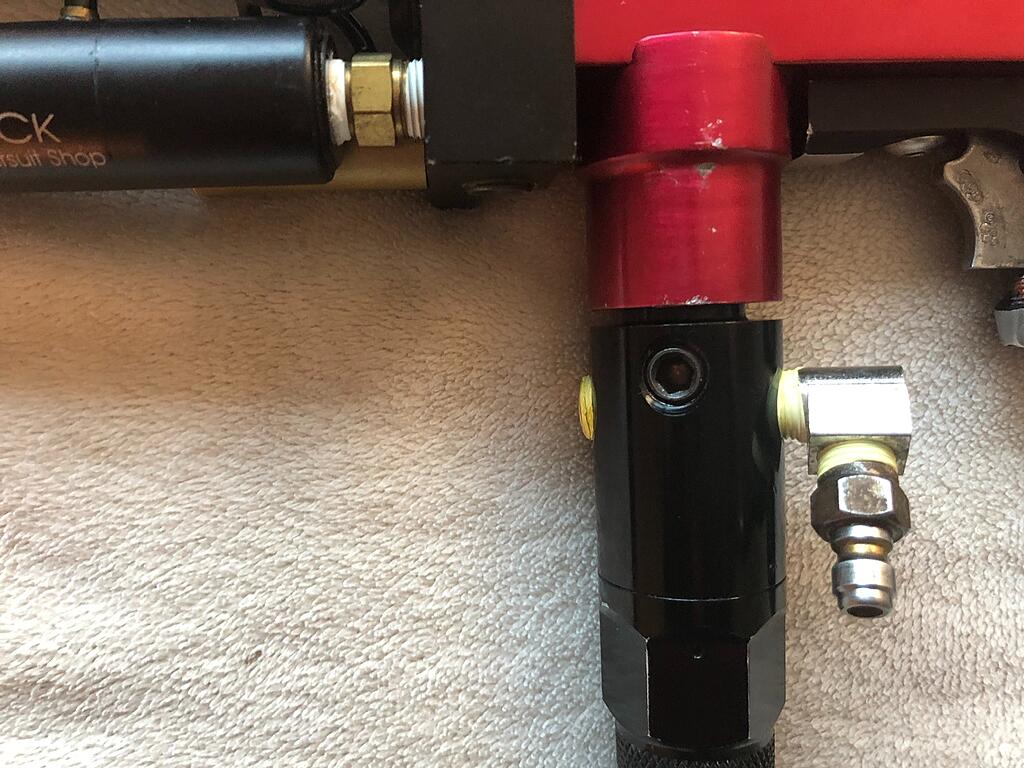

    the top most port appears to be an output, and as what looks to be a burst disk in there. This is where my leak is. See pictured

    are these actual burst disks, that are single use only, so once it blows it needs replacing? Or is it a pressure relief valve which would reset, which could mean my reg is over pressurizing?

    does the Reg piston also have a safety valve and are they prone to fail and leak too?

    Thanks! Click image for larger version Name: 3299C3AF-0472-47C4-BA27-5093228042D5.jpeg Views: 378 Size: 1.05 MB ID: 48511 Click image for larger version Name: 23C5270D-2065-455C-B2F0-CAC8A338A6EC.jpeg Views: 318 Size: 788.6 KB ID: 48512 Click image for larger version Name: 43750F1C-B802-4237-8F12-86BED5C9458E.jpeg Views: 327 Size: 740.9 KB ID: 48513
    '96 RF Mini Cocker, '95 RF Autococker, 68-Automag Classic, Banzai Splash Minimag, Gen-E Matrix, Shoebox Shocker 4x4, Montneel Z-1, Tippmann Pro-Carbine, Tippmann Mini-Lite, Tippmann Model-98, Tippmann 68-Special, Spyder .50 cal Opus/Opus-A , Tippmann .50 Cal Cronus , Gog Enmey .50 cal , Tippmann Vert ASA 68-Carbine, Bob Long Millennium, ICD Grey Green Marble Splash Alleycat Deluxe (runs liquid co2) , Halfblock 2K4 Prostock Autococker , 2K RF Sniper II

    Meleager7 Feedback: https://www.mcarterbrown.com/forum/b...ager7-feedback

    Mel Eager Productions, Paintball Videos: https://www.youtube.com/@meleagerproductions9082
    Tags: None
    • lew
      Devious Dirtbag
      • Jul 2020
      • 1035
      • WY
      #2
      You are correct. The lower holes are the input, and the one with the burst disc is an additional output. I don't see a need for a burst disc there, so replace it with a 1/8" NPT plug and the thread sealant of your choice.
      “It is no measure of health to be well adjusted to a profoundly sick society.” -Krishnamurti

        Comment

        • Meleager7
          #2.1
          Meleager7 commented
          10-28-2020, 06:43 PM
          Editing a comment
          Cool, i’ll Pop a gauge on there, and troubleshoot further,thanks
