Virtue Redefined Ion board - membrane pad and wiring harness.

[Sdawg]

Anyone ever get a membrane pad working with an Ion virtue redefined board? I am stumped, as I have never seen even a working harness. I would like to see a picture of a working wiring harness attached to the board so I can make my own harness.

[antifat]

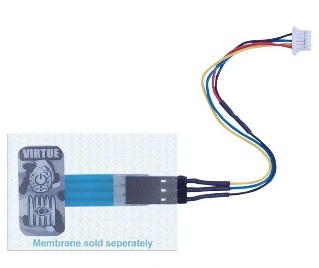

I found this, maybe it helps.

[Sdawg]

Thanks, unfortunately that wiring pattern did not seem to work. I have that harness, but apparently it is for the first revision of the ion virtue board.

[Pumpytrilly1]

I don't think you can put one on the revision board. Only original boards with the connector on the back. My ion virtue board has a connector on the back if that helps.
