    Scuba tank adapter

    Hey all,

    Can you show me your scuba tank fill setup.

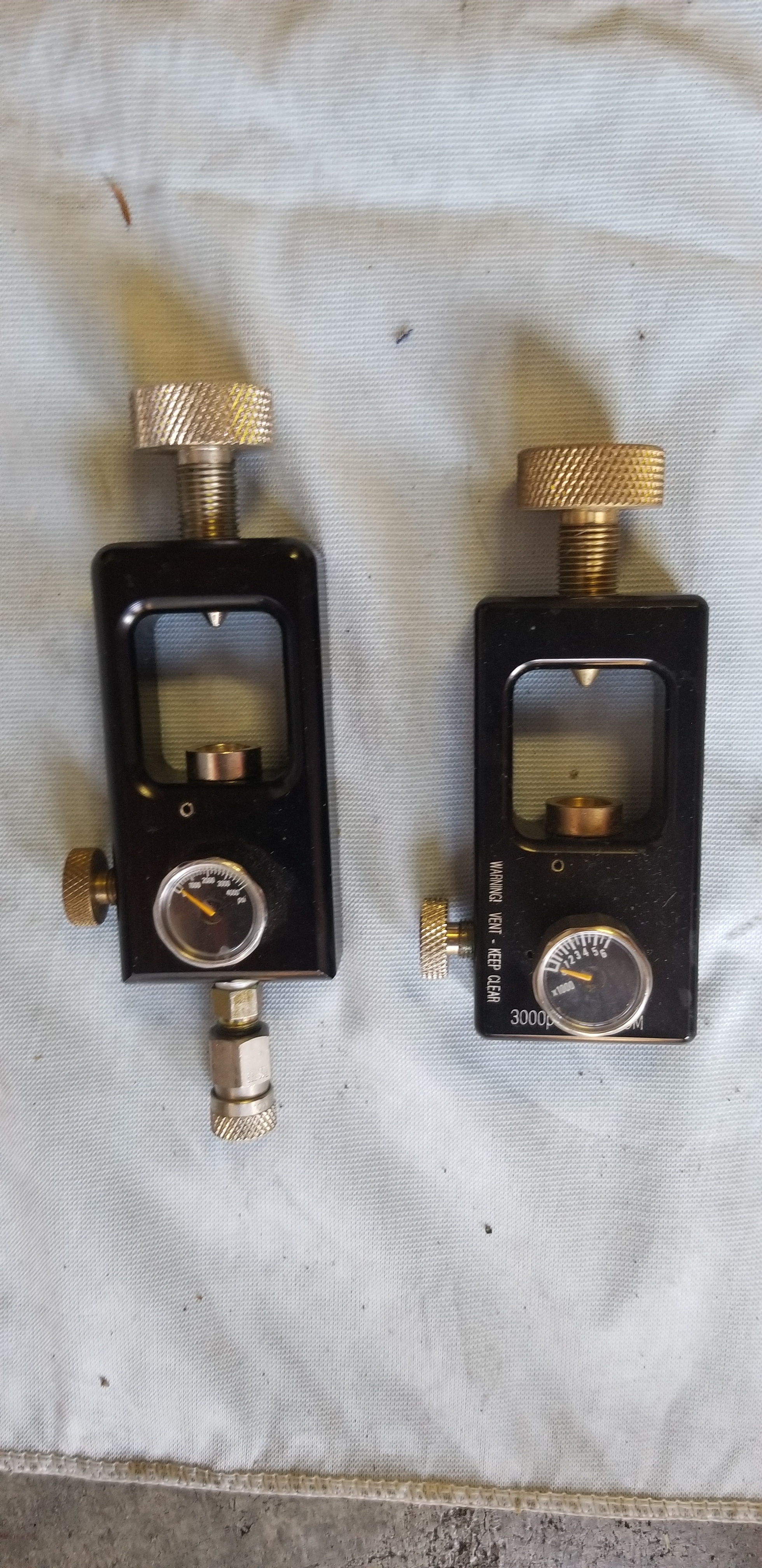

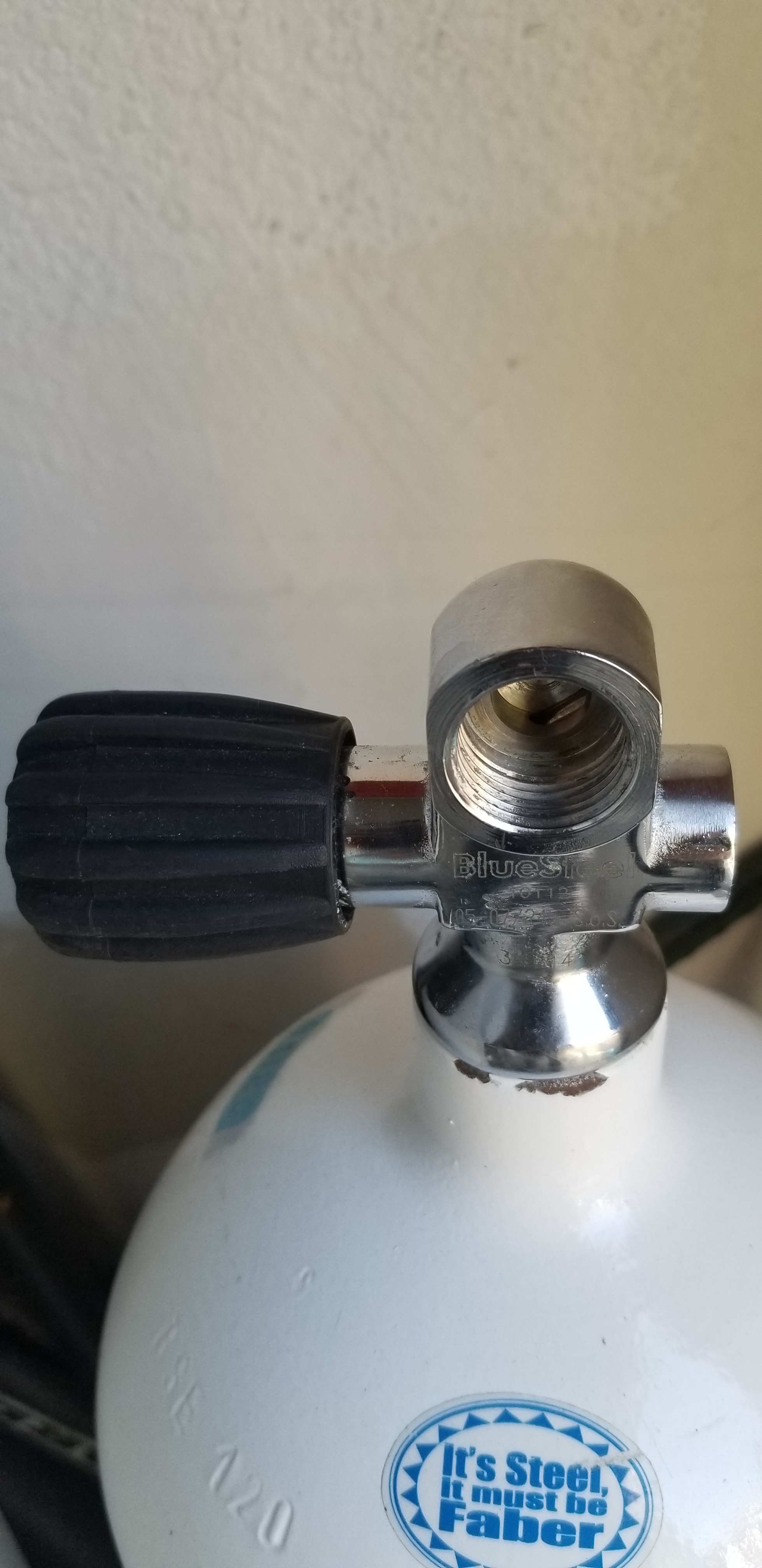

    I got a free scuba tank. I have the fill adapter and braided hose. Do I need another adapter between the tank and fill adapter. Maybe one that screws in.

    Where would I get parts I need. ebay shows a few, just not sure which one I need.
    thanks
    Attached Files
    FredMnkyDad10 Feedback
    Tags: None
    #2

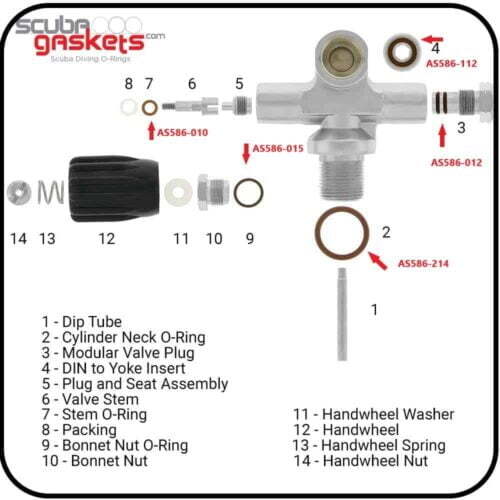

    I believe you are just missing Part #4 for a Blue Steel Valve:
    Click image for larger version Name: tank-valve-open-ORING-SIZES-e1630339794628.jpg Views: 88 Size: 27.0 KB ID: 538978


    "When you are asked if you can do a job, tell 'em, 'Certainly I can!' Then get busy and find out how to do it." - Theodore Roosevelt

    Feedback Link - https://www.mcarterbrown.com/forum/b...del-s-feedback

    Comment

      #3
      you are missing the piece that threads in that has a face seal. Looks like they make ones that the part unthreads. I bet that is pretty easy to find. see attached for reference.

      XS Scuba PVD Pro/Convertible Valve
      https://www.diverightinscuba.com/pvd-pro-valve.html?gad_source=1&gclid=Cj0KCQjw0MexBhD3ARIsAEI3WHLzCSzPRyTdk0BVWsb44g5-QjxTVtujOahv8AZcUTDmtbelpt8TyGAaAjC0EALw_wcB
      XS Scuba's Physical Vapor Deposition (PVD) Finish Pro Valve has the same type of long lasting finish you find on expensive faucets, high-end door lock sets and premium watches. PVD is not only a beautiful finish, but is also extremely durable. Before assembly the finished marine grade brass with triple bright chrome plating parts receive the PVD finish process. The parts are placed in a vacuum chamber, where a high power electric arc is discharged at the source material blasting away some into a highly ionized vapor which is deposited on the parts. XS Scuba's black colored PVD finish is accomplished with the use of Titanium Nitride. It provides the following advantages: Significantly harder exterior finish of 250 HV, a coating thickness of 0.2 to 0.3 micrometers, incredible resistance to salt water corrosion, increased scratch resistance and a very cool tech look".  Mil-Spec black PVD finish Standard yoke outlet with spin-out DIN insertconverts to 230 bar DIN outlet 3/4" - 14 NPSM standard inlet threads Clean for pre-blended Nitrox up to 40% oxygen 1.5 handwheel rotations from fully on to fully off  Dip tube included
      BeardedWorks.com (Your Inception Designs and Shocktech Dealer)
      BW Youtube
      BW Ebay
      BW Email
      I buy Automags and Mag Parts also.

      Comment

        #4
        The valve you have is called DIN and the fill station is "horseshoe" style.
        any dive shop should have them in bulk 😅
        Love my brass ... Love my SSR ... Hard choices ...

        XEMON's phantom double sided feed
        Keep your ATS going: Project rATS 2.0
        My Feedback
        • Likes 1

        Comment

          #5

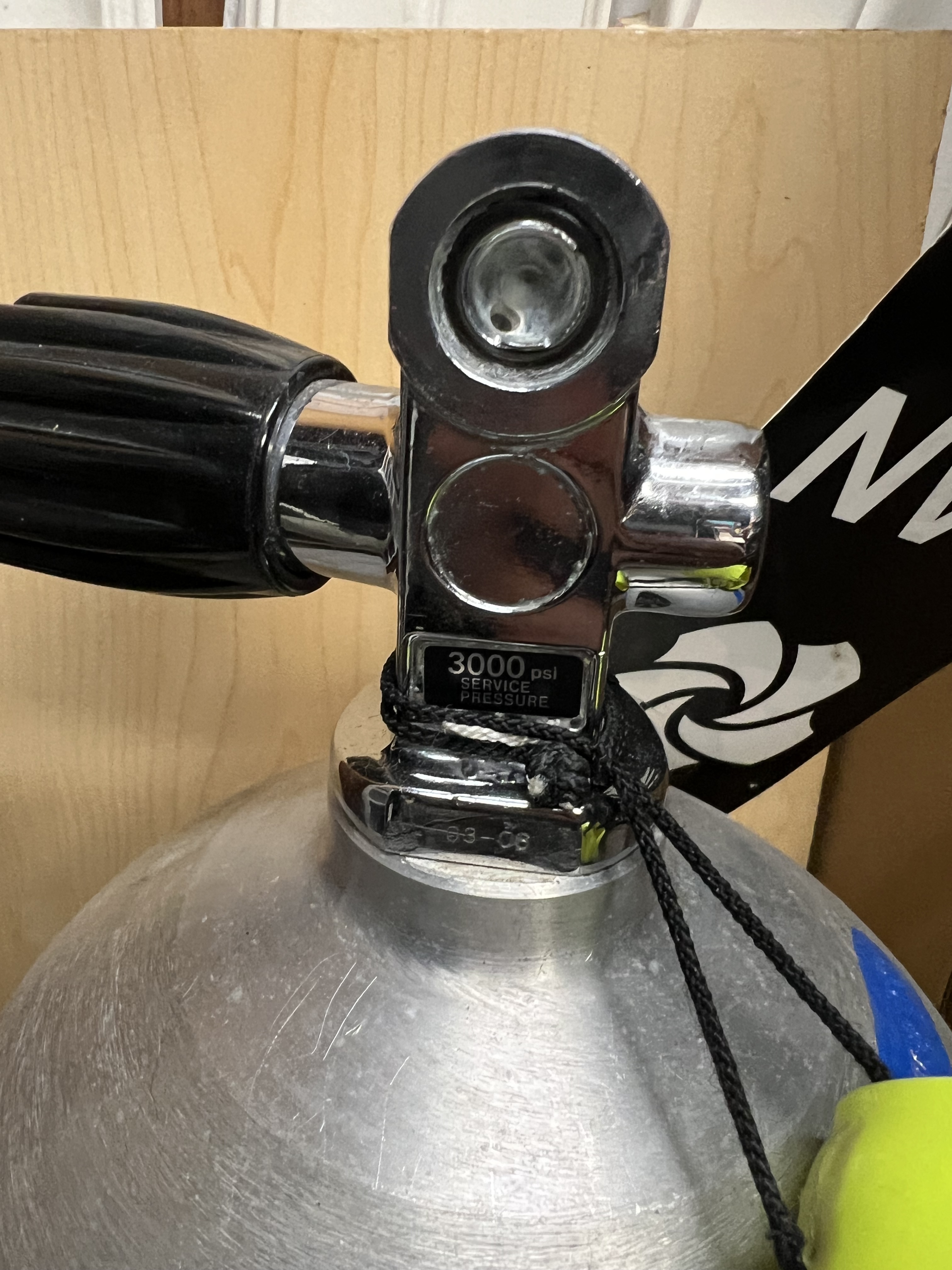

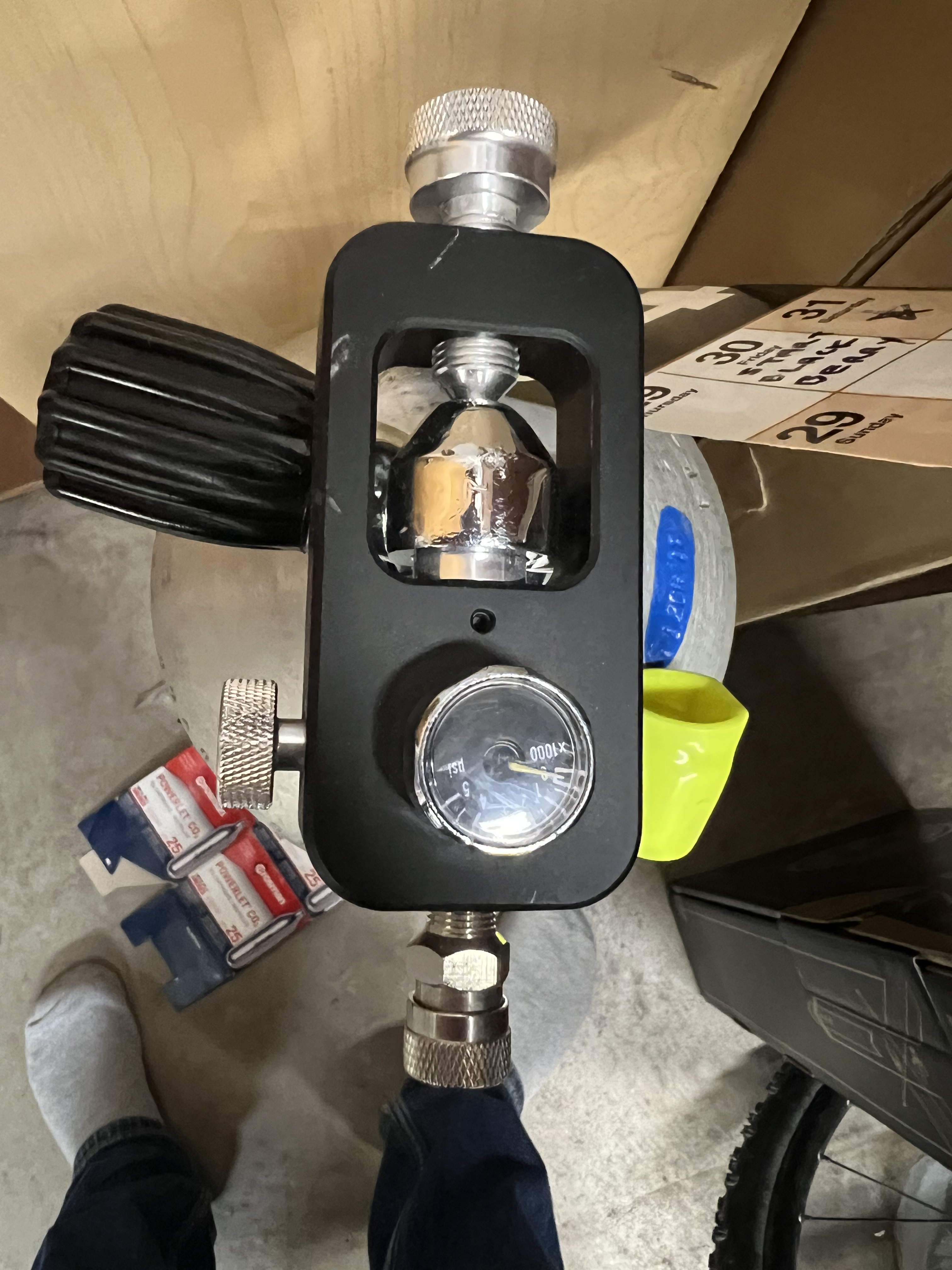

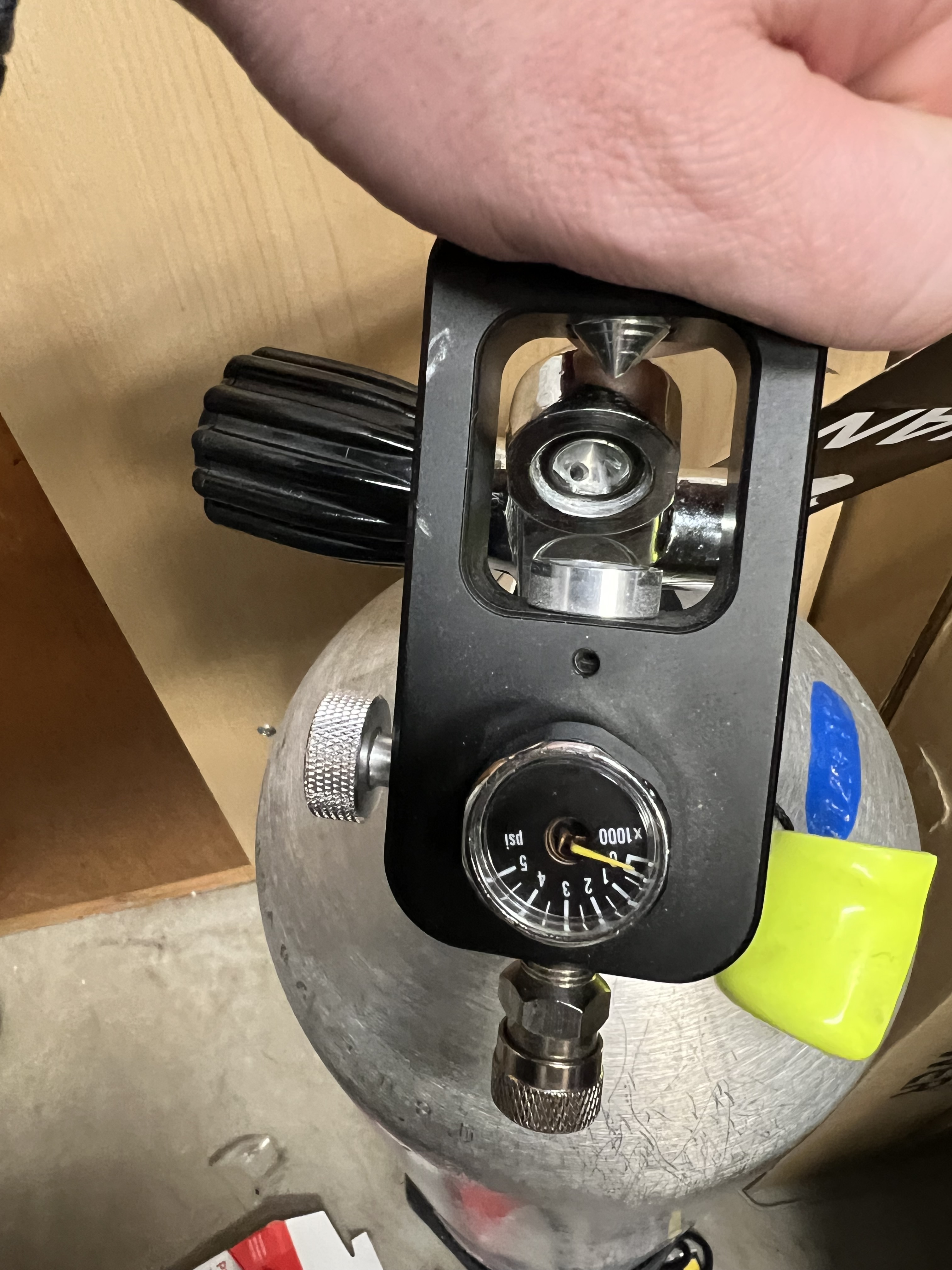

          Here’s some pictures of my setup for reference:
          Click image for larger version Name: IMG_1023.jpg Views: 66 Size: 1.64 MB ID: 540712 Click image for larger version Name: IMG_1025.jpg Views: 64 Size: 1.66 MB ID: 540711 Click image for larger version Name: IMG_1024.jpg Views: 74 Size: 1.80 MB ID: 540710
          Cuda's Feedback
          • Likes 1

          Comment

          • FredMnkyDad10
            #5.1

            FredMnkyDad10

             commented
            05-06-2024, 10:08 PM
            Editing a comment
            Thank you for the pics. Yeah I was missing the insert. Picked one up this weekend and all set.
