    slide frame id ?

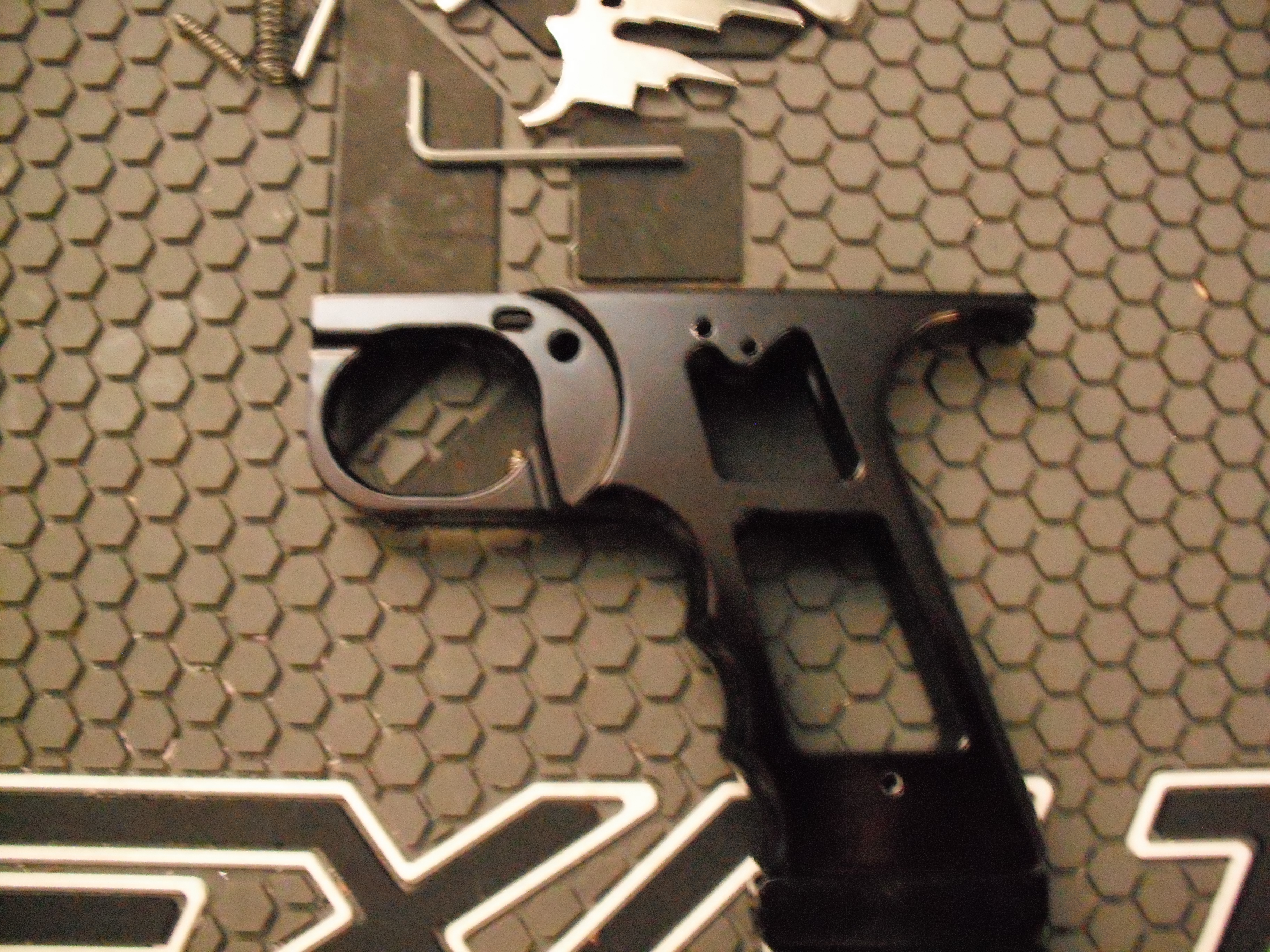

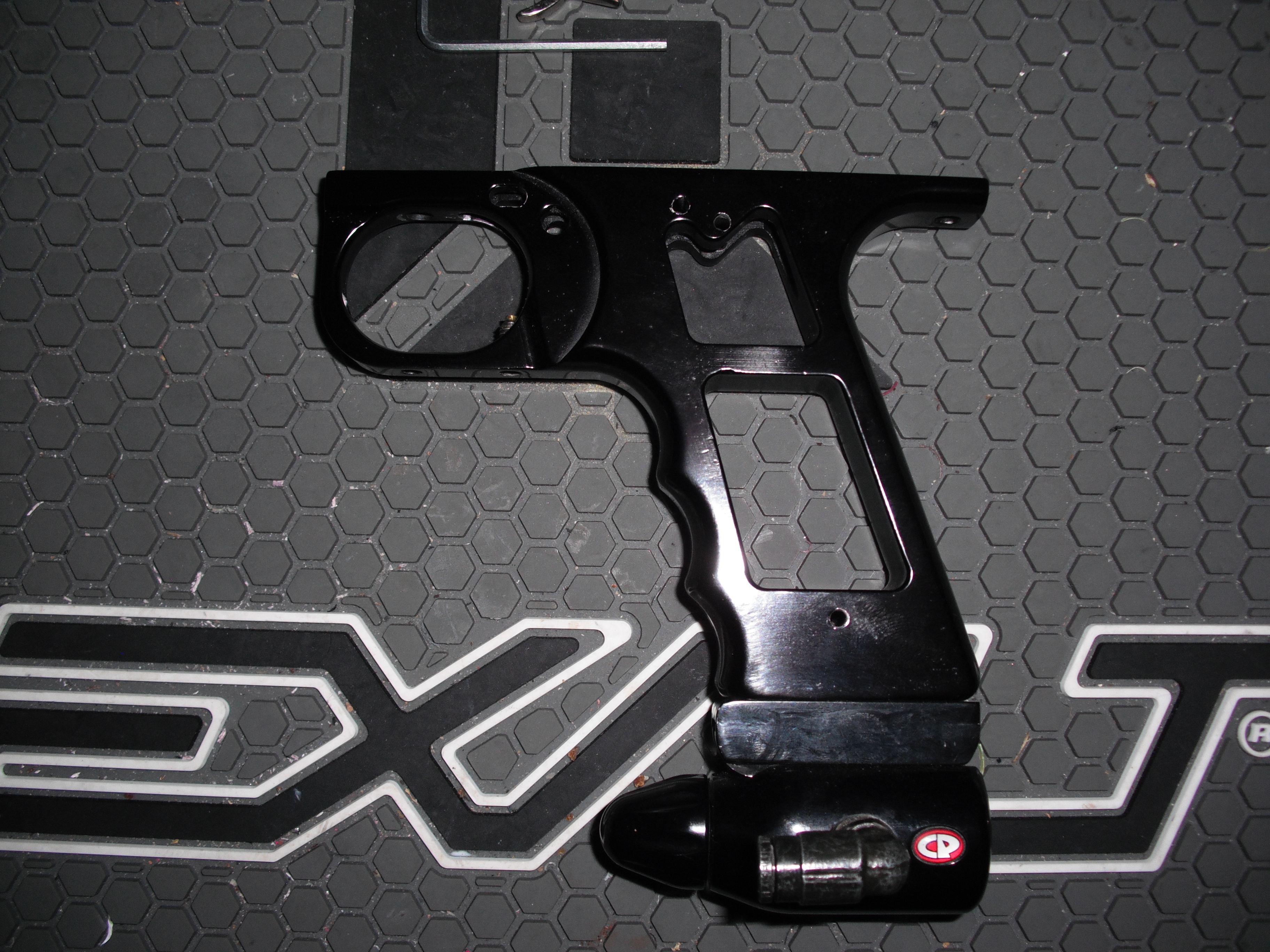

    anybody know what this frame is? pre 98 plate. nitro duck? (ive only seen these with the accent milling), did kapp make pre 98 groovy? im looking to see if these had a special plate or sear.
    im having trouble with it not catching the lug correctly. i think the rear of the sear is too high in the frame and catching the hammer face. it has a 2 stage release, first a light click then seems to catch the lug and then releases normally through the trigger pull. ive tried a couple different plates and sears but they are all basically the same dimensions. the lug adjustment is very shallow in the body channel, only around 1/16" out of the hammer. any info would be appreciated Click image for larger version

Name:	DSCF0247.jpg
Views:	215
Size:	5.10 MB
ID:	664725 Click image for larger version

Name:	DSCF0249.jpg
Views:	167
Size:	4.70 MB
ID:	664726
  • Ecapnation
    MCB Member
    • Jul 2020
    • 4212
    • South Central Long Island

    #2
    Yeah, that might be a nitro duck frame before they put the the scroll work on them.

    Just looking at it seems like the sear pin hole is not in the right spot
