    Tips, Tricks Bob Long Timmy Valve orings

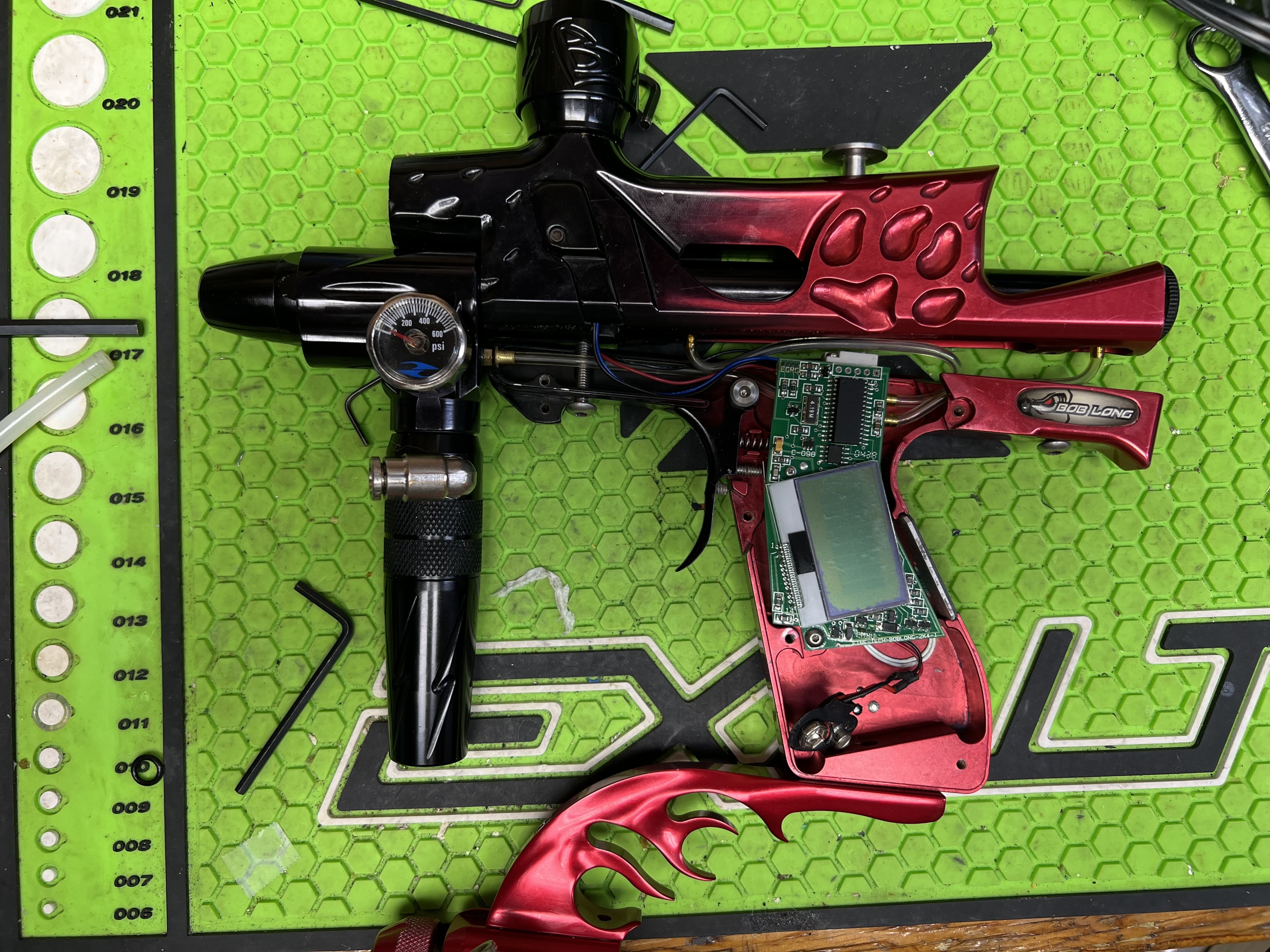

    Rebuilt my Timmy and have been dreading the final air up. Tried tonight and the valve leaks like a sieve. Other than getting it rebuilt but someone who knows what they are doing (thankfully do have a local guy) any tips on getting the valve oring not to get clipped by the body?

    Cuda's Feedback
    Tags: None
    • Trbo323
      MCB Member
      • Jul 2020
      • 6249
      • Vancouver WA
      #2
      Ha! That little bastard. Best thing I came up with when I was doing the legacy tech thing was to use a o ring pick through the valve retention screw hole and push the o ring down so it doesn't get clipped on the way in. Make sure it's lubed up real good before putting it in. (That's what she said)

      Unfortunately there's nothing you can do about the air passage on top except hope.

      This is also why, when I built one I would get the valve in, front block and LPR in, and then pressure test(pinch off the noid supply hose) because then if it does leak that's less to take apart to try again

      Sent from my motorola edge 2024 using Tapatalk

      I use Tapatalk which does NOT display comments. If you want me to see it, make it a post not a comment.

      Feedback
      https://www.mcarterbrown.com/forum/b...323-s-feedback

        Comment

        • Cdn_Cuda
          You can finish projects?!
          • Jul 2020
          • 4526
          • Vancouver, BC
          #3
          Joy. May just get the local guy to it, he specialized in Timmies. My patience for such things these days is limited.
          Cuda's Feedback

            Comment

            • Trbo323
              MCB Member
              • Jul 2020
              • 6249
              • Vancouver WA
              #4
              Originally posted by Cdn_Cuda
              Joy. May just get the local guy to it, he specialized in Timmies. My patience for such things these days is limited.
              If I were in your area I'd help you out. But yeah, Bob didn't do enough chamfering in, well in my opinion any of his markers so make them not do stuff like this. Perks of the design I guess

              Sent from my motorola edge 2024 using Tapatalk

              I use Tapatalk which does NOT display comments. If you want me to see it, make it a post not a comment.

              Feedback
              https://www.mcarterbrown.com/forum/b...323-s-feedback

                Comment

                • Ecapnation
                  MCB Member
                  • Jul 2020
                  • 4373
                  • South Central Long Island
                  #5
                  Two methods...

                  Lots and lots of grease.

                  Or...

                  Go in front the front, I've been doing this for years on bodies with excessive cut outs

                    Comment

                    • Cdn_Cuda
                      #5.1
                      Cdn_Cuda commented
                      06-20-2025, 10:37 AM
                      Editing a comment
                      Hmm, I was wondering about that. Might be worth a try. Going to need some new o-rings.
                    • Cdn_Cuda
                      You can finish projects?!
                      • Jul 2020
                      • 4526
                      • Vancouver, BC
                      #6

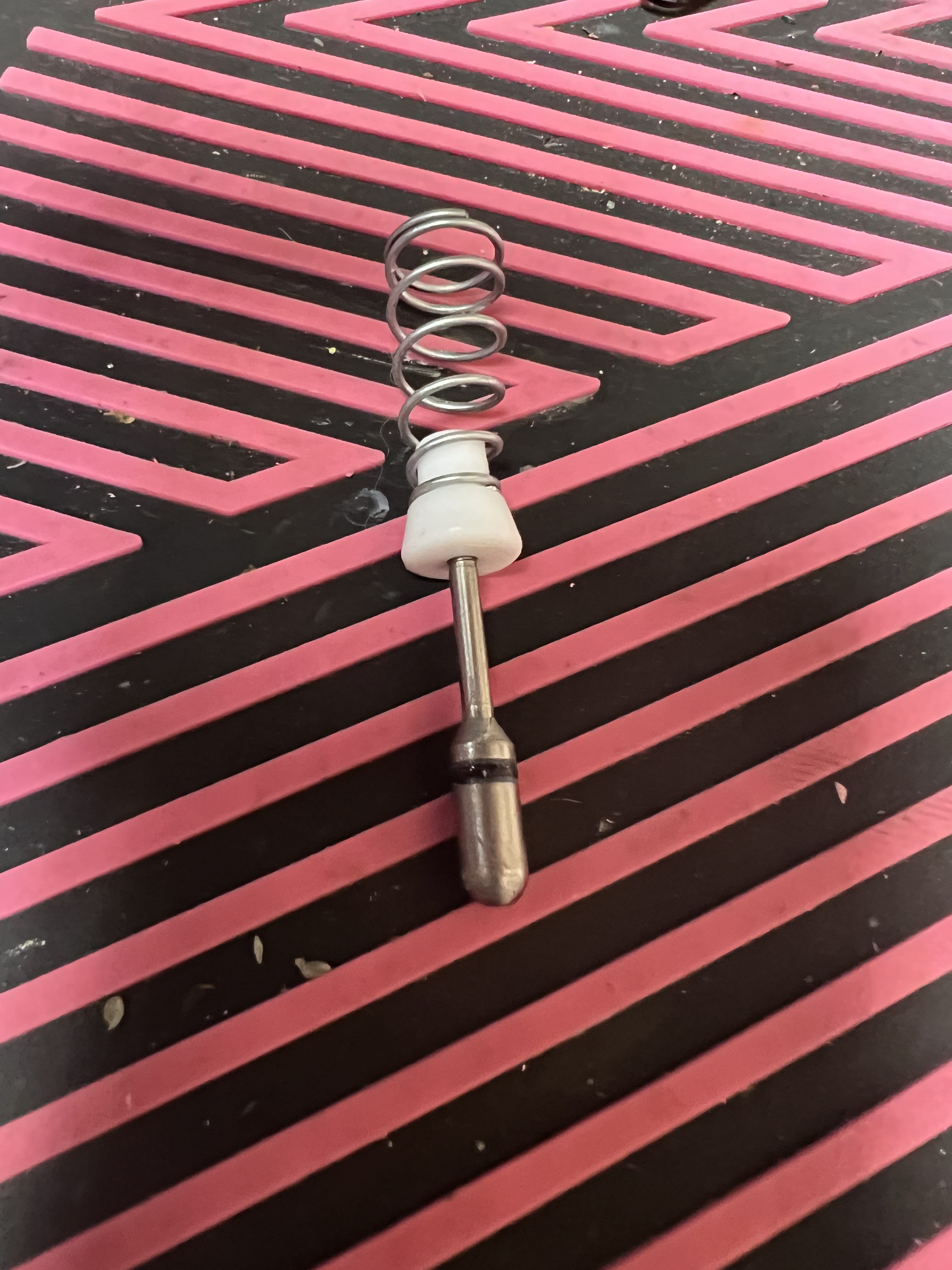

                      Good news, bad news. I have the valve o-ring sealed to it’s not leaking at the front block. Now it leaks down the barrel though. Would tuning the LPR affect this or do I need to replace that valve stem o-ring?
                      Cuda's Feedback

                        Comment

                        • Ecapnation
                          #6.1
                          Ecapnation commented
                          06-28-2025, 01:45 PM
                          Editing a comment
                          No. Valve stem o-ring or the puppet itself is worn
                          • tyronejk
                            #6.2
                            tyronejk commented
                            06-28-2025, 04:34 PM
                            Editing a comment
                            You could zero out the LPR to see if the leak is from the LPR side or HPR side
                          • Cdn_Cuda
                            You can finish projects?!
                            • Jul 2020
                            • 4526
                            • Vancouver, BC
                            #7
                            Any way to tell visually?
