    HSW HypAir fore grip mounting

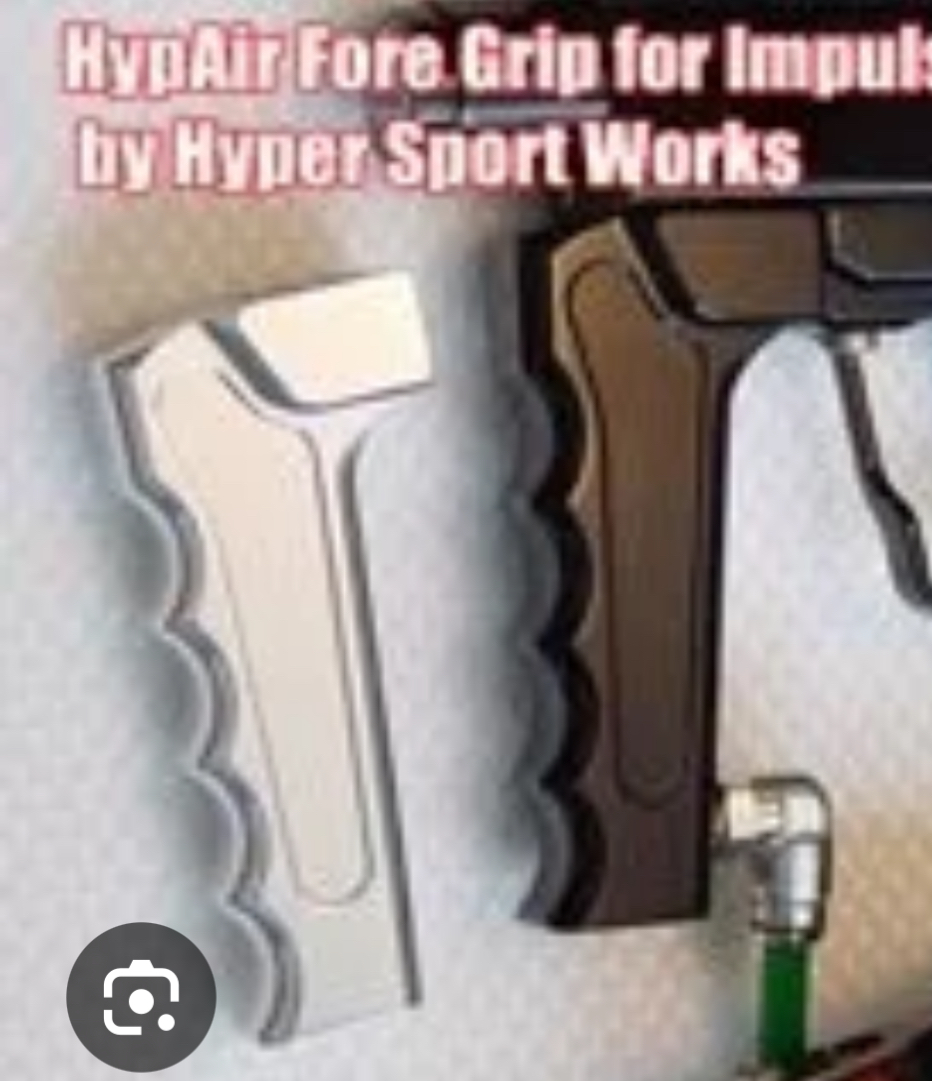

    Given that it’s impossible to get this type of fore grip for my current impulse build in Germany, is there any chance to get some pictures of it’s mounting screw, the location and how that airway is routed?

    Click image for larger version Name: IMG_2187.jpg Views: 204 Size: 575.8 KB ID: 716757
    Tags: None
    • Ecapnation
      MCB Member
      • Jul 2020
      • 4334
      • South Central Long Island
      #2
      It mounts with a screw similar to a cocker front block

        Comment

        • Ecapnation
          MCB Member
          • Jul 2020
          • 4334
          • South Central Long Island
          #3

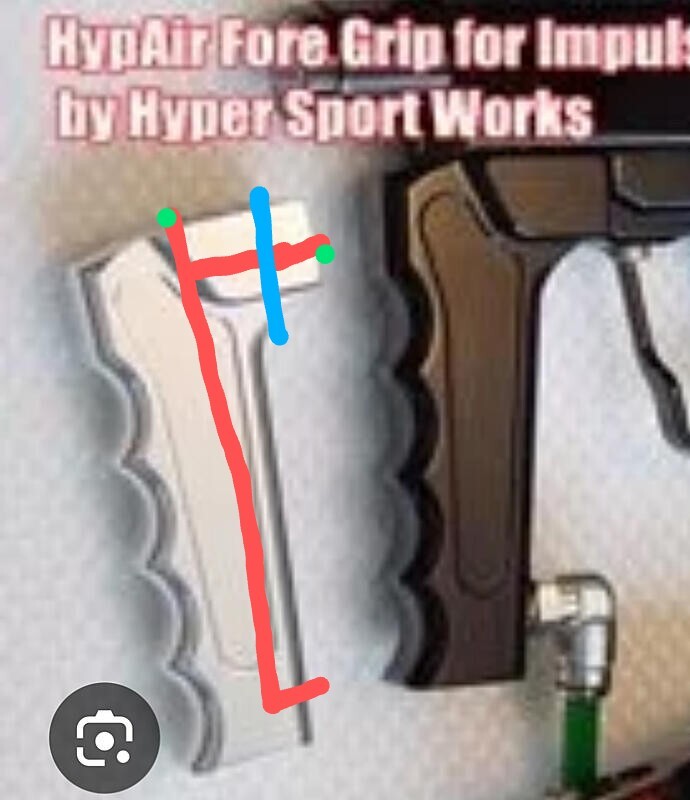

          Red is the drill through for air passages, green is set screws and blue mounting bolt.

          Pretty sure that's the lay out....it's been at least 20 years since I installed one.
          Attached Files

            Comment

            • Brandon85
              Rockin and Cockin
              • Jul 2020
              • 45
              #4
              Awesome. Thank you!
