Dye Hyper 2 Troubles.

[Cdn_Cuda]

Rebuilding a PM with a Hyper 2, but I cannot get the Hyper 2 to hold air, it keeps venting. Replaced all the o-rings and the valve seal. Any tips or tricks?

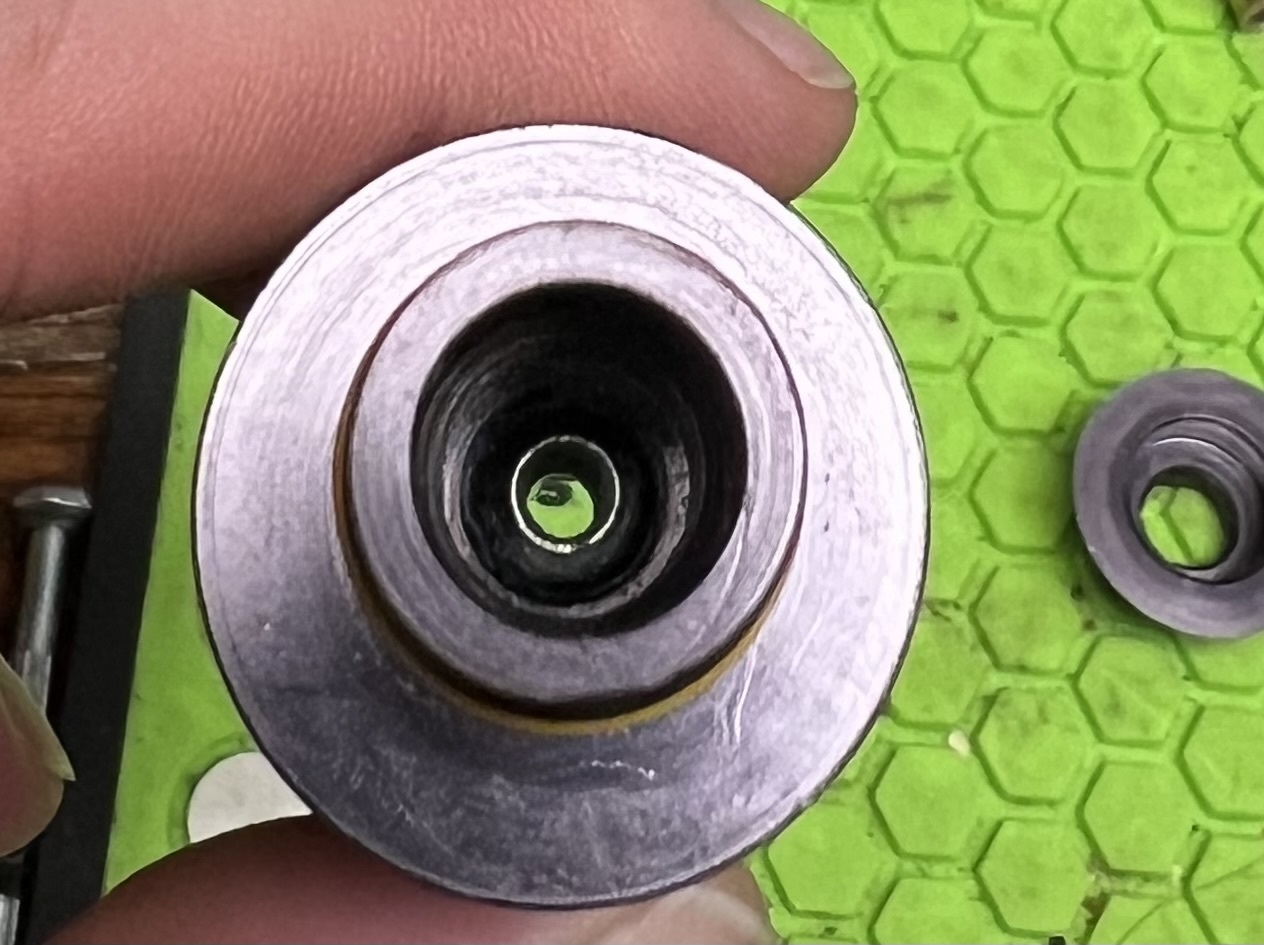

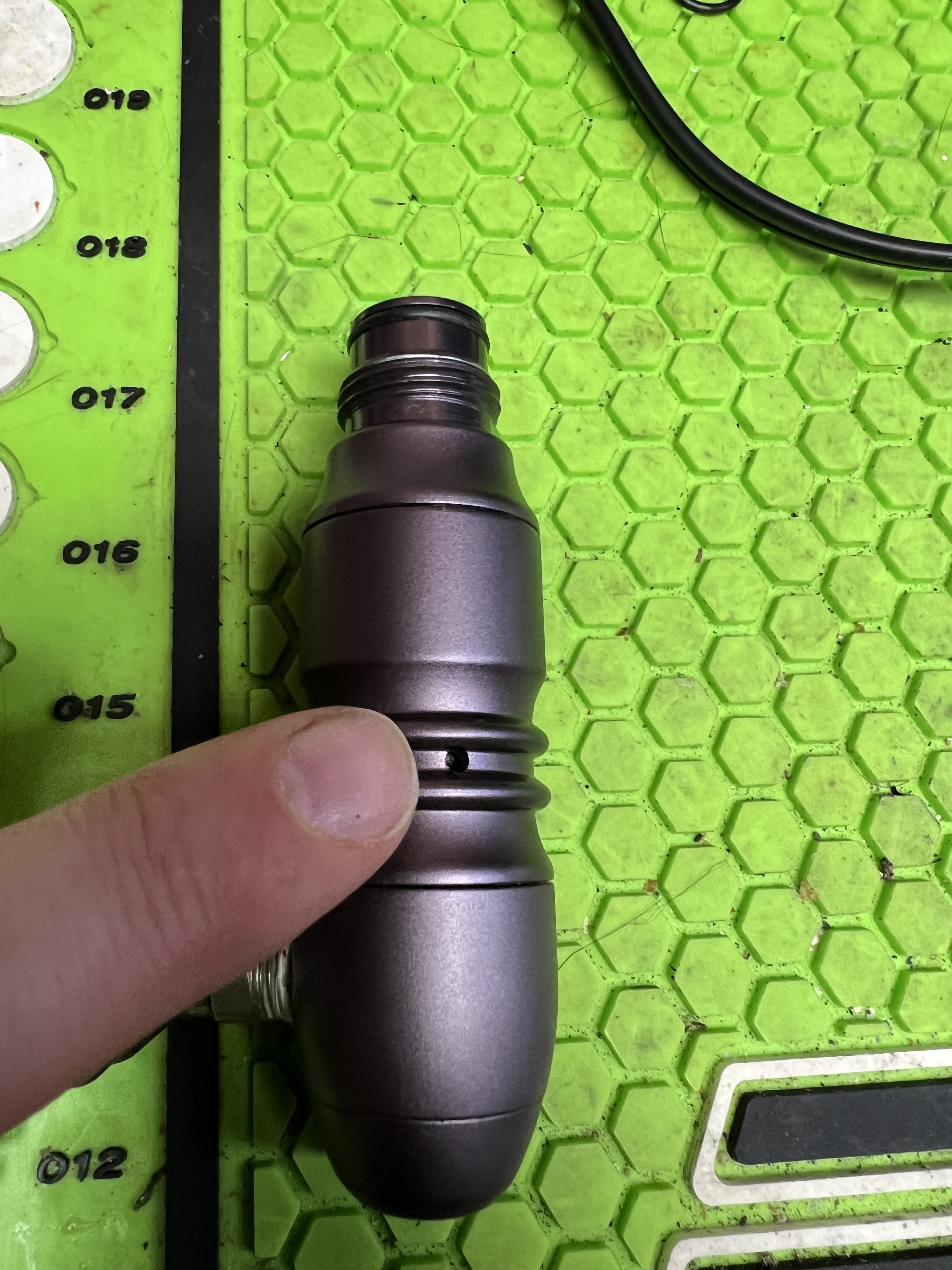

IMG_4770.jpg IMG_4771.jpg

[Greaterthenjake]

Its likely the tiny oring that seals the piston stem. If memory serves it was 007 urethane. Its a pain to get to stay in when you push the piston in. I usually back it with an Allen key while you push the piston through the top. Holding the oring until you get the piston through. Also that piston looks really badly gouged at the base you may get reg creep.

[Trbo323]

O ring #6 or #11 are the only two that will allow air to vent through that hole. A lot of people don't even know that #6 is in there.

The only other thing I can think of is something is wrong with the shim stack to the point that the whole piston is not sitting in the correct spot

Sent from my motorola edge 2024 using Tapatalk

[Cdn_Cuda]

Reg stack looks okay but I will redo it. The reg seems to hold air for a moment and the pops.

[Trbo323]

Check the output pressure. If the seat is bad and it's just allowing tank output pressure through the spring stack may be compressing enough to allow the larger piston o ring to clear the vent hole

Sent from my motorola edge 2024 using Tapatalk

[mercpb]

in probability order - some debris left in oring groove from old UR oring, a bad reg seat, or oring groove/seat was damaged during extraction of 007. that's pretty much all it can be --- the reg seat and 007 are the only way for air to get to vent hole.

[Cdn_Cuda]

Trbo323 - put in a brand new reg seal.

mercpb - orignal 007 was jelly and there was a lot of debris, but cleaned it out pretty good. I'll give another go at it. I'm just trying to set the reg pressure before putting it on the marker.

[tyronejk]

Those two orings already mentioned are the only ones preventing air from venting through that hole. If those are sealing, then something else may be going wrong (the too-short/spring stack is one that I haven't heard of but seems possible). If you still have issues, it may be helpful to pull it apart and take a picture of all the components separated.

[Trbo323]

Trbo323 - put in a brand new reg seal.

Ok and? Just because it's new doesn't mean it's working properly, it's still worth putting a reg tester on there too verify and that will give you more info than you have now

Those two orings already mentioned are the only ones preventing air from venting through that hole. If those are sealing, then something else may be going wrong (the too-short/spring stack is one that I haven't heard of but seems possible). If you still have issues, it may be helpful to pull it apart and take a picture of all the components separated.

I was missing one bevel spring on one of my regs at one point, took me forever to sort that out. Double check the count and orientation

Sent from my motorola edge 2024 using Tapatalk

[Jsc5150]

A bad reg seat leads to overpressure, not a leak from the vent IIRC

[Cdn_Cuda]

Trbo323 I am attempting to put it on a reg tester but it won’t hold air and vents, so no pressure reading. Want to preset the HPR to avoid any issues.

[Trbo323]

Are you starting with the adjuster all the way in?

Sent from my motorola edge 2024 using Tapatalk

[Cdn_Cuda]

Trbo323 I’ve tried it flush at the bottom and tried it about half way out. I can try it all the way out.

[Trbo323]

All the way in is 0 pressure. I would start there

Sent from my motorola edge 2024 using Tapatalk

[Cdn_Cuda]

Doubled check the shim stack and even flipped it, but reg did the exact dam thing when the reg bottomed out. Pops and vents every time.

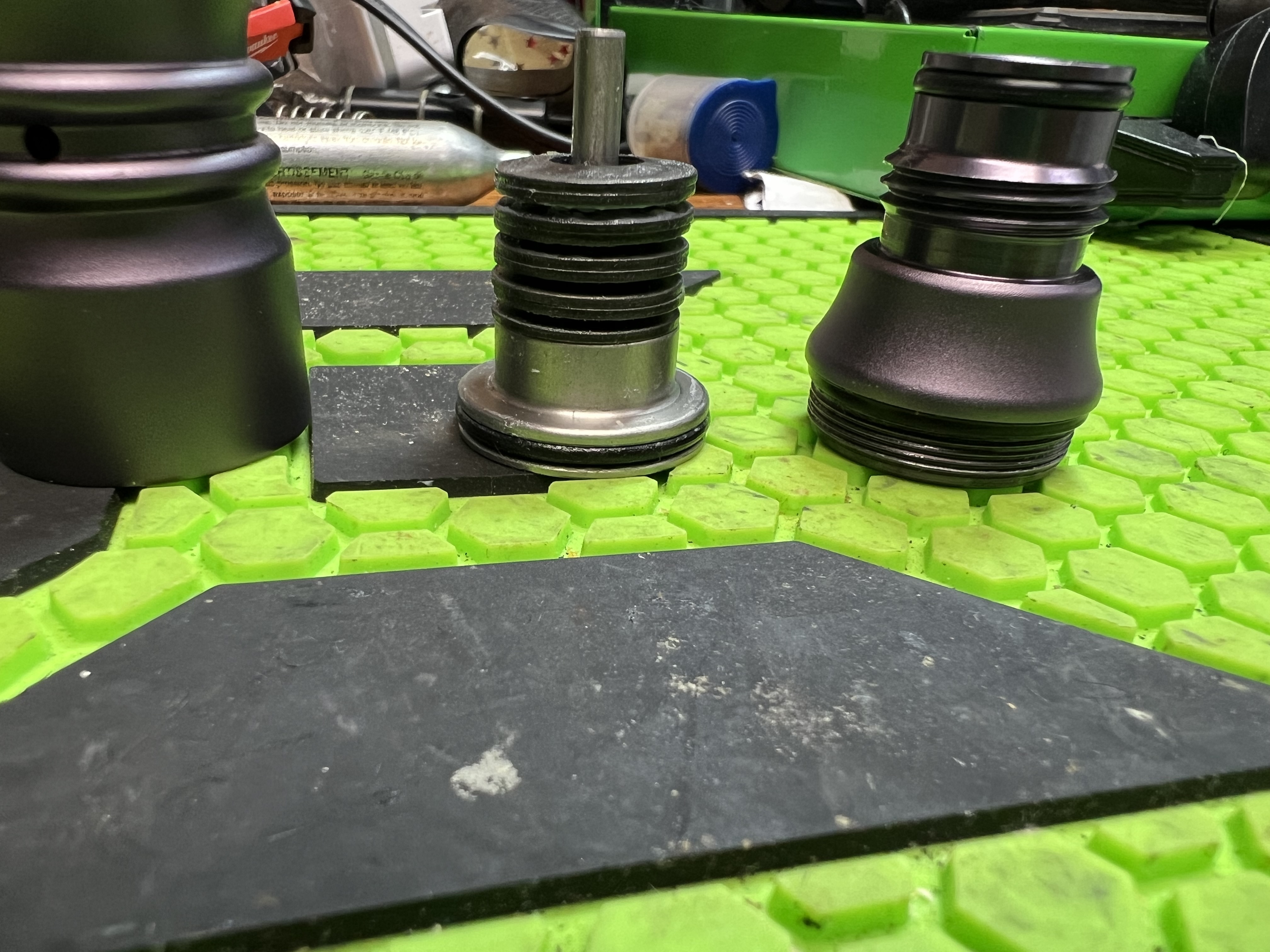

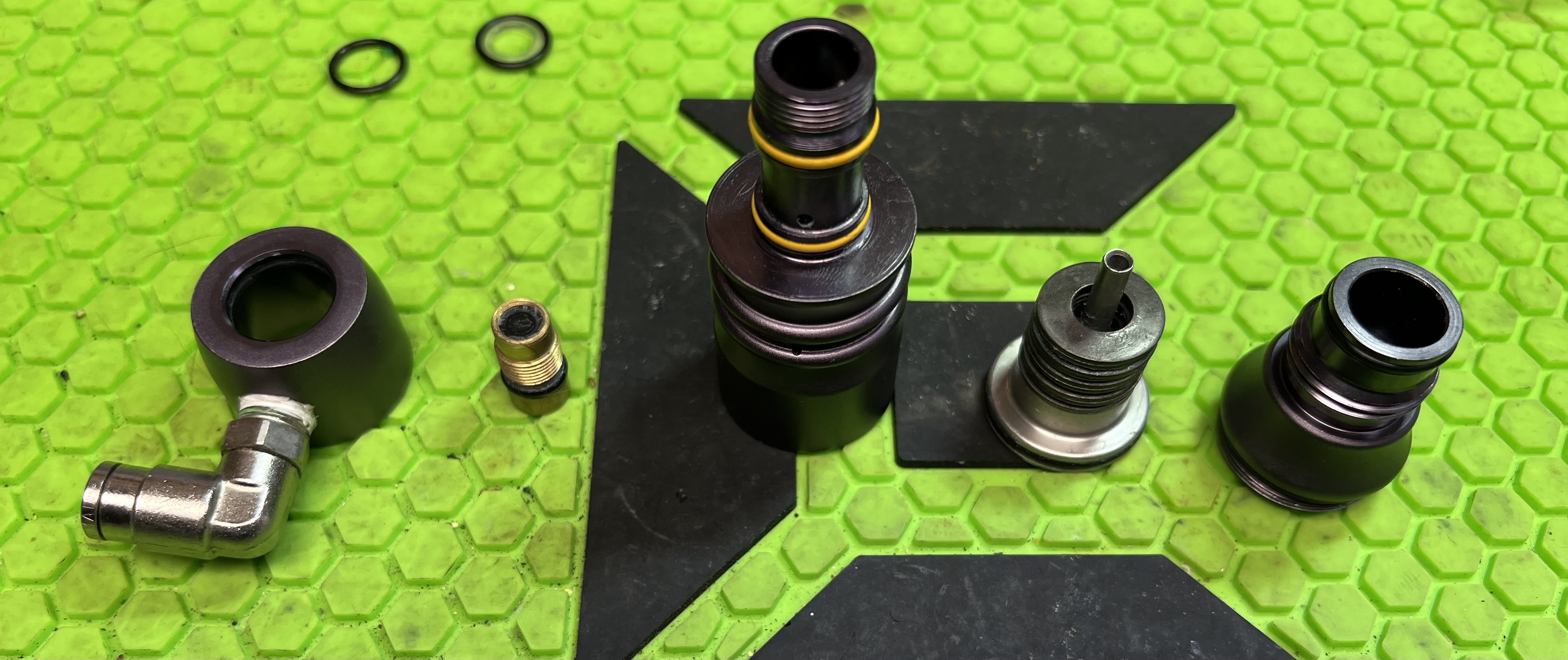

IMG_4782.jpg IMG_4781.jpg

[Trbo323]

Ok, understand that everything I'm about to suggest is pretty low probability so sorry if they feel like dumb questions but I feel like you have gotten to the point where it's either something stupid that got overlooked or something complicated enough that nobody else has come across it yet

1) I'm still pretty suspicious of that 007 o ring that is inside the regulator body shaft. Now that I think about it, it's part number 6 but it's a size 007. Any chance you used a 006 instead?

It also has a grove that it needs to be seated into, it somewhat "clicks" into place. From what you are describing I'm wondering if it's not seated all the way in the groove. So when you pressurize it holds for a moment and then that ring moves out of position allowing air into the bevel spring stack.

I would carefully double check that ring both for size and where it's positioned. If you take the springs off and push the piston into it's position does that ring get pushed out the bottom of the shaft? It shouldn't. I've also seen one case where an old 007 o ring had disintegrated but still had bits left in the grove which played havoc when a new ring was tried to put into the same spot.

2) it shouldn't matter but what input pressure are you using?

3) is there any chance that's not the original piston? Idk if dye changed the piston length or anything between the 2 and 3 but, just a thought. Have you had this reg working in the past

Something else to try, get a second reg set up to feed into the hyper, set the pressure to whatever you want the output of the hyper to be and then feed into it. This will rule out an overpressure situation if it still vents. If it seals then it *might* mean something is off where it's acting like it's overpressure even though it's not

Sent from my motorola edge 2024 using Tapatalk
