WDP Angel mini reg

[river031403]

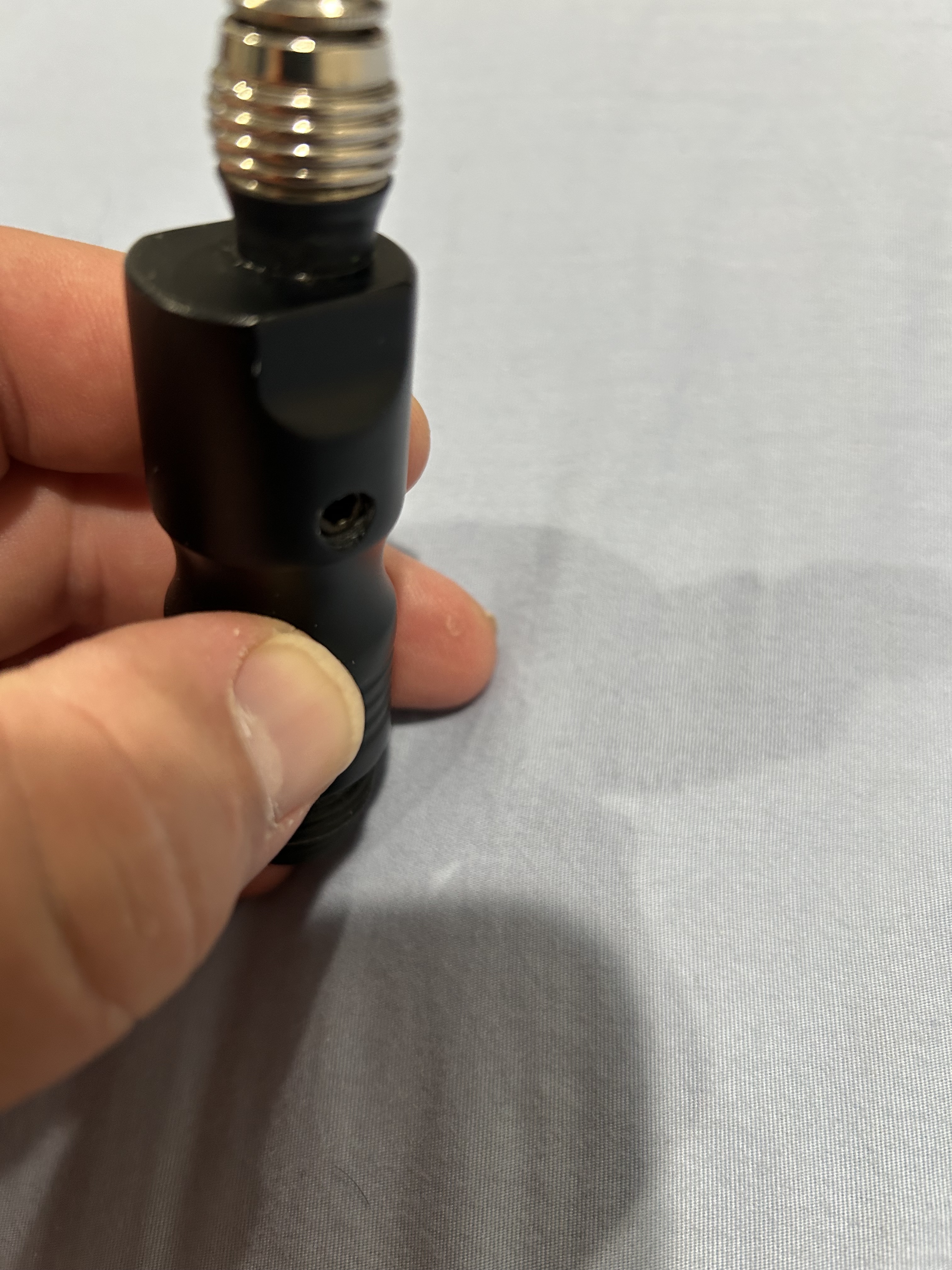

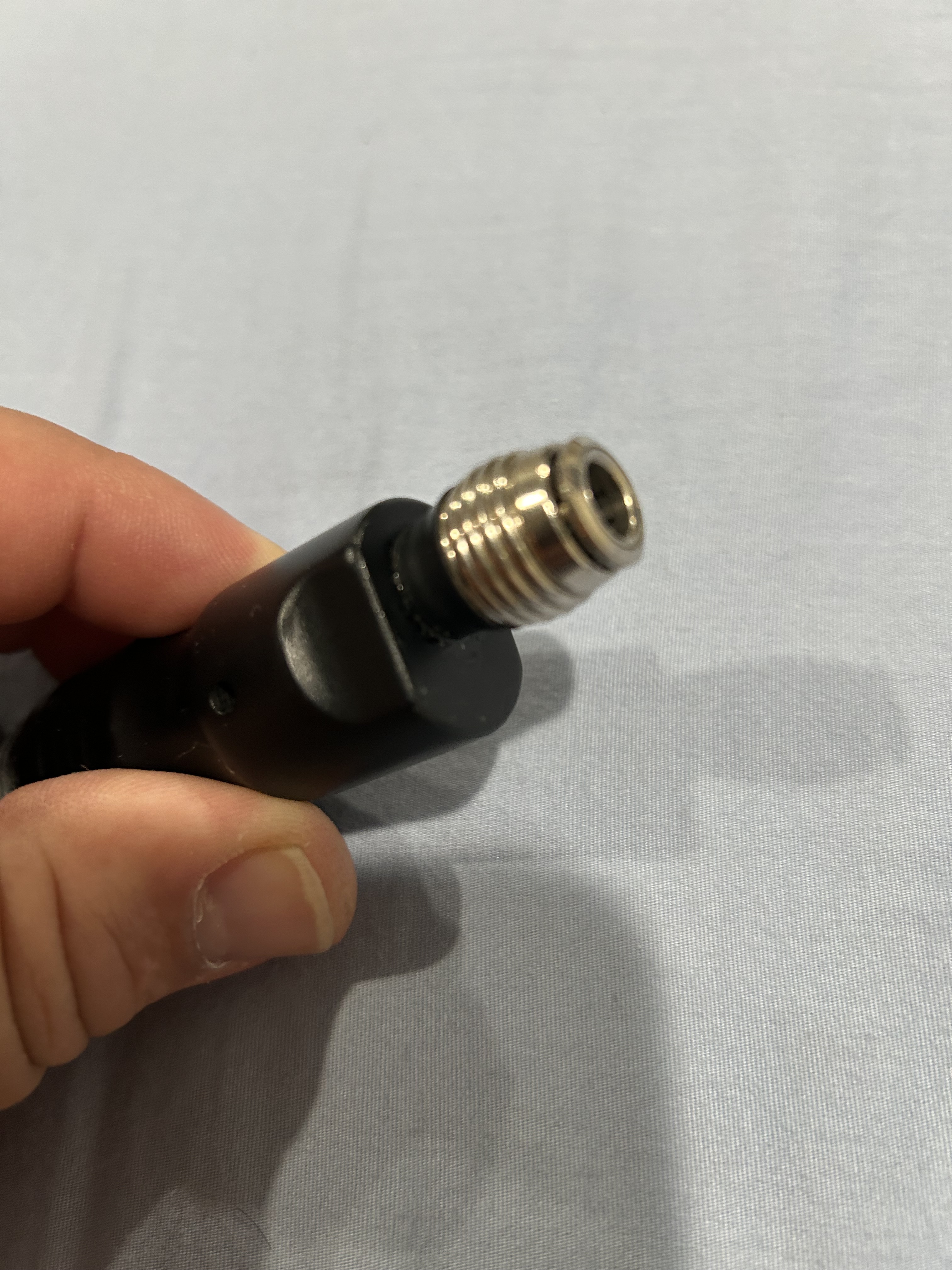

Can anybody tell me the best way to remove this fitting or know if it is removable or not?Its for a project and I don’t want to mutilate it

[Roger7pball]

Is there not an Allen wrench hex pattern on the inside? It’s been a minute since I’ve touched one of those.

[river031403]

I’ll get a flashlight Ana take a peak

[river031403]

Tried not working

[StaticShocked]

When i removed one it was very, very sealed in place. I stripped the internal hex of the fitting and ended up having to use vice grips on the fitting to get it free (while soft clamping the reg in a vise). Might try some heat to free up the sealant, as that is something i did not try. IIRC, it was a standard 1/8" NPT fitting thread underneath.

[PBGunny]

I think it should come apart just like the other fittings.
You put a flat head screwdriver under the collar and pry it up.
Not sure about the o-ring size, it might be metric.

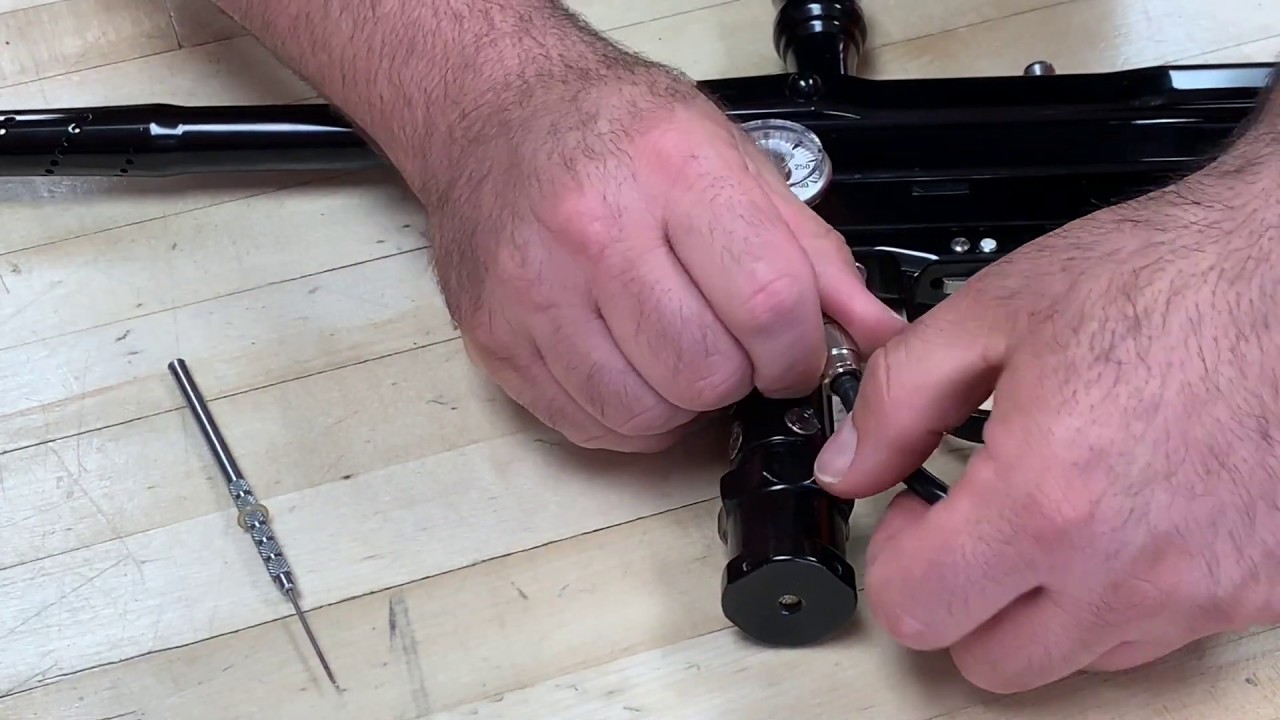

Here is a video that shows the disassembly process:

[river031403]

I want the entire fitting gone completely

[PBGunny]

Sorry about that, I misunderstood.

[river031403]

When i removed one it was very, very sealed in place. I stripped the internal hex of the fitting and ended up having to use vice grips on the fitting to get it free (while soft clamping the reg in a vise). Might try some heat to free up the sealant, as that is something i did not try. IIRC, it was a standard 1/8" NPT fitting thread underneath.

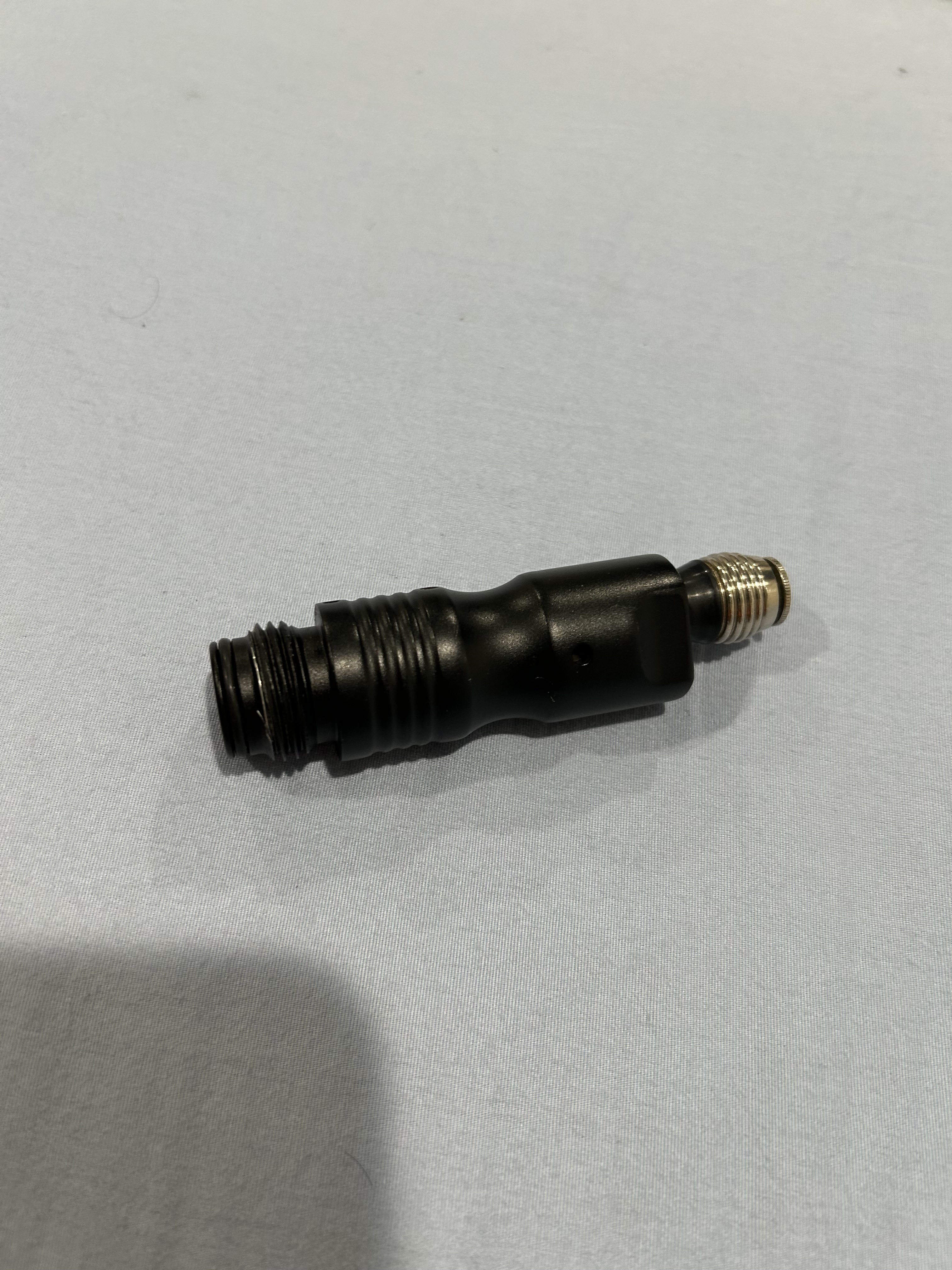

I used a little heat and crescent wrench 🔧 it worked thanks
