Smart Parts Macroline Oring Size?

[Toestr]

The fitting on my Micro Max Flo is leaking, and it is definitely larger than a standard 010 oring. Anyone know?

Sent from my Pixel 4a using Tapatalk

[Jordan]

What kind of macro does the fitting take?

[Toestr]

OD is 6.3mm/.248", and appears to be for CO2 (came on an ex rental SP1, so it may be for durability). Second photo is the oring compared to a 010 (it is the thicker of the 2).

Sent from my Pixel 4a using Tapatalk

[Jordan]

Looks like you have a "non-rebuildable" fitting there, that doesn't take off the shelf seals. I've run into a few over the years. Unfortunately I have no idea what seal to use, I never found one that worked.

You might need to explore the local hardware store once everything opens back up.

[Toestr]

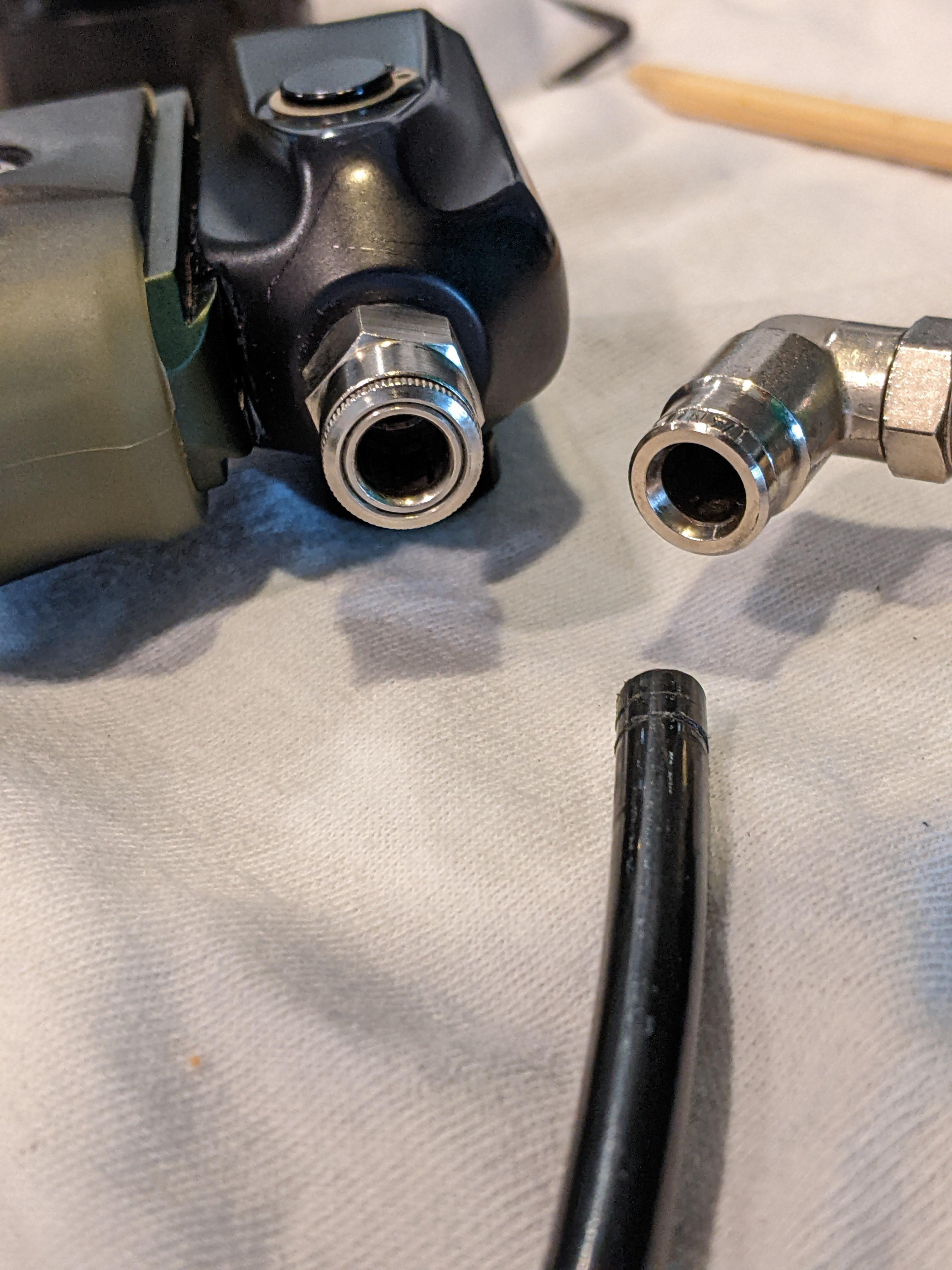

Well that's unfortunate. I'll likely just switch to some standard fittings or braided hose.

Sent from my Pixel 4a using Tapatalk

[Alexndl]

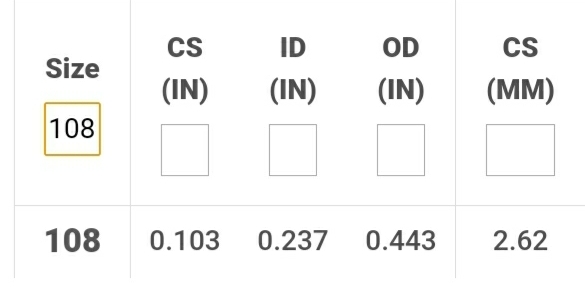

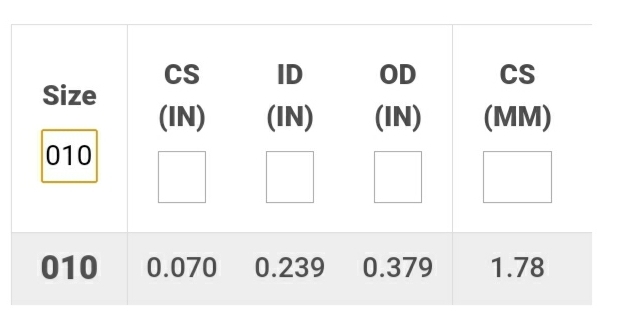

Have you tried 108 oring?
its similar ID than 010 but thicker profile

[Toestr]

Have you tried 107 oring?
its similar ID than 010 but thicker profile

No, I haven't, I'll see about it though.

Sent from my Pixel 4a using Tapatalk

[Alexndl]

I edited my post to 108
107 was on a print sheet I keep to ID unknown oring but the oring size is better with a 108 looking at nominal value

[powpowpaintball]

Bumping an old post rather than making my own. Has anyone had any luck using a 108? I pulled the oring out of stock smart parts on/off asa on a shocker nxt and then promptly lost it, so I don't have anything to measure.
