    Intelliframe safety?

    Is the IF safety different from the CF frames?
  • Grendel
    MCB Member
    • Jul 2020
    • 1980
    • Lexington, SC

    #2
    I do not believe so. But lets call superman he will come in here leaping over tall buildings in a single bound to provide an informed answer


    "When you are asked if you can do a job, tell 'em, 'Certainly I can!' Then get busy and find out how to do it." - Theodore Roosevelt

    Feedback Link - https://www.mcarterbrown.com/forum/b...del-s-feedback

    Comment

    • superman
      MCB Member
      • Jul 2020
      • 3380
      • Mount Pleasant, SC

      #3
      safety is the same. Set screw i think may be different. I want to say they used with with a coarser thread for the cf frame because of the composite material.
      BeardedWorks.com (Your Inception Designs and Shocktech Dealer)
      BW Youtube
      BW Ebay

      BW Email
      I buy Automags and Mag Parts also.

      Comment

      • Alexndl
        MCB member
        • Jul 2020
        • 3533
        • Montreal, Qc, Canada

        #4
        Took some measurement this afternoon before I saw the answer was already provided.

        Safety pin diameter 0.185"
        Safety pin length 0.742"
        Frame thickness at the safety is roughly the same on the intelliframe and CF at 0.493"

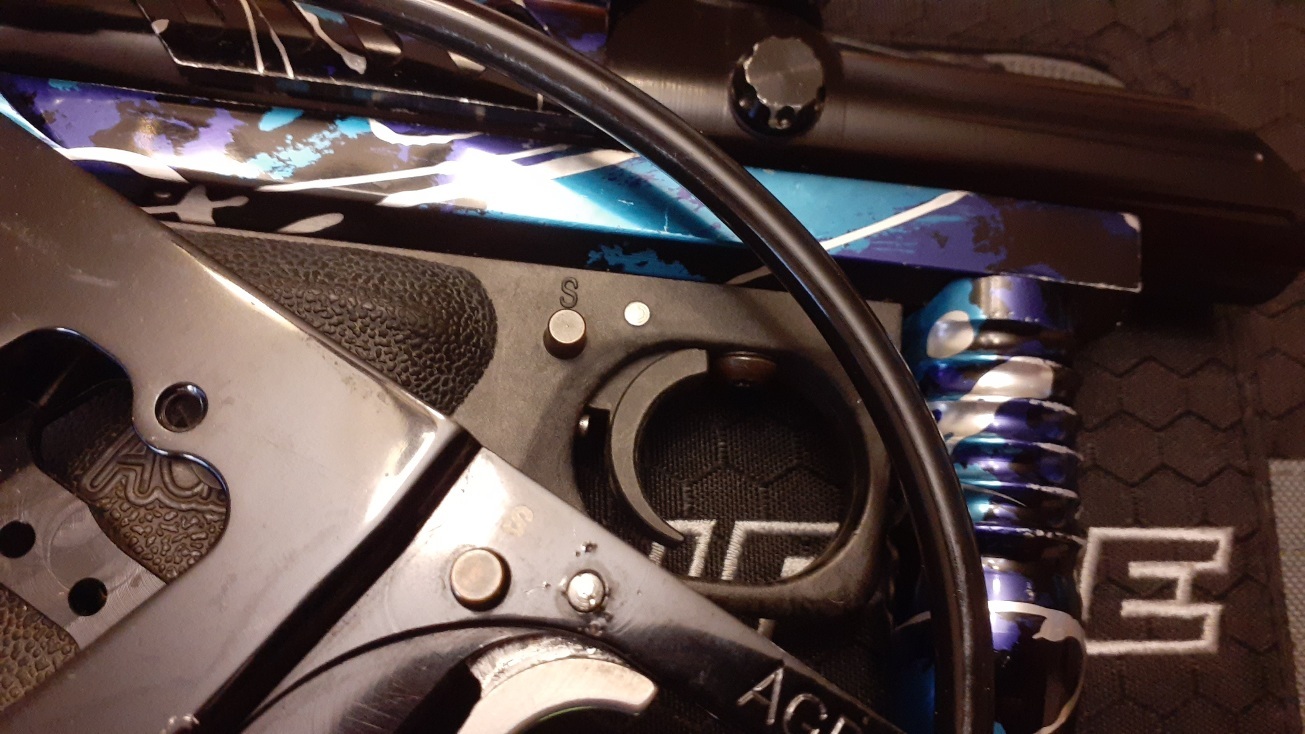

        Click image for larger version

Name:	20241111_162648.jpg
Views:	142
Size:	275.9 KB

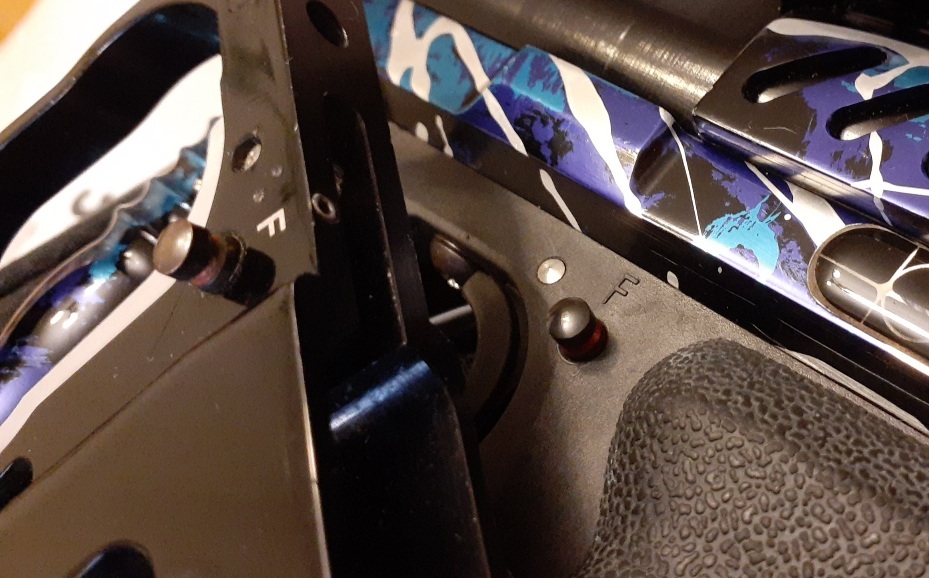

ID:	617913 Click image for larger version

Name:	20241111_162823.jpg
Views:	144
Size:	177.2 KB
ID:	617914
        💀Team Ragnastock💀

        Comment

        • tunaman5
          MCB Member
          • Jul 2020
          • 335

          #5
          safeties are the same. Set screw is the same. Ball is the same. Spring is different between metal and plastic frames.
