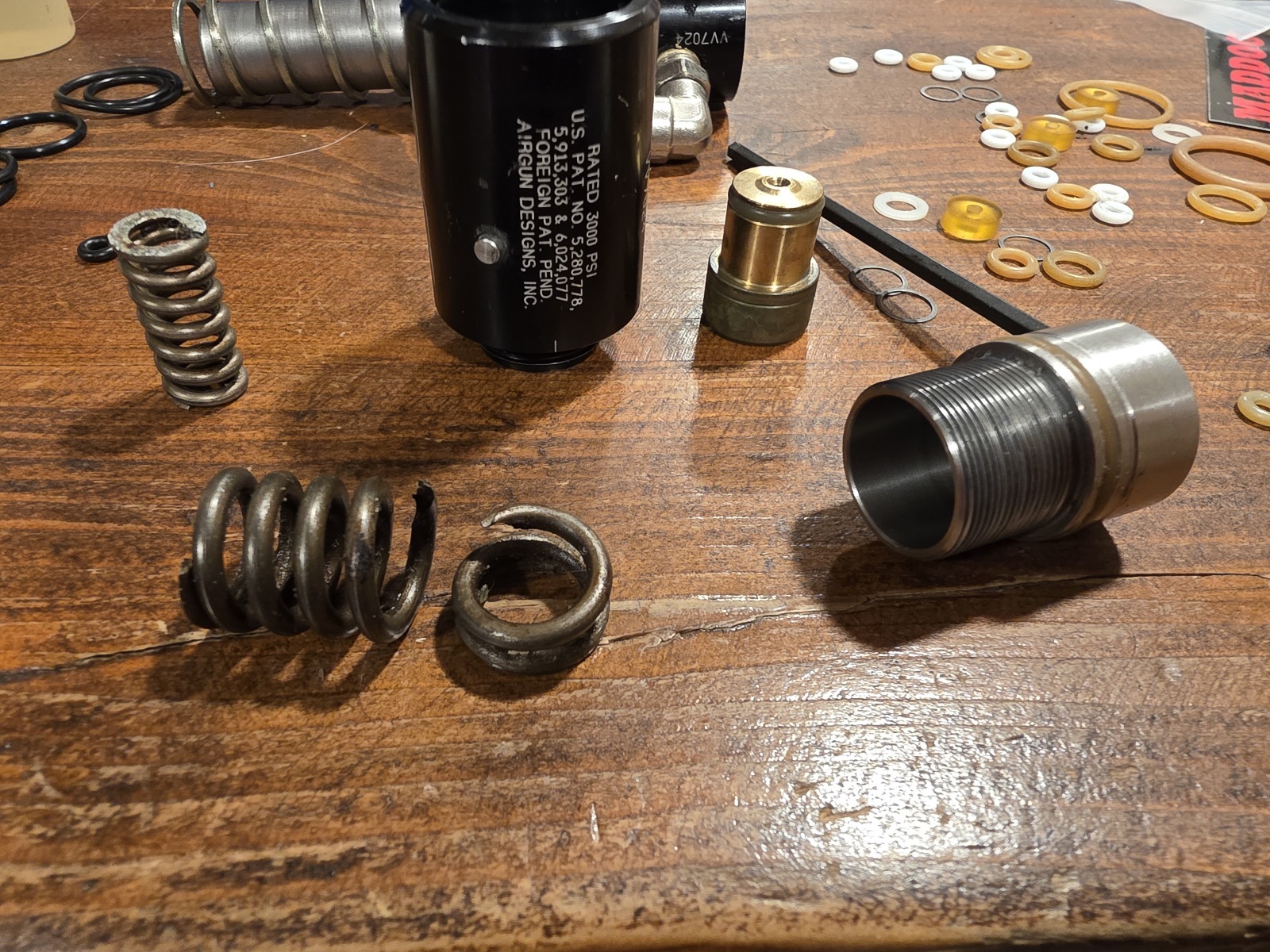

X valve broken outer regulator spring

[Alexndl]

Wondering if anyone ever had this issue?

First time I see one broken and even AGD is mentionning on their store that it should never need replacing.
https://airgundesigns.shop/product/l...-spring-retro/

[Tracker]

a spring under compression for 20 years might eventually fail on a tensile level.

[CatFarmers]

My oldest X Valve is 6638 and my newest is 9939. Maybe a force of nature caused it or a repetitive strain induced? I havent seen anything like that. I guess its time to get some new springs and keep on keepin on.

Edit*** I will note that the way it broke is not a typical. It is more in line with high pressure and adjustments being made. Potentially a weak point exacerbated by the above.

[oracleglassarts]

Springs absolutely do fail, especially small helical compression springs under constant preload and repeated cycling. The break in this one showing classic signs of torsional fatigue with a brittle final fracture is exactly what’s described in Shigley, the SAE Spring Manual, and ASM’s failure analysis guides. This is a completely normal spring failure mode, not some impossible event.

[Spider!]

I've had trouble with sand getting into pump-mag wave springs. They would break at the contact points unless we kept them clean and lubed. Yours may have had a little between the coils and rubbed a scratch in there at some point. (?)

[tunaman5]

Never saw one fail in all my years as an AGD Tech. I am sure Dave will warranty that part.
