    AGD vertical ASA screw Spec.

    anyone know the spec on that oddball vertical ASA screw on automags? had to drill one out. guessing 10-24 threads? AGD sells them but I have other things to order from McMaster, not AGD!
    Tags: None
    • LukeAO
      lukescustoms.com
      • Oct 2020
      • 172
      • Arizona
      #2
      1/4-20 low profile

        Comment

        • Drcemento
          Tiger Stripe Enthusiast
          • Aug 2021
          • 741
          • NorCal
          #3
          Thank you! length? 1/2"?

            Comment

            • LukeAO
              lukescustoms.com
              • Oct 2020
              • 172
              • Arizona
              #4

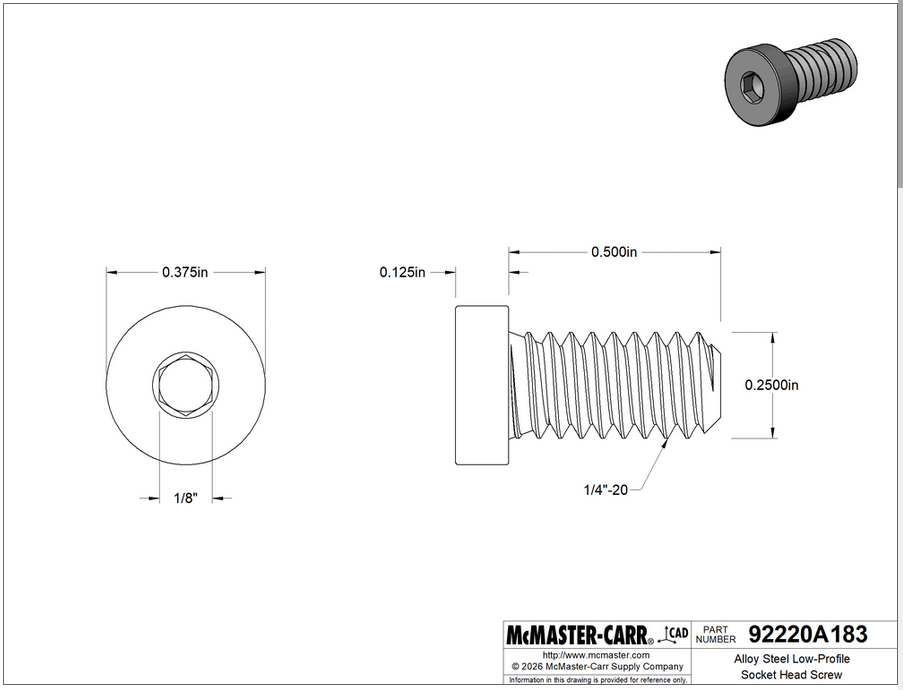

              Click image for larger version Name: AM FG SCrew.png Views: 125 Size: 139.0 KB ID: 792433

                Comment

                • Drcemento
                  Tiger Stripe Enthusiast
                  • Aug 2021
                  • 741
                  • NorCal
                  #5
                  Thanks again luke! ordered. have will have a bunch now if anyone ever needs one.

                    Comment

                    • LukeAO
                      #5.1
                      LukeAO commented
                      02-03-2026, 03:10 PM
                      Editing a comment
                      your welcome
