See title: or, "sure, I've rebuilt a mag before, I can fix yours no problem!". It belongs to a friend of mine, who probably had it modified at Carter Machine (He knew Earon for decades).
Upper Rail: Probably Carter Machine, onto which is mounted a Tippman A-5 front grip and pistol sights

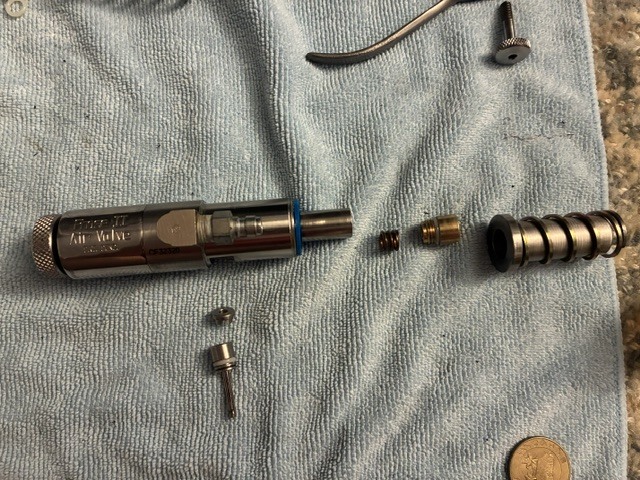

Valve: ANS Phase II regulator, classic front and bolt. Power tube contains a spring instead of spacers.
Body: Right feed
Lower Rail: Carter Machine? Looks like his design.
Frame: Benchmark (I think)
Barrel: No idea! It's a twist lock.
Now, onto maintenance. What I've done so far:
-Replaced all o-rings, bumpers and seals (all with AGD supplied parts)
-Oiled everything up
-Cleaned off old paint, grime, and o-ring goop
-Watched a video of Tom Kaye diagnosing mag problems. Awesome mustache.
Problems (all have occurred after rebuild/maintenance):
1. Leaking from on/off valve while trigger is pulled in. This stopped after installing a different set of o-rings in the on/off valve.
2. Air leaking down the barrel while trigger is out. This stopped after trying a different o-ring in the power tube.
3. "Response trigger" behavior upon firing. Happened after trying the second set of o-rings.
4. Bolt stick: after firing a few times, the bolt wont reset. Only resets after disassembly.

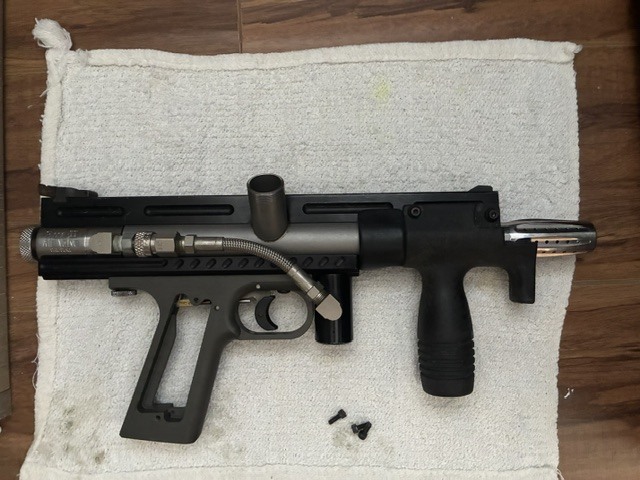

Pictures below, any help is appreciated!
Upper Rail: Probably Carter Machine, onto which is mounted a Tippman A-5 front grip and pistol sights
Valve: ANS Phase II regulator, classic front and bolt. Power tube contains a spring instead of spacers.
Body: Right feed
Lower Rail: Carter Machine? Looks like his design.
Frame: Benchmark (I think)
Barrel: No idea! It's a twist lock.
Now, onto maintenance. What I've done so far:
-Replaced all o-rings, bumpers and seals (all with AGD supplied parts)
-Oiled everything up
-Cleaned off old paint, grime, and o-ring goop
-Watched a video of Tom Kaye diagnosing mag problems. Awesome mustache.
Problems (all have occurred after rebuild/maintenance):
1. Leaking from on/off valve while trigger is pulled in. This stopped after installing a different set of o-rings in the on/off valve.
2. Air leaking down the barrel while trigger is out. This stopped after trying a different o-ring in the power tube.
3. "Response trigger" behavior upon firing. Happened after trying the second set of o-rings.
4. Bolt stick: after firing a few times, the bolt wont reset. Only resets after disassembly.
Pictures below, any help is appreciated!
