    RaceGun HalfBlock valve size and other info

    So, I recently got sucked back into paintball, after a hiatus of about 27+ years. Back in May, I flew from MD to SoCal for the tribute game for Earon Carter (may he rest in peace) at SC Village. Played with my custom Carter Comp, had a great time, and totally caught the bug again. So, now i'm planning on restoring/rebuilding my OG Carterized Autococker from the early 90's (i'll post pics of it in the picture thread), but also want to build a more "modern" Autococker. To that end, I recently scored this:

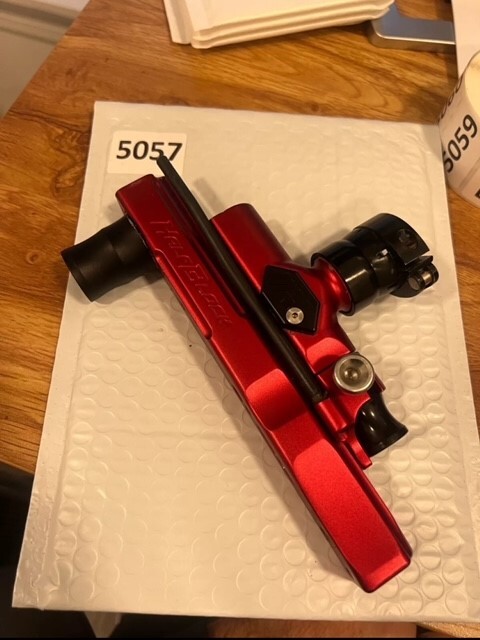

    Click image for larger version

Name:	HalfBlock1.jpg
Views:	275
Size:	67.7 KB

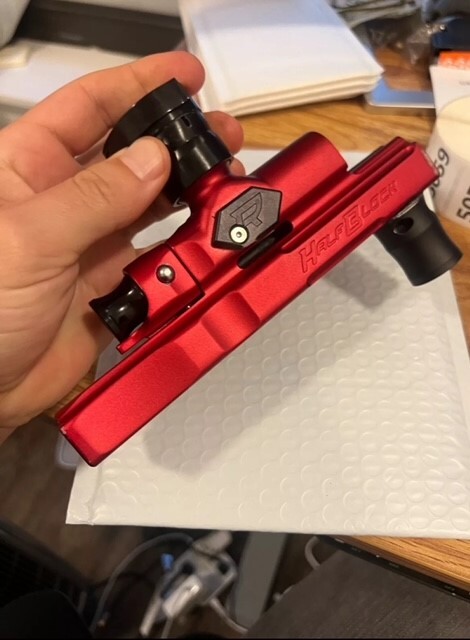

ID:	551752Click image for larger version

Name:	HalfBlock2.jpg
Views:	165
Size:	59.6 KB
ID:	551753

    It's a RaceGun HalfBlock body that I scored off of eBay, and I am planning on building it as a mech cocker with modern pneumatics, etc. It supposedly includes the internals, but no idea if it's the original RaceGun Internals since it's still currently en route via USPS (scheduled to arrive tomorrow). Anyway, i'm trying to plan out my build and wondering if anyone out there is experienced with RaceGun HalfBlocks and can answer a couple of questions for me.

    First off...does the RaceGun HalfBlock use a 9/16 or 11/16 sized valve? Trying to figure out what valve I want to run in this gun and knowing what size this body uses will help direct my search.

    Also, any way to tell what year this body is from? From the seller's original pics, I don't see any kind of serial number, but is there a way to ID the year of RaceGuns HalfBlock bodies?

    Any recommendations of what parts to go with for this build are welcomed. Currently, i'm planning on complete front pneumatics from Inception Designs, but haven't really gotten further than that. Anyone out there built a mech RaceGun Halfblock? Post pics! Thanks!

    Regards,
    Alvin

    #2
    It uses 9/16 and cannot be bored to 11/16 as the milling is too close to the tube in the valve area.

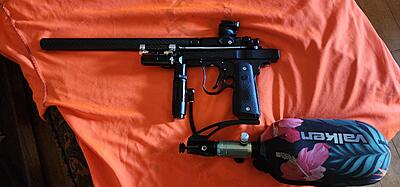

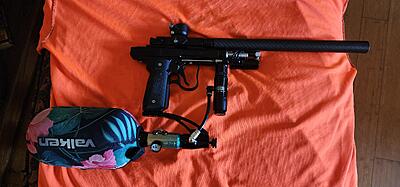

    not sure about year. I have one I just built. will post pics.

    Comment


    • AtChipmunk
      AtChipmunk commented
      Editing a comment
      Thanks for that. I figured it was likely 9/16 but just wanted to be sure.

    #3

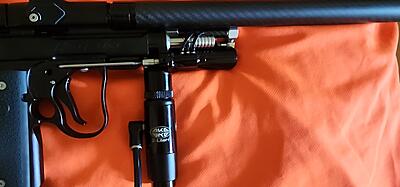

    I chose to keep the stock neck, and I just found a stock barrel with the race logo on it (very hard to find for me)
    Attached Files

    Comment


    • AtChipmunk
      AtChipmunk commented
      Editing a comment
      Sweet looking marker. Love the all polished black. What kinda internals are you running? Stock Racegun or something else?

    #4
    my memory is saying they really only ever had 1 racegun body in production themselves, they came out in 05 along with a frame that didnt require a pin
    they had a partnership with freeflow, so a lot of the "non kit" raceguns before these tend to be freeflow full bodys

    Comment


    • AtChipmunk
      AtChipmunk commented
      Editing a comment
      In my limited searching, I only came across people saying theirs was an '05, so wasn't sure if there were other years. Need to really get myself back up to speed with all things Autococker. Back in the early to late 90's I was well versed in cocker tech at the time...but coming back into it now, and man...really is a whole new ball game (pun intended)...

    #5

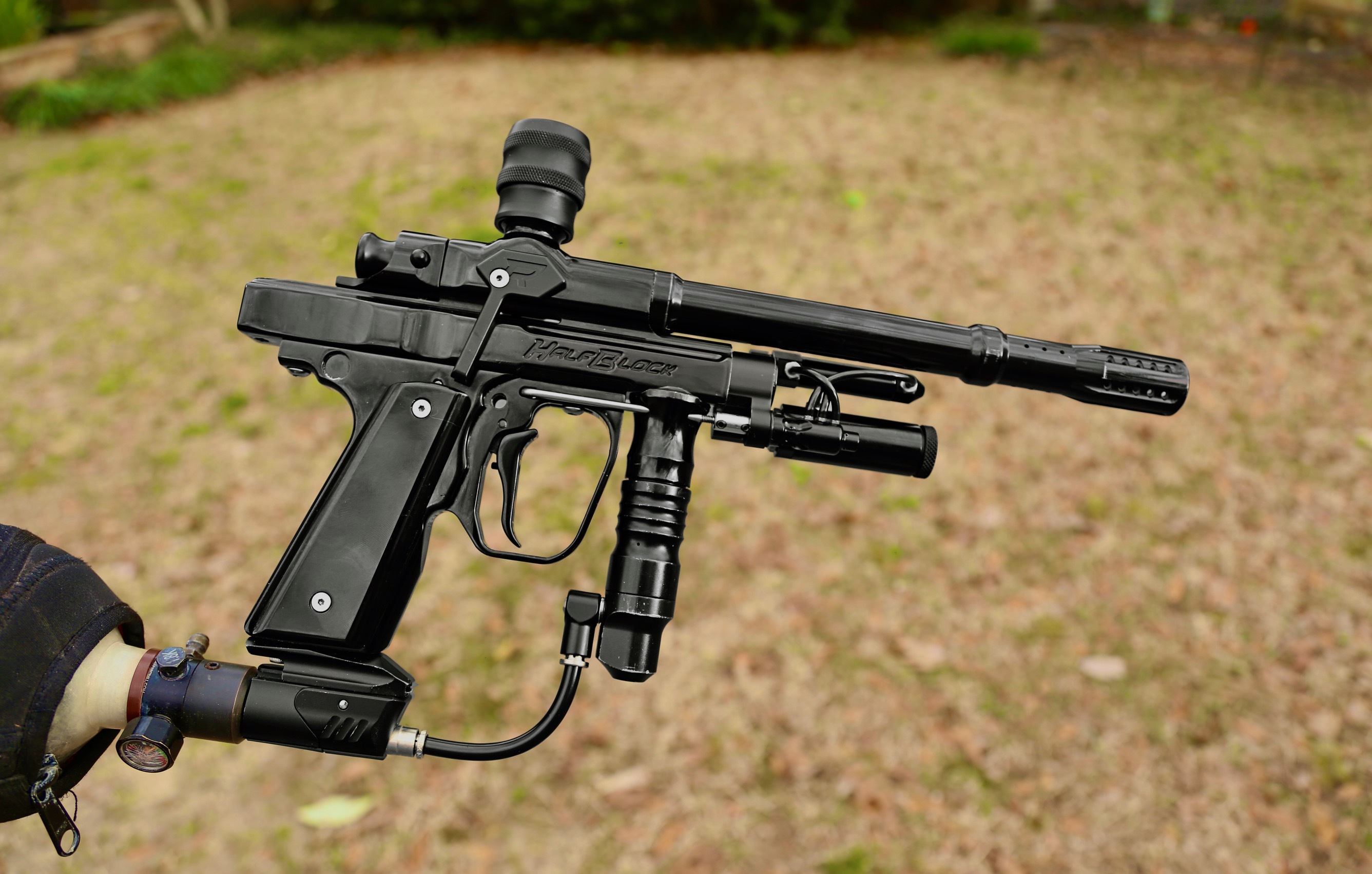

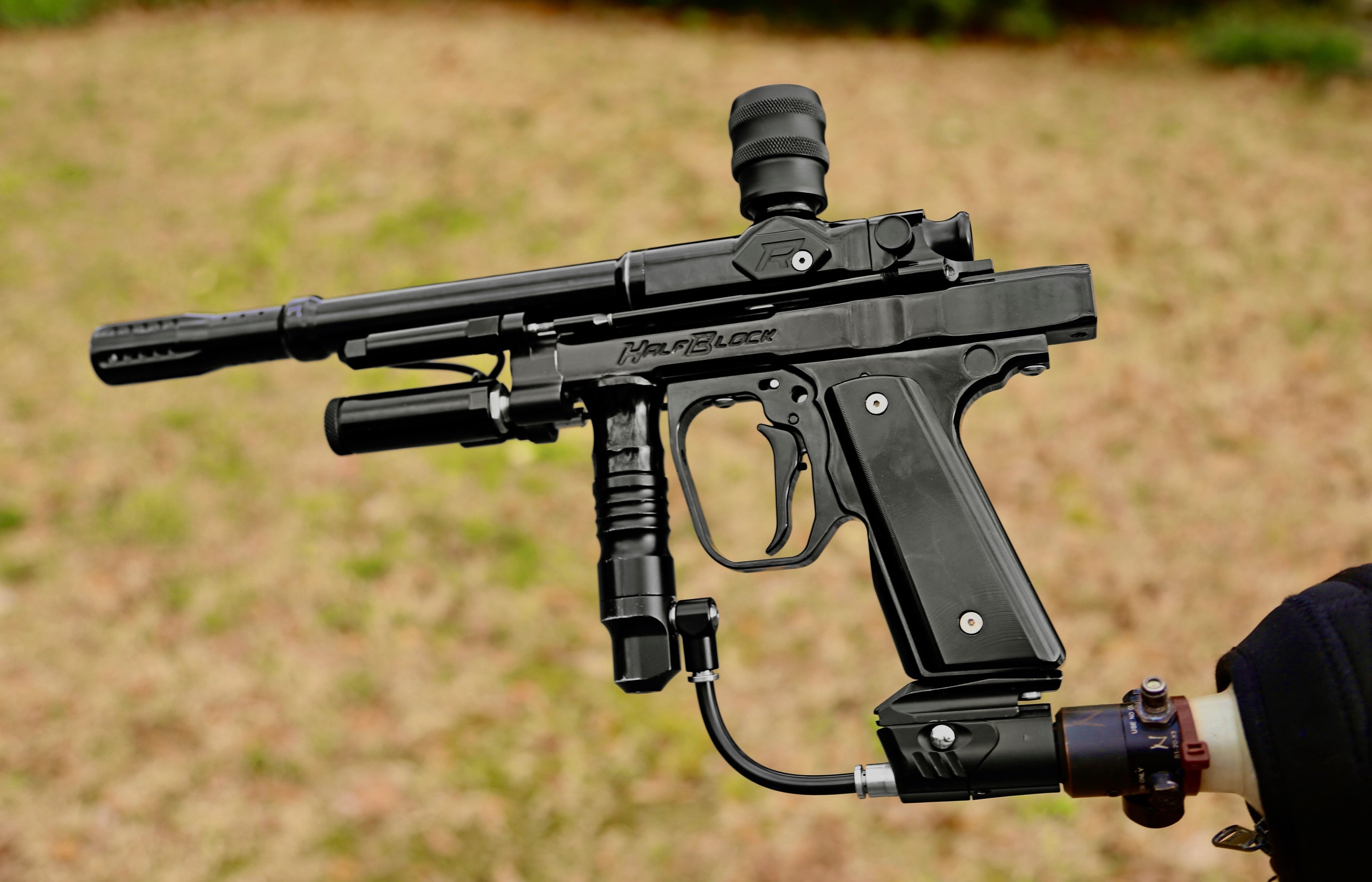

    Welcome to the race gun club!!!
    aka 9/16 tornado
    Free flow ram
    Aka scm3
    Aka 2 liter+
    Ans 90 frame
    Free flow qev
    Shocktech bomb 3way
    Inception slotted hammer
    Inception master springs
    Runs like a sewing machine

    Comment


    • AtChipmunk
      AtChipmunk commented
      Editing a comment
      Love it!
