Brad Nestle Reverse Cocker

[Walker]

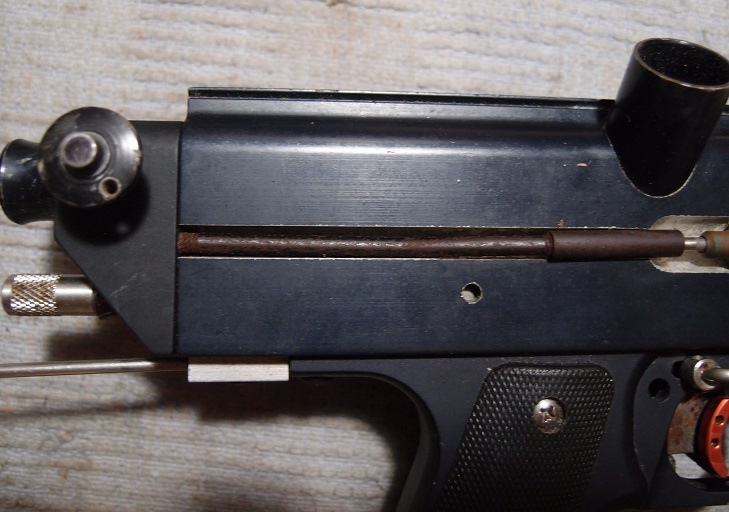

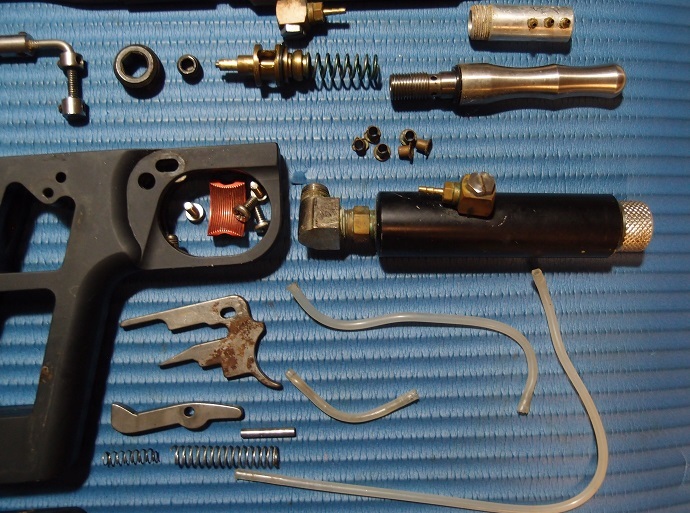

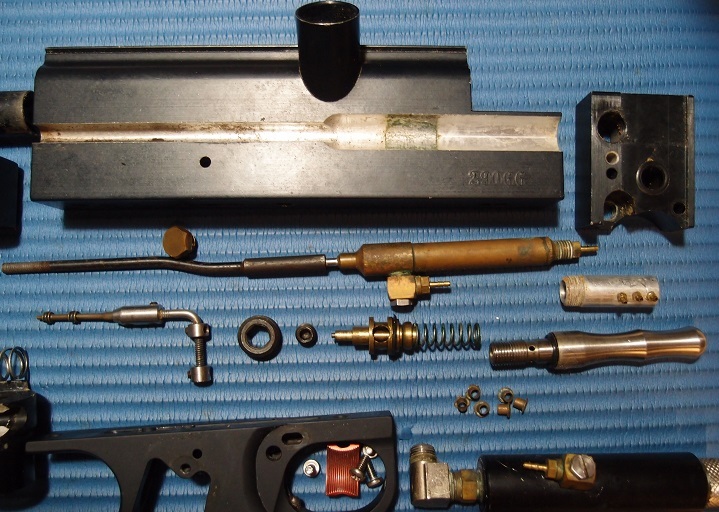

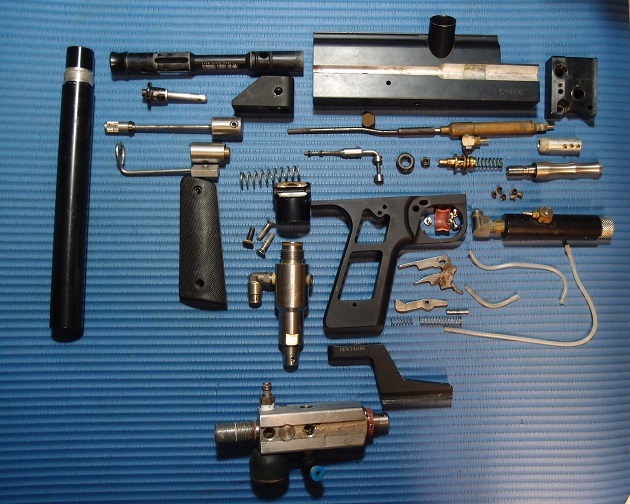

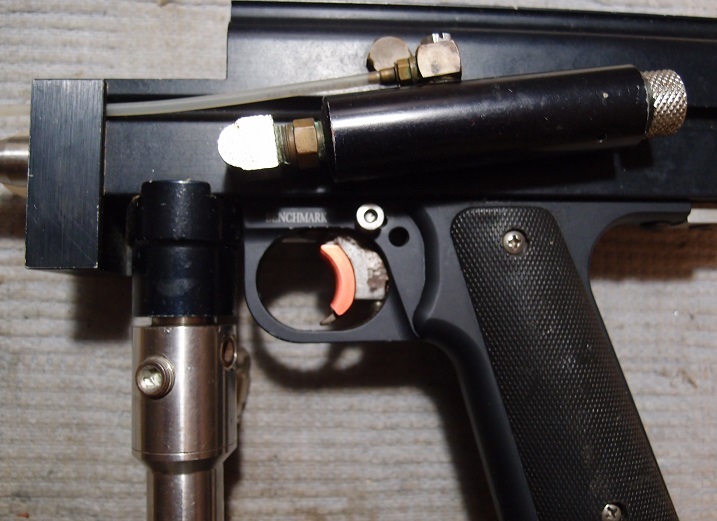

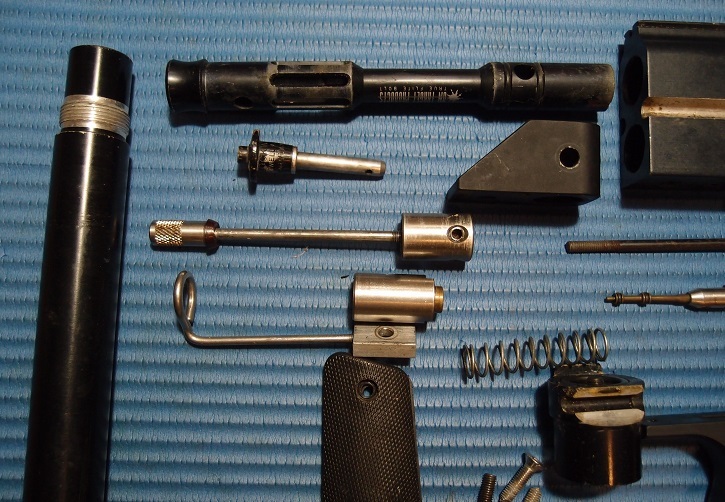

This was a Craigslist find..... It came apart fairly easy and will take a bit of cleanup....
- The grip frame mounting screws needed some heat to get them to come out, one needed a slot cut as the hex was rounded out.
- The bolts mounting the drop to the frame also needed some heat.
- Everything else came apart with no issues.
- The low pressure hoses were brittle.
- Total weight: 5-pounds, 8-ounces.

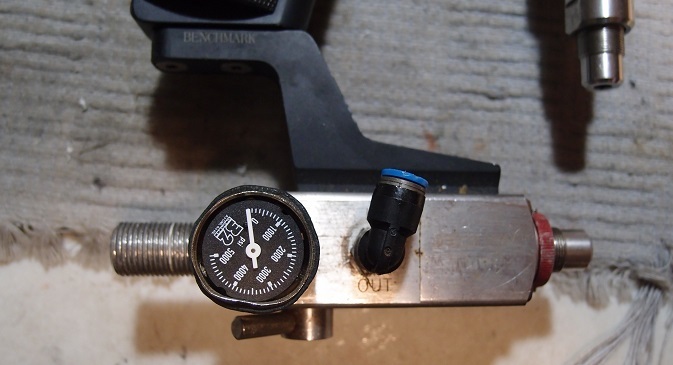

- The Apocalypse tank reg weighed 1-pound, 8-ounces by itself.

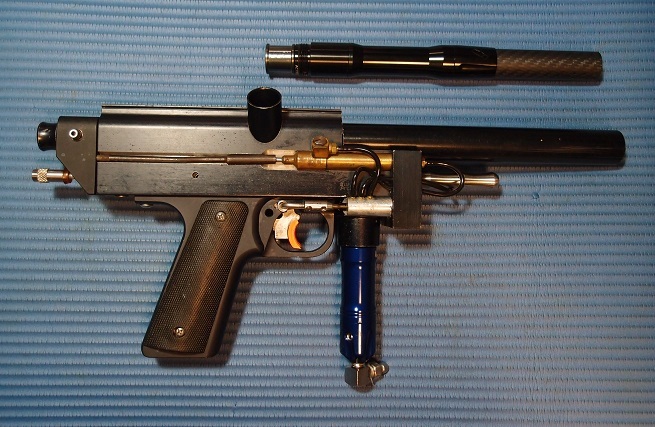

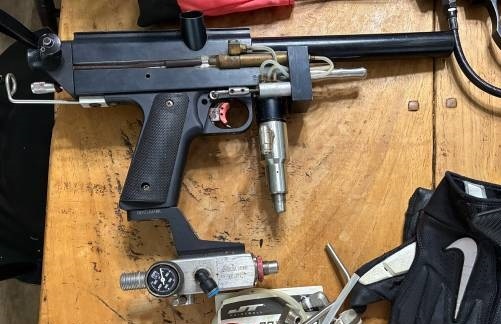

Craigslist photo ( I forgot to take a full view pix...doh):
CL Ad pix.jpg

[Blackmagic71]

Great work!

Very cool marker.

[Walker]

Cleaned and started to reassemble.......

- LPR seems to be working...
- replaced the valve, cup seal material was cracked, new one seals fine.

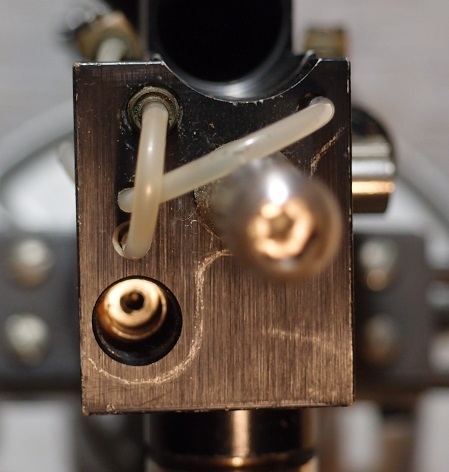

- had to double up on the vasa to body orings. When the relief for the 3-way was cut it impacted the oring groove. I doubled up on the orings (one inside the other) to put more pressure on the outer one to seal the cut. Seems to have worked, it was leaking beforehand.
- replaced the 3-way orings

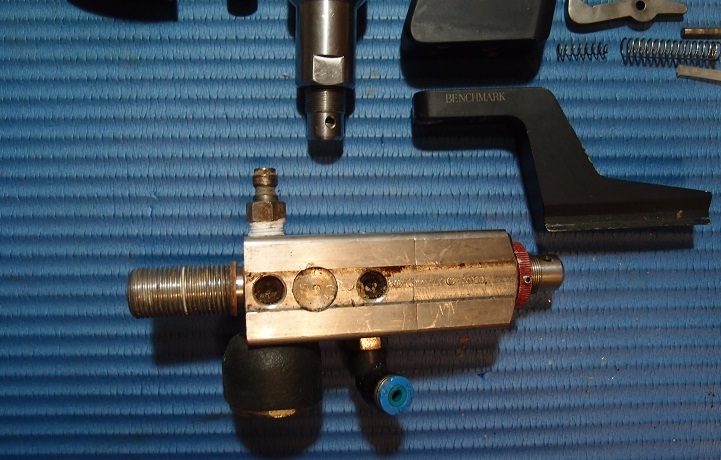

- needless to say, the AA HPR will need some work to get it apart for a rebuild.
- waiting on more low pressure hose to be able to test further.

[Walker]


Update:
- Disasembled
- Cleaned
- Replaced bolt orings
- Replaced the switch orings, used 003, as 002 was too small
- Replaced the valve guide and cupseal, the original seal was cracked, used a similar stock WGP valve.
- Replaced the Rock piston oring
- Replaced all lpr hose
- Replaced front block orings
- Set IVG all the way out
- Used a CP HPR for testing, set to 400psi initially
- PWR barrel with a .677 insert to match my reballs
- Reassembled using everything else that came with it
- Set initial timing: backblock position, cocking rod length, bolt clearance, timing rod length

Results:
- HPA tank at 750psi output
- Very slight leak at the lpr barb
- No other leaks
- Timing rod adjustment for proper cycling

Time to dig out the chrono and see if it will shoot at field speeds and cycle reliably.

Results:
- Cycles fine, not the fastest Autococker but reliable.
- The gun is shooting between 280-285 FPS, reliably. With the HPR set at 400psi, and the IVG adjusted all the way out.....
- Crazy stuff.......

Things to do;
- Fix the leak at the LPR barb
- Source a permanent HPR for it.... The Air America it came with will need some work to get apart...

I'm happy with it......

[William the Third]

Things to do;
- Fix the leak at the LPR barb
- Source a permanent HPR for it.... The Air America it came with will need some work to get apart...
- Sell it to @William the Third

https://i.imgur.com/fin8Spa.jpeg

[zmannz1984]

Super cool. Reminds me of the sterling semi's in some ways. I recall my first cocker was around 8 lbs with tank and hopper lol. The one I have now might be half that lol.

[trashcollector]

What’s the intent behind reversing an autococker?

[Magmoormaster]

I love it when you just randomly set a pressure, randomly set the IVG, and it chrono's perfect.

[Ecapnation]

What’s the intent behind reversing an autococker?

To make the gun feel smaller.
