Raptor O-Ring List

[ghilliesuit]

I am curious if anyone has a comprehensive list of o-rings for the raptor. I am working on putting one together (waiting on my o-rings to arrive and verify they fit), but it would be nice if someone already did the leg work.

Either way, thanks

____________________

Edit (12/30/20 + 1/2/21)

With the help of Rolling Thunder 67 (Thank you for making me aware of the similarities of ACI F1) I found the following:

All O-rings in the upper half (Bolt tube) are -016.

All, except 1 on velocity adjuster screw, in the lower half (hammer tube) are -013.

The velocity adjuster screw was a -008

Base of Raptor Extreme foregrip is -117

[Rolling Thunder 67]

If your working on a machined bodied Raptor this manual for a F1 will has the o-ring sizes that will match the raptor, as this Raptor is a knock of of the F1 and F4 of the time.However Cap Threads are not compatible. Hope this helps

F1 Manual.pdf

[ghilliesuit]

If your working on a machined bodied Raptor this manual for a F1 will has the o-ring sizes that will match the raptor, as this Raptor is a knock of of the F1 and F4 of the time.However Cap Threads are not compatible. Hope this helps

[ATTACH]n68804[/ATTACH]

Hmm, I wasnt aware there were non-machined bodies for the Raptor.

Thank you for the guide. I have confirmed that I... ordered the wrong O-rings haha.

[Rolling Thunder 67]

Yes, there are plastic raptors too!, Wal Mart specials. very cheaply built pump guns.

[MrKittyCatMeowFace]

Most of the orings inside a raptor are either tank orings or striker orings (slightly bigger or smaller than tank orings idk). Idk what durometer or material is best.

https://www.google.com/search?q=brass+eagle+raptor&rlz=1CDGOYI_enUS877US877&oq=brass+eagle+raptor&aqs=chrome..69i57j35i39j0l2j69i60l2.4375j0j7&hl=en-US&sourceid=chrome-mobile&ie=UTF-8#imgrc=lP3PsIEF1YgOwM

thats the cheap raptor. Same thing as the blade and the sabre. .

[ghilliesuit]

Most of the orings inside a raptor are either tank orings or striker orings (slightly bigger or smaller than tank orings idk). Idk what durometer or material is best.

https://www.google.com/search?q=brass+eagle+raptor&rlz=1CDGOYI_enUS877US877&oq=brass+eagle+raptor&aqs=chrome..69i57j35i39j0l2j69i60l2.4375j0j7&hl=en-US&sourceid=chrome-mobile&ie=UTF-8#imgrc=lP3PsIEF1YgOwM

thats the cheap raptor. Same thing as the blade and the sabre. .

Ahh okay, nevermind. I have seen those. Then the answer to the question is yes this is a machined aluminum raptor. Not the plastic version.

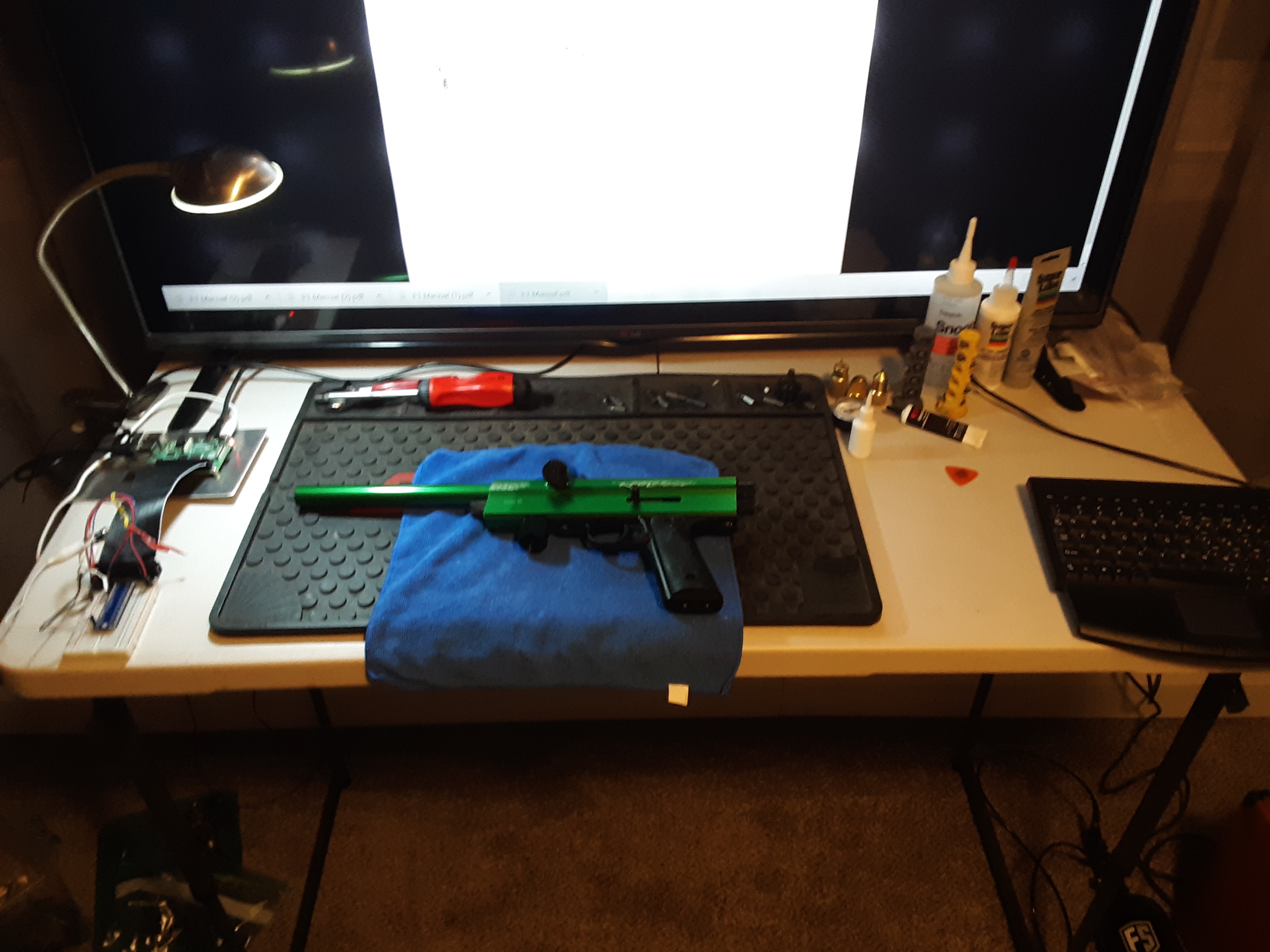

I'll see if i can source the replacements at my local hardware store over the weekend. Everything is all cleaned up awaiting new seals and some lube. Thanks for the help.

[ghilliesuit]

Edited the first post. Thank you for the help gentlemen. I'll post up pics after I reseal the raptor Extreme
