    Evil Omen Capacitor

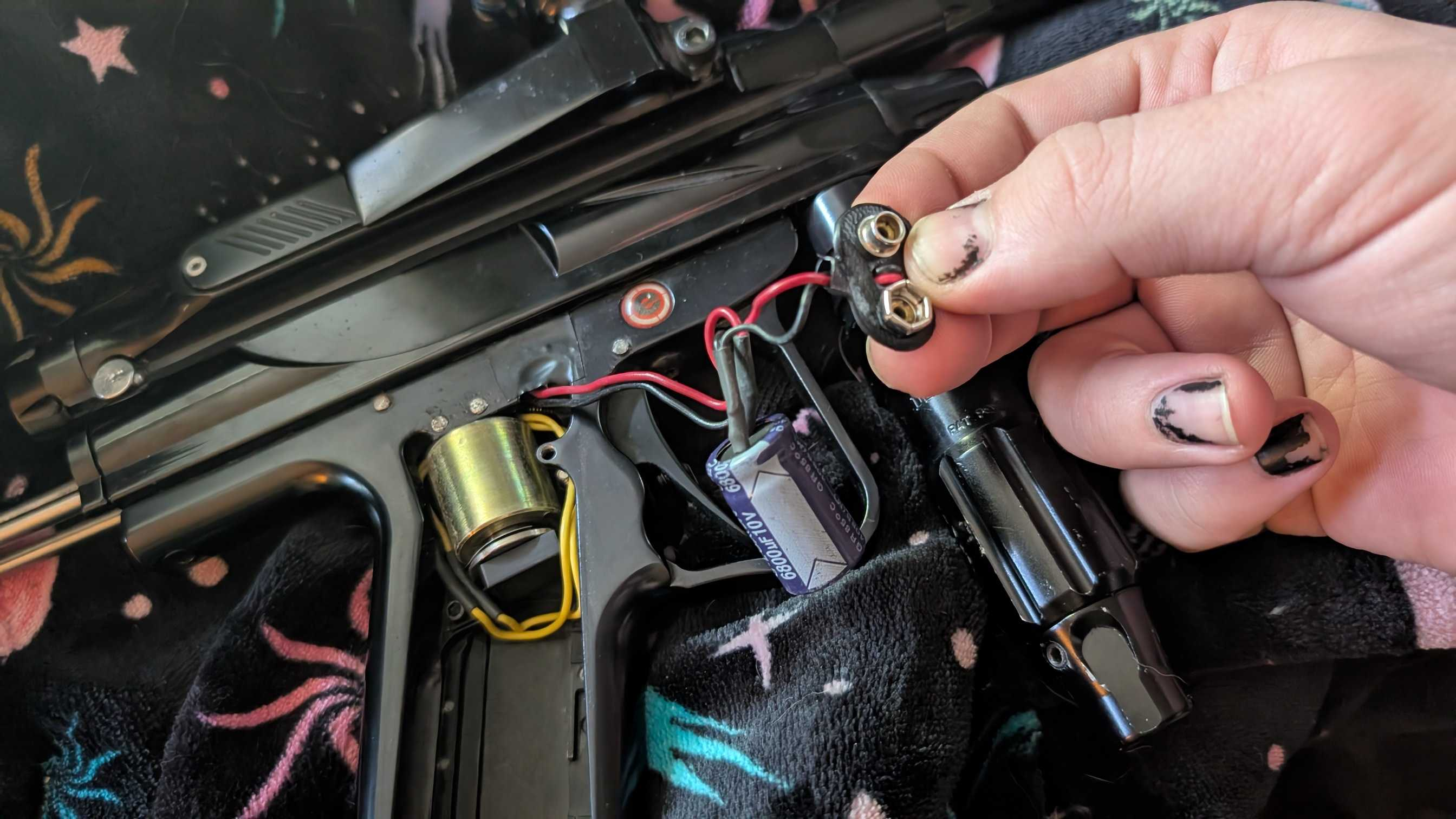

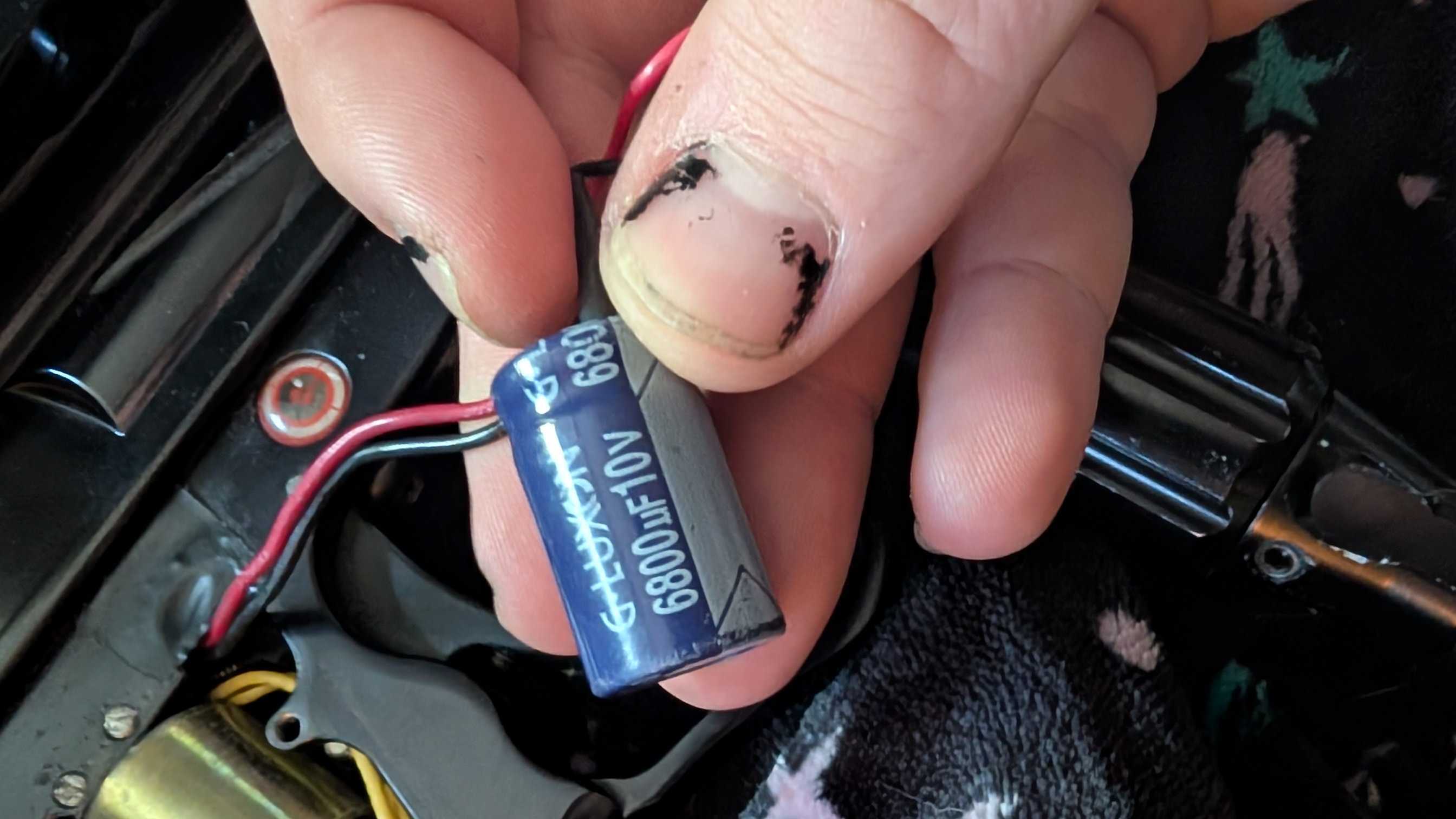

    Bought Walkers Evil Omen. Click nice and the bolt catches, but haven't been able to air it up just yet. First issue I'm looking at though, this Capacitor is huge. Not really enough room to fit the battery and capacitor together. Is there a specialty battery I should be using in here instead of a 9V or is there a smaller capacitor I should replace this with?

    ​ Click image for larger version Name: image.png Views: 0 Size: 3.04 MB ID: 840744 ​
    ​​​ Click image for larger version Name: PXL_20260526_161122131.MP.jpg Views: 143 Size: 156.5 KB ID: 840748
    Tags: None
    • Cyberpyr8
      Certified Post Whore
      • Jul 2020
      • 1131
      • Richmond Hill, GA
      #2
      I always used just regular 9V batteries. I left the capacitor in.
      -------------
      Markers: Force V2 - DYN RED BANDIT | F1 Force | Red Ripper Emek | EMF100 w/MWR Body AntiKit
      Gear: CTRL Hoppers | IR2 Hoppers | 80 & 36/4500 tanks w/PH Regs | Twister JT Pod Packs 4+ & 5+
      Clothes: Flex 8 Masks | Carbon SC base layer | Gatormaille G1 Cap | CK Hefe 2.5 Bandana Pants | Sketchers Konzo Shoes
      Home Field: Hoppers, Savannah GA​​
      Previous Gear​

        Comment

        • shooter311
          Lumbering and loud
          • Sep 2020
          • 1174
          • Maine
          #3
          There is a milled out slot in the grip frame, the capacitor should go behind the 12V.
          Attached Files

            Comment

            • NabyArmeDrommel
              #3.1
              NabyArmeDrommel commented
              05-26-2026, 12:21 PM
              Editing a comment
              I saw that pocket and had assumed thats what it was for. I ended up fitting it with the capacitor in the front pocket and the battery mounted the wide way, fitting into the slots in the grip. Its definitely a TIGHT fit.
            • Cdn_Cuda
              You can finish projects?!
              • Jul 2020
              • 4526
              • Vancouver, BC
              #4

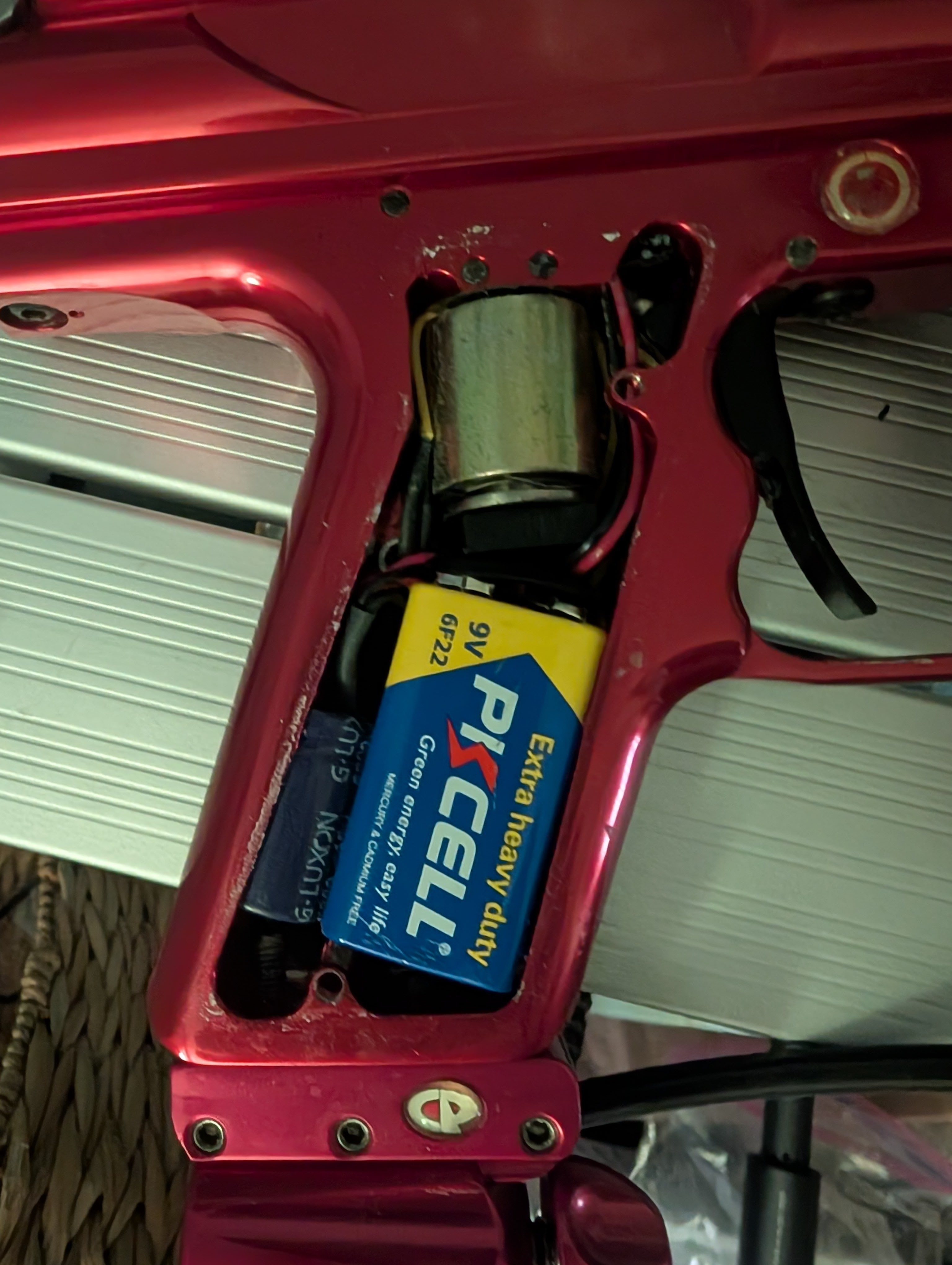

              I have the same issue with mine. Tight fit in the grip frame. Didn't realize there was a milled out section in the frame! In my infinite wisdom I decided to make it a mech or pump and got the trigger to work but need a make a pump to resent the sear, or manually pull the cocking rod.... and the project is withering on the vine now.
              Cuda's Feedback

                Comment

                • NabyArmeDrommel
                  Naby
                  • Feb 2026
                  • 28
                  • New Hampshire
                  #5

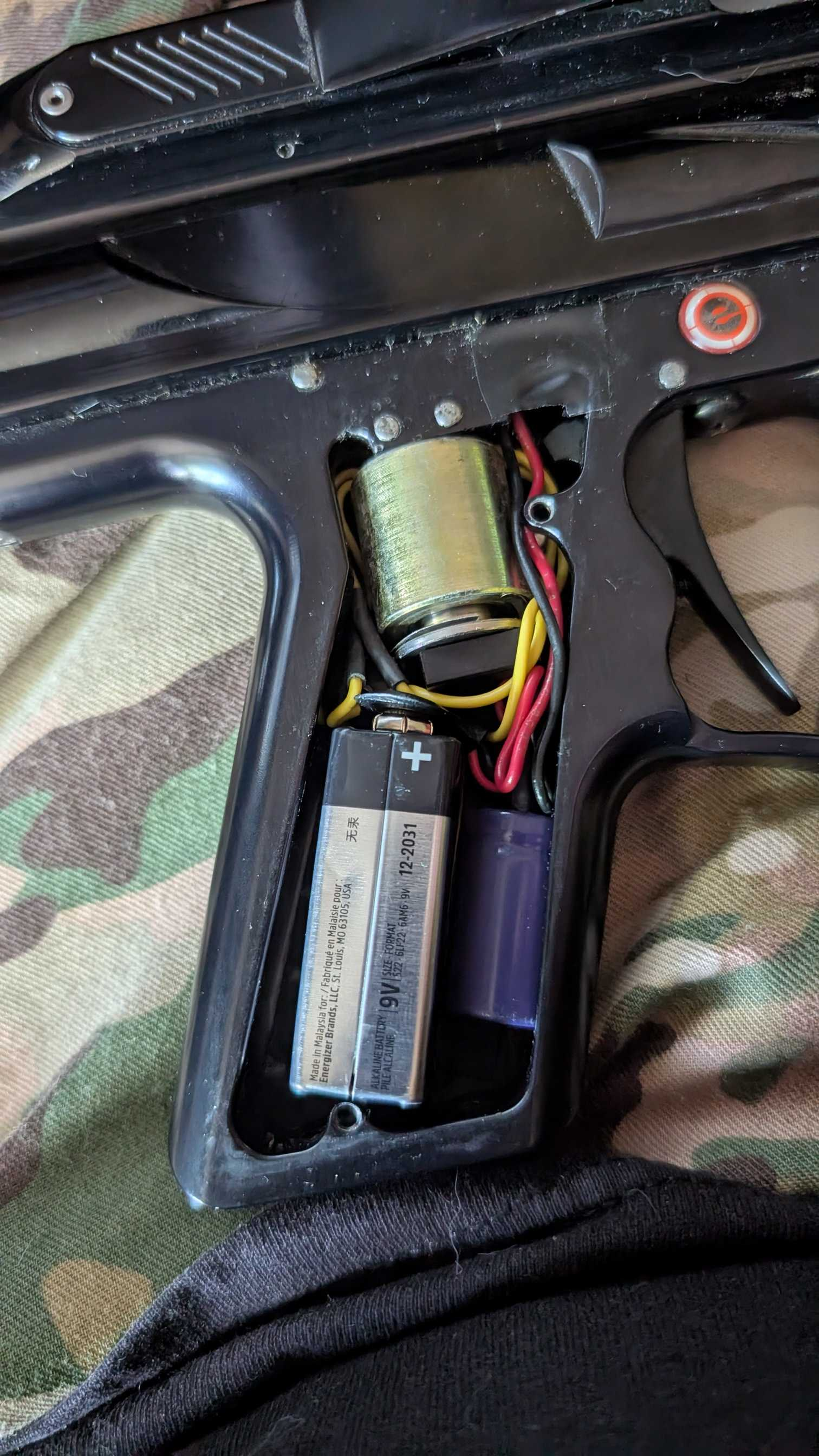

                  ​ Click image for larger version Name: image.png Views: 84 Size: 3.70 MB ID: 840760

                    Comment

                    • shooter311
                      #5.1
                      shooter311 commented
                      05-26-2026, 12:34 PM
                      Editing a comment
                      Do the grips fit flush when it is sideways like that?
                      • NabyArmeDrommel
                        #5.2
                        NabyArmeDrommel commented
                        05-26-2026, 02:22 PM
                        Editing a comment
                        Yeah. It seems like the pockets on the grip are meant to fit it.
