    Nova N4 Odin Disassembly

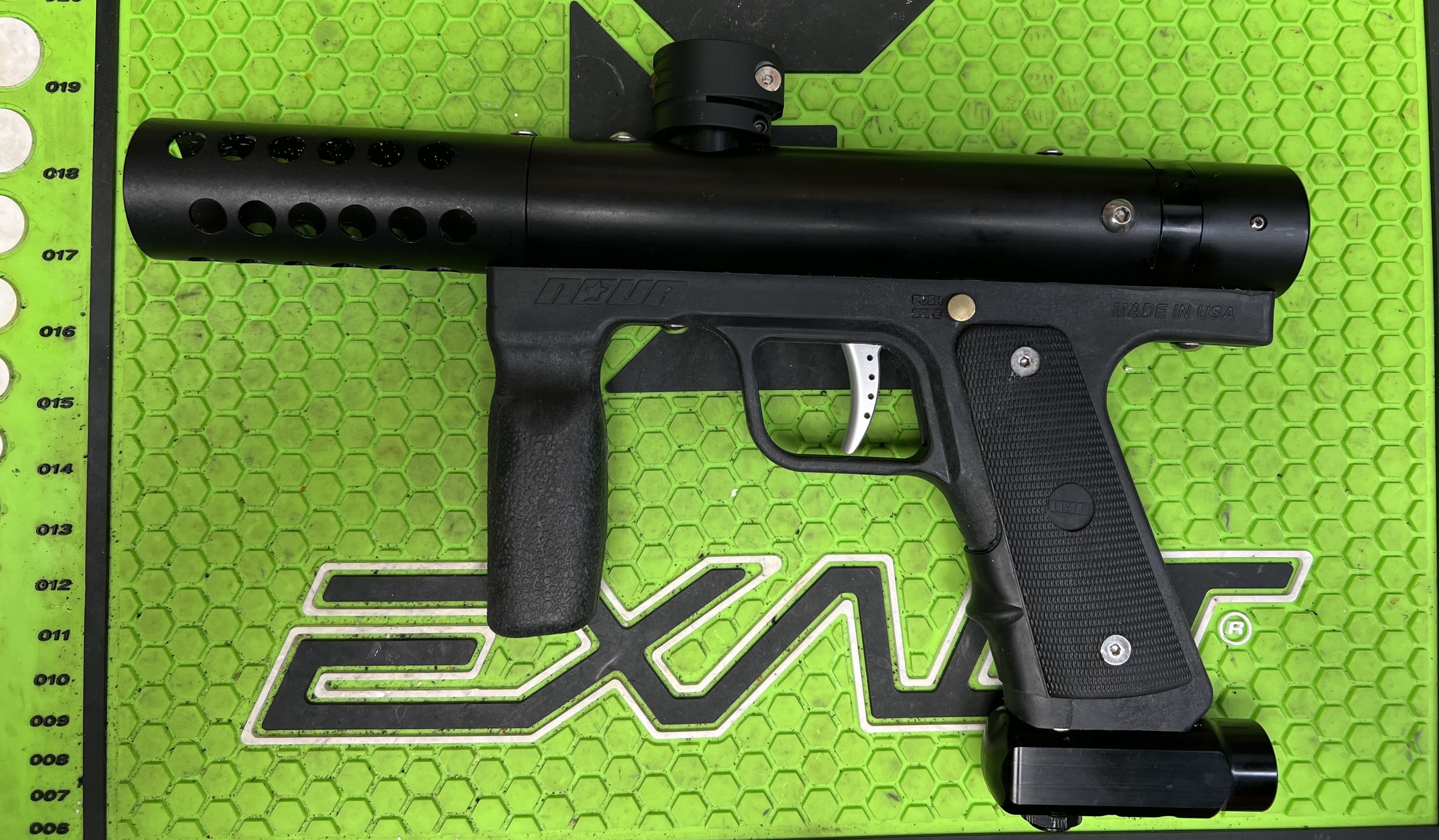

    And now for the teardown of a perfectly functional marker:

    The Nova N4 Odin:
    Click image for larger version

Name:	IMG_2678.jpg
Views:	73
Size:	2.47 MB
ID:	638436
    Cuda's Feedback

    #2
    Please not my Odin has a Bob Long locking feedneck replacing the stock feedneck. This is the marker came to me.

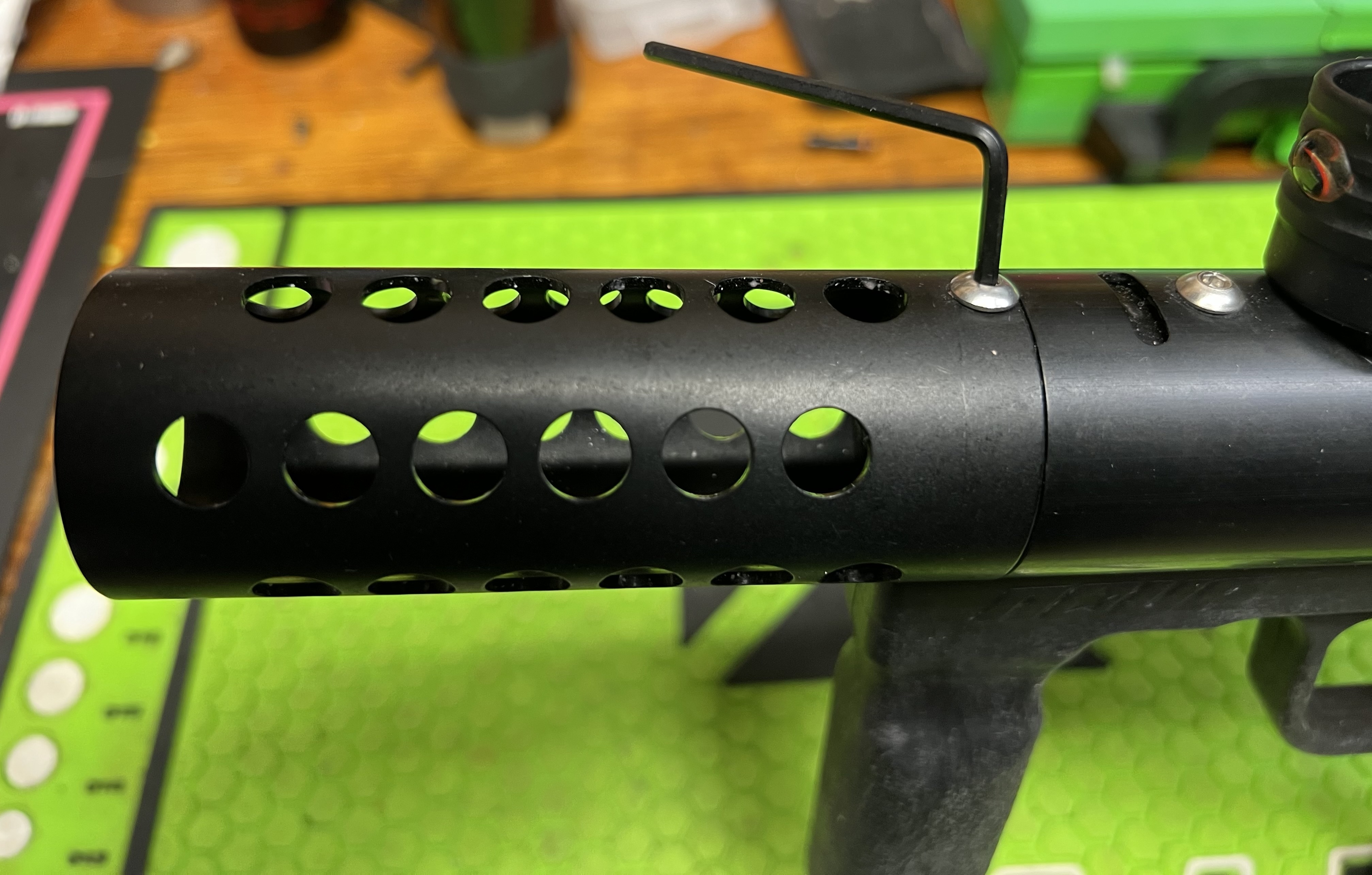

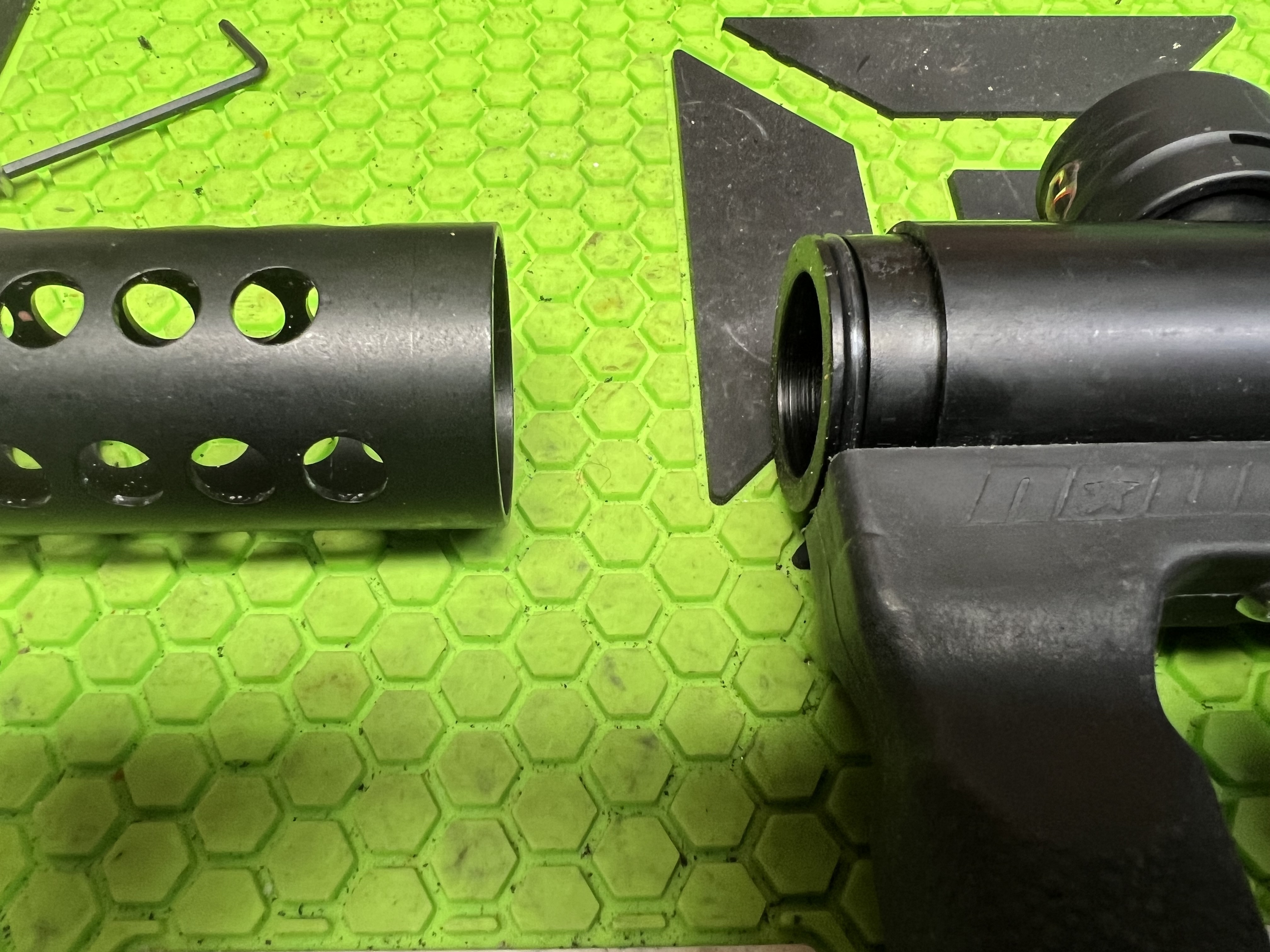

    Step 1 remove the front hand guard:

    Click image for larger version  Name:	IMG_2680.jpg Views:	0 Size:	1.76 MB ID:	638439

    And as you can see, this piece is needed due to the design of the N4. There is o-ring those keeps the hand guard tight. Nova does make a smaller piece to replace the large hand guard, if one really didn’t like the design.

    Click image for larger version  Name:	IMG_2681.jpg Views:	0 Size:	2.00 MB ID:	638438

    Cuda's Feedback

    Comment


      #3
      Then we can remove the grip frame, undoing the two screws and sliding the fair fitting from the main body. Those fits in firmly, so you may need to pull a little to separate the body front the frame, but the air line should stay with the frame.

      Click image for larger version

Name:	IMG_2682.jpg
Views:	41
Size:	2.48 MB
ID:	638445

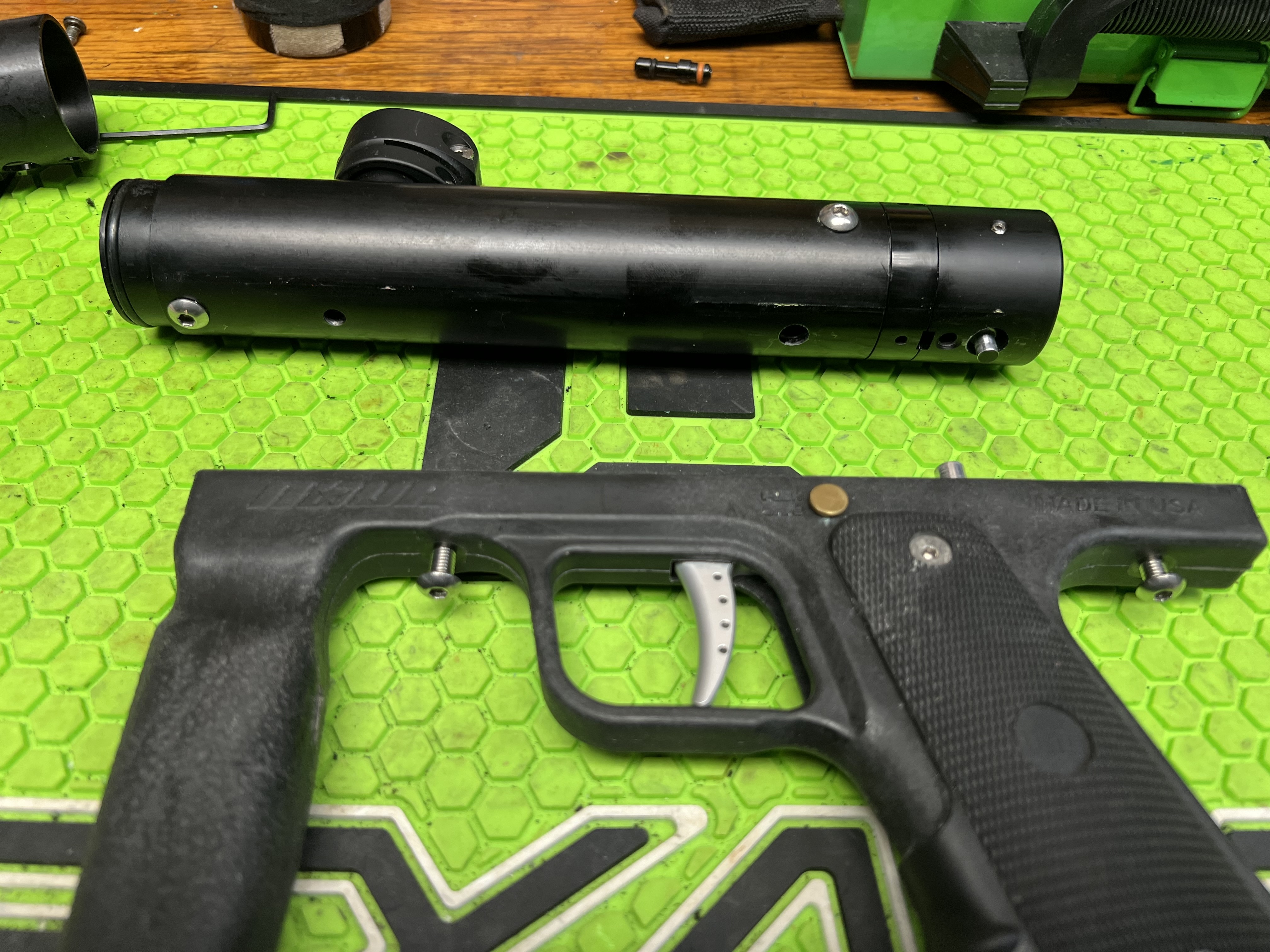

      And here’s another view of the bottom of the body:

      Click image for larger version

Name:	IMG_2683.jpg
Views:	43
Size:	2.94 MB
ID:	638444
      And a look at the firing mechanism. The trigger pushes this rod at the back of the body and triggers the firing sequence.

      Click image for larger version

Name:	IMG_2684.jpg
Views:	45
Size:	1.92 MB
ID:	638443
      Cuda's Feedback

      Comment


        #4

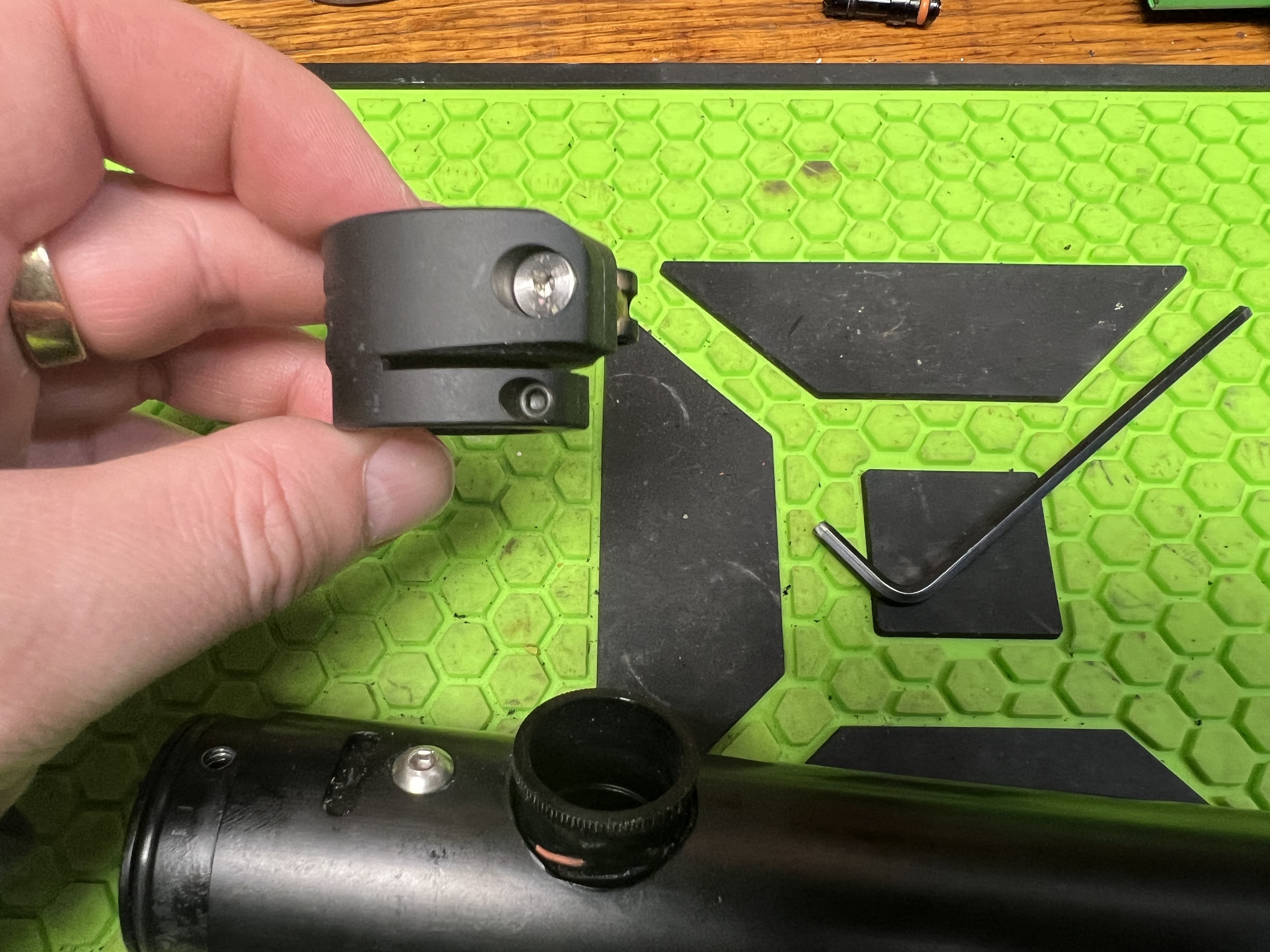

        Now we can pop off the feedneck, as you do need to remove it to disassemble the marker. My Bob Long clamping feedneck just clamps into the stock feedneck insert:

        Click image for larger version

Name:	IMG_2692.jpg
Views:	42
Size:	1.87 MB
ID:	638448 Click image for larger version

Name:	IMG_2693.jpg
Views:	41
Size:	1.78 MB
ID:	638449 And the here is the body without the feedneck insert, ready for further disassembly:

        Click image for larger version

Name:	IMG_2694.jpg
Views:	46
Size:	1.67 MB
ID:	638447





        Cuda's Feedback

        Comment


          #5

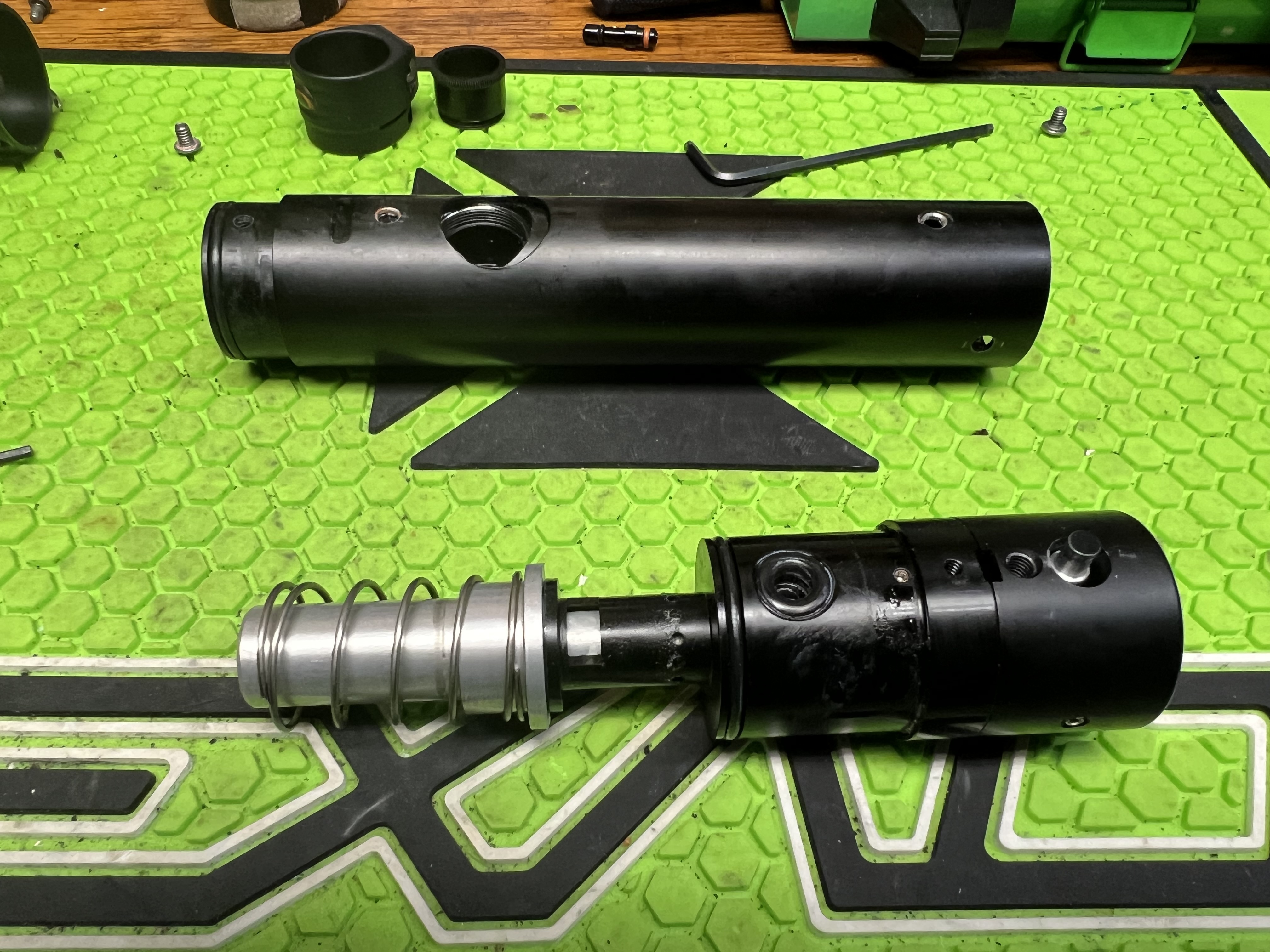

          Now the large body piece is simply a tub that holds the front and rear internals. By removing the two short bolts you can slide the front and rear portion of the marker out of the main body tube:

          Click image for larger version  Name:	IMG_2696.jpg Views:	0 Size:	2.47 MB ID:	638453
          Click image for larger version

Name:	IMG_2697.jpg
Views:	0
Size:	0
ID:	638455

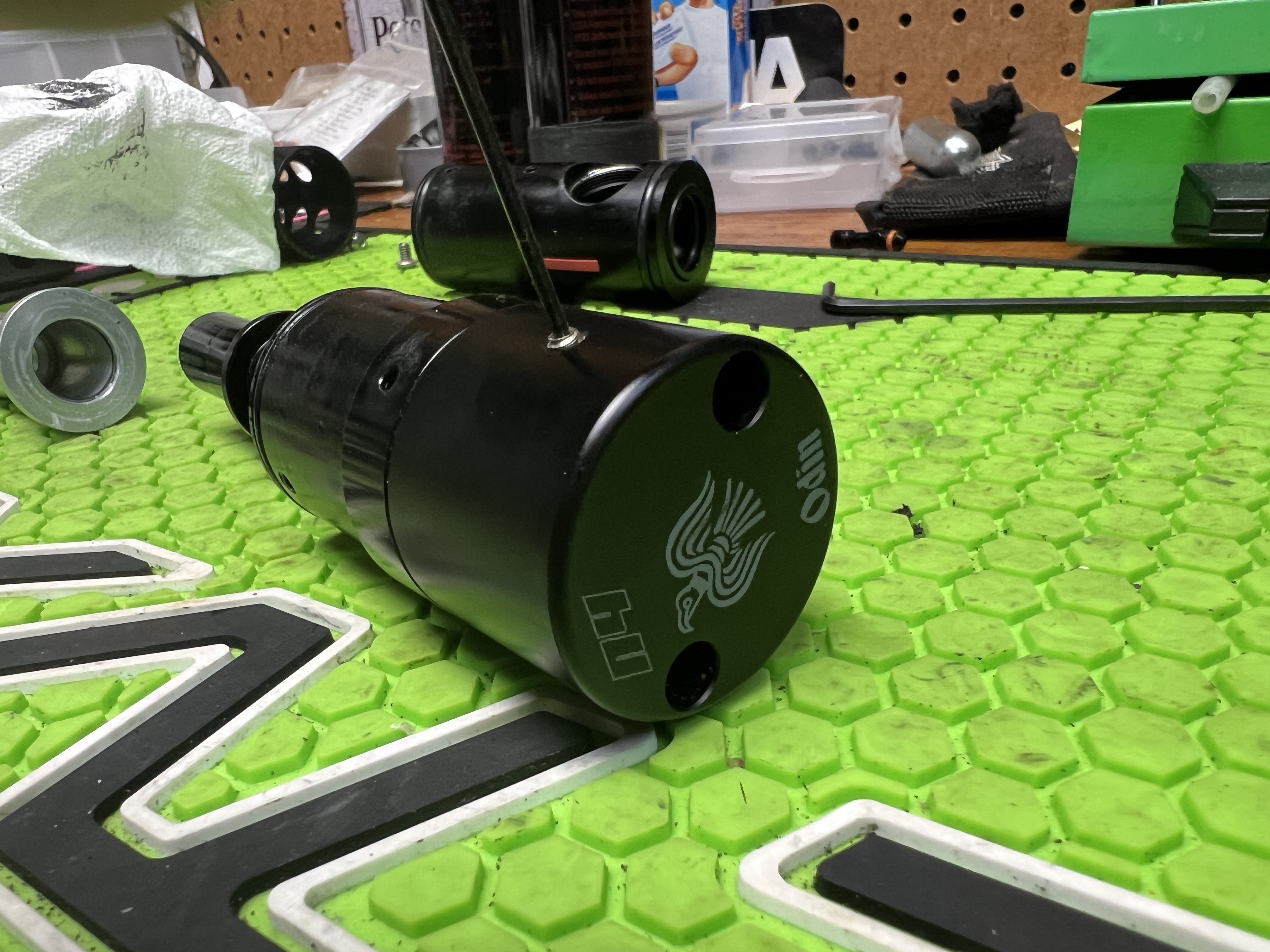

          And here is the rear portion, including the bolt assembly:

          Click image for larger version  Name:	IMG_2698.jpg Views:	0 Size:	1.98 MB ID:	638451

          And the front section:
          Click image for larger version  Name:	IMG_2699.jpg Views:	0 Size:	2.42 MB ID:	638454
          Cuda's Feedback

          Comment


            #6

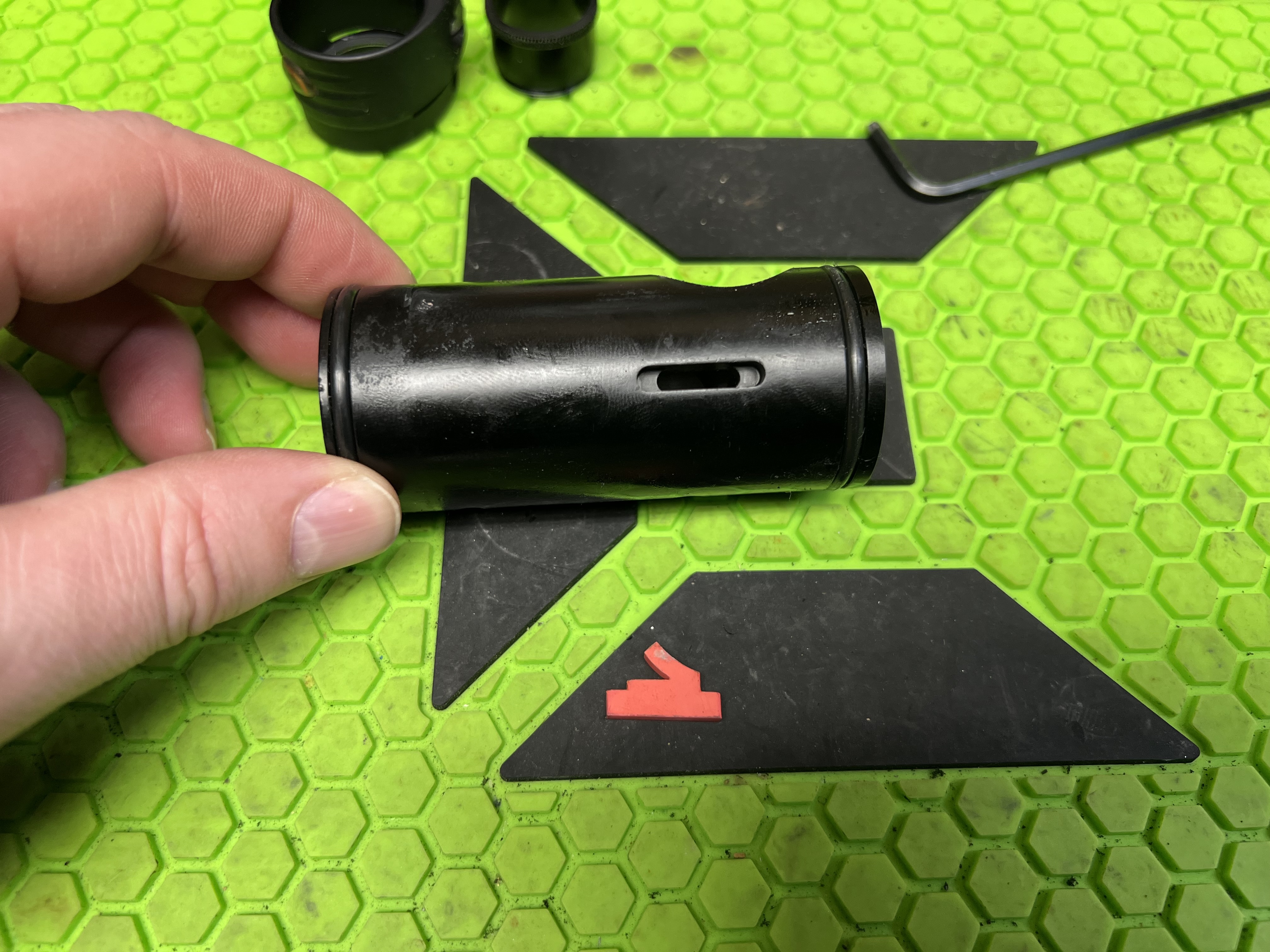

            Here is the front chamber with detent. Using a standard Tippmann detent:

            Click image for larger version

Name:	IMG_2702.jpg
Views:	34
Size:	2.54 MB
ID:	638467

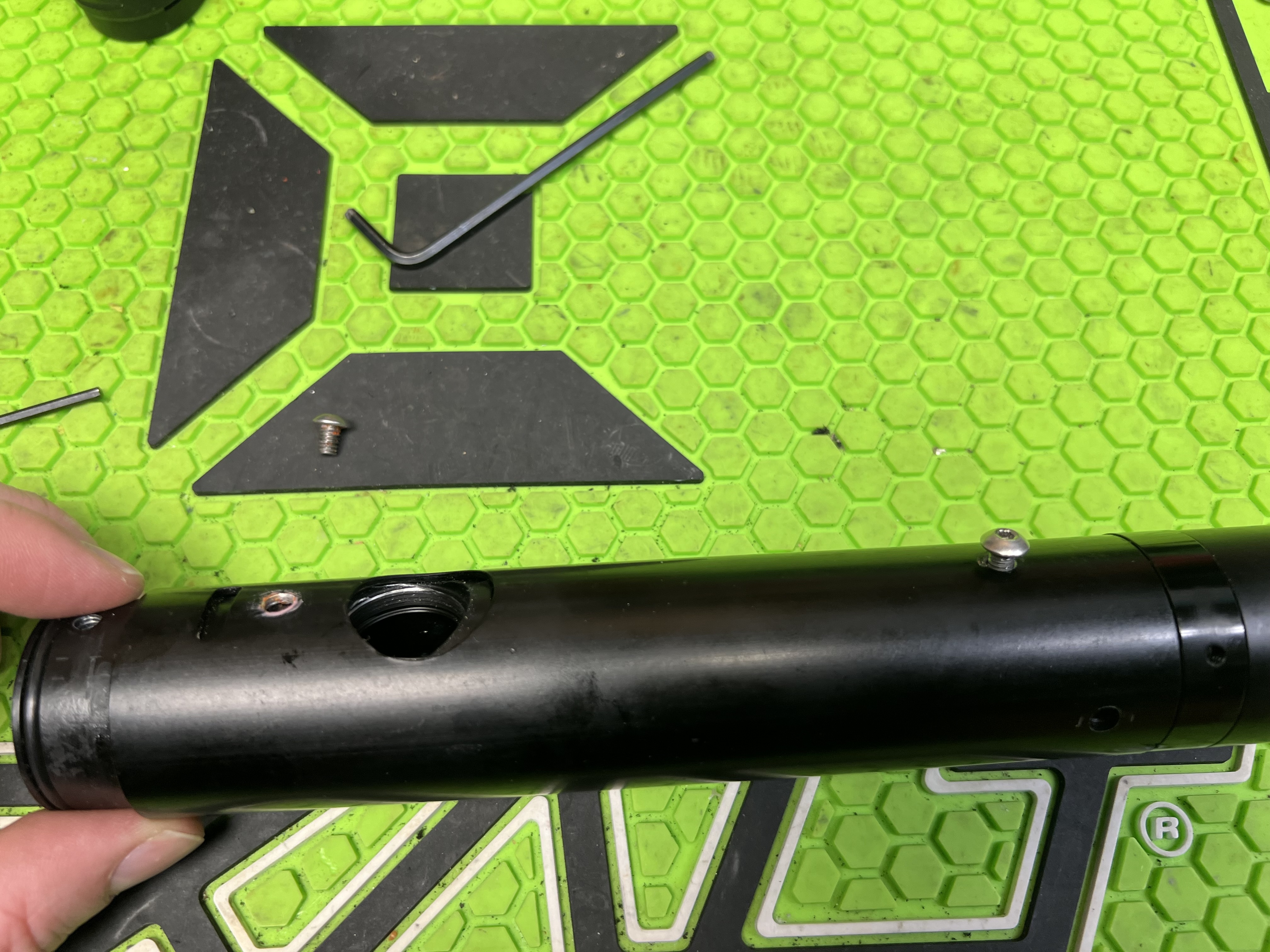

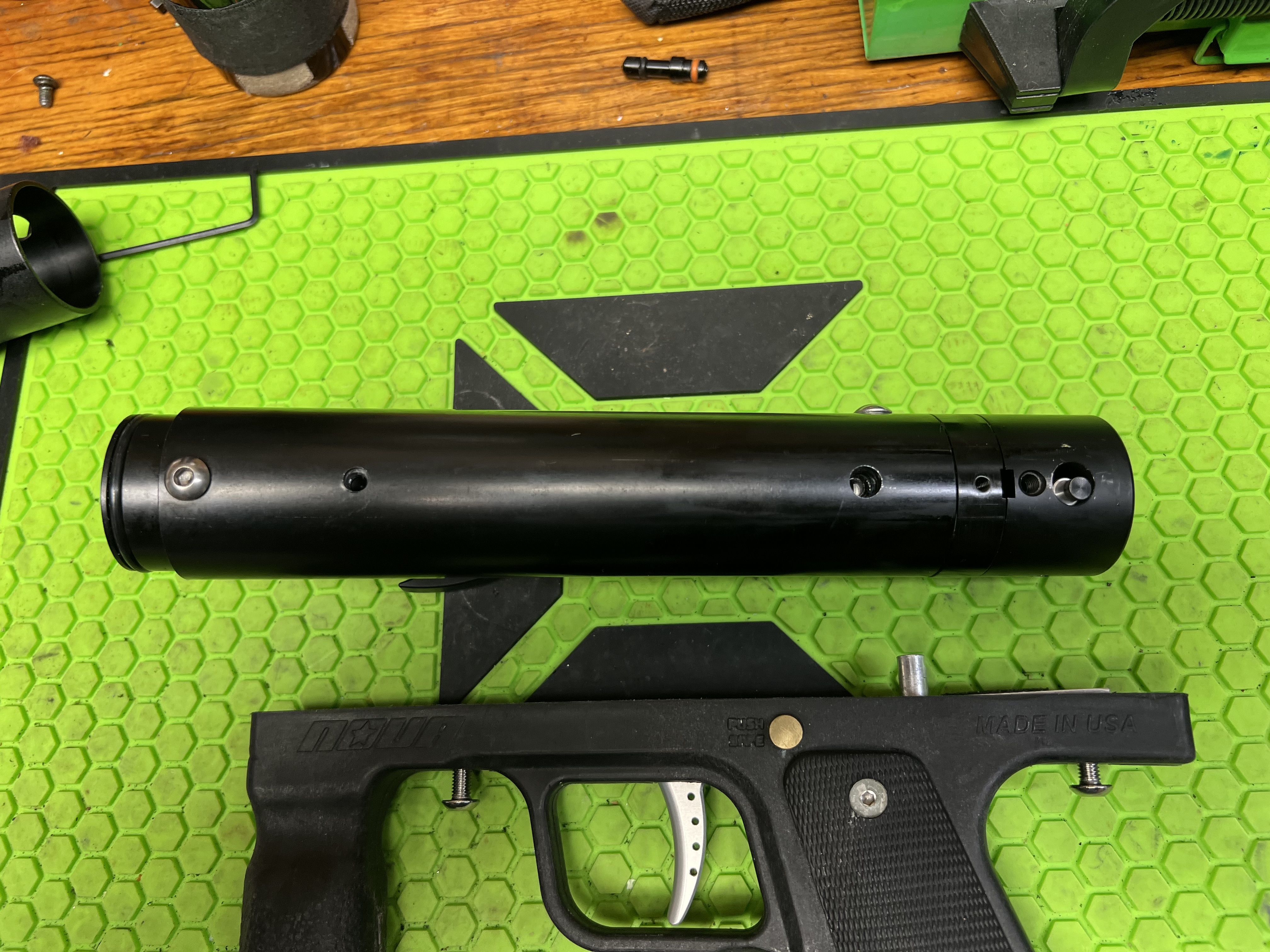

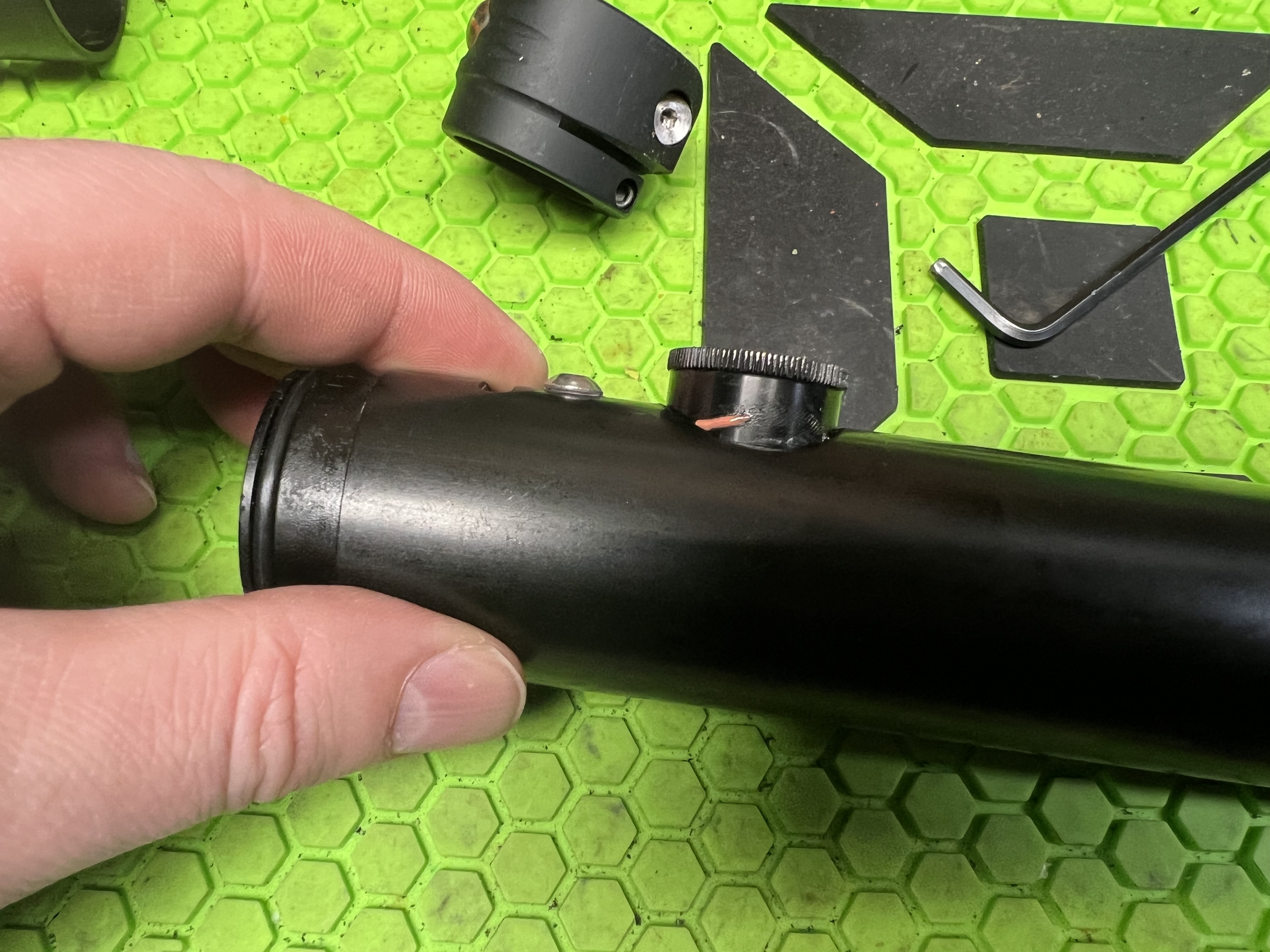

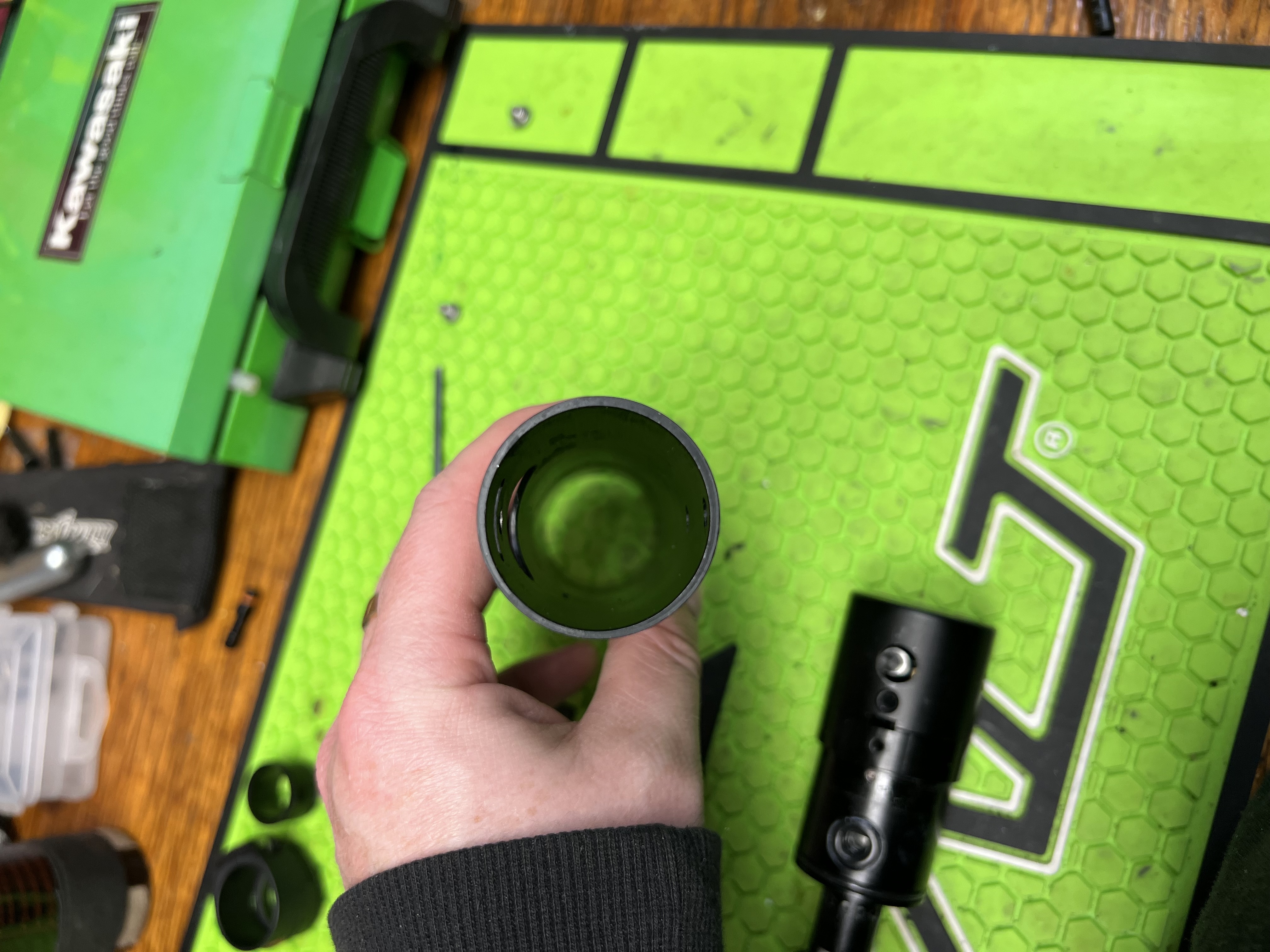

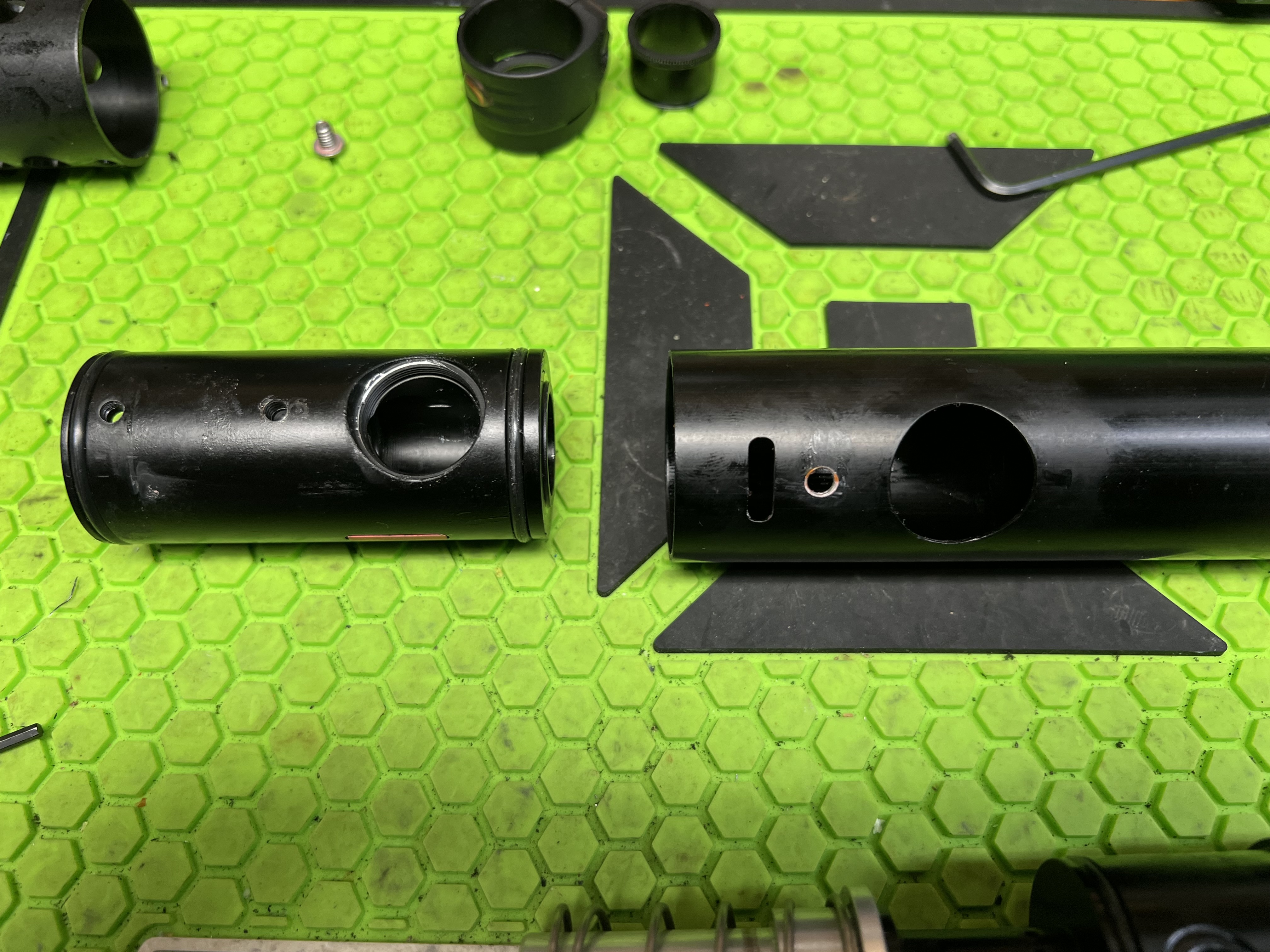

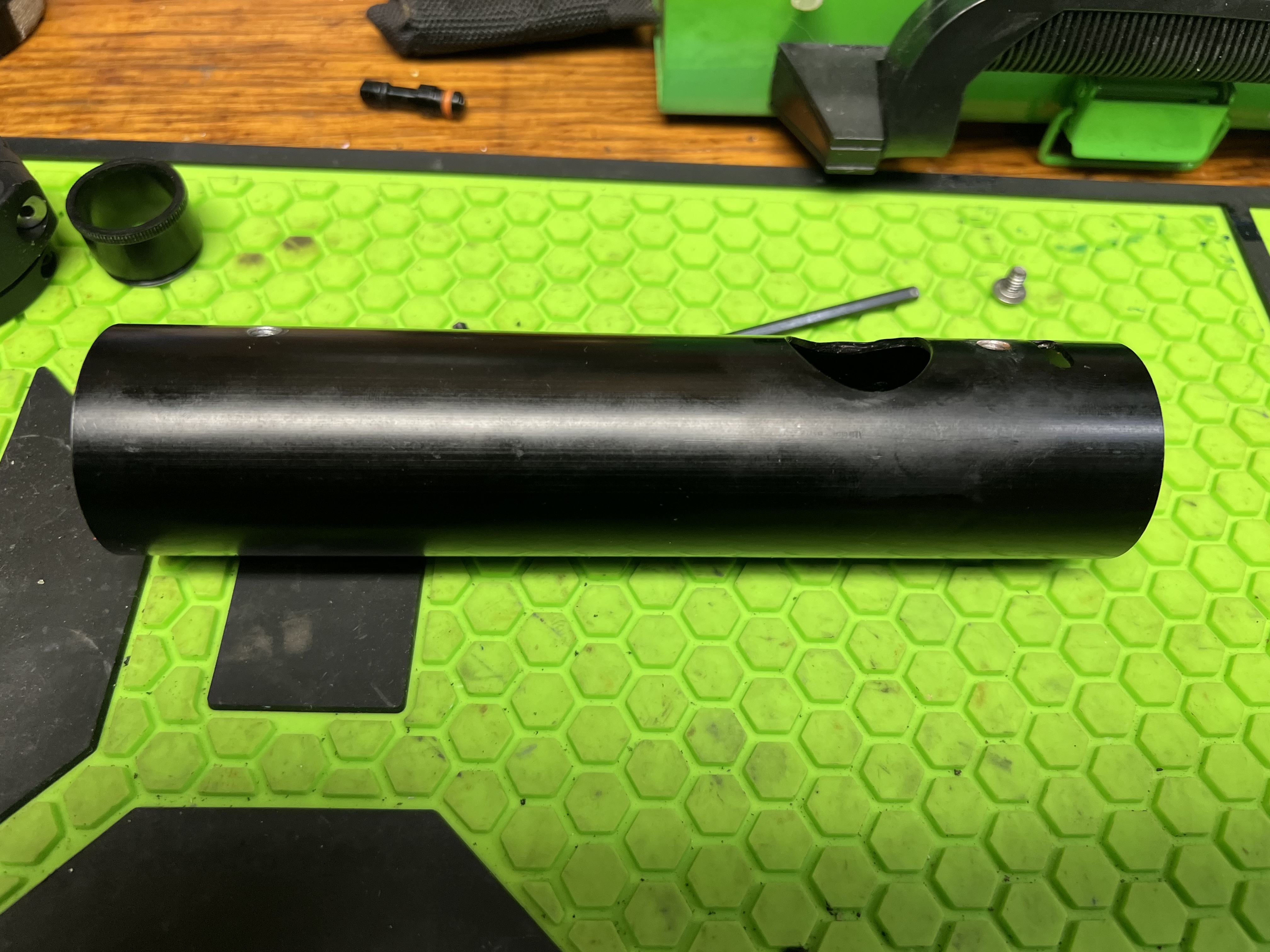

            And this is the main body tube:
            Click image for larger version  Name:	IMG_2701.jpg Views:	0 Size:	2.30 MB ID:	638465 Click image for larger version  Name:	IMG_2700.jpg Views:	0 Size:	2.23 MB ID:	638466
            Cuda's Feedback

            Comment

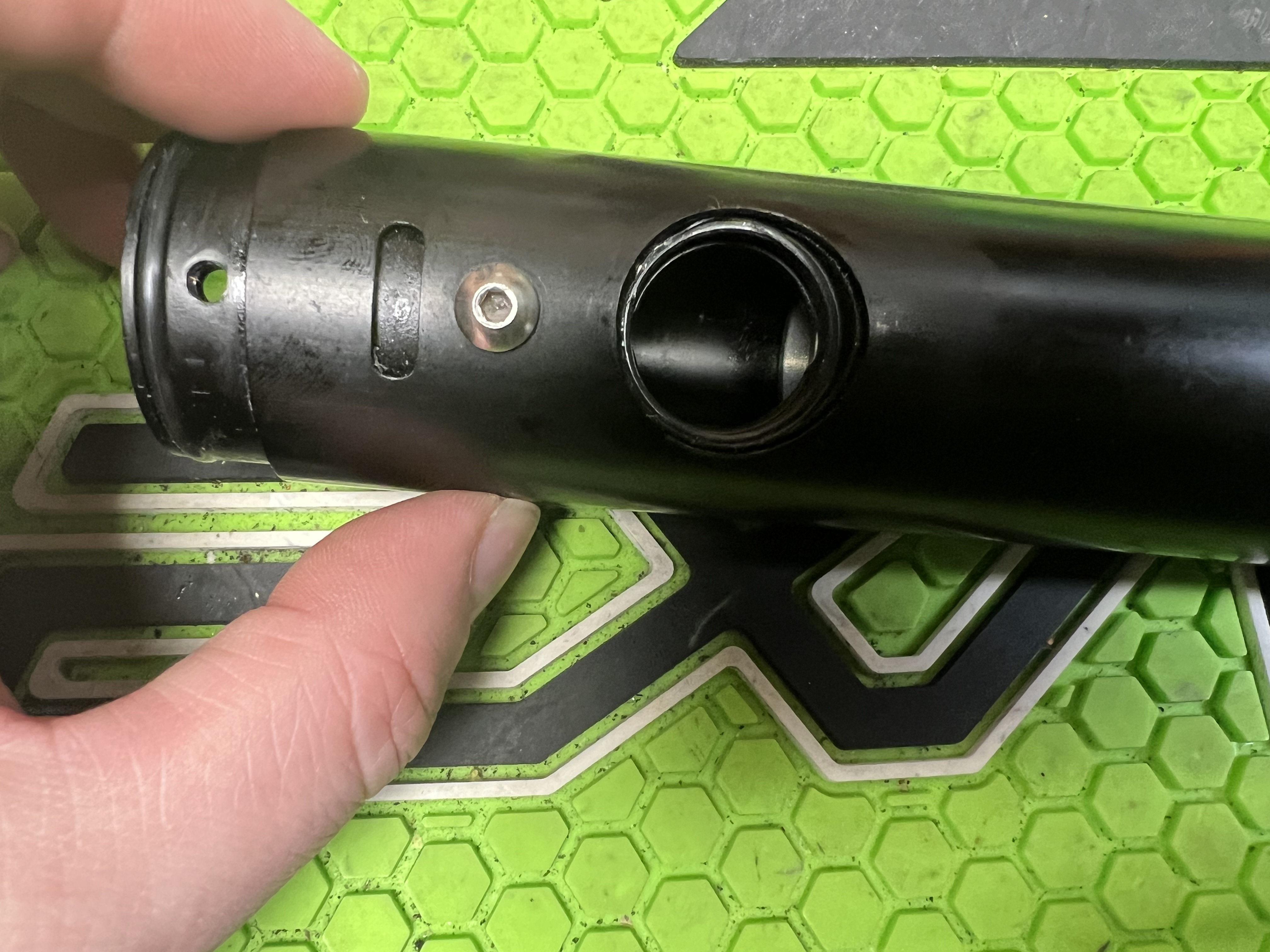

              #7

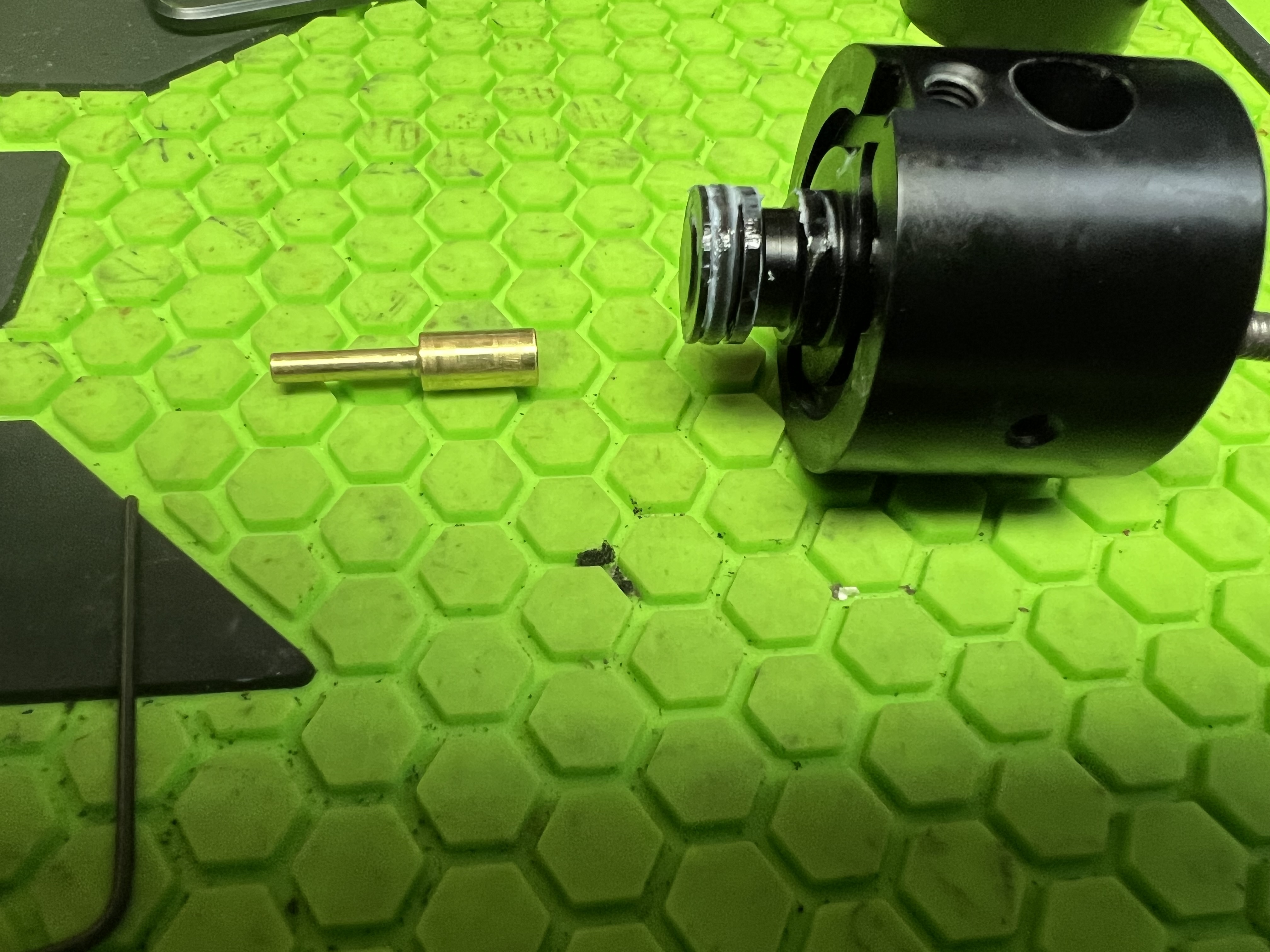

              Moving back to the business end, there are two small
              grub screws in the rear of the body. These hold a pin the firing pin is held in place by. Removed one and the pin will fall out:

              Click image for larger version

Name:	IMG_2703.jpg
Views:	38
Size:	1.88 MB
ID:	638471

              Click image for larger version

Name:	IMG_2705.jpg
Views:	35
Size:	1.73 MB
ID:	638473 Click image for larger version

Name:	IMG_2706.jpg
Views:	35
Size:	1.75 MB
ID:	638472
              Cuda's Feedback

              Comment


                #8

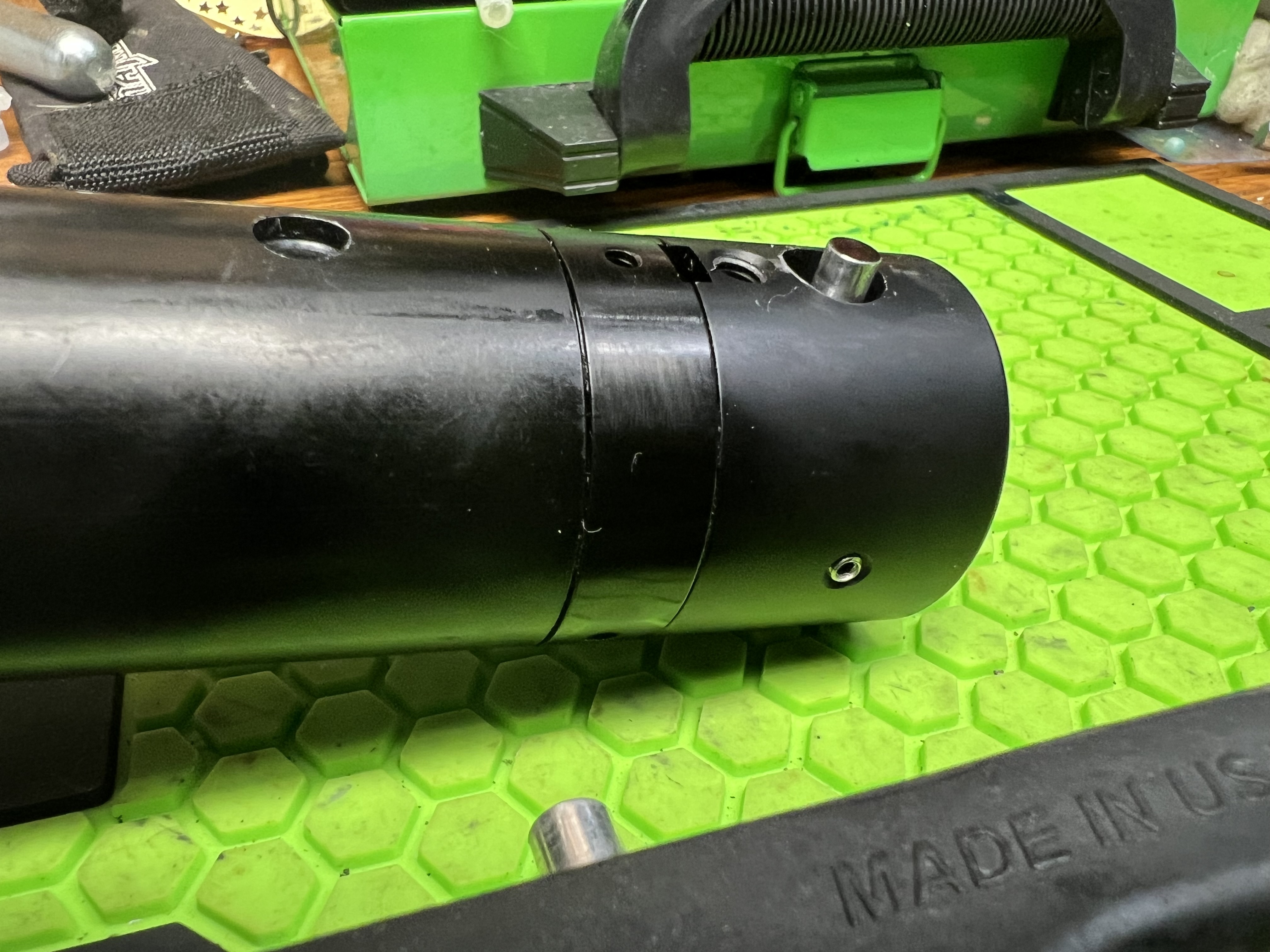

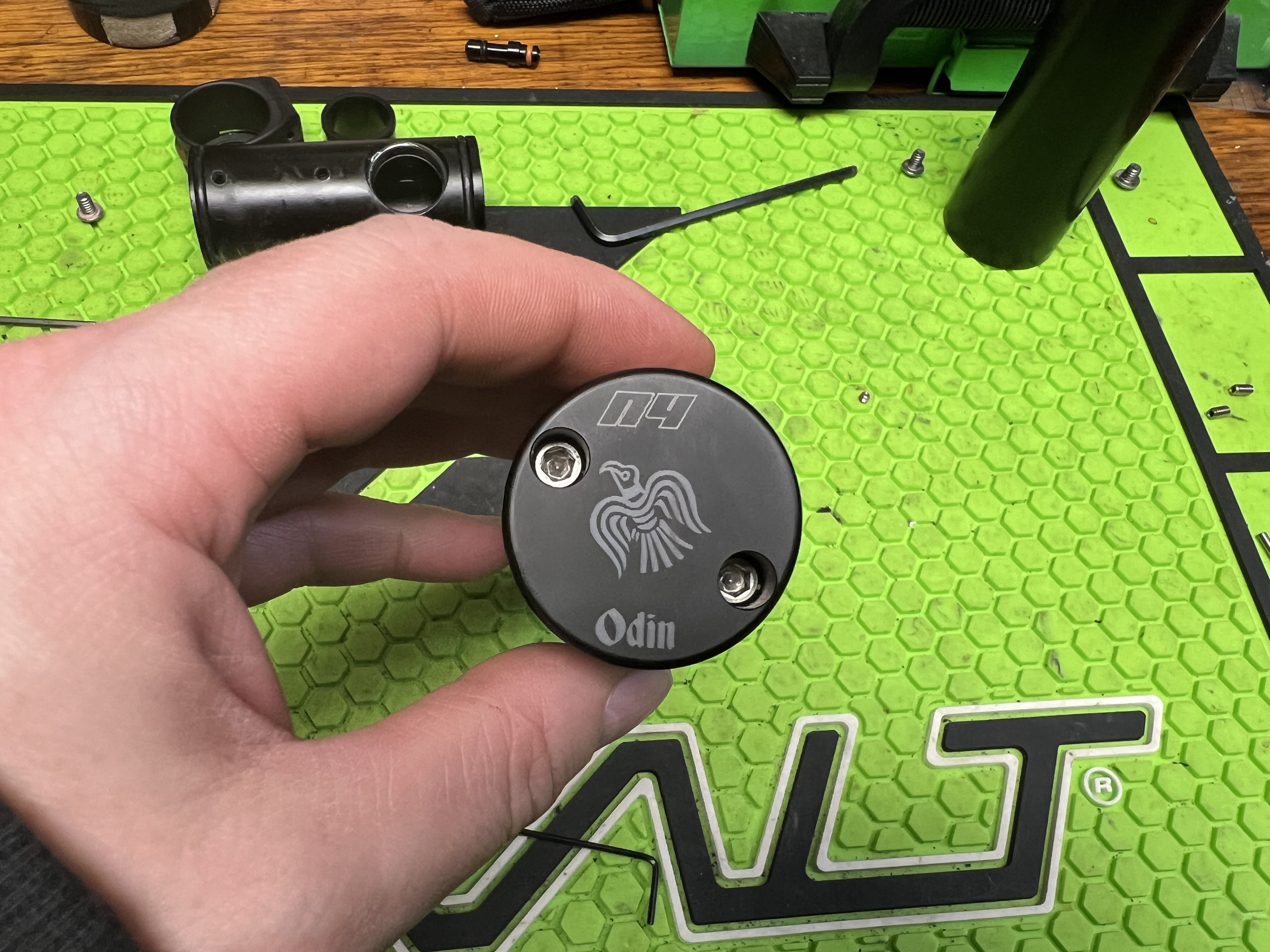

                Next step is remove the two bolts located on the rear of the marker at the nameplate:

                Click image for larger version

Name:	IMG_2708.jpg
Views:	39
Size:	1.86 MB
ID:	638479

                Click image for larger version

Name:	IMG_2709.jpg
Views:	35
Size:	2.50 MB
ID:	638482

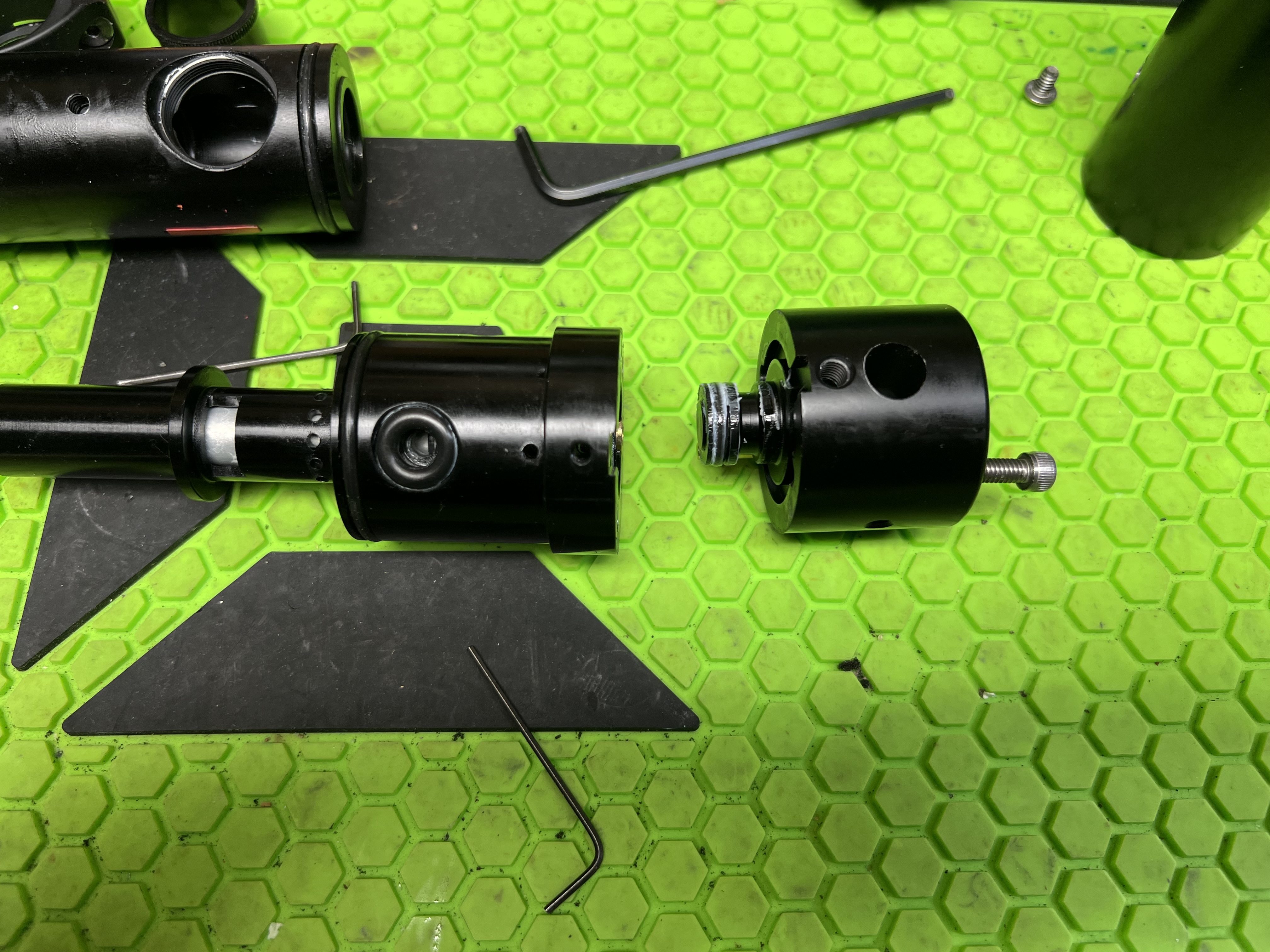

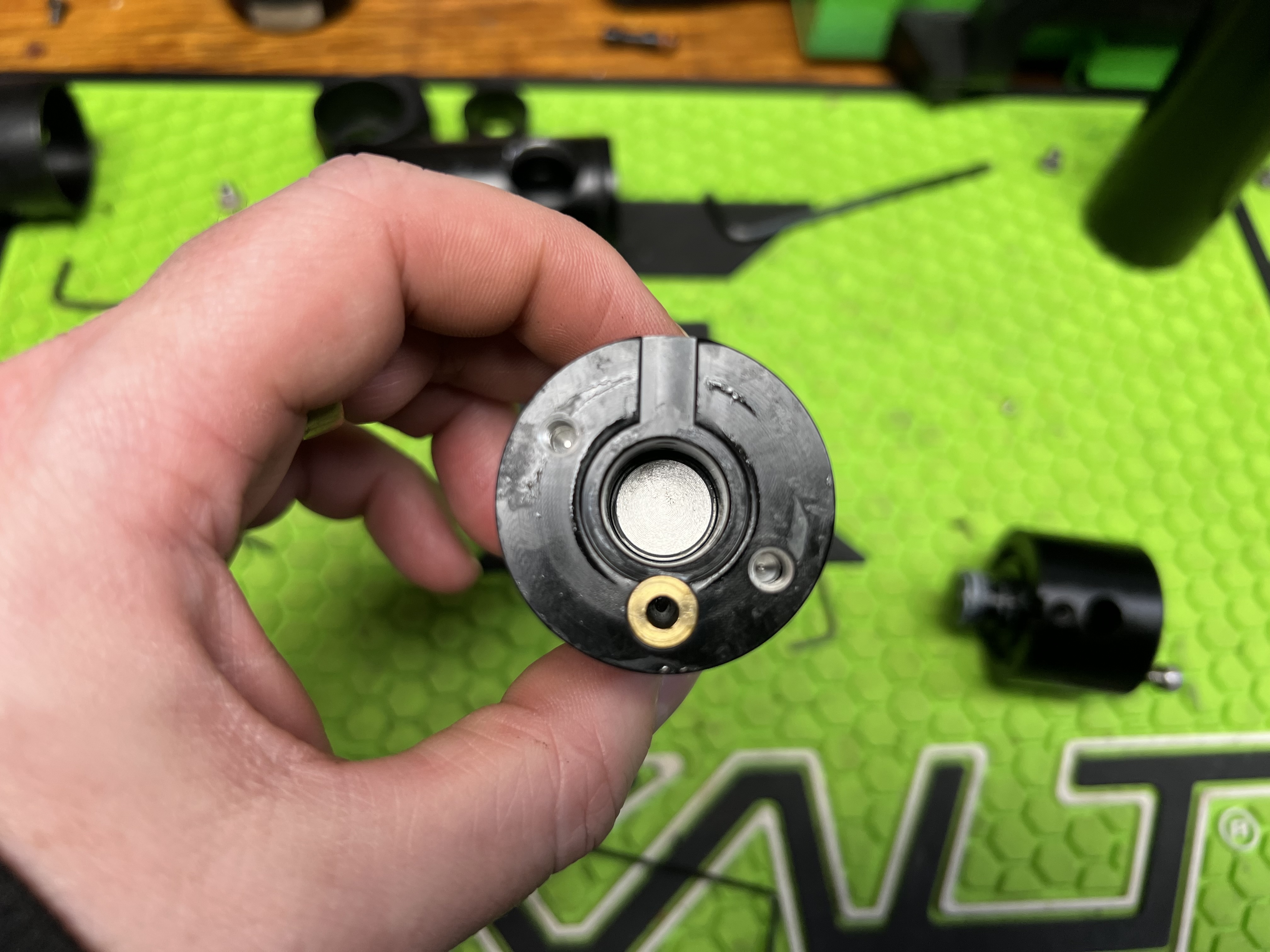

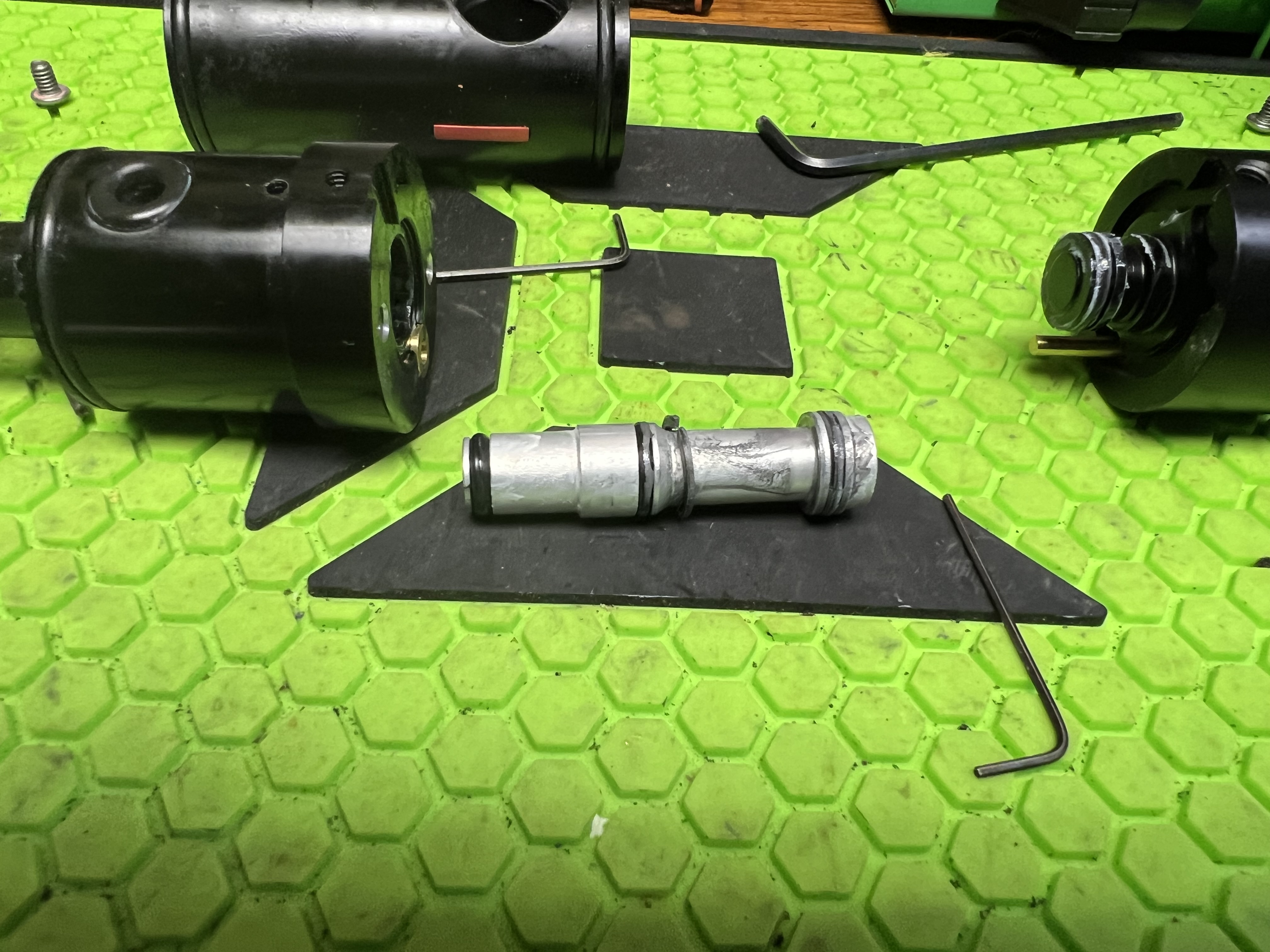

                Inside the main valve portion can be removed:

                Click image for larger version

Name:	IMG_2710.jpg
Views:	35
Size:	1.83 MB
ID:	638480

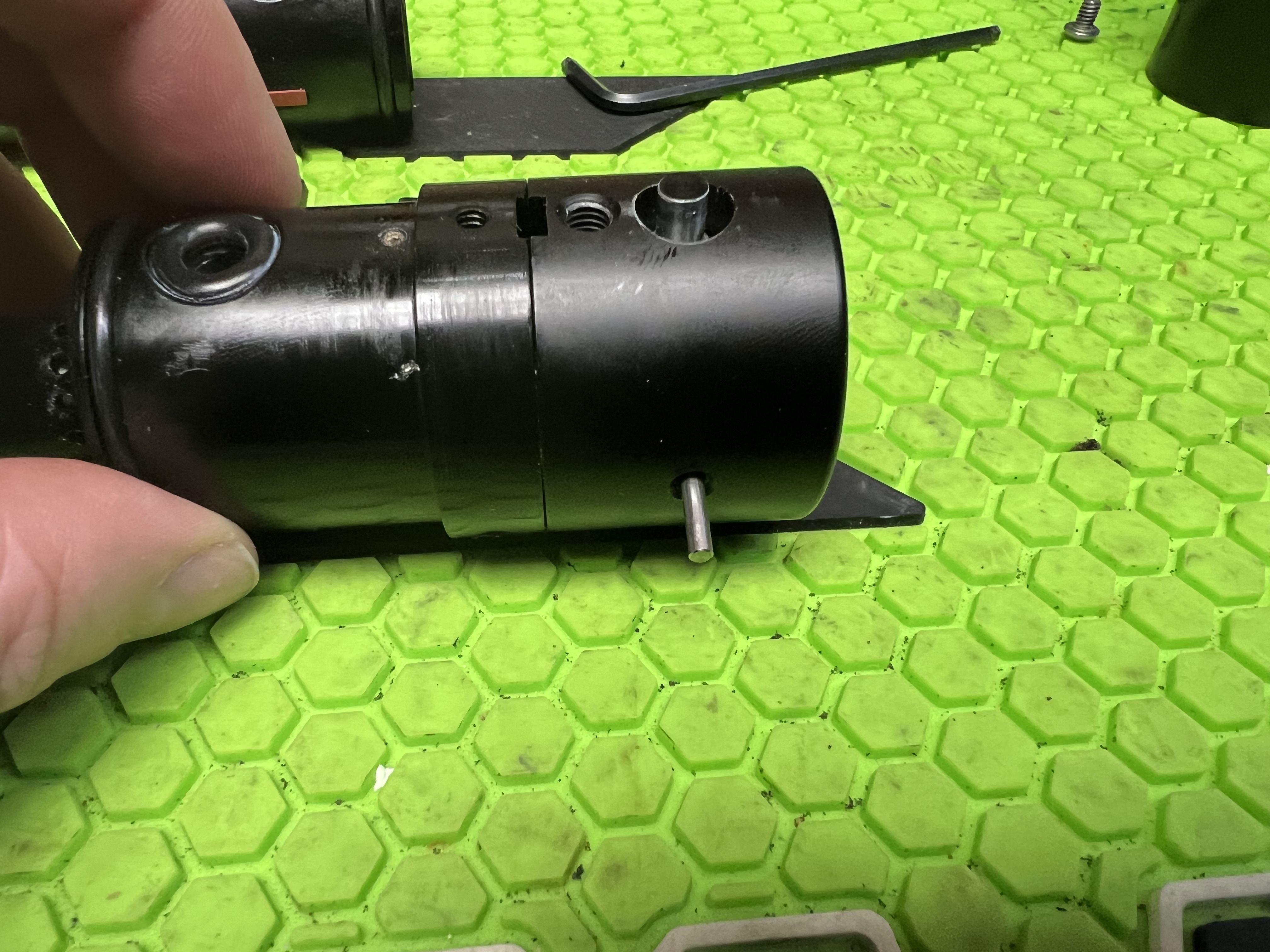

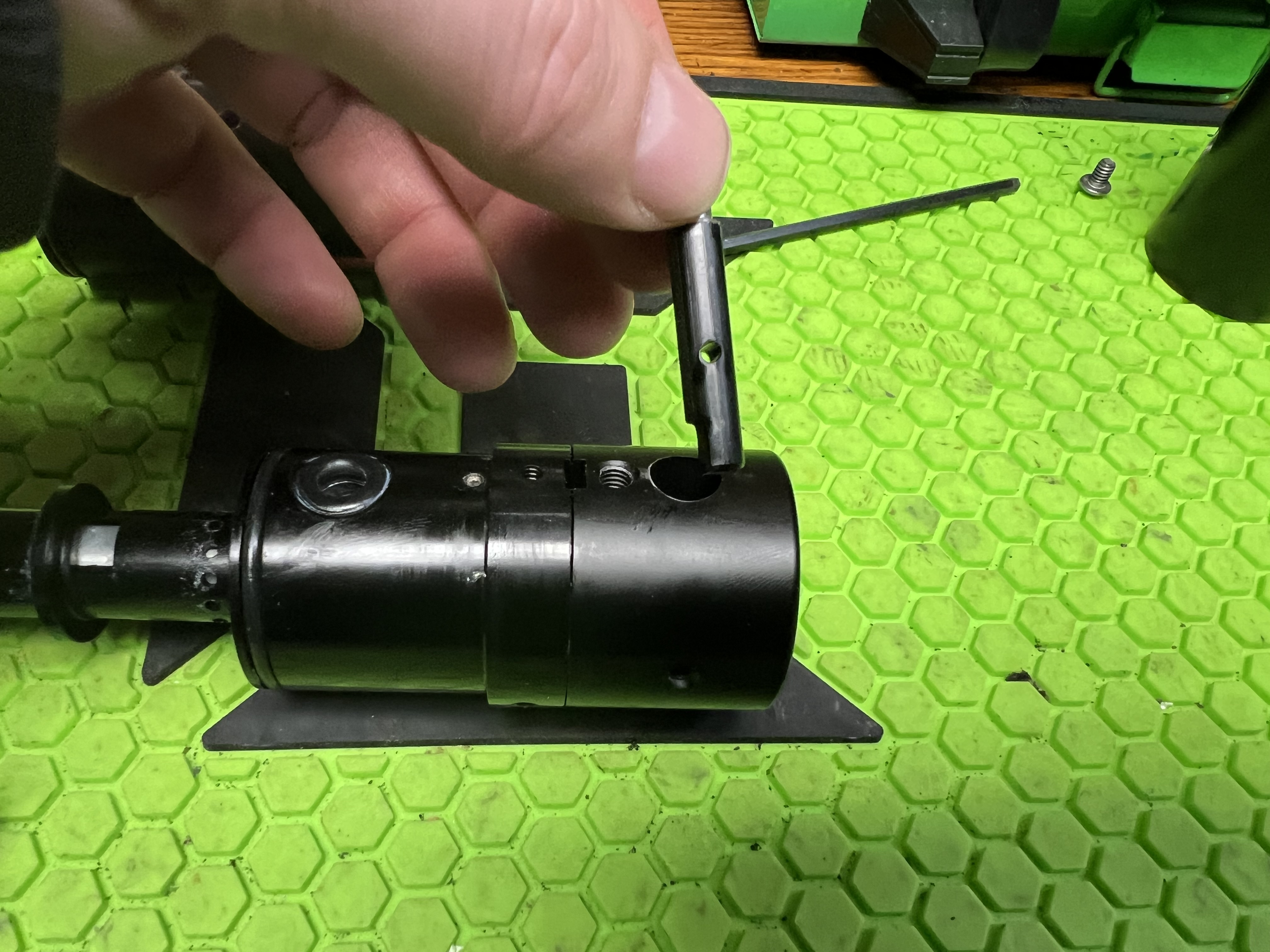

                And finally there’s a pin in the rear portion that can come out as well:

                Click image for larger version

Name:	IMG_2711.jpg
Views:	34
Size:	1.77 MB
ID:	638483 Click image for larger version

Name:	IMG_2712.jpg
Views:	35
Size:	2.08 MB
ID:	638481
                Cuda's Feedback

                Comment


                  #9

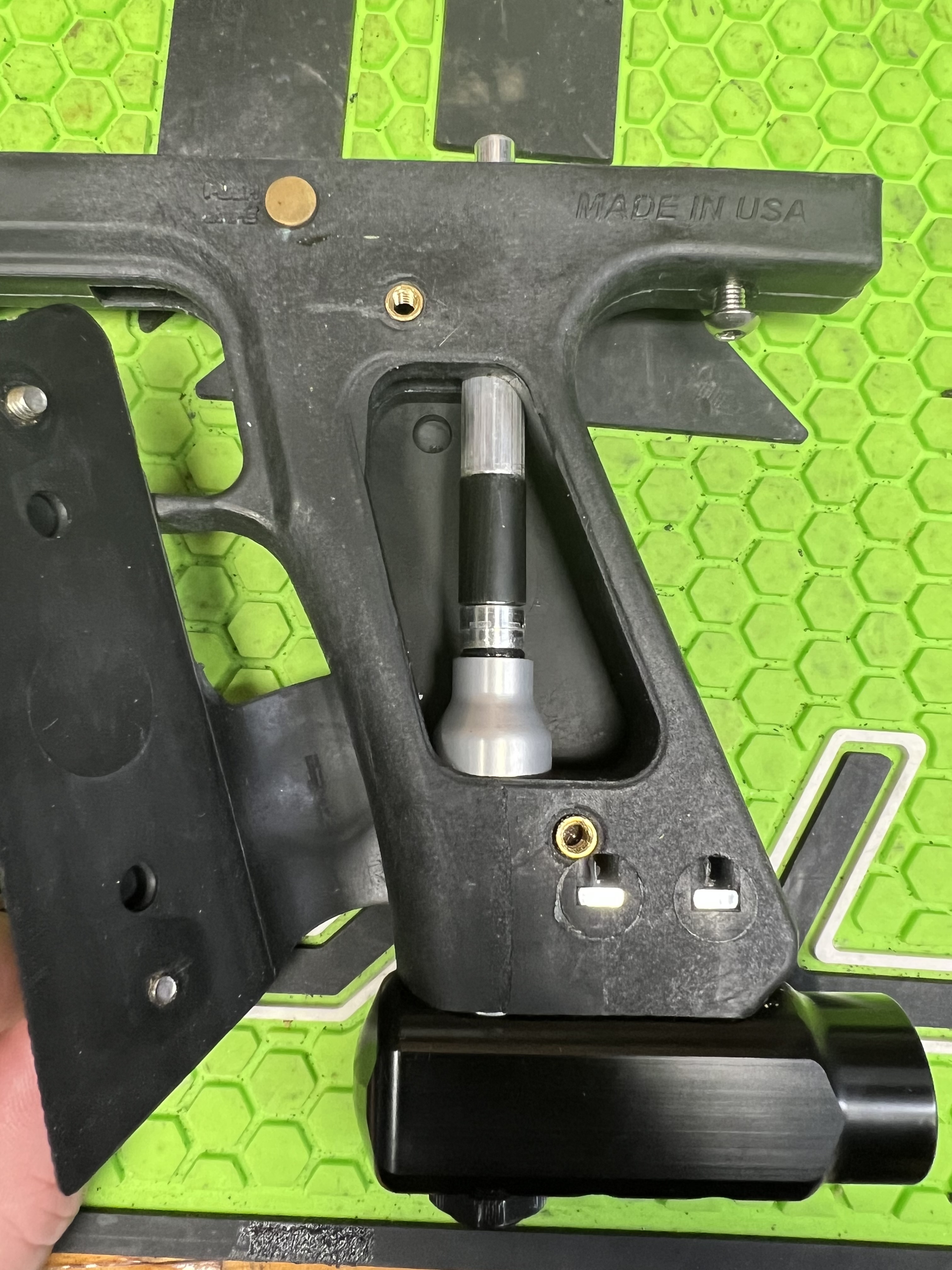

                  And now I realize I missed going over the trigger frame!

                  Here’s the trigger frame with its internal air line:

                  Click image for larger version

Name:	IMG_2688.jpg
Views:	34
Size:	1.83 MB
ID:	638490

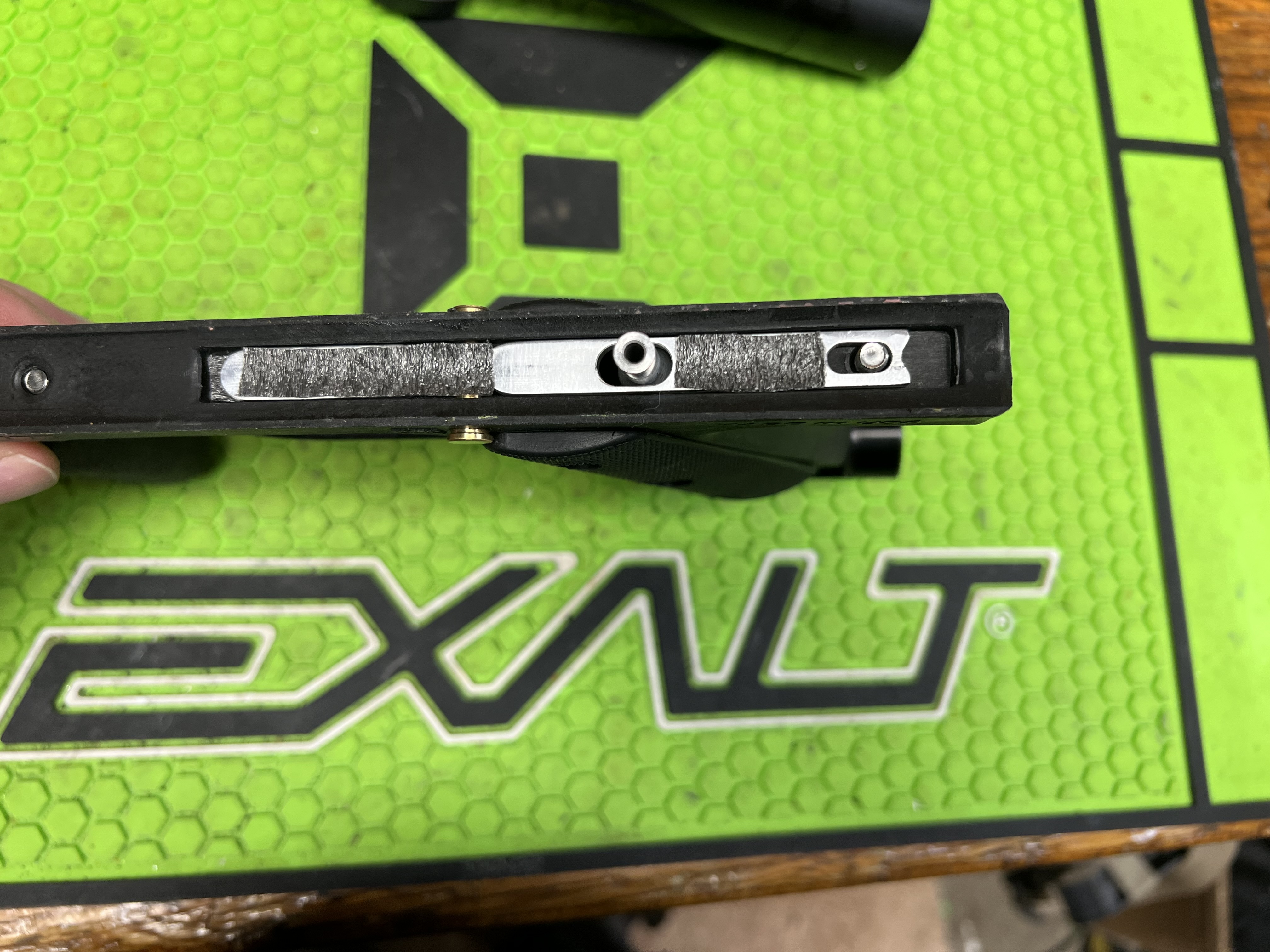

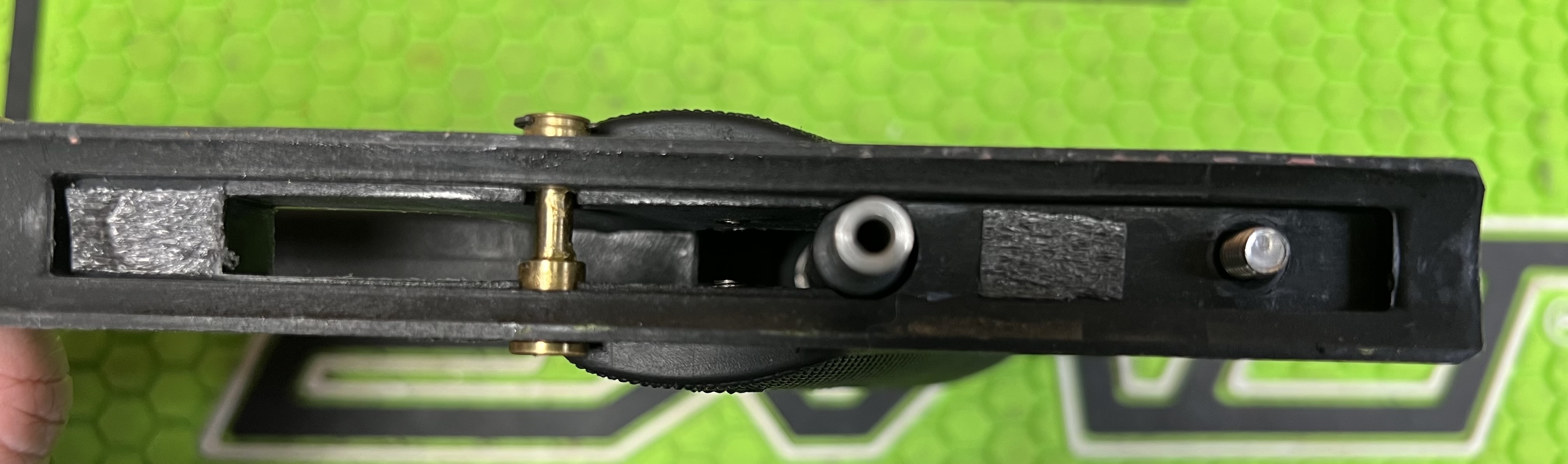

                  And the top view of the trigger frame with the trigger plate installed:
                  Click image for larger version

Name:	IMG_2685.jpg
Views:	38
Size:	2.22 MB
ID:	638489

                  And without it installed:

                  Click image for larger version

Name:	IMG_2687.jpg
Views:	35
Size:	821.1 KB
ID:	638492

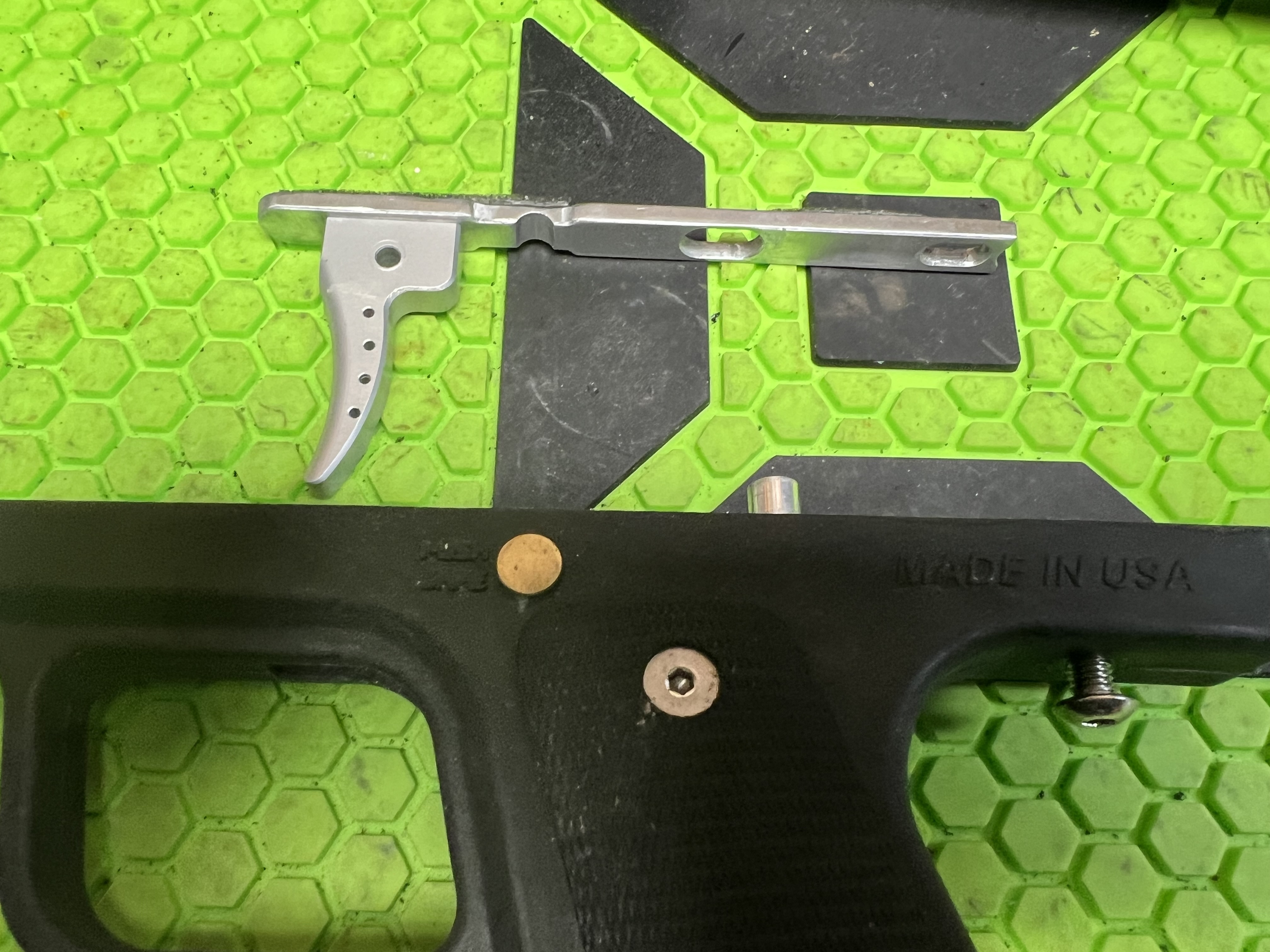

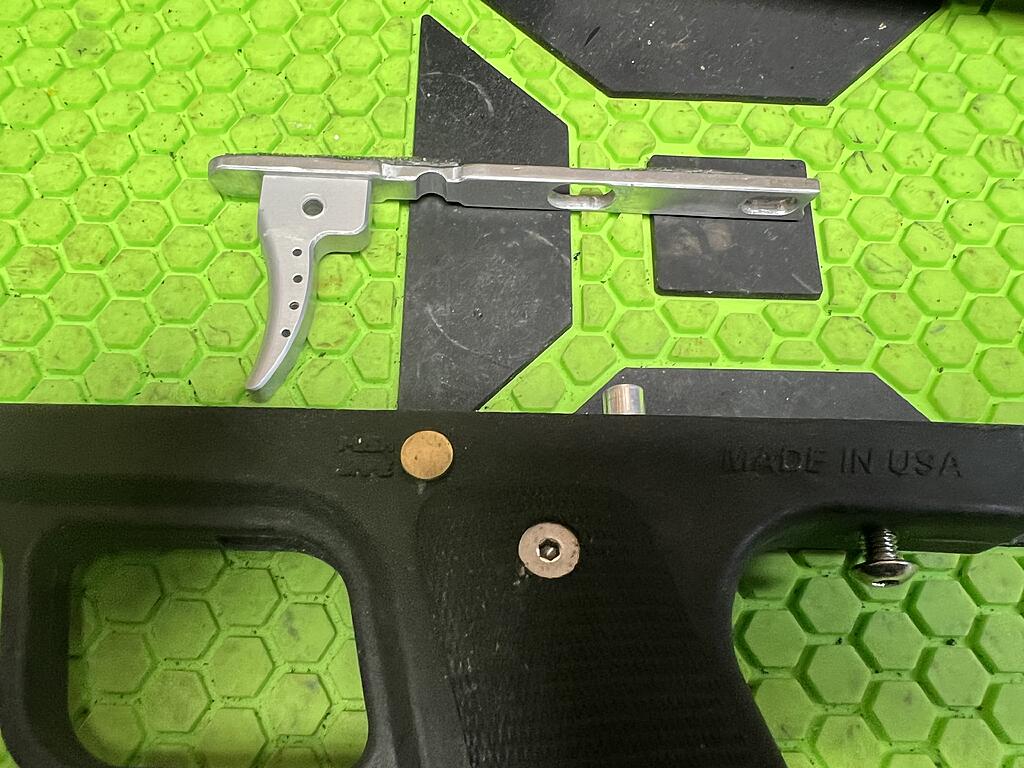

                  And a good view of the trigger plate itself:

                  Click image for larger version

Name:	IMG_2686.jpg
Views:	34
Size:	1.95 MB
ID:	638491

                  This is the standard trigger and not the optional upgrade.

                  I have modified the trigger slightly, adding some spacers to take up slack. Early reviewers mentioned how the trigger slop really bothered them, so I preemptively did this. Can’t say if it made things better or not though! But hey, performance improvements were never a requirement paintball mod.

                  So for the trigger modification. I took some of the foam sheet that shipped with the marker and uncut it to fit the bottom of the trigger frame and on the top of the trigger plate itself. The moment is still very smooth, but it cuts out some of the play.
