Tiberius T9 Diassembly

Collapse
This is a sticky topic.
X
X

  • Filter
  • Time
  • Show
Clear All
new posts

    Tiberius T9 Diassembly

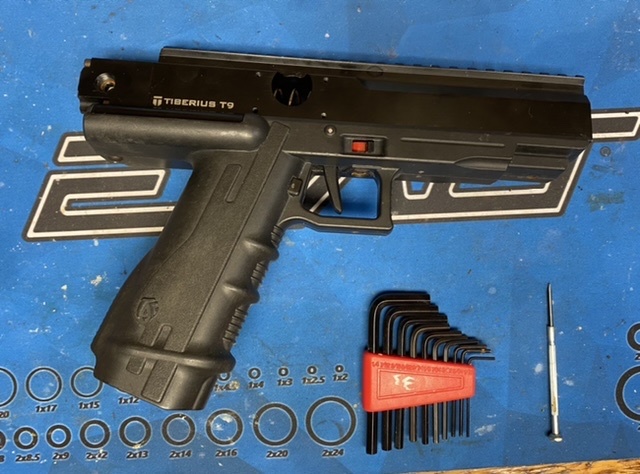

    Taking apart a T9. Basically the same as a T8 in this regard.

    Click image for larger version  Name:	79B66DB3-18F1-4F3A-AF92-4B5A9733EF61.jpeg Views:	0 Size:	115.4 KB ID:	116950
    You need Allan keys and something to push the trigger pin out with.

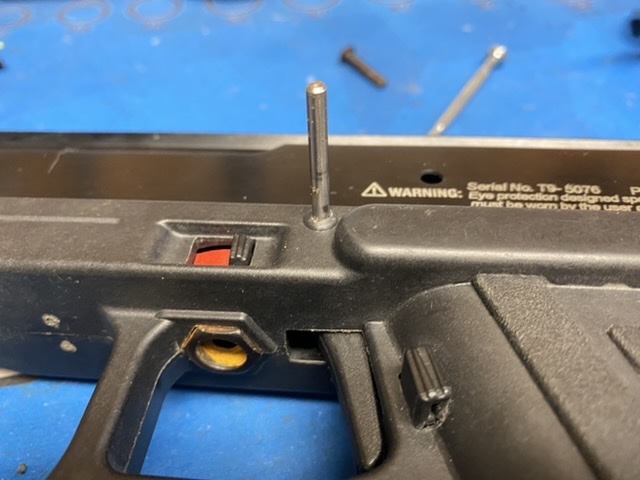

    Step 1: push the trigger pin out. Sometimes needs a bit of force but it will slide out

    Click image for larger version  Name:	ACA3F8AB-0A2B-4DF3-8D69-EDFE487818FF.jpeg Views:	0 Size:	72.2 KB ID:	116951

    Step 2: Remove the two grip frame screws. The rear is a longer screw. (No photo necessary)

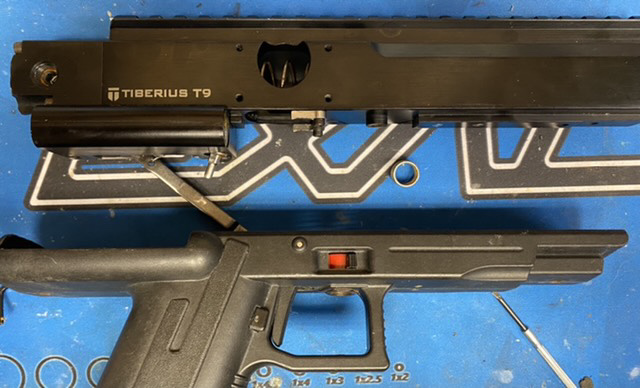

    Example of separating the T9 without pushing the trigger pin out. You can work on it like this but much easier to separate the halves by removing the pin.

    Click image for larger version  Name:	6E33684B-B46C-4086-9C20-2997E98A2CCD.jpeg Views:	0 Size:	109.6 KB ID:	116953
    When you take the gun apart a stout spring will likely fall out. The sits on top of the safety. Just set the spring aside. It’s shown in the photo as the round object between the halves.

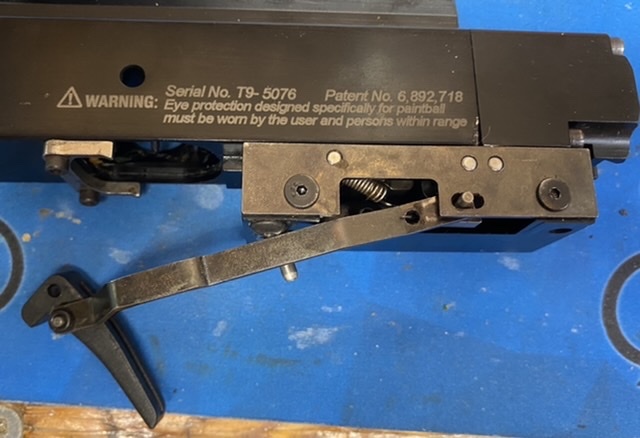

    Set aside the trigger frame and now we want to examine the reg and sear:

    Click image for larger version  Name:	57466D82-E9FB-48E1-9280-C984235CA824.jpeg Views:	0 Size:	73.0 KB ID:	116954


    Cuda's Feedback

    #2
    Alrighty then, so now let’s get into the meat and potatoes of the T9. The regulator and sear assembly. While it looks complicated, it’s not that bad. You just need to know where everything goes.

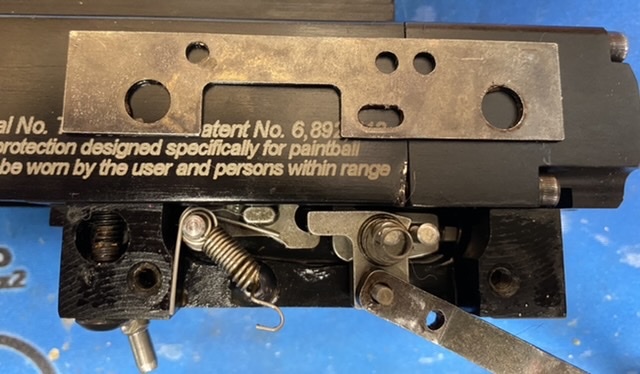

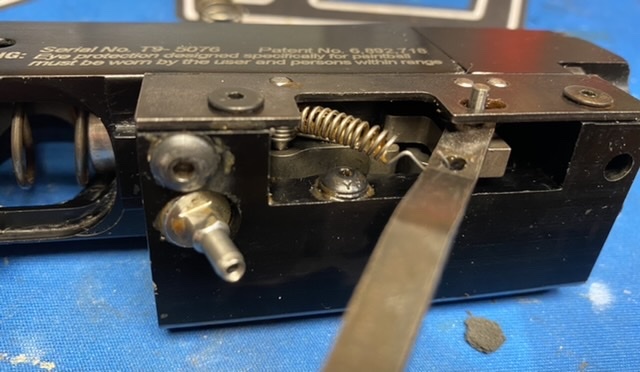

    Here’s an angled shot to show the little pieces and springs before ai remove the reg assembly from the upper half and take off the plate.

    Click image for larger version  Name:	ABEF1D6E-A3DD-4AF2-9C75-B5DBC5DBF1CA.jpeg Views:	0 Size:	71.9 KB ID:	116994

    To remove the regular/sear remove the one bolt above the silver air nipple. Take that bolt off and separate the reg assembly from the upper body and then remove the cover plate. Be carefully to not send the springs flying.

    Click image for larger version  Name:	39224882-BB71-4D77-A0D6-96F55C384677.jpeg Views:	0 Size:	82.1 KB ID:	116995

    Here the cover is removed from the body and the three springs have been removed. Note the little oring that likely fell out. Those goes on the body above the valve assembly.

    Click image for larger version

Name:	image_12957.jpg
Views:	350
Size:	119.6 KB
ID:	116996

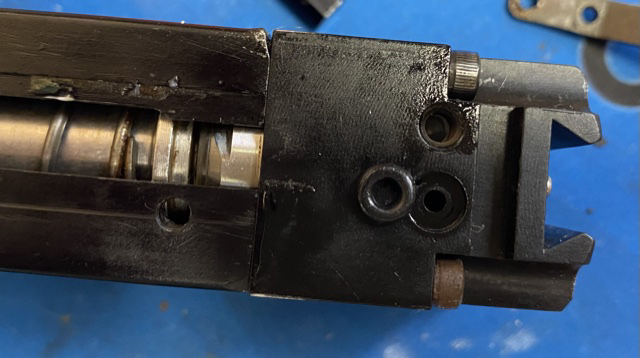

    Here is where that oring goes:
    Click image for larger version

Name:	C3F300A3-7410-424D-8612-1F8F28B34074.jpeg
Views:	356
Size:	93.3 KB
ID:	117233

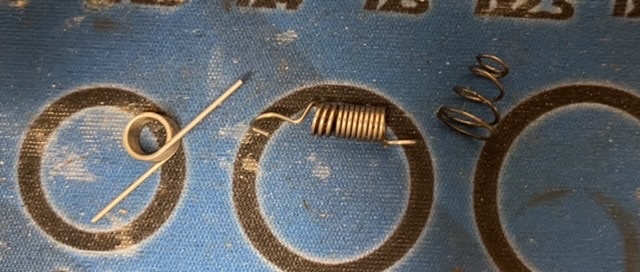

    Here are the three springs. Don’t lose these! Note my one spring is stretched out and needs to be replaced:

    Click image for larger version  Name:	3D0BC6EE-B321-4394-A8AA-22DC19970D76.jpeg Views:	0 Size:	71.3 KB ID:	116998
    Last edited by Cdn_Cuda; 04-17-2021, 07:43 PM.
    Cuda's Feedback

    Comment


      #3

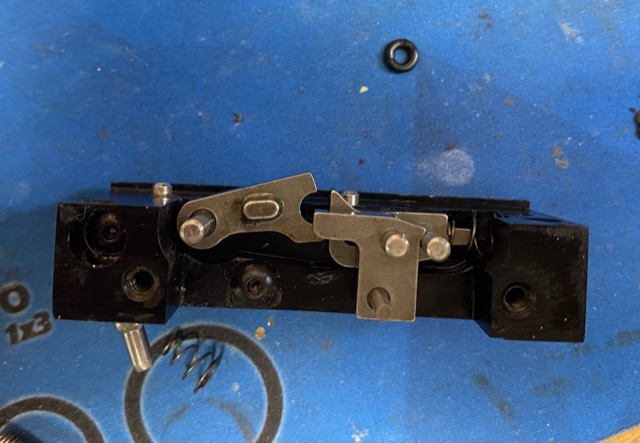

      Now the springs are gone, let’s continue to disassemble the sear. It consists of three pieces and and a spring.

      Click image for larger version

Name:	BDC7E15F-AC56-40D3-9373-A34D6A2637E4.jpeg
Views:	338
Size:	119.6 KB
ID:	117241

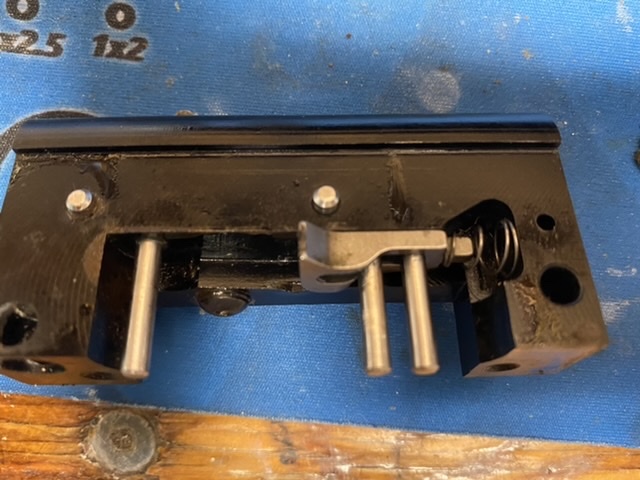

      Here you can see the recessed spring:
      Click image for larger version

Name:	FF607099-B889-4B88-AA90-5C8E76BF81AB.jpeg
Views:	341
Size:	97.6 KB
ID:	117242

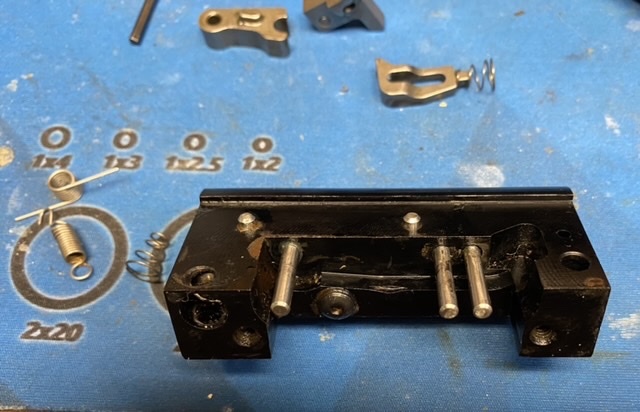

      And here is the assembly with all pieces removed:
      Click image for larger version

Name:	B1FDF8FF-306F-4489-9AB5-D992E6FA8374.jpeg
Views:	339
Size:	84.6 KB
ID:	117243

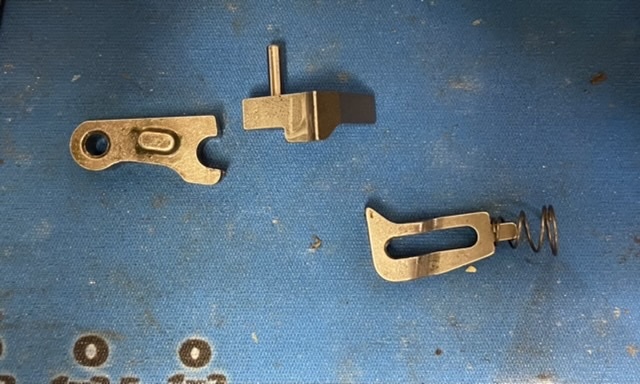

      And finally for this section the three pieces we removed:

      Click image for larger version

Name:	0298B1D8-E2A4-49DC-B3A0-2CD9B81A5844.jpeg
Views:	345
Size:	93.0 KB
ID:	117244

      Last edited by Cdn_Cuda; 04-17-2021, 08:12 PM.
      Cuda's Feedback

      Comment


        #4

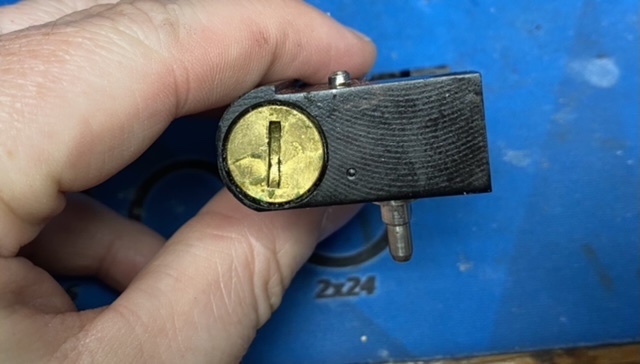

        Now onto the actual valve assembly. Doesn’t matter which end you start on. I started on the slotted side:

        Click image for larger version

Name:	7EA6D3AB-A9CA-4820-A64C-E8E7C54A2EF8.jpeg
Views:	343
Size:	60.3 KB
ID:	117253

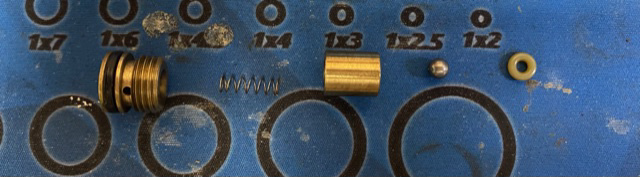

        Inside there is the plug, a small spring, the valve body which contains a ball valve held in place by an oring.

        Click image for larger version

Name:	631980AE-BE8F-4664-B166-93062098C8A5.jpeg
Views:	334
Size:	68.6 KB
ID:	117254

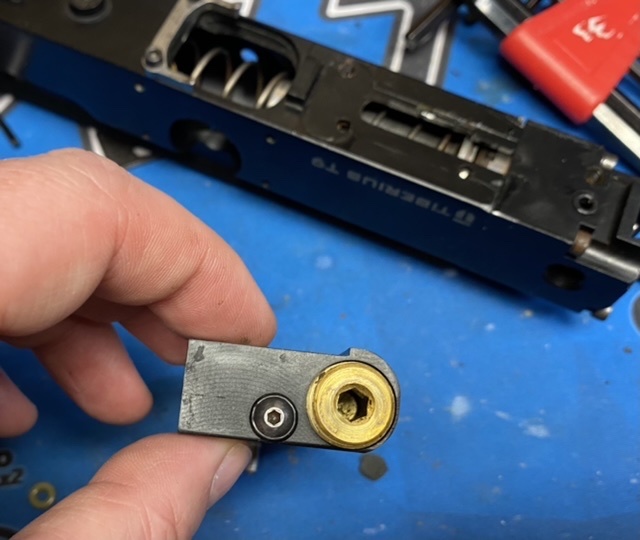

        Then, flipping the valve body end to end we remove the Allan plug.

        Click image for larger version

Name:	7A1A5536-DC00-4997-BF32-2A4930EE1390.jpeg
Views:	349
Size:	82.5 KB
ID:	117255

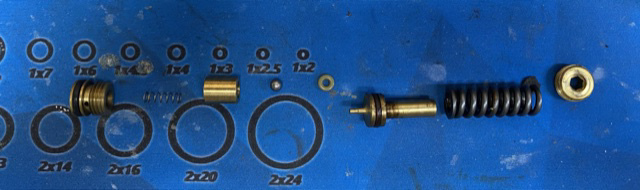

        Inside are lots of bits and pieces laid out in proper order:

        Click image for larger version

Name:	888EE6FC-6122-44F6-83FF-A4AADC8DB3E2.jpeg
Views:	324
Size:	66.5 KB
ID:	117256

        And that’s it for the valve diassembly!

        Last edited by Cdn_Cuda; 04-17-2021, 08:37 PM.
        Cuda's Feedback

        Comment


          #5
          And now to get things back together! Just follow the steps in reverse. BUT one important step you must do before attaching the valve assembly back onto the upper body. The bolt must be moved forward! The way it is properly caught by the sear. If it is too far back it will be behind the sear causing bad things!

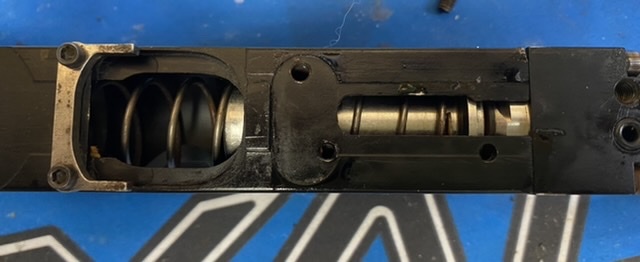

          Bad Bolt Position: bolt is fully back, so will be behind the sear when reassembled.

          Click image for larger version  Name:	27D8D57D-CCF1-41AA-A255-73C26DA2D2DB.jpeg Views:	0 Size:	43.7 KB ID:	117263

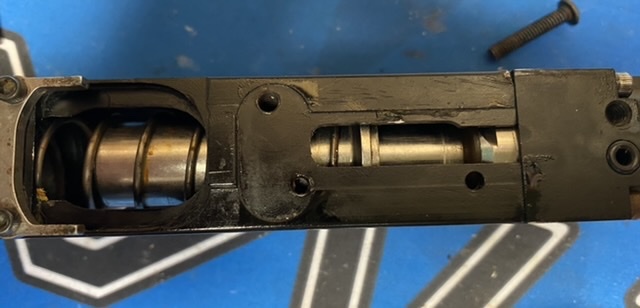

          Good Bolt Position: Bolt pulled forward ahead of the sear.

          Click image for larger version  Name:	2A9CCD18-12D9-4A11-945F-79105764AFDA.jpeg Views:	0 Size:	50.4 KB ID:	117264

          And now you should be good to put everything back together!

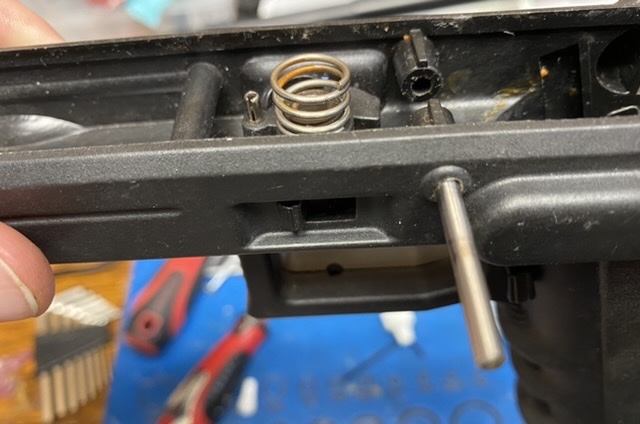

          And don’t forget the put the spring back on top the safety before connecting the body back onto the grip frame.

          Click image for larger version

Name:	9BE4FE42-3E35-4B6E-875D-DFBBE4757AC4.jpeg
Views:	317
Size:	70.3 KB
ID:	117276



          Last edited by Cdn_Cuda; 04-17-2021, 09:14 PM.
          Cuda's Feedback

          Comment


            #6
            Now I haven’t dealt with the bolt assembly in this thread but if it helps I’ll add it here.
            Last edited by Cdn_Cuda; 08-27-2023, 06:47 PM.
            Cuda's Feedback
