Angel 05 Speed Breech Seal Dimensions

[Redragoon]

Does anyone have the dimensions/drawing of an 05 Speed breech seal.
Mine is missing one and I would like to attempt to recreate one in TPU on my 3d printer.
LxWxThick of the overall seal and opening would help. Otherwise I have to estimate it from the cutouts in the body and add material for a sealing edge.

I believe it is the same as the A4 generation of markers, but I only have the 05 and an A1 on hand.

[Chuck E Ducky]

I do not have one but this would be awesome they are impossible to find. A lot of these things are sitting collecting dust because you just can’t find em.

[SockeyeSteve]

I believe it's the same seal as the G7? I'm not super well versed in angels so maybe that is an A4 model? I'm just judging by looks of those seals and the empty space where a seal once sat in my 05 speed. I'd love to find one and bring this beauty back to life, I'm not on Facebook so I can't take advantage of the angel group but maybe there's more info there?

I'll bring mine to work tomorrow and take some measurements and see what I can come up with

[SockeyeSteve]

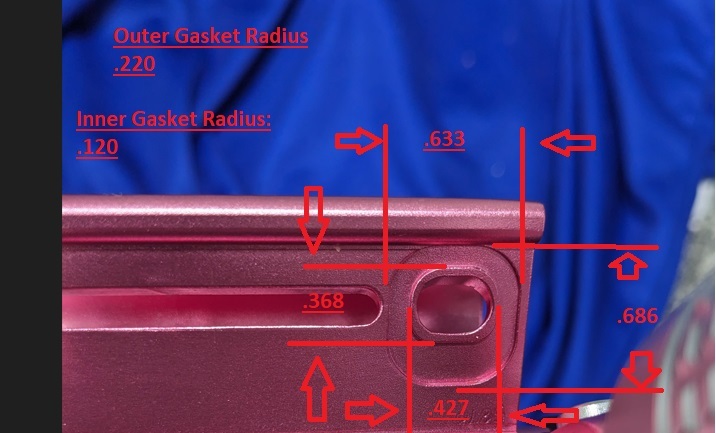

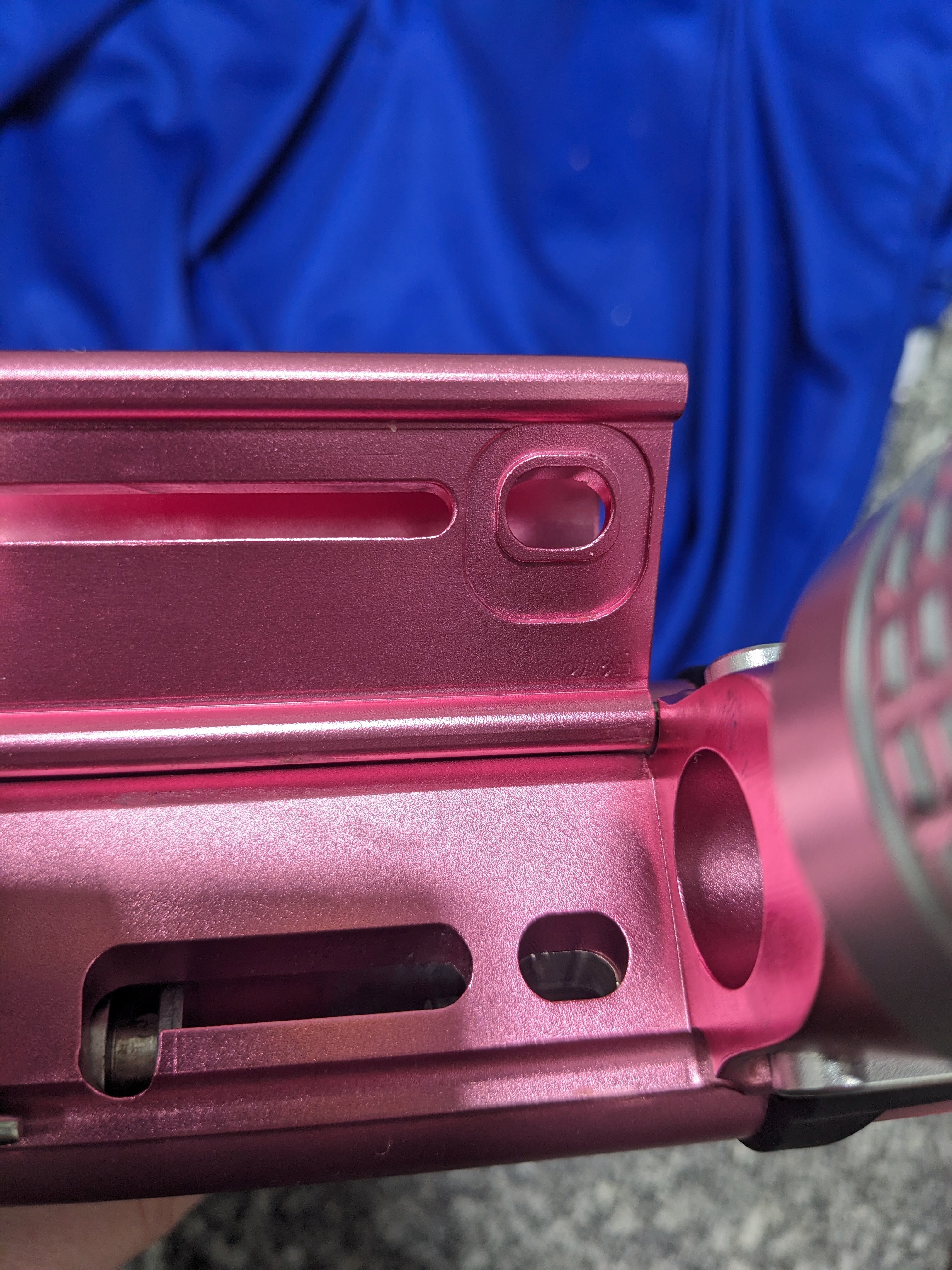

Here's what I got, Labeled in paint as best as I could as the engineering department has been slammed for 2 weeks. I also made 2 dental impression molds that I would be happy the send you if those would help.

Depth of the pocket where the gasket would sit is .033

Let me know if this helps or you need anything else from me, I'm happy to help and try and get more Angels back out to local fields.
