    [POP Contest] Crazedloon's Nasty Poo

    Lets try and turn a pile of beat rentals into my first double barreled marker.

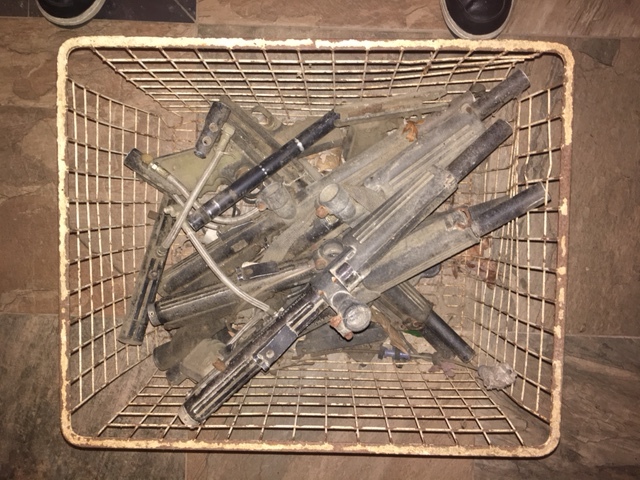

    Here is our starting point a basket of beater rentals most of which were mostly good only for scrounging parts.
    Click image for larger version

Name:	IMG_1552.JPG
Views:	609
Size:	164.8 KB
ID:	51794

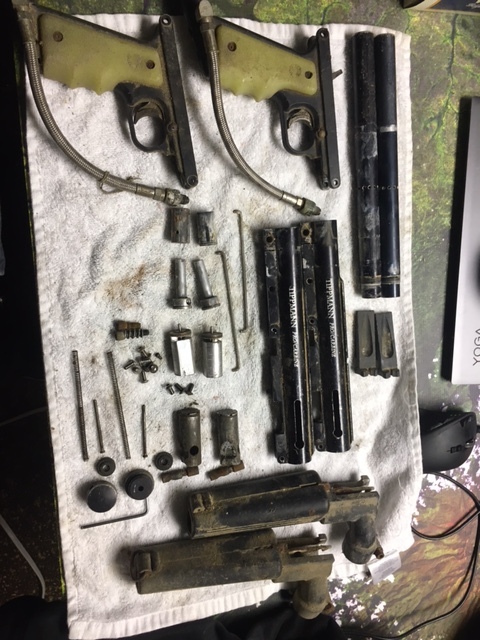

    After some effort I was able to tear down and recover the parts for 2 complete markers
    Click image for larger version

Name:	IMG_1559.JPG
Views:	591
Size:	148.9 KB
ID:	51795

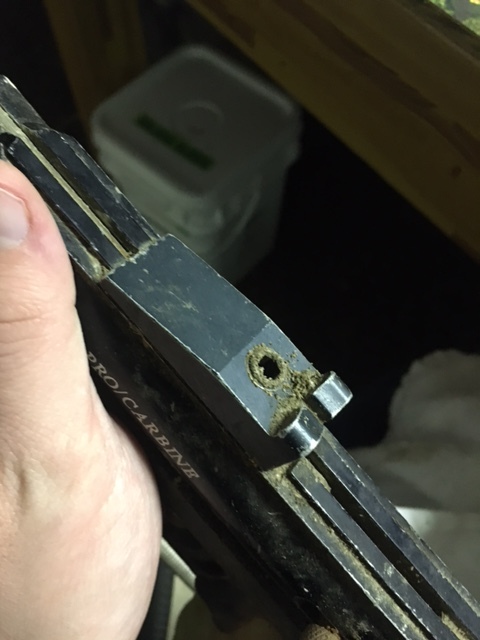

    next was the first of I am sure many cleanings to get the years of grime off of the parts

    Click image for larger version

Name:	IMG_1556.JPG
Views:	584
Size:	79.2 KB
ID:	51796 Click image for larger version

Name:	IMG_1555.JPG
Views:	585
Size:	71.7 KB
ID:	51797

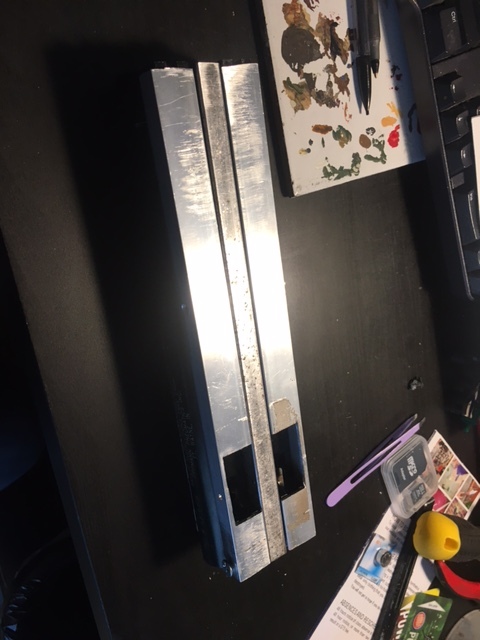

    using the first of my funds ($15 for hardware and parts) to pick up some angled aluminum and bar steel I threw together a set of brackets to be the bases for attaching two bodies together securely.

    Click image for larger version

Name:	IMG_1568.JPG
Views:	508
Size:	88.0 KB
ID:	51793

    on the to do list:
    1. Further cleaning and refinishing the finished project
    2. modeling and printing a dual magwell to attach to the sight rails (will be using zetas as I have some in my parts box)
    3. modifying the rear plugs to be threaded for a RVA for better tuning of velocity
    4. adding a regulator to hopefully lower the trigger weight (palmer Stab from parts box)
    5. create a trigger group which will trip both sears (the goal is to fire in sequence rather than simultaneously)

    #2

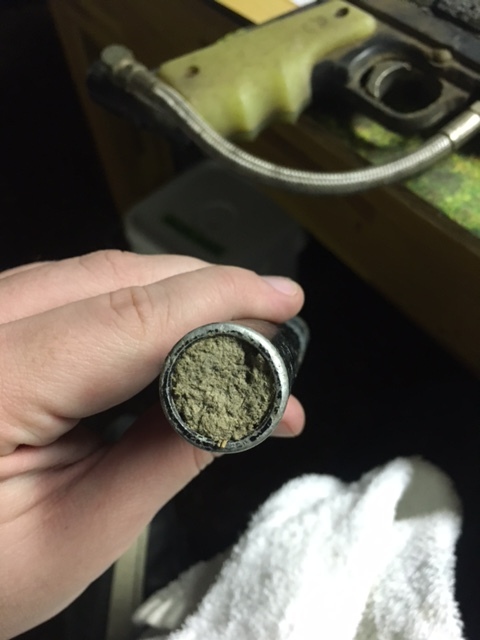

    that down-the-barrel pic, is that someone's herbal hiding place for mary-jane?

    Comment


    • Myrkul

      Myrkul

      commented
      Editing a comment
      Shit, not even a hiding place, if those barrels are unported just try to smoke it right out of there.....maybe use a C02 filter to keep the "scobbie snacks" from entering your mouth....Because that looks like some finely ground Mary Jane.

    #3
    I think that's what you'd call a "core sample"
    Dulce et decorum est pro comoedia mori

    Comment


      #4

      Comment


        #5
        Click image for larger version

Name:	FAA430DF-C43E-4566-AD7B-0512184048A1.jpeg
Views:	423
Size:	46.1 KB
ID:	52107

        Comment


          #6
          Well if the rest of the build doesn't go well I guess y'all have pointed out the alternative I could be building. And yes that was indeed a core sample which I can only assume has been in there for a decade or so.

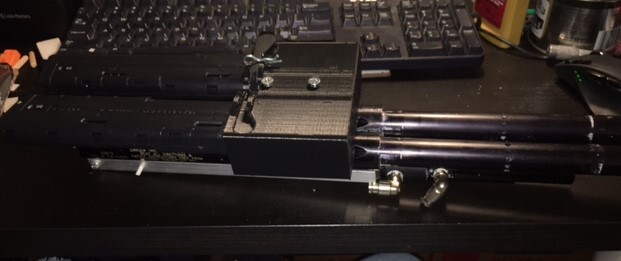

          Here is the progress so far, managed to get a prototype of a mag feed printed, still needs some kinks ironed out before I weigh and determine the final cost

          Click image for larger version

Name:	IMG_1570.JPG
Views:	409
Size:	32.6 KB
ID:	53109

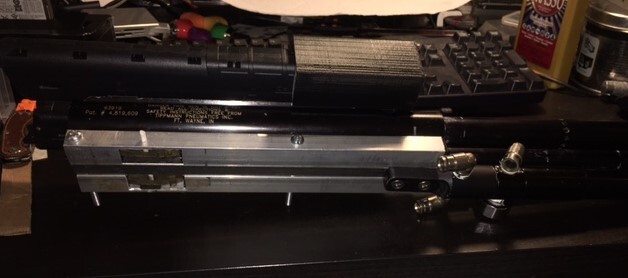

          And I have added mounting points for a dovetail asa to mount a regulator to the front.

          Click image for larger version

Name:	IMG_1571.JPG
Views:	401
Size:	35.3 KB
ID:	53110

          now that I got the easy stuff out of the way I will need to start designing the grip portion.

          Comment


            #7
            long time for this update but got some good progress

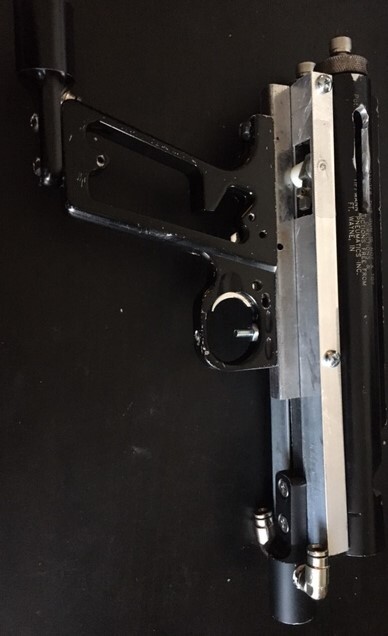

            "Built" a rail for the grip, this will be a point for the sear trippers to attach and they will be hinged on the slider autococker timing hole, or at least that's the running theory/plan. Rail is more of the square steel tube, drilled for grip screws and pin for the sear trippers.

            Click image for larger version

Name:	IMG_1608.JPG
Views:	327
Size:	39.9 KB
ID:	61175

            Also as can be seen I have gotten some steel pin stick and cut a piece to fit the sears and spacers properly.

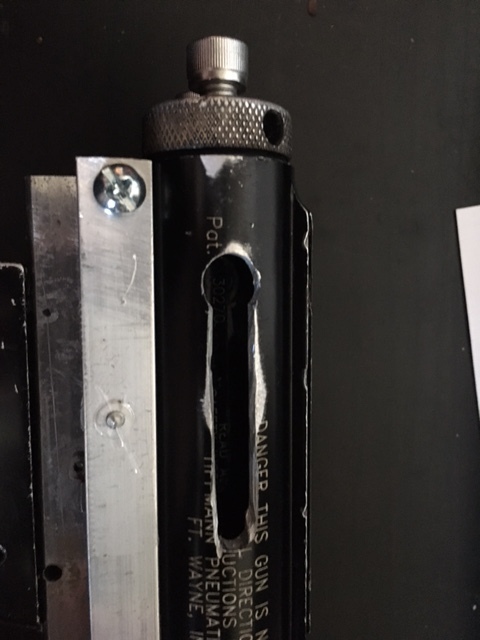

            I have also drilled and added RVAs, currently Allen head bolts but I am debating picking up cup-point set screws instead so they are not hanging out the back. Also as can be seen I have added a cocking slot to the right side of one of the bodies so that I can cock each separately.

            Click image for larger version

Name:	IMG_1609.JPG
Views:	343
Size:	74.5 KB
ID:	61173

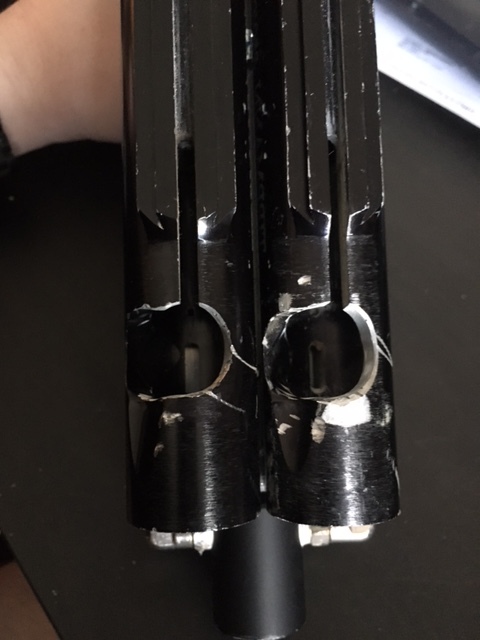

            And Last but not least I have opened up center feeds so that the magwell can feed straight into the bodies.

            Click image for larger version

Name:	IMG_1610.JPG
Views:	319
Size:	74.8 KB
ID:	61174

            obviously the bodies are rough and will be getting cleaned up, re-primed and painted.

            However before that the next big challenge will be setting up the sear trippers.

            Comment


              #8
              Unfortunately due to real life this project got put on a shelf and was not completed for the original contest. However after some delay I pulled it off the shelf and have gotten back to finishing this

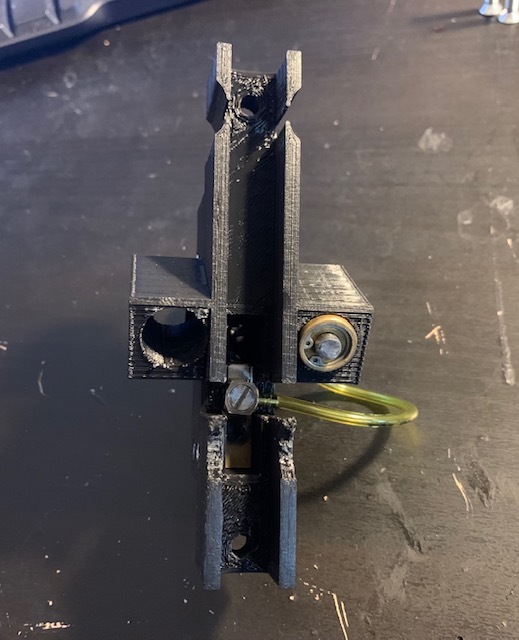

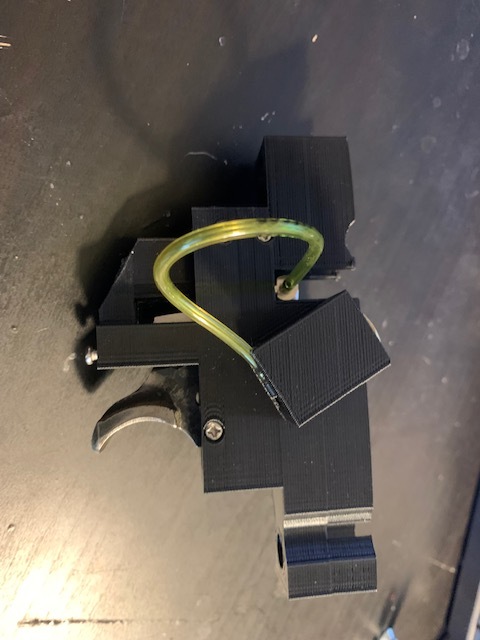

              Next up was solving the trigger configuration, and the solution was to use some left over parts from a pneumag build to create a trigger group.

              Click image for larger version

Name:	IMG_0414.jpg
Views:	222
Size:	60.1 KB
ID:	189169Click image for larger version

Name:	IMG_0415.jpg
Views:	193
Size:	76.8 KB
ID:	189170

              Inside is a Fabco MSV-2 and I was able to repurpose the origianl pro-carbine trigger for the build, and to keep the grip simple I have gone with a standard block to use any AR grip, or in my case a grip from a hammer-2.

              Currently its lopsided as I am waiting for a second MP3 and a T-fitting for the output.

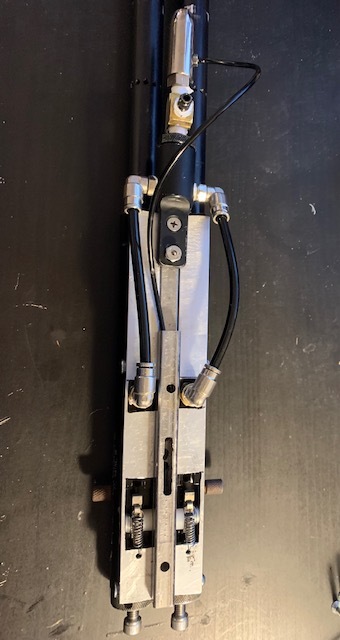

              added additional slots in the rail for the air and added springs for the sear.
              Click image for larger version

Name:	IMG_0416.jpg
Views:	191
Size:	55.8 KB
ID:	189171

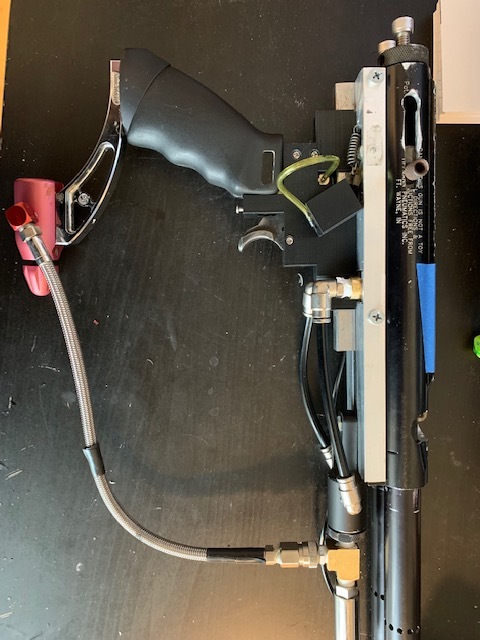

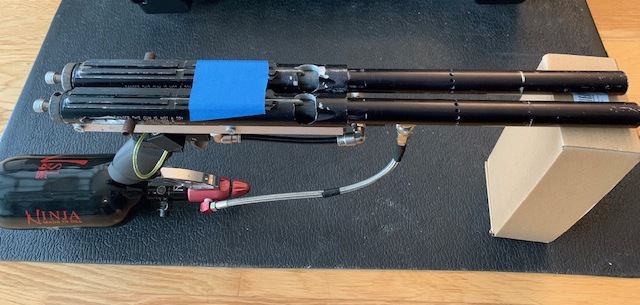

              Assembled the build to test everything holds air and test the trigger group. Everything airs up and works, and now I just wait for the last few parts.
              Click image for larger version

Name:	IMG_0411.jpg
Views:	189
Size:	89.2 KB
ID:	189172

              Click image for larger version

Name:	IMG_0413.jpg
Views:	184
Size:	73.5 KB
ID:	189173

              Tape on top to keep me from losing the linkage arm.

              Comment


                #9
                I love that you're still building it anyway. I'm hoping for another poo contest soon.
