Automag lvl 7 powertube ring

[Nxt1playr]

What is the size for a level 7 powertube O ring? Also are the shims suppose to go between the plastic washer then the carrier or carrier and top brass hat? This is a 68 AIR valve and everything worked fine, but now I cleaned it and it has bolt stick right before reset, then I blow out the o-ring. Yes super lubed, yes I tried red and silver springs.

[Alexndl]

Brass hat - spacer - Oring

#010 oring for power tube

The spacer allow oring compression to fit on bolt inner tube
the spacer length is use to compensate for oring tolerance from what I understand

oring list
https://www.mcarterbrown.com/forum/p...-exploded-view

[Jordan]

There are no shims or carriers in a lvl 7 Automag.

There is a power tube spacer and one 010 oring. The oring goes in first, then the spacer, then the tip is screwed on finger tight.

[Grendel]

On a semi related note I never had a problem with the original spacer spring. I never adopted the incrementally sized spacers for my original Lvl 7 and stuck with the spring until my recent "upgrade" to lvl 10.

[Jordan]

Same here.

[Myrkul]

It is supposed to go: -10 "o" Ring in the bottom, brass spacer, cap. I recently had a level 7 bolt that would leak like crazy with the urethane "O" Rings from AGD (I tried 5 or 6 different ones new from AGD) but functioned flawlessly with a buna -10 "O" Ring from the hardware store. Not sure what that is all about but it works now.

[Nxt1playr]

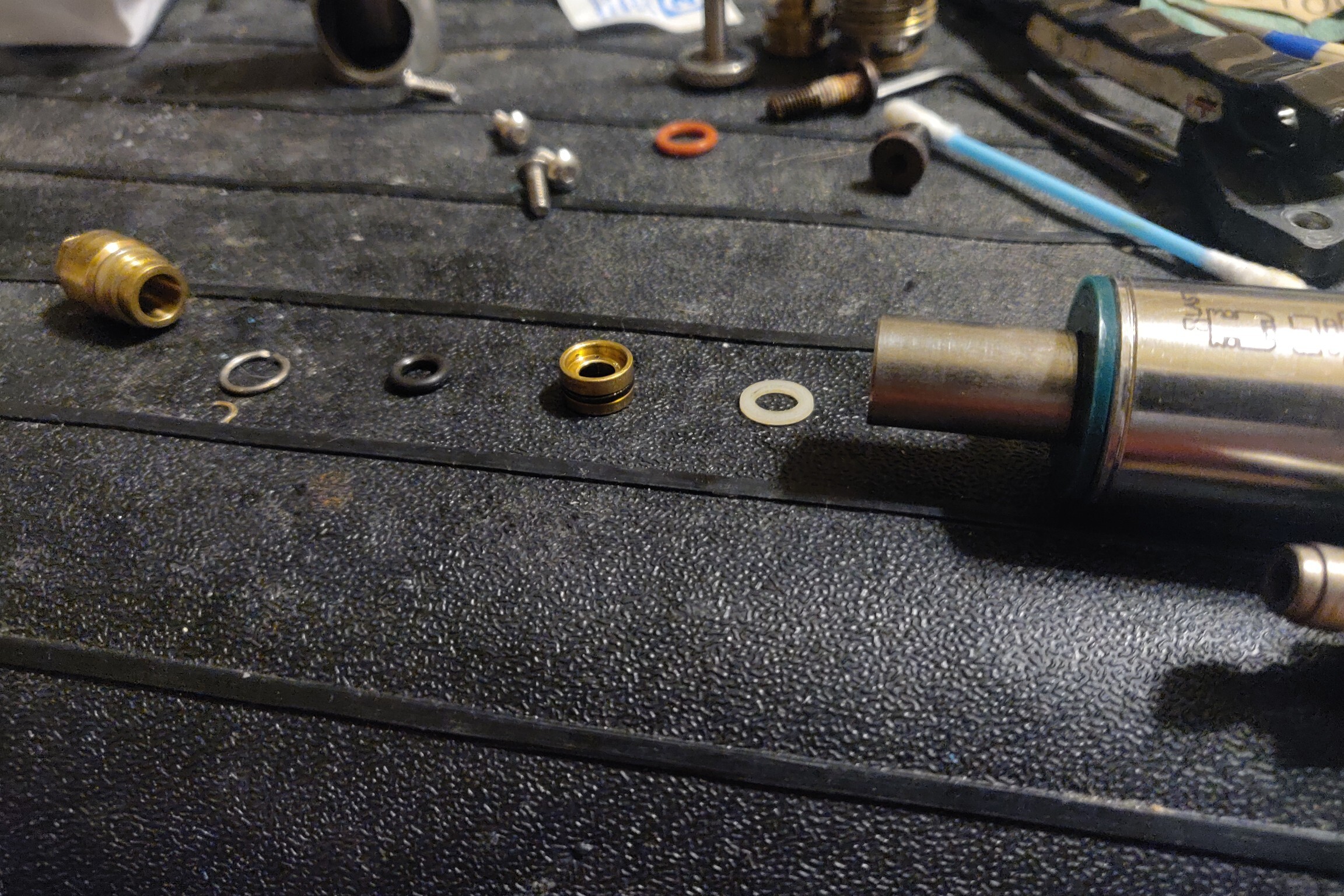

So is this wrong then? This is how the valve came which would explain alot.

[Alexndl]

Can you take a picture of the back of the bolt, it would help to ID if its a 10 or a 7

Also look at the thread posted before there is some exploded view of the different AGD valve

[Jordan]

So is this wrong then? This is how the valve came which would explain alot.

Well, you have a level 10 setup there, not a lvl7 to start. Go to the AGD website and look at the lvl10 setup instructions - they should help you greatly.

[Cdn_Cuda]

I’ve had a hell of a time with my Lvl 10 mag and a leak. Even bought the AGD repair kit and still leaks..... so good luck! Maybe your issue will help with mine!

[caylegeorge]

I'll add that imo, you really want to go with the original polyurethane o-rings for the automag valves. I would recommend one for the powertube instead of the Buna one you have shown there.

[Nxt1playr]

I'll add that imo, you really want to go with the original polyurethane o-rings for the automag valves. I would recommend one for the powertube instead of the Buna one you have shown there.

I had it blow the o-ring through the powertube all the way up the bolt. I'll be ordering a poly ring

[caylegeorge]

woah - thats impressive
