Tippmann SL-68 Cup Seals...can anyone make them?

[tagroland]

I am willing to pay for 100 of them to keep my Paintball Club's rental fleet alive.
831.244.0950
tagroland@yahoo.com
www.TAG1984.com
Roland

[Sdawg]

If one person can help you, it is Daniel Bacci

https://baccipaintball.com/parts/pum...internals.html

[netsurferdude2]

If it was just a hand full I could offer some help in making them. Are the SL68 cup seals pressed into the tube like the SL682?

Do you have the dimensions?

Maybe Doc would be willing to take this on for 100pcs

[Ecapnation]

As posted in the Tippmann post...

I have a metric ton of black magic universal cup seals but not sure they will work

[tagroland]

If it was just a hand full I could offer some help in making them. Are the SL68 cup seals pressed into the tube like the SL682?

Do you have the dimensions?

Maybe Doc would be willing to take this on for 100pcs

I only need a few immediately for ones that are down, 100 is a dream (stock pile mentality, sorry).
SL-68 and SL-68 II cup seals are identical, a tube of plastic (material unknown...ANYONE KNOW WHAT MATERIAL IS??!!) then 'shaped' into a cup seal.
I would be obliged for THAT piece of info!!

Blessings All,
Roland

[netsurferdude2]

Could this help you out:

https://www.tippmannparts.com/SL2-26...e-p/gp4643.htm

[tagroland]

As posted in the Tippmann post...

I have a metric ton of black magic universal cup seals but not sure they will work

I don't think they will work, UNFORTUNATELY.
But THANK YOU for the offer!!!!!!!
R

[Meleager7]

Doc nickle has a "what's next " thread. You could suggest SL68 cup seals, and ya never know, he might make some!

[Spider!]

I can take measurements.

My valve body was bent from the retention screws being over tightened many years ago. I think I have a 3d printed seal in there now. This is an early SL seal. Sounds like the later ones were a little different.

Even with co2, the original was/became too hard.

[infamoussmiley]

As posted in the Tippmann post...

I have a metric ton of black magic universal cup seals but not sure they will work

They will not.

Smiley

[Spider!]

Looking at it, I'm starting to remember why I converted mine to a Nelson power tube. I think I got that screw out, but not the seal. I also don't see how the original seal can be any amount flexible while sealing against the screw in the center of it. I think I started with a random no4 Nelson tube, but it let me cover the end like a regular poppet.

I'll try to get it apart this weekend.

[Spider!]

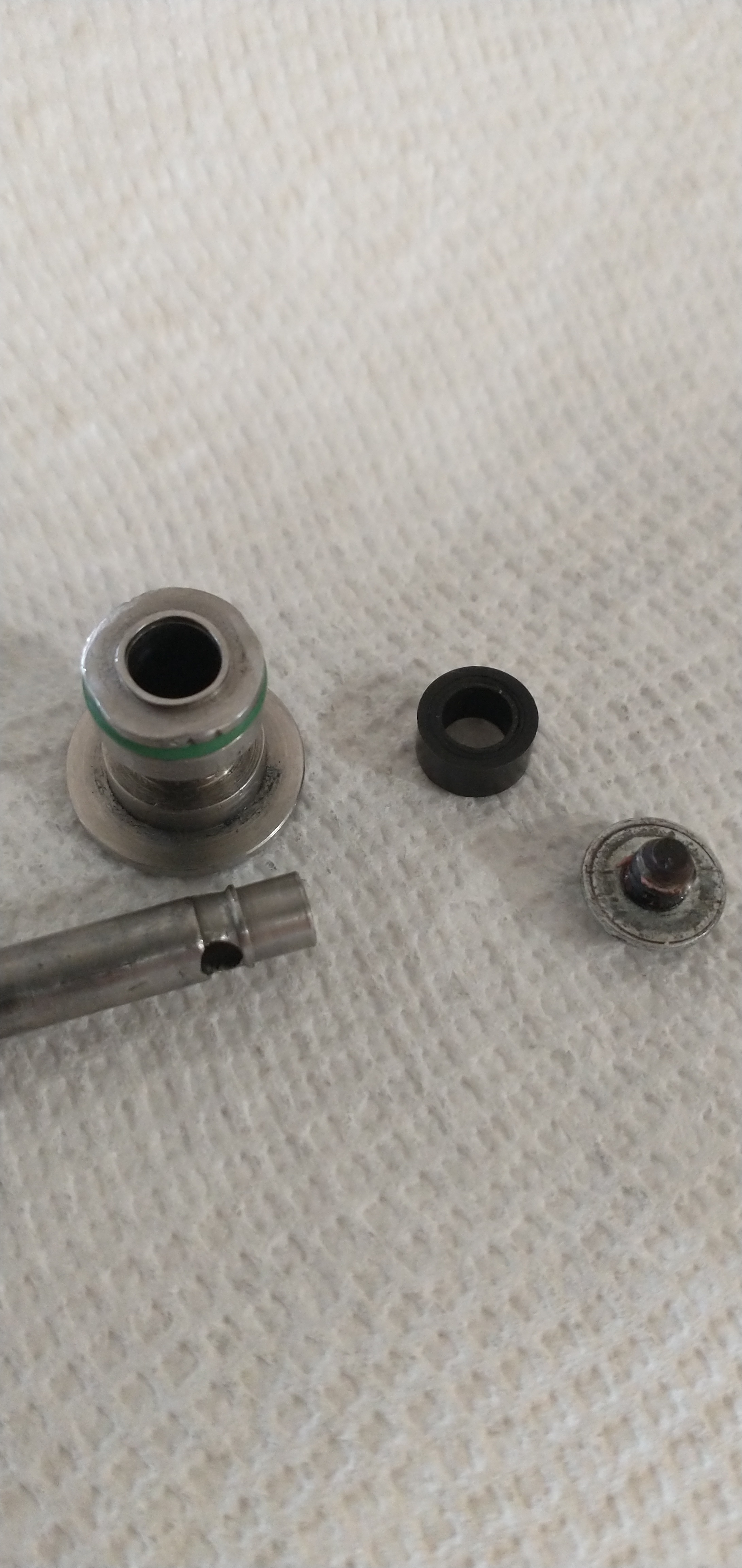

Red loctite on the screw. Seal is very hard, which led to leaks, which led to valve fiddling, misalignment, and crushing. The valve body and power tube steel is quite soft.

I'll draw up a model of the seal. Being softer might require a metal sleeve to keep it from expanding over that little lip on the power tube.

[Spider!]

I don't think they will work, UNFORTUNATELY.
But THANK YOU for the offer!!!!!!!
R

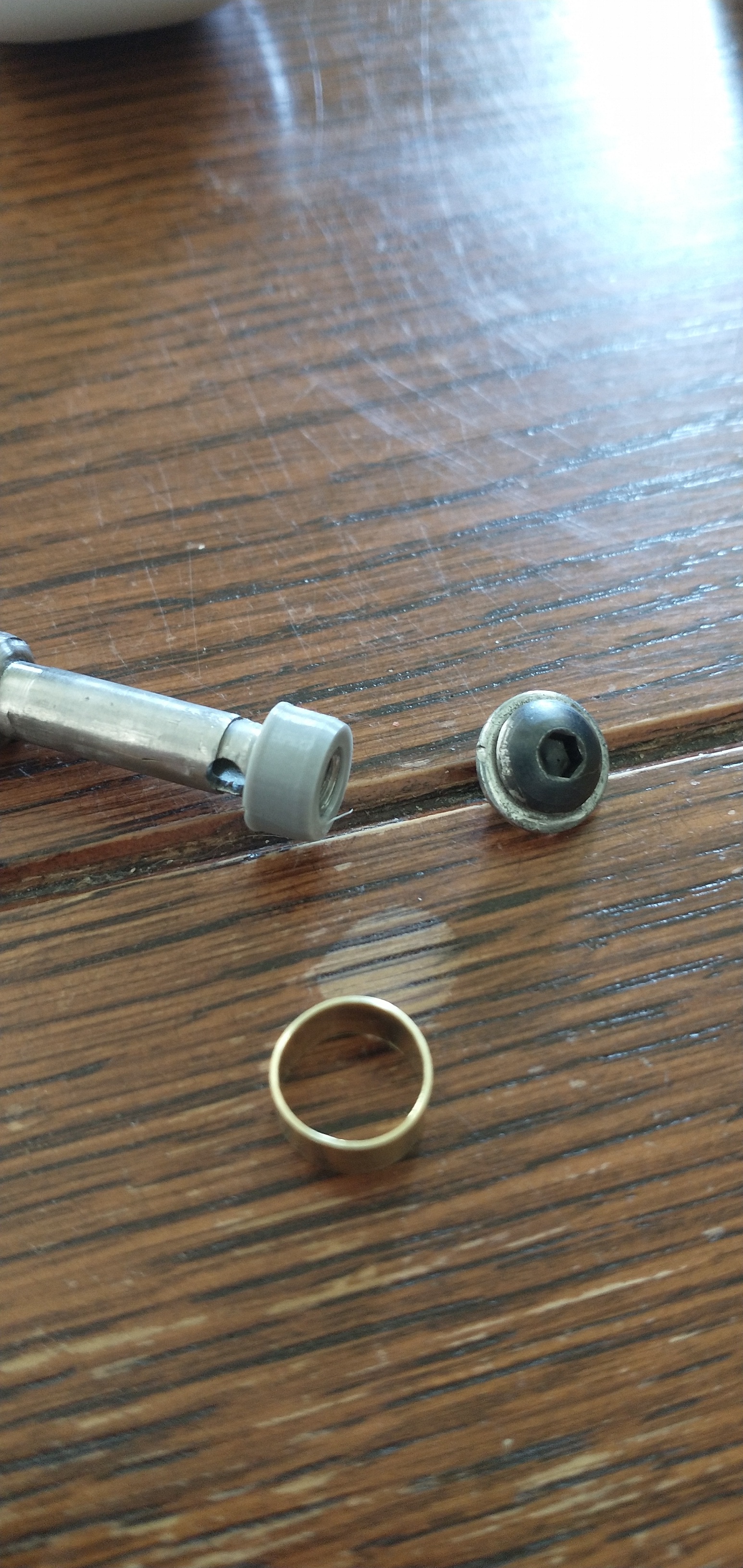

Do yours look like this? I can send you this for testing (seal and ring). It's possible the seal will work without the ring, so I can send a few seals.

I've used this filament on a12g Piranha setup for a while now, but it doesn't have that open back. I'm not concerned much about the seal face as much as the seal around the tube.

The seal goes on first with the chamfer facing toward the back, then start the ring over the chamfer and finish pushing the ring in place with the screw. The screw needs at least blue loctite as a sealant to prevent leaks through those threads.

The ring is 3/8" id k&s brass. My sl valve doesn't use the old power tube.

I guess you could also sell me a stock sl to work on.

[tagroland]

Here are two pictures of the cup seals found online:

https://www.tippmannparts.com/SL2-26...-p/gp4643.html

https://baccipaintball.com/tip095.html

Here's a link as someone attempted the same thing:

https://www.paintballforum.com/threa...-68-ii.169697/

Hope this helps
Bullseye

[PlawB]

If you go on ebay and search for reg seats, you'll find people who 3d print/cut all sorts of old reg seats. I'd ask them if they can make you your cup seal. (I was searching for a WGP reg seat and found a guy that way.)

[Spider!]

Here are two pictures of the cup seals found online:

https://www.tippmannparts.com/SL2-26...-p/gp4643.html

https://baccipaintball.com/tip095.html

Here's a link as someone attempted the same thing:

https://www.paintballforum.com/threa...-68-ii.169697/

Hope this helps
Bullseye

Ok, thanks. Mine is first gen (aluminum pump handle).
