Protecting California Air Tank?

[Toestr]

What are some good options for protecting tanks from the screws on the tank holder when running a tank California style? Obligatory pic:

Sent from my Pixel 4a using Tapatalk

[Chuck E Ducky]

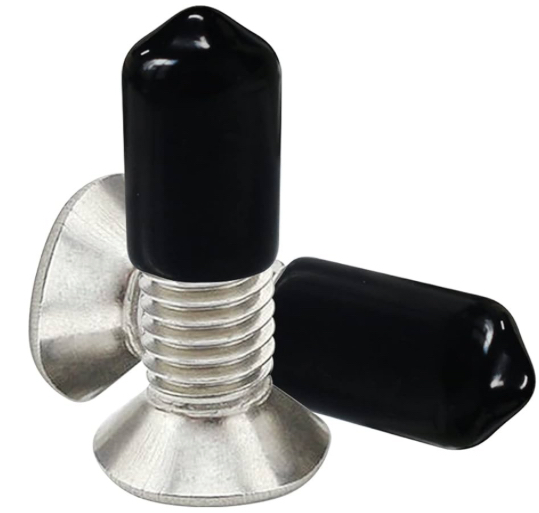

Teflon or rubber caps you can get them at any hardware store. “thread, protector,”

https://www.amazon.com/Flexible-Rubber-Thread-Protector-Safety/dp/B098QNYFQQ/ref=asc_df_B098QNYFQQ&mcid=af7df4b22b493dec949ab5d 41eb4c9a1?tag=bngsmtphsnus-20&linkCode=df0&hvadid=80745505277085&hvnetw=s&hv q mt=e&hvbmt=be&hvdev=m&hvlocint=&hvlocphy=&hvtargid =pla-4584345032154160&psc=1

[Toestr]

This is a very good idea thank you.

[Psycho91]

Those look like old vacuum caps for carburetors

[Chuck E Ducky]

Pretty much are they are a lot like a rubber dip coating people put on tools. But they should still grab the tank nicely without damaging it.

Might even be able to use a plastydip tool coating put it in a medicine cup and giver it just the tip.

[BrickHaus]

My kp3 has nylon screws in it. They seem to work well enough, and don't kill my tank. Any idea what threads your tank screws are?

[Toestr]

They're #10-24.

[k_obeastly]

Is there enough room for nylon acorn nuts on the end of the screws?

[Toestr]

Probably not.

[Ecapnation]

Get screws with nylon tips!

[Toestr]

Are there nylon tipped thumb screws?

[Ecapnation]

Yup!

McMaster Carr...... Search 90772A833

Those are 10-32

[Toestr]

I tried the rubber caps. I forgot how little room there is to screw in the thumbscrews. Looks like I'll be using nylon screws.

[Chuck E Ducky]

Ahh I didn’t think of that yeah it’s pretty tight.

[Jordan]

Strip of electrical tape on the tank?

[SuperActionMan]

A metal screw tip will likely cut through tape.

I'd probably try brass shim stock just because I have it, but even a section of soda can would probably work. Or maybe some high durometer 1/16-1/8" rubber sheet and non-marring screws.

Another alternative to the plastic-tipped spade thumbscrews is plastic-tipped Allen screws with a knob cap pressed on. Then you have the option of different styles and colors.
https://www.mcmaster.com/products/thumb-screw-caps/

[Brokeass_baller]

If you can cut or stamp a little bit of brass or nylon, you can drop it down the hole and use it as a wedge between the tank and the screw. That'll work pretty well. Just don't forget about it, because they'll drop out when you remove the tank.

If you're careful with a hot glue gun, you could put a small bead on the tip of the screw. It'll probably peel off once you tighten it, but should work fine until you need to remove the tank.
