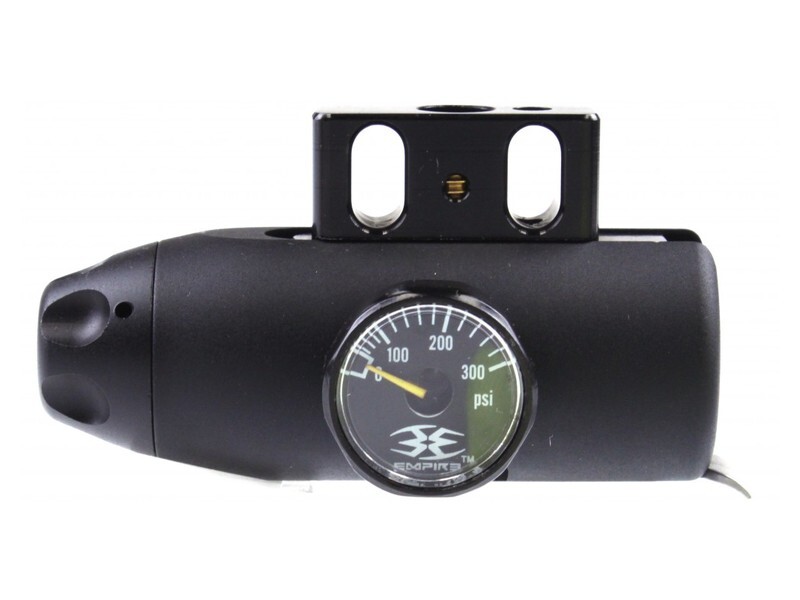

Empire Relay On/Off ASA regulator

[Criticalhammer]

Does anyone have experience using one of these? I imagine this would be a great pneumag regulator. I think it came out in 2010 so its very possible the ones in stock now will need rebuilding, just from sitting on a shelf.

[Toestr]

Never done anything with these, but a cocker LPR off the top would be good. You'd need to figure out some sort of unregged output from the ASA though.

Sent from my Pixel 4a using Tapatalk

[Olsson]

The main reason you don't see this ASA in a pneumag build is that you don't have an outlet for the unregulated tank pressure. While it might be a clever solution to a hidden LPR build through the frame, if you look at the gauge, it only goes to 300 PSI. Not really suitable for an Automag valve.

[Criticalhammer]

The main reason you don't see this ASA in a pneumag build is that you don't have an outlet for the unregulated tank pressure. While it might be a clever solution to a hidden LPR build through the frame, if you look at the gauge, it only goes to 300 PSI. Not really suitable for an Automag valve.

You can put a 1/2 inch ASA adapter on the back like https://palmerspursuit.com/collectio...tank-extension

Granted people with longer arms would benefit over people with shorter arms.

[Olsson]

You can put a 1/2 inch ASA adapter on the back like https://palmerspursuit.com/collectio...tank-extension

Granted people with longer arms would benefit over people with shorter arms.

Nobody likes a smart ass, sonny Jim. That was way too clever for my liking. So clever that it may actually work, in fact.

[rawbutter]

I think he's onto something there. Besides the ASA extender adapter thing, I can't think of another way to make this work.

[BrickHaus]

I us a similar device to carry air to an undermounted law. Though for a dedicated pneu mag set up, I dont see it being worth it.

[Spec]

Buy a batch of main seals, same as the Vanquish regs. Will need a 3mm nut driver and cut a slot in a wide flat headed screw driver or other piece of metal for tools. After that, they are easy to rebuild.

[rawbutter]

I've never seen on of these in person before. What does the passenger side look like? Is there enough meat on that side to add a second air port and tap that directly into where the tank threads in?

[MrKittyCatMeowFace]

Is this the same reg on the older mini and axe?

[Secretweaponevan]

Does anyone have experience using one of these? I imagine this would be a great pneumag regulator. I think it came out in 2010 so its very possible the ones in stock now will need rebuilding, just from sitting on a shelf.

I have one that Simon gave me to beta test.
If you need pictures or anything, let me know.
It has a unique mounting system.

[Macdave06]

I've never seen on of these in person before. What does the passenger side look like? Is there enough meat on that side to add a second air port and tap that directly into where the tank threads in?

Unless they've changed something after the one I have, it has a overpressure vent on the opposite side. I modified one to use as a bottom line reg by plugging the output and drilling the hole out in the vent port. It's already 1/8npt threaded.

Sent from my SM-G960U1 using Tapatalk

[Criticalhammer]

I think this would work...

https://www.hustlepaintball.com/Tech...p/32230101.htm

[Brokeass_baller]

I have one on an internal air eNMEy. I can snap photos of anybody wants.

[Criticalhammer]

I have one on an internal air eNMEy. I can snap photos of anybody wants.

By any chance do you have a tape measure and/or calipers? I think its possible to mill out and mount this onto a Y grip frame. That way the extension of the asa adapter is offset by the drop forward effect of the Y grip.

[Criticalhammer]

Unless they've changed something after the one I have, it has a overpressure vent on the opposite side. I modified one to use as a bottom line reg by plugging the output and drilling the hole out in the vent port. It's already 1/8npt threaded.

Sent from my SM-G960U1 using Tapatalk

By any chance do you have pictures of this mod?

Being able to dual feed low and high pressure off the regulated ASA is ideal.
