Valve Body Unscrewed...

[Advanced]

...where is not supposed to.

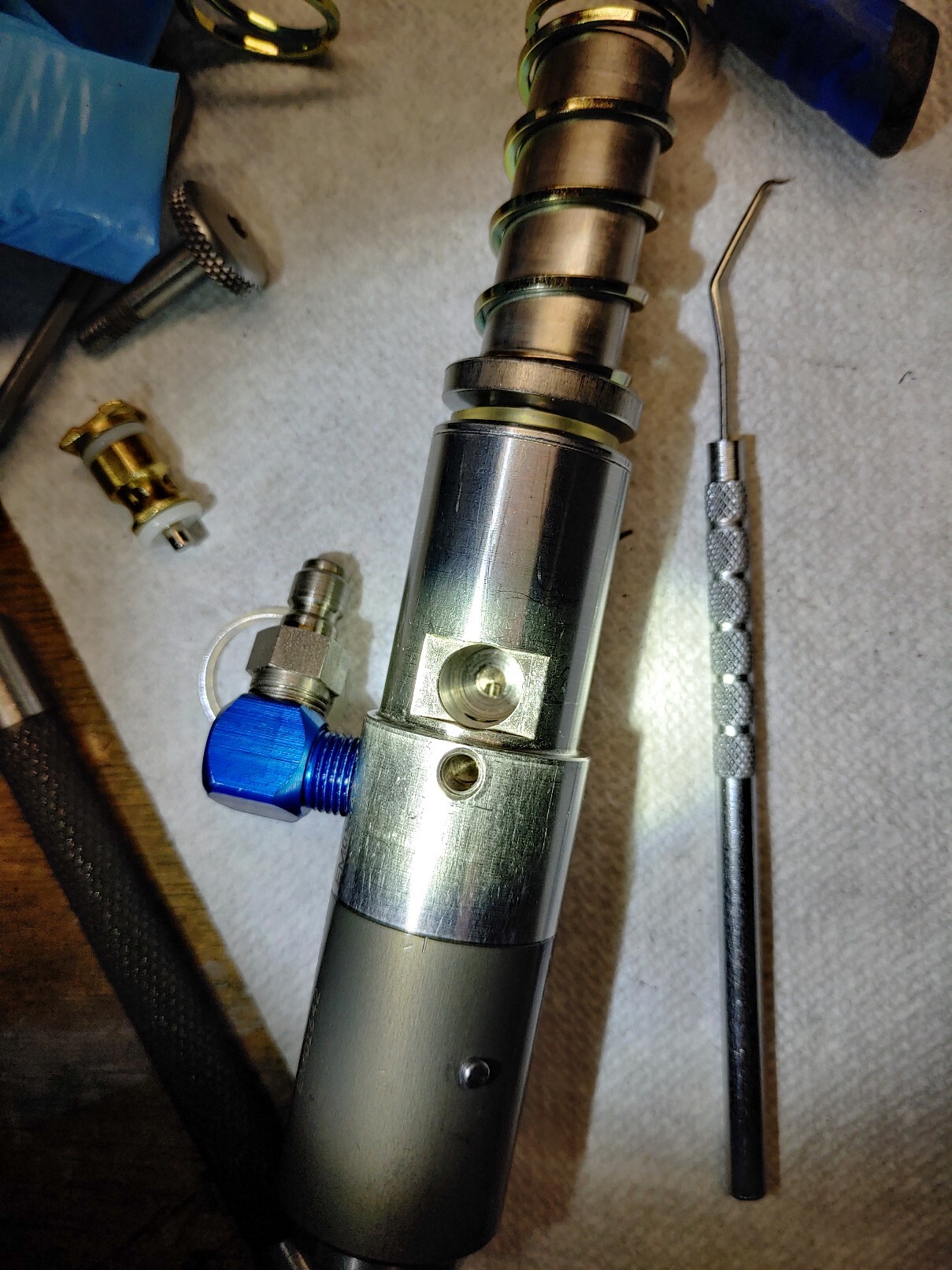

I was rebuilding an emag valve this morning and I was just seeing if I could get the power tube cap off by hand. As I did I noticed the main body and the power tube separating.

I could see a red oring inside. Anyhow, It's back together of course, just threaded on. Never had a valve do this.

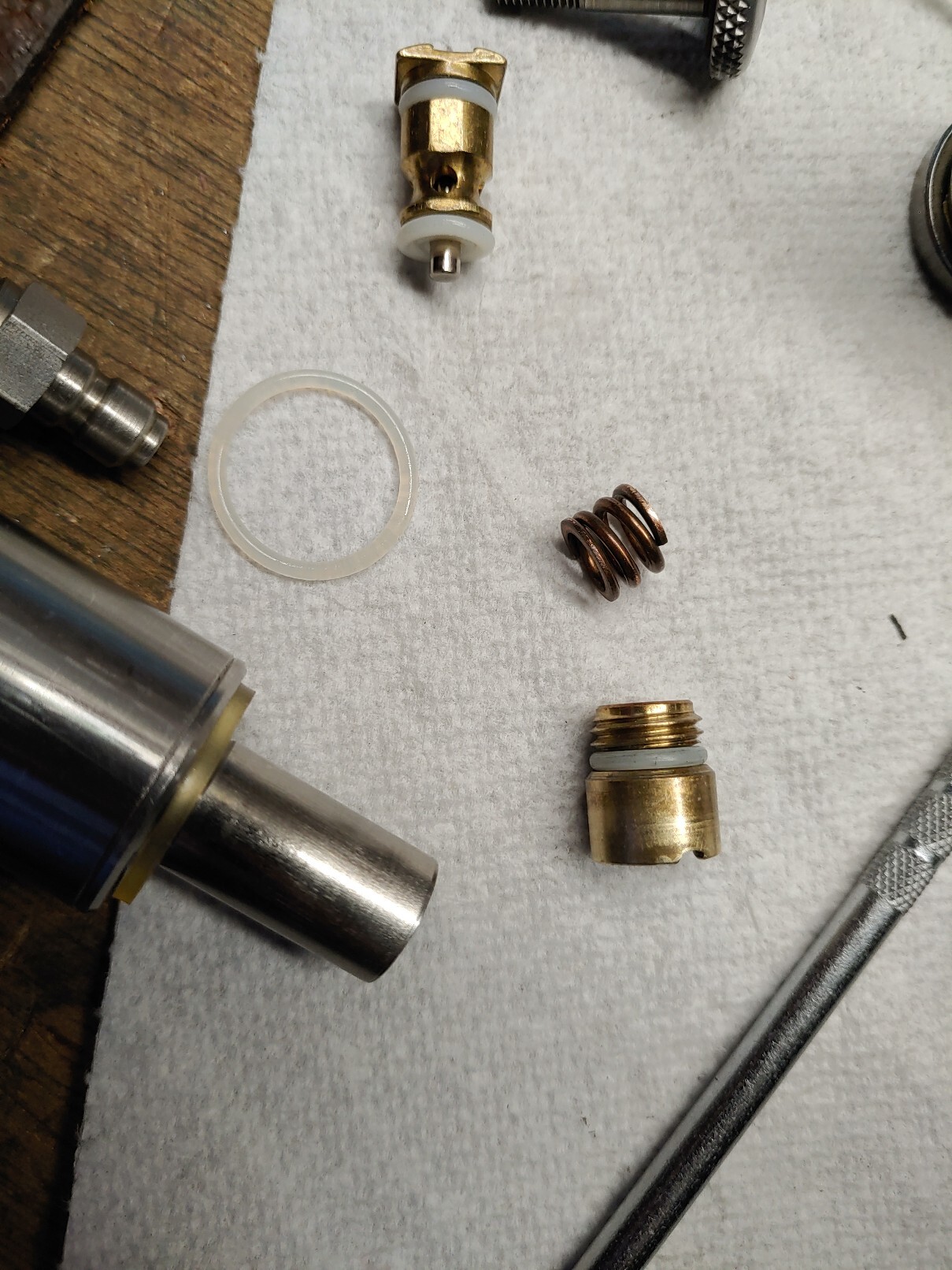

Oddly, there is a spring in my power tube instead of a spacer as well.

[Toestr]

Early automags had a threaded powertube as well as a spring in the powertube to act as a self adjusting spacer (actual spacers are more reliable). Kinda odd that something as late as an emag valve has a threaded powertube and spring spacer.

Not sure what an appropriate solution for the powertube is though...

Sent from my Pixel 4a using Tapatalk

[Ecapnation]

Spring in the power tube? Power tube unscrewed? On an emag?

These sound like something a very early classic valve would do

[Advanced]

Yeah I was surprised by the spring unless a previous owner didn't have a spacer kit and modified it.

The power tube is supposed to have a red oring from what I've researched, normally loctited on. I'll hit it with some red loctite, should be ok

[Alexndl]

This thread is missing pictures...

[Advanced]

Updating thread, I got issues after rebuild

[Advanced]

All is good, got air today and gun airs up as supposed to and fires nicelu.

[tunaman5]

Level 7 welded the powertube so that wouldnt happen. Loctite it back on and dont get any on the oring.
