05 Black Magic valve ID

[Jordan]

These bodies don't have a spring perch in front of it do they that's milled into the body

They do.

That's why Lazarus valves don't fit.

[Cdn_Cuda]

Confirmed by trying to stuff a Laz into this body! Valve is only coming out one way as well.

[minimag03]

I had no idea these had spring perches. Are these the only ¹¹/¹⁶ bodies with them besides maybe the SR? Seems like the worst of both ⁹/¹⁶ vs ¹¹/¹⁶ worlds... valve can only be inserted/removed from one end yet the frontblock still has to be removed to remove the valve from the body.

[Psycho91]

Ahh sounds like he is just smacking the spring perch and not the face of the valve

Try to get something though the hole on the front a see if the valve moves then

[latches109]

whacking it too hard could break the cup seal

[Psycho91]

It ain't coming out right now anyway, might just have to take the chance, if it's not really stuck then a few light taps should do the trick, or like he said he can always just leave it be and run it till it starts leaking

[Psycho91]

Aren't they also tapered so most valves don't fit either

[latches109]

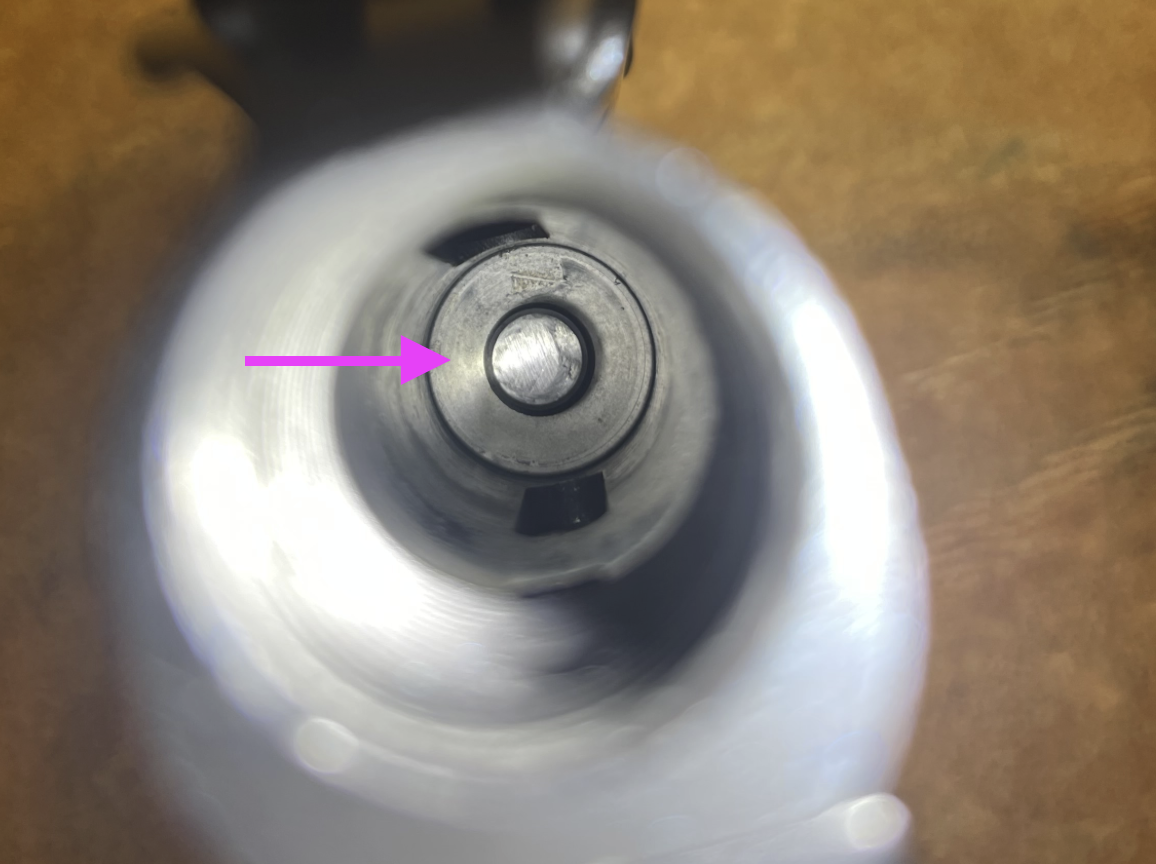

looking at the photos posted with more light.

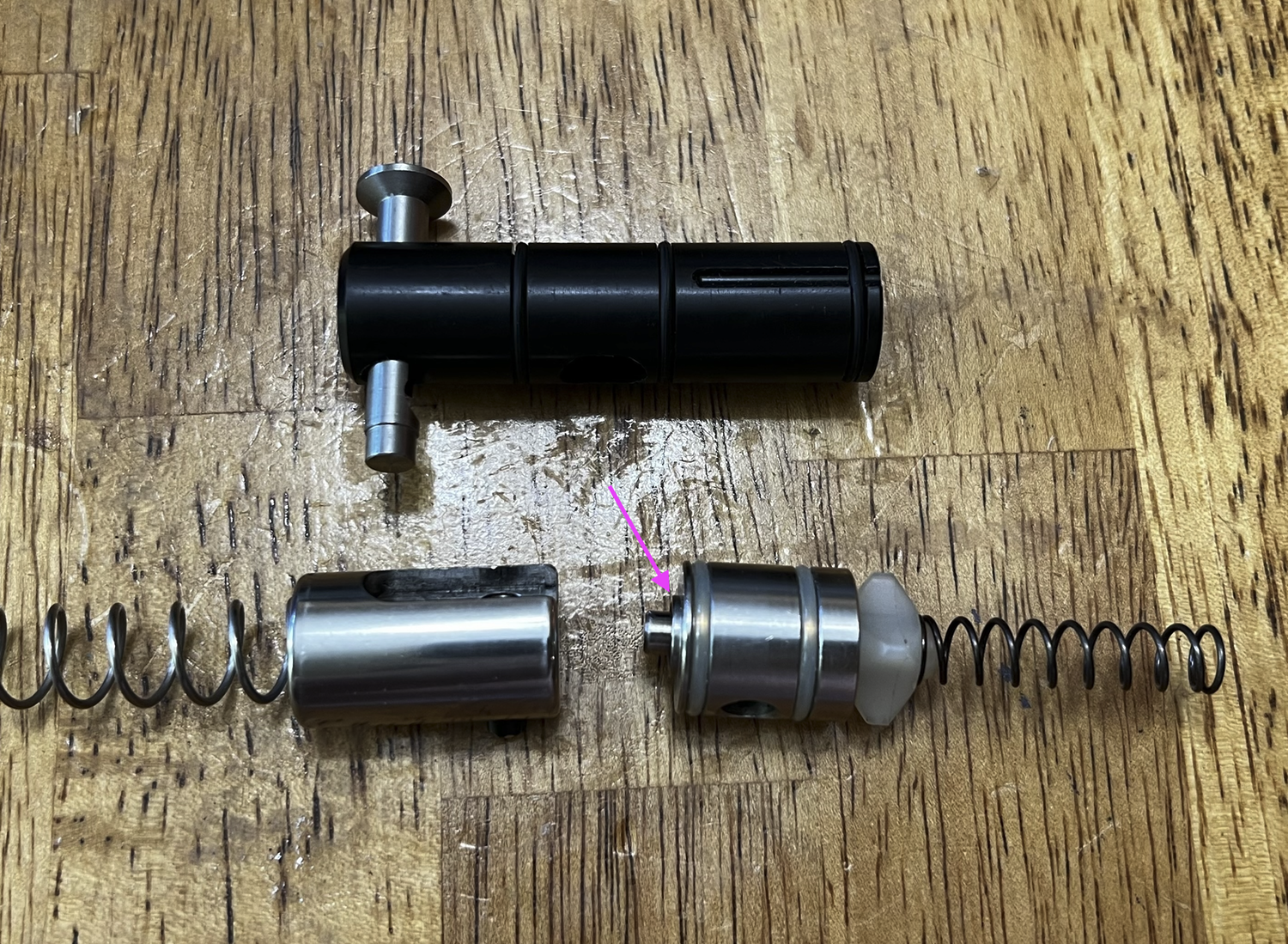

stock resurrection valves have a lip. Older inception valves do not. your picture shows no lip. The cup seal seems to glow like a semi clear cup seal like inception as well. Also, in the background of your image I see a blurry inception bolt and hammer. Resurrections had terrible tolerances, a stuck valve does not surprise me.

[oats944]

Thank you Latches yes the hammer and bolt are inception. Looking in through the front I can see a spring and a whitish plasticky piece inside the valve which I’m assuming is some kind of seal. I just don’t have the more traditional cup seal and valve spring in front of the valve like in your picture.

[Psycho91]

Wonder if the valve set screw hole has been damaged and maybe there's a bur keeping the valve from coming out had a trilogy body like that not to long ago

[latches109]

Thank you Latches yes the hammer and bolt are inception. Looking in through the front I can see a spring and a whitish plasticky piece inside the valve which I’m assuming is some kind of seal. I just don’t have the more traditional cup seal and valve spring in front of the valve like in your picture.

I don;t see any scratch marks going in, so it's probably just gunked up urethane orings. two options, make an air gun, plug and pressurize the cup seal side, OR thread a chopstick down there and whack it out.
