Custom-length pump arm- what can it be made from?

[The Inflicted]

I'm wanting to make a shorter pump arm for my KP2.
I assume that all that would need to be done is to thread one end and hammer a 90 degree angled section into the other.
Is there some type of rod that's commonly-available and used for this sort of thing?

[Jordan]

3/16" rod. I've used brass and mild steel... you can try SS but it's a PITA to work with.

[JeeperCreeper]

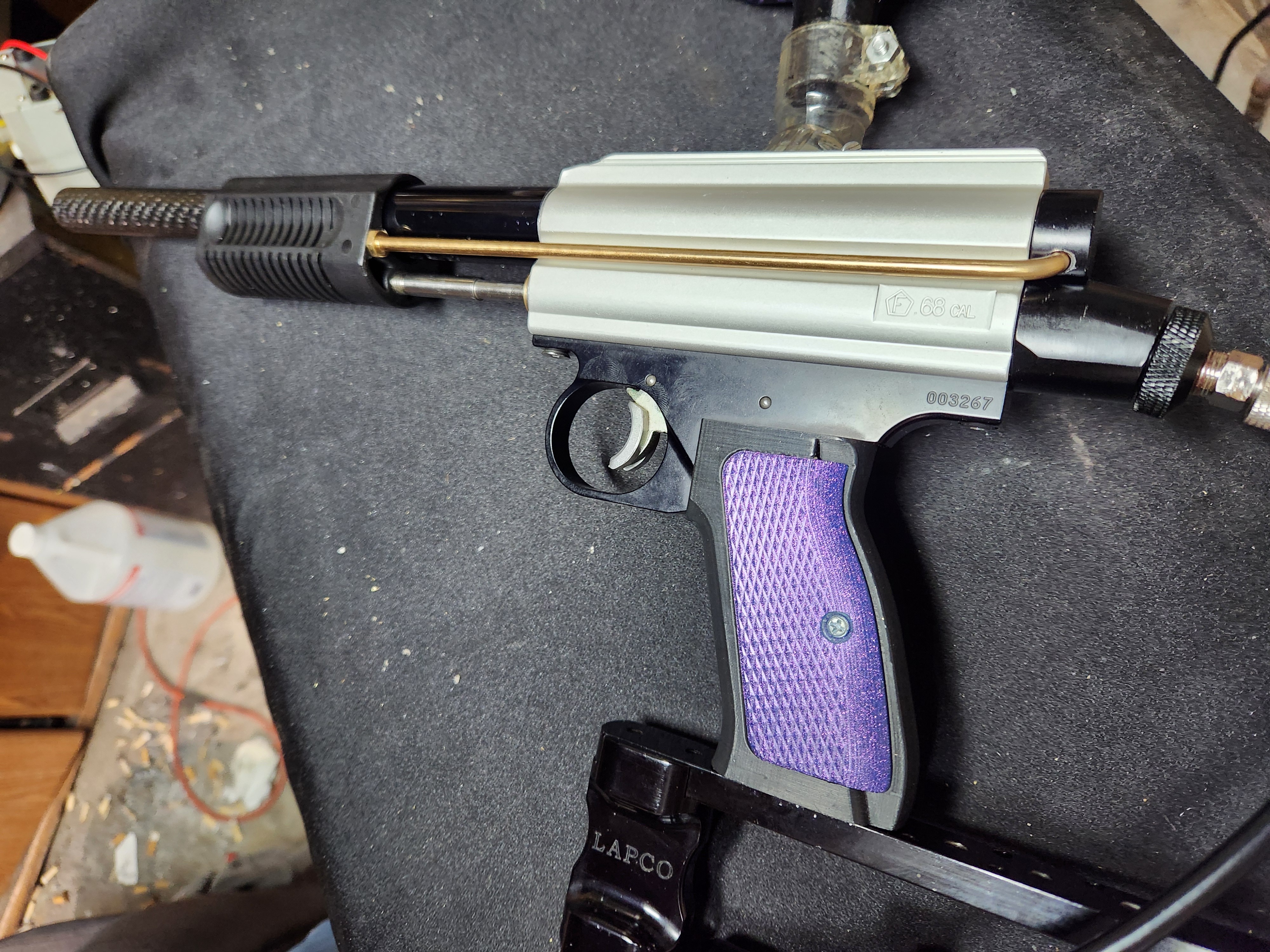

I just made one from brass 5 minutes ago. The trick is to anneal the brass before bending and tapping, it makes it a lot easier to work with. I've also used SS and mild steel, and as Jordan said, SS sucks to bend.

[JeeperCreeper]

You can pick up 3/16 brass rod from Amazon

[Chuck E Ducky]

I found some at Homedepot too.

[Grendel]

I like how PPS did their pump arms without the 90 degree bend but instead use a small aluminum block and a detented pin.

[Grendel]

Jordan, if I can ever get a set of XL inserts I will get to use the PMI build you did, really looking forward to using it. I really should have put it in for the MOTM recently I absolutely love the build.

[Jordan]

I can make you a new CF barrel that takes regular Freak inserts if you want... and I've got a .680 titanium barrel for it as well. Let me know.

[Grendel]

Thanks Jordan, I actually have a brass 0.670 XL from JC on the way and I am saving the rest for trading fodder for my for sale thread coming up soon (next week????) I might hit you up for the Titanium barrel it would be quite Ironic to put a super light Titanium barrel on a Brass marker

[The Inflicted]

Is this something I can find at Ace Hardware or Home Depot?

[JeeperCreeper]

I have gotten mild steel 3/16 rod from Home Depot before. It's usually in the fastener aisle near the threaded rod.

[The Inflicted]

I have gotten mild steel 3/16 rod from Home Depot before. It's usually in the fastener aisle near the threaded rod.

Splendid.

Anyone know offhand what threads these pump handles typically use from the factory?

[BrickHaus]

10-32

[JeeperCreeper]

Yup 10-32 is the standard.

[Jordan]

Splendid.

Anyone know offhand what threads these pump handles typically use from the factory?

Your bolt is also threaded, unless it's been drilled out - KP2 bolts thread onto that little 90° piece on the pump arm - so you can either drill the bolt out to 3/16" in that spot, or thread your new pump rod there as well. (Also 10-32.)

[Grendel]

So I am getting ready to do a custom SS rod bend for a Phantom build, is this something you guys would be interested in having access to? Funny thing is years ago I did some custom rods for Kenny (Punisher) to fix an offset issue with a run of his early under-cocking kits. I would have no problem doing custom bent rods for you all I enjoy seeing your builds. My jig is built just need to mount it and receive some rod that was ordered.

[The Inflicted]

Your bolt is also threaded, unless it's been drilled out - KP2 bolts thread onto that little 90° piece on the pump arm - so you can either drill the bolt out to 3/16" in that spot, or thread your new pump rod there as well. (Also 10-32.)

Are there any immediate drawbacks of drilling out the linkage hole in the bolt?

[Jordan]

Not really - that's how Pseries bolts are, they have a small setscrew to retain the pump arm instead.

[The Inflicted]

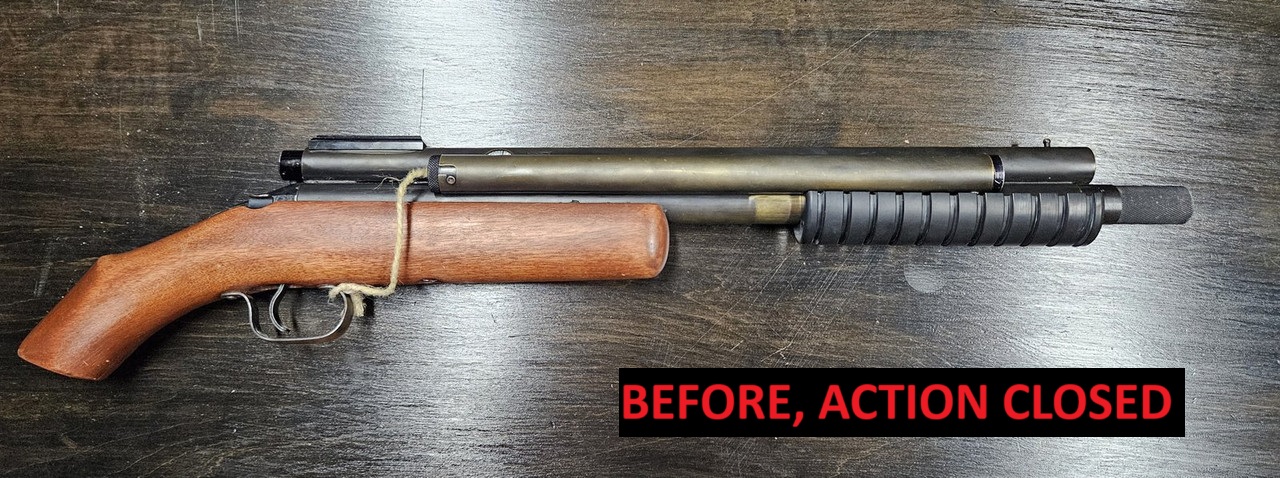

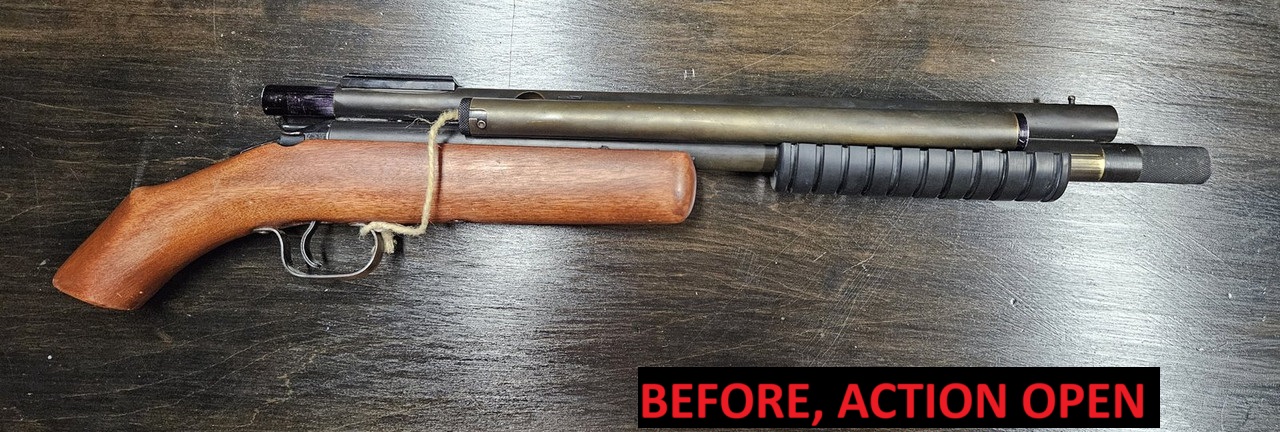

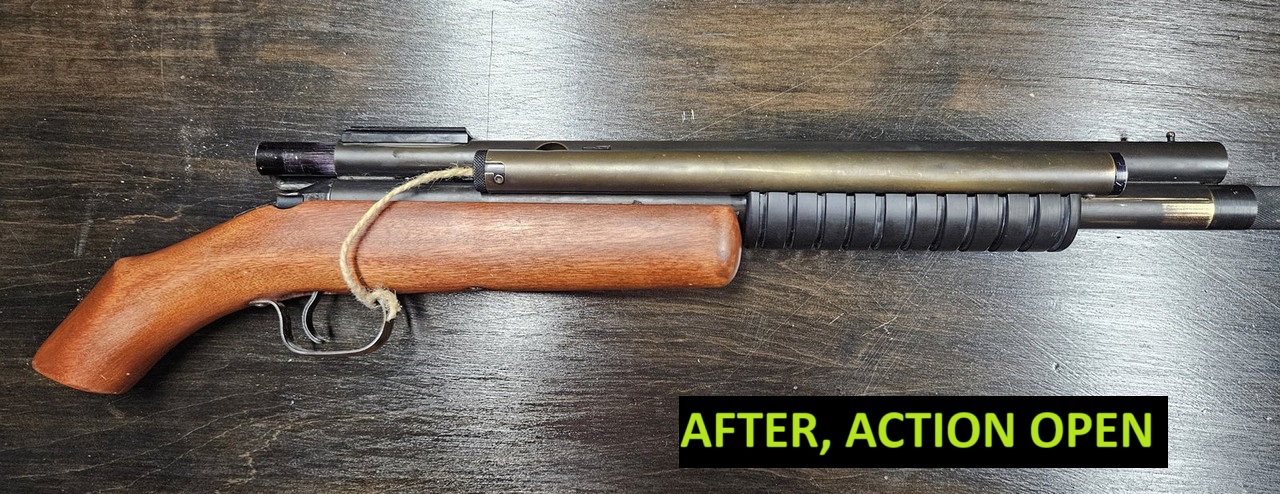

Ok, success!
Thanks for your help, everyone! Home Depot had the rod I needed for around $4 for 3 feet, which was much more than I needed.
I ended up shortening the rod by a little over an inch and a half, which makes a big difference in how natural it feels to hold and pump the gun with no stock.
I did not drill out the bolt so both ends had to be threaded. I probably should have torched and bent the rod before threading it, but chasing the threads with the the dye fixed any damage the hammer made.
Also, I cut way more threads into the forward section of the rod to give myself more flexibility in adjusting where the pump sits.

[The Inflicted]

Now I'm wondering how much it would cost to have someone shorten the lower tube so that the speed knob didn't protrude beyond the barrel.

[Chuck E Ducky]

Talk to JeeperCreeper he could do that for you.

Shorten it up, add a drop out and a Doc quick changer.

[The Inflicted]

Talk to JeeperCreeper he could do that for you.

Shorten it up, add a drop out and a Doc quick changer.

Does he do springfeed conversions?

[Chuck E Ducky]

Yup all kinds of stuff check out his brass thred in the Sheridan section.
