Phantom 2.0 frame velocity issues

[Chuck E Ducky]

So after increasing the volume you still needed the red Spring to get velocity? That’s with 900psi input too. Dang that sucks. I thought boring it out would help a lot more. I’m not even going to bother messing with mine then.

[SignOfZeta]

The EV testing method for a new part seems to only involve testing how popular pictures of it are on social media. If they had done even the amount of work that was done just in this thread they would have known to not to put this thing into production and on sale, same with macro lines, brass lines, the spring feed, and the 2.0 body.

[SuperAtomic]

What was wrong with the brass lines? I'm interested in picking up a set but if there is a known issue maybe I'll hold off.

[Snowking63]

Has there been a consensus on this? I need a hardline but not sure what to order yet.

[Handy]

I've been running a brass line on my main Phantoms for years now, as well as on a few lesser used guns and I haven't run into any problems if that helps in the decision making.

[estin]

I'm sticking with my OG CCI Phantom. Mike Cassidy FTW, the legend will nEVer die!

[Chuck E Ducky]

Not going to lie I swapped mine back and it’s shooting money again. It’s staying this way.

[flyweightnate]

I'm deeply disappointed - and relieved. This was high on my list when I finish some urgent house projects, but if it just doesn't work... yikes. Glad I didn't get around to spending money on it.

I might go back to scheming towards a correctly- functioning gas through frame, if it's this bad.

I'm shocked it takes a different spring combo to get to velocity, even after boring it to the same volume. That just doesn't compute... unless the shape of the bore or position of the inlet create some odd dynamics around the cup seal. I want to STUDY this thing, but it's not $300 worth of curious.

[estin]

Also glad I saw this thread before taking a chance on an EV 2.0 Phantom. The fact it even needs a red hammer spring kills it for me. Red hammer spring ruins the pump stroke at the very minimum imo. Not working on top of that?

[latches109]

I haven’t had any issues with mine, I just threw it all together with the parts I had on hand. It shoots 285fps very consistently. I have not played with it on the field yet, but have had fun with the dual 12g set up in the back yard.

[latches109]

I always thought running unregulated 12g, smaller volume was best.

[Socalpumpballer]

It’s one of those tropes that doesn’t seem to die. You want lower the volume of unnecessary add ons. Like running a rear drop out instead of a vsc to get that extra velocity on the last shots, But you can’t just choke the flow to death and effect how the valve functions

[latches109]

Wasn’t there an old MCB thread where they were getting 60shots off a 12g. I seem to remember devolumizzing was part of the recipe.

[Impactfour]

I have a vague memory of someone jamming wire into the airline tubing for that very purpose latches!

[latches109]

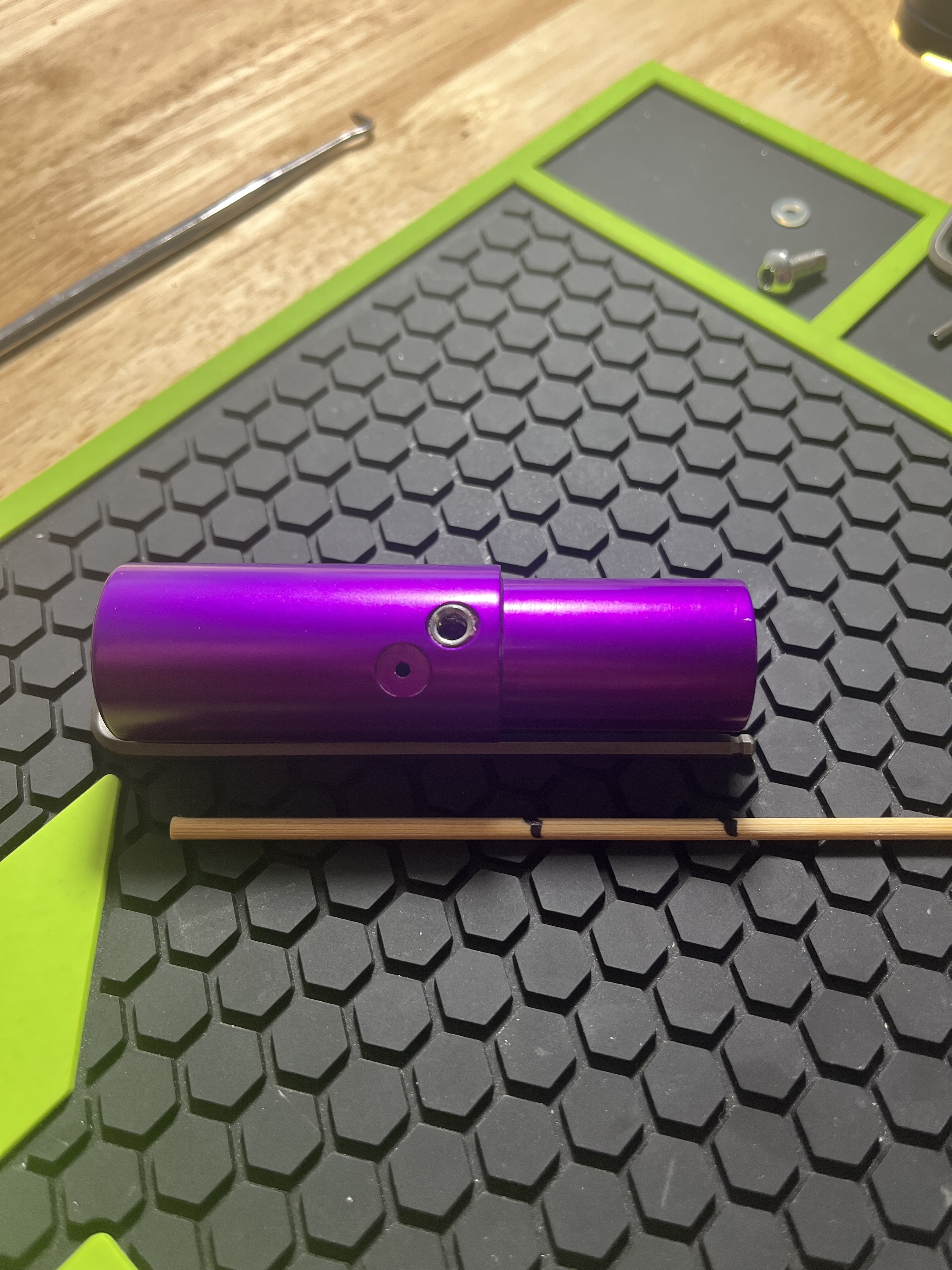

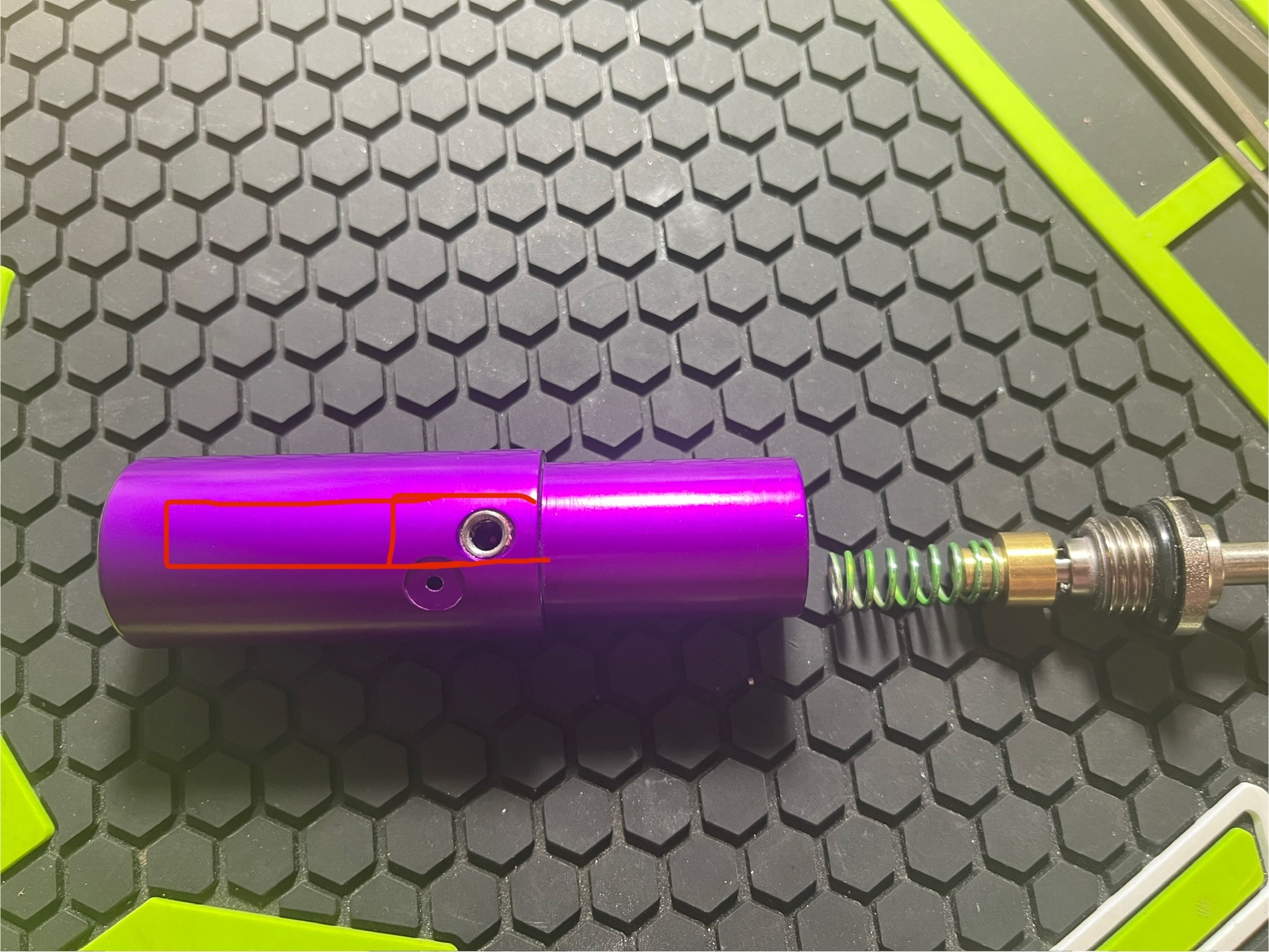

When comparing the 2.0 valve body and a back bottle valve body, the BB is .72" deeper at the same diameter. My BB valve is more efficient than the larger VSC valve by 3-10 shots depending on follow up shot speed. Hypothesis: drilling a little further into the 2.0 valve body should net the same efficiency as a back bottle valve. I will do this for science.




eric idle from monty python

[latches109]

I am back with results.

• Projectile: reball
• Air source: 12g CO2 ( 43g )
• Barrel: CCI Freak XL .675 insert
• Radar: X-wing & Clock 66 (clock is precisely 2FPS slower)

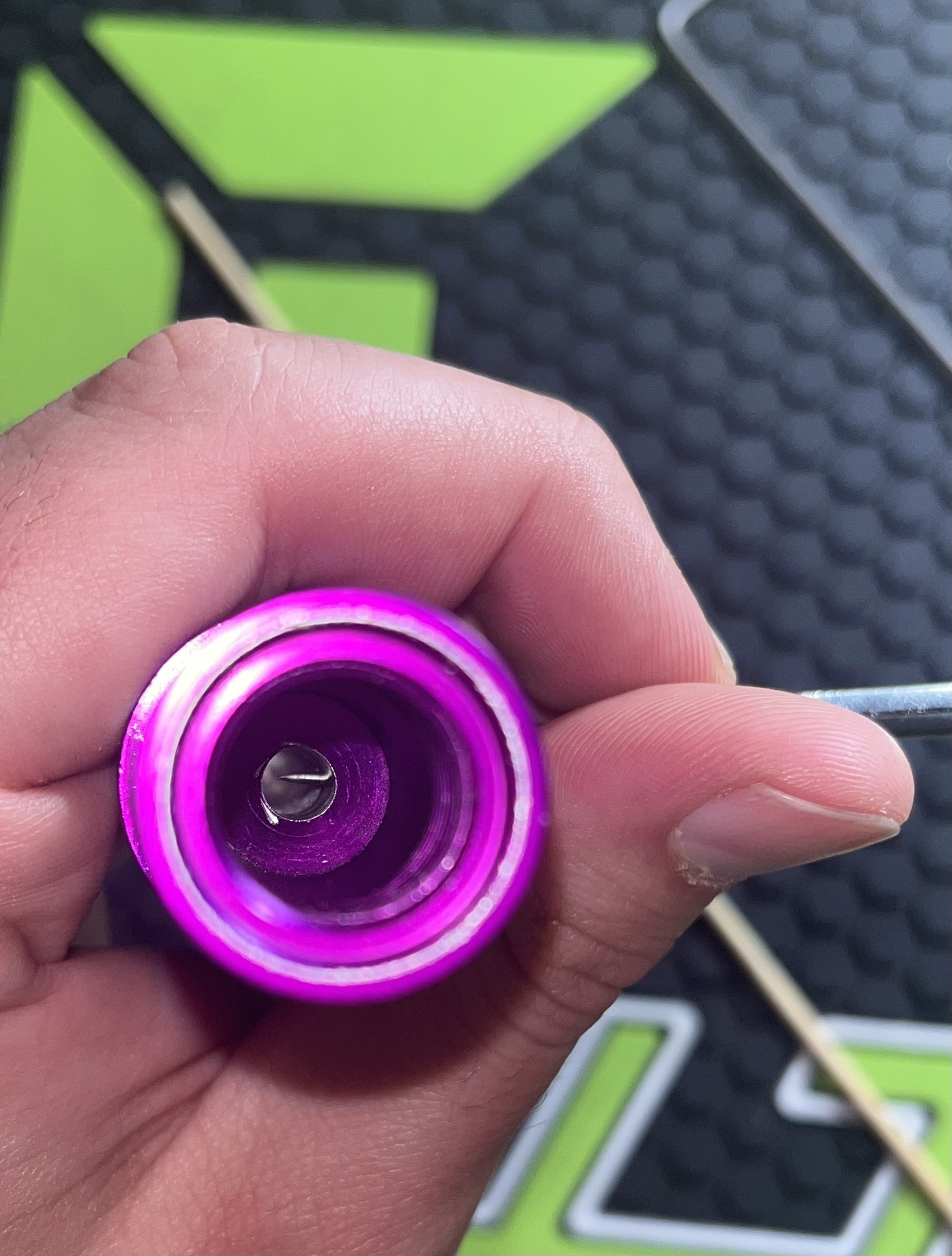

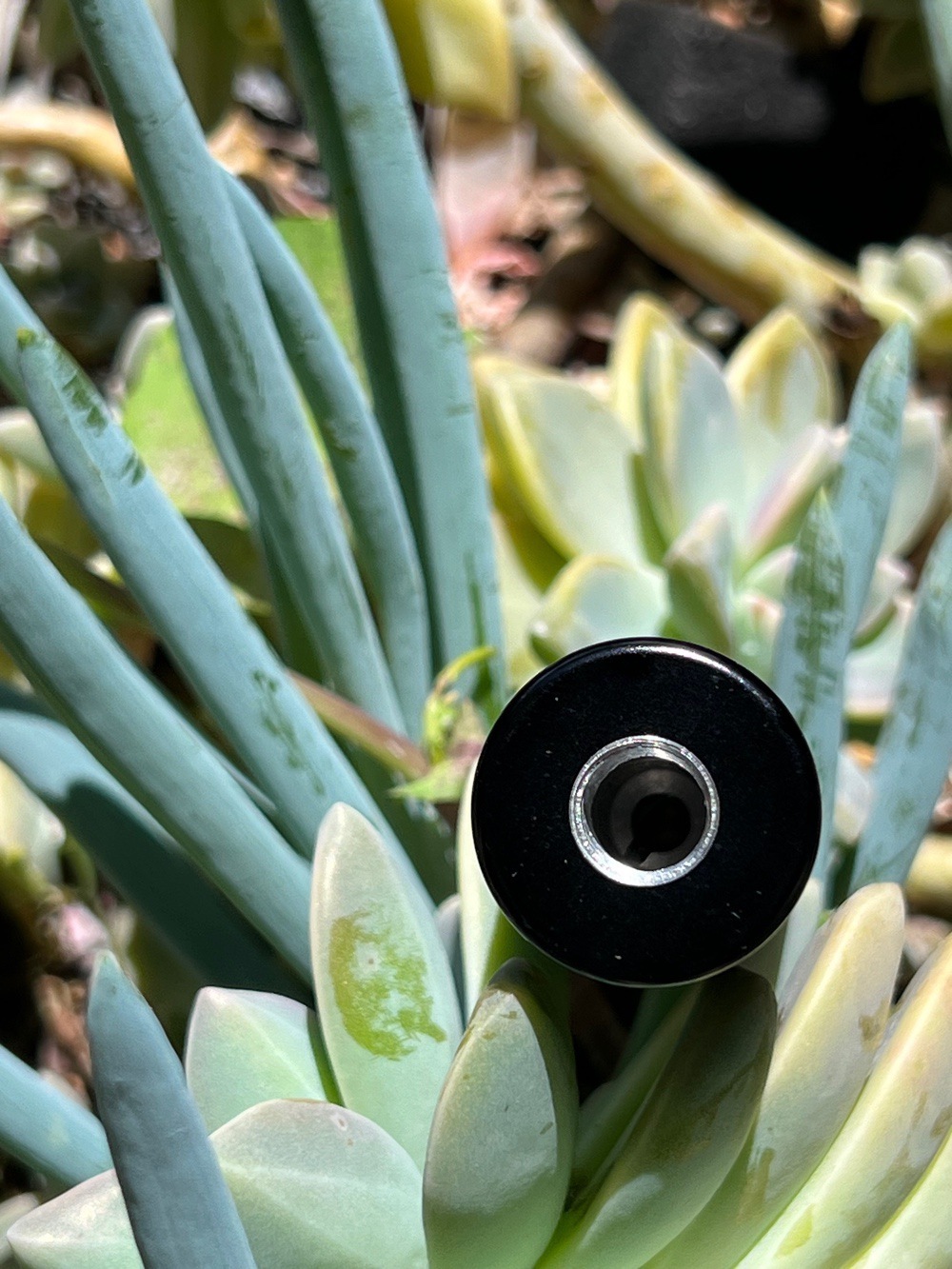

• Modifications: Valve chamber was drilled from the rear straight and threaded 1/8" NPT

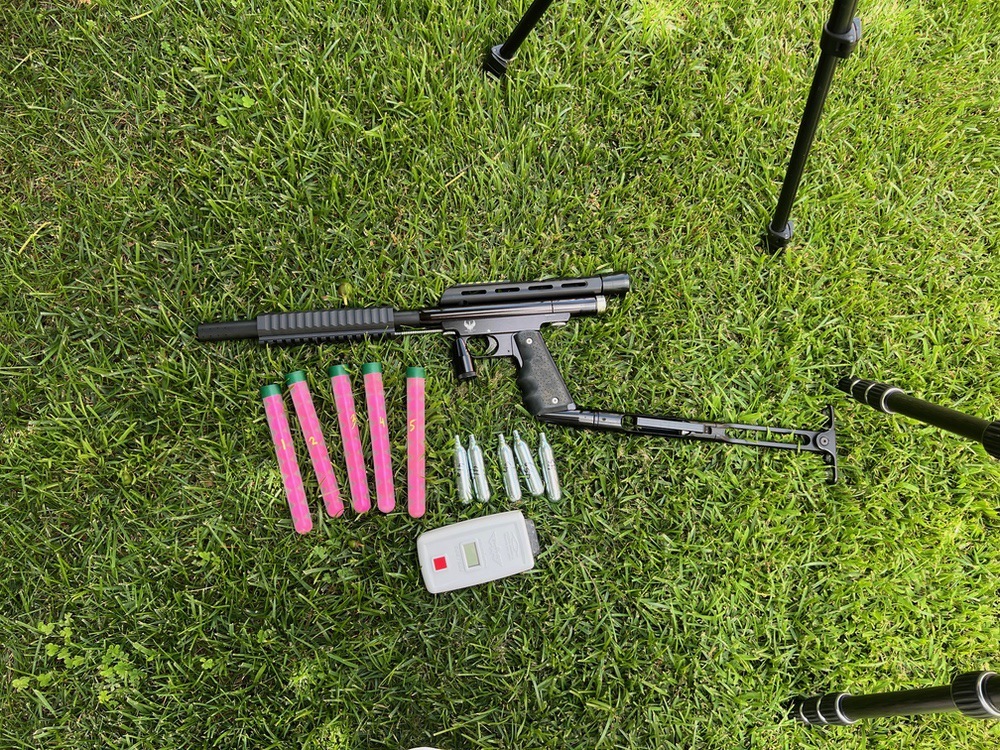

• Tests: 12g/43g bottom line using ICD lever changer (x2), 12g/43g Vertical with ICD lever changer, Dual 12g/41g with two ICD lever changers.
• Spring: brand new from a phantom spring kit - softest one - bule/purple?
• Velocity: 280-300FPS

Results 35 full velocity shots, 3-5 additional 250 fps shots and dropping to 200psi where is stopped counting. The dual 12g yeilded 88 shots, 75 full velocity and the rest were dripping until I stopped at 200FPS. I feel like you can still get close and tag someone at 200FPS. I did two test one shooting rapidly, and one shooting slowly. The rapid shooting was 35 shots, and the slow was 42, I was able to squeeze a few more shots with patience.
The 12g orientation had zero effect on shot count. My only weirdness was the dual 12g shot at 270 for the first 15 shots then went to the ~290fps for the rest.

Thoughts: I was very happy with the results, this was a significant improvement and an easy modification. I never had velocity issues with mine, but it was not shooting this many full velocity shots, I got 28 iirc before he mod - need to rewatch the video.

Video and FPS records to come when I have time to go through it.

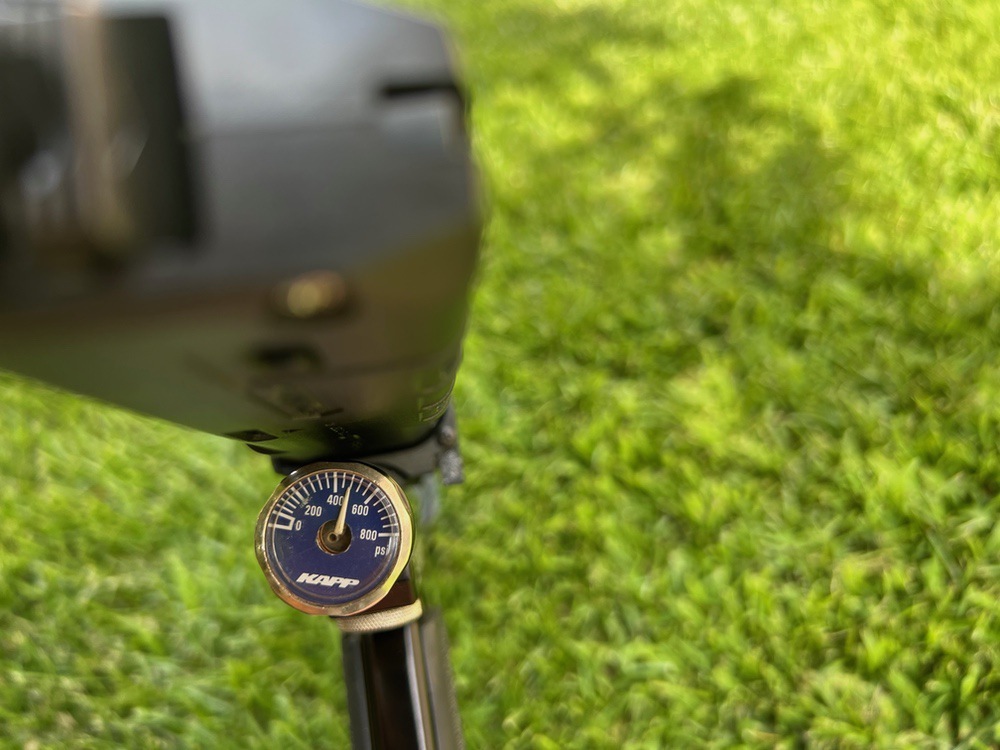

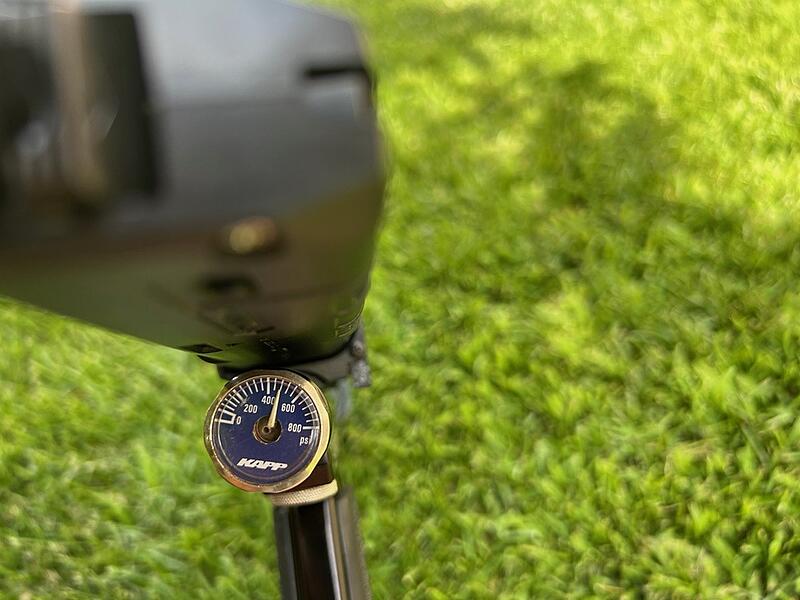

PSI when the velocity started to drop

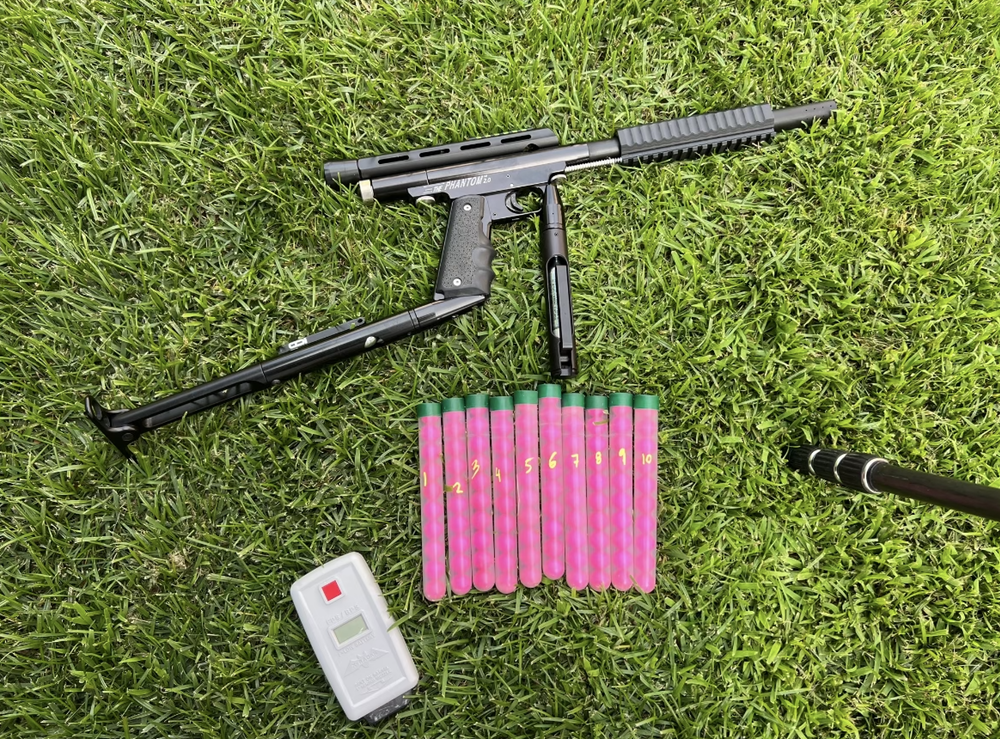

Dual 12g test set up.

[latches109]

yes for sure adding more volume helped. I didn't choke on the 300+ rounds I put through it. Temps were warm 75* I will test with silvers for you.

I thought about that but wanted to see the results incrementally.

[TIJUANAIRONMAN]

I'd love to see a video on how to do this modification

[latches109]

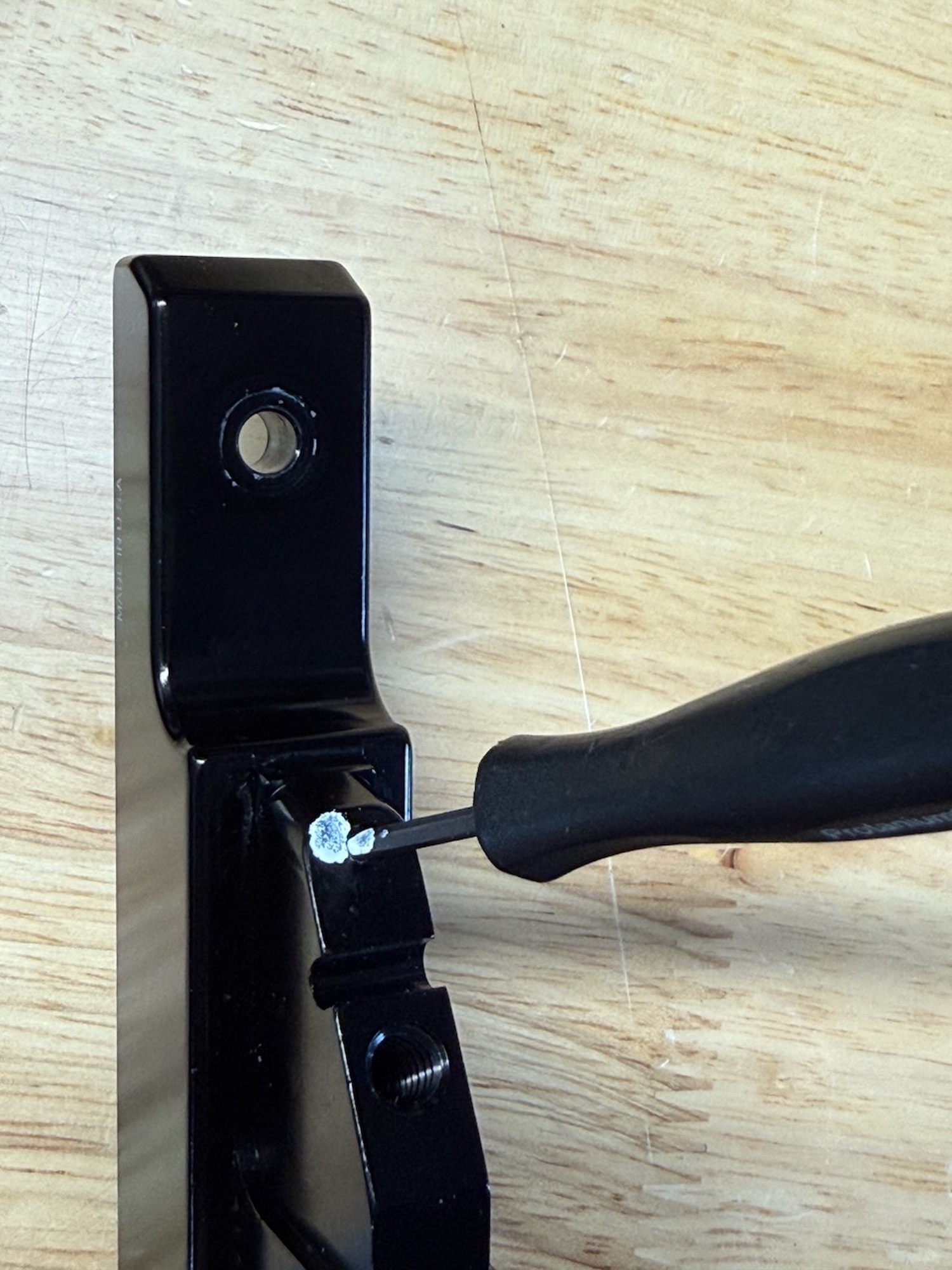

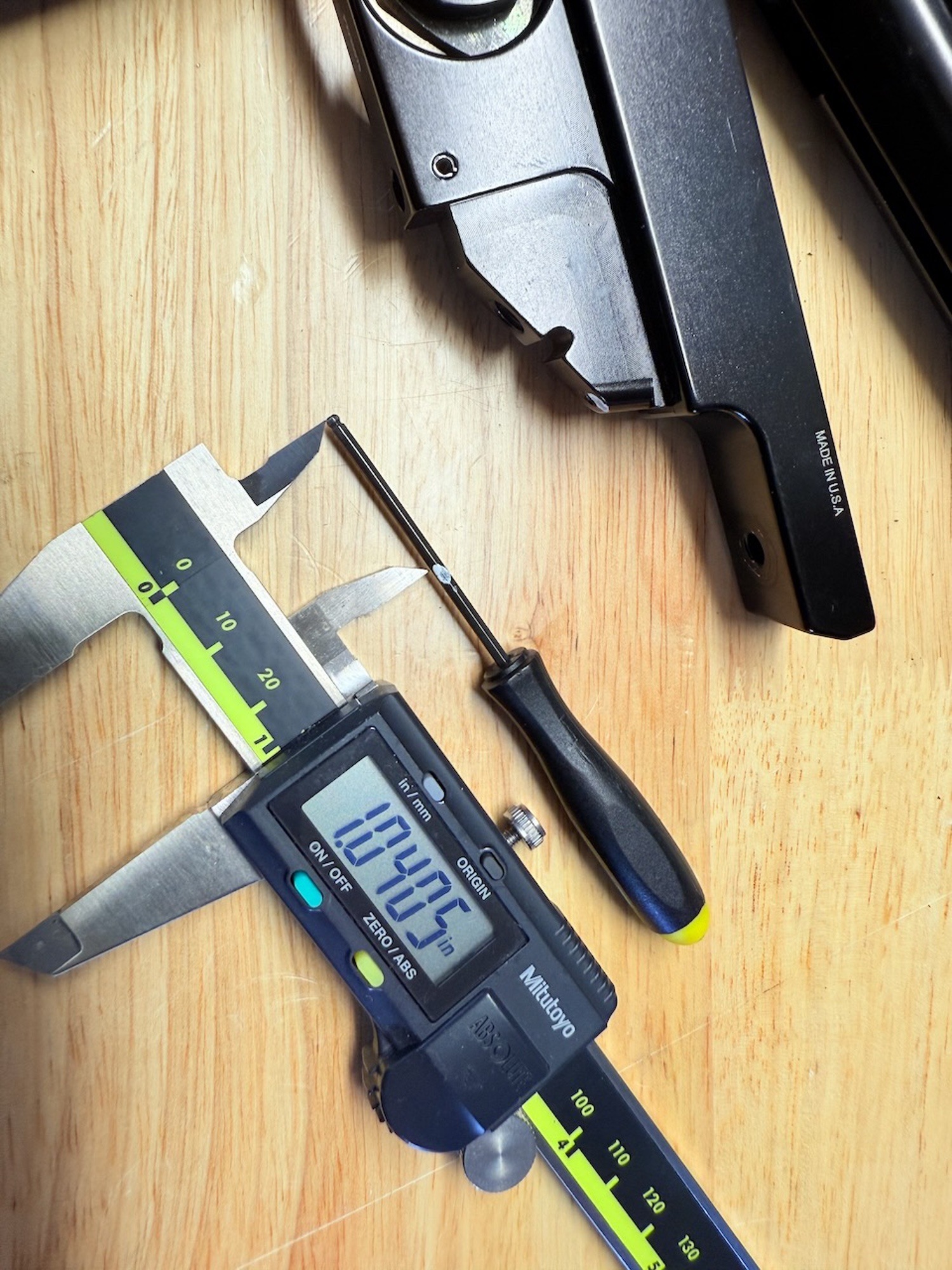

TIJUANAIRONMAN get the valve square to the universe and drill & tap for 1/8th NPT. Really simple. I’ll take a depth measurement for you.
