Dye DFF-20 Lazarus Valve

[cfos00]

SPLS springs. They're silly light. You can also pull some from ID kits

[Brokeass_baller]

Titanium is kinda moot. A 1" cube of titanium and a 1" cube of aluminum are very close in weight. Titanium gets it's weight savings by being stronger, and can therefore be machined thinner.

[superman]

from what others have said your pressure seems too high.

[Chuck E Ducky]

I would love to see results of a titanium hammer and super light spring pump setup.

[Kit]

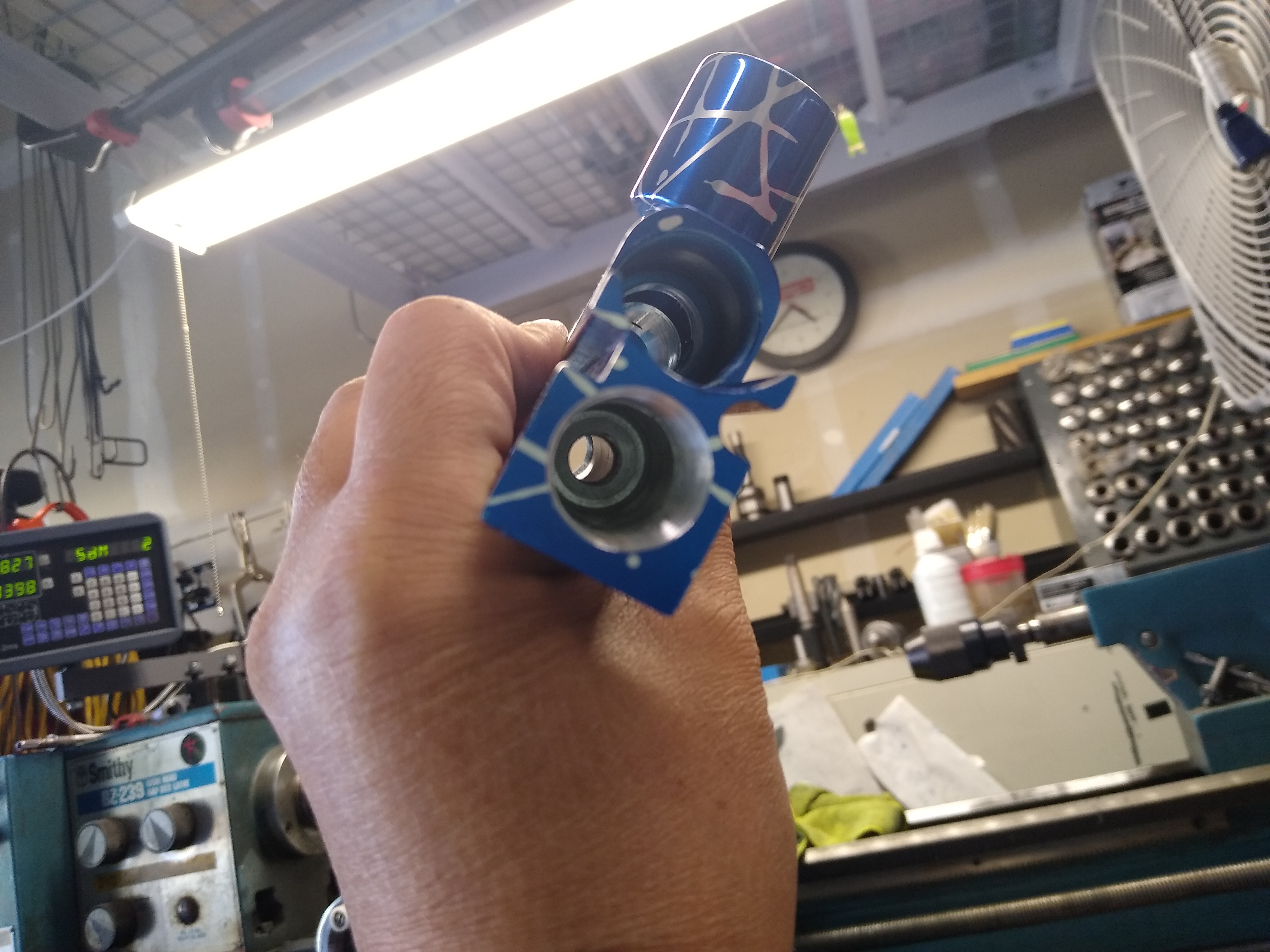

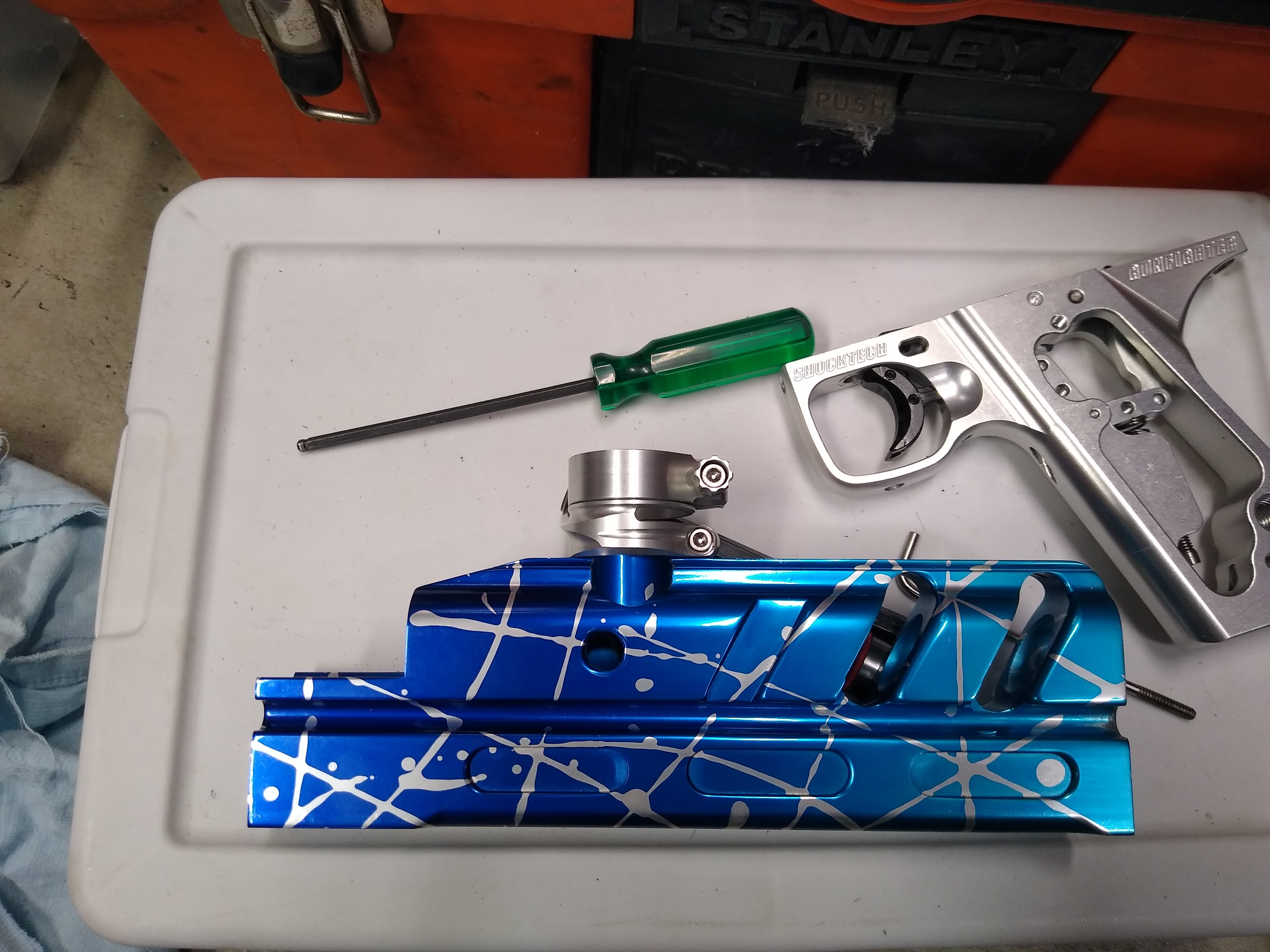

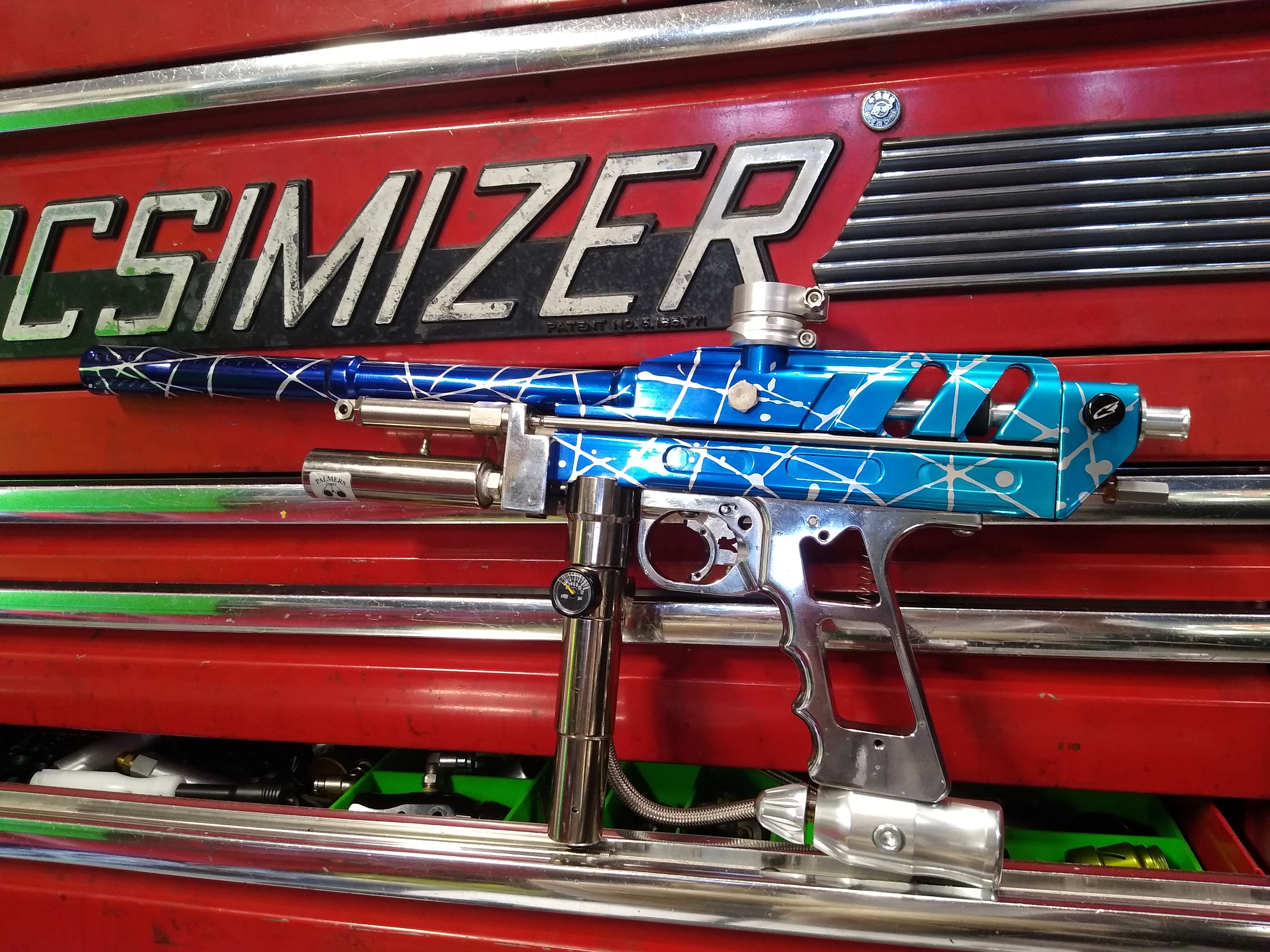

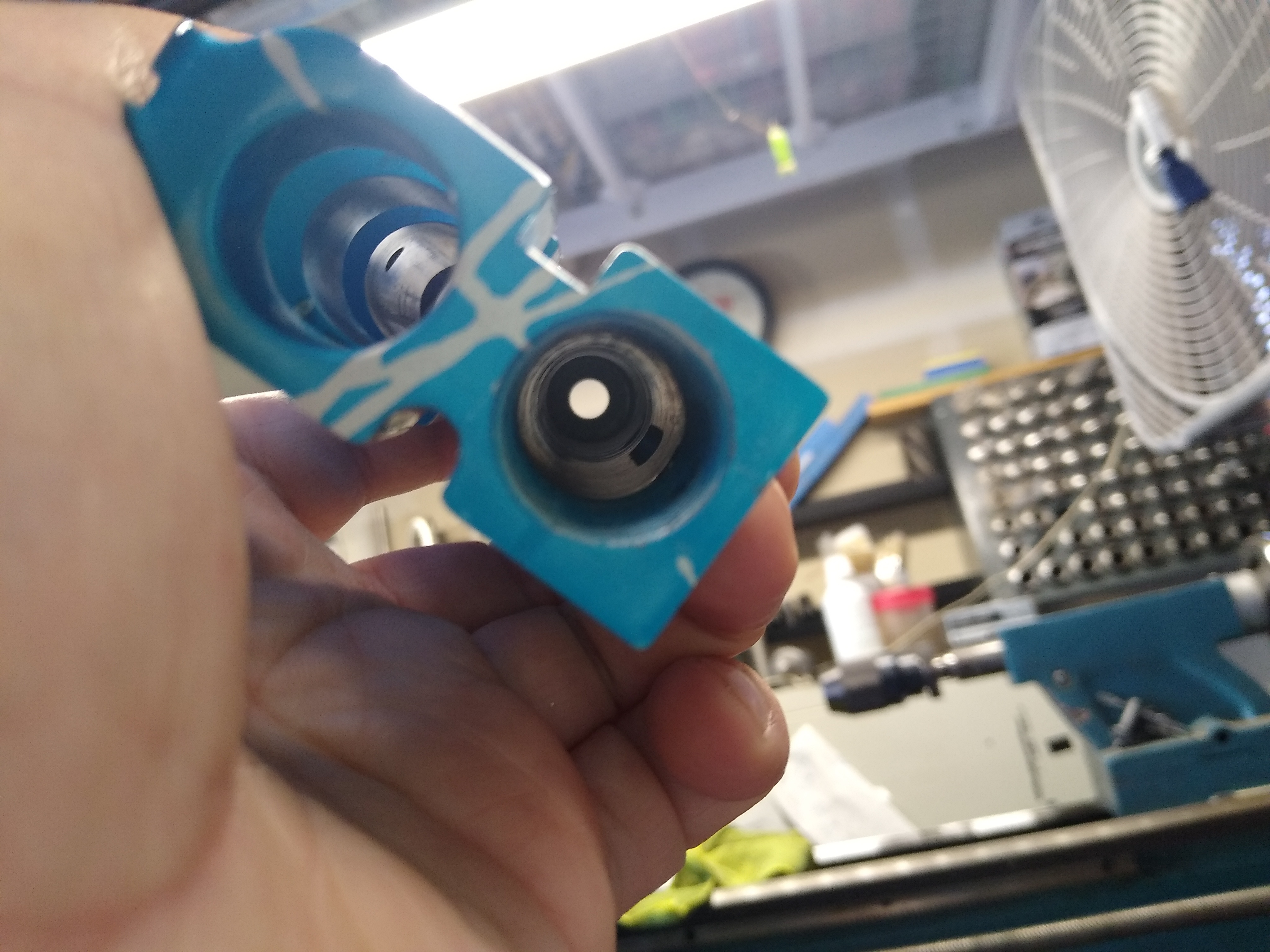

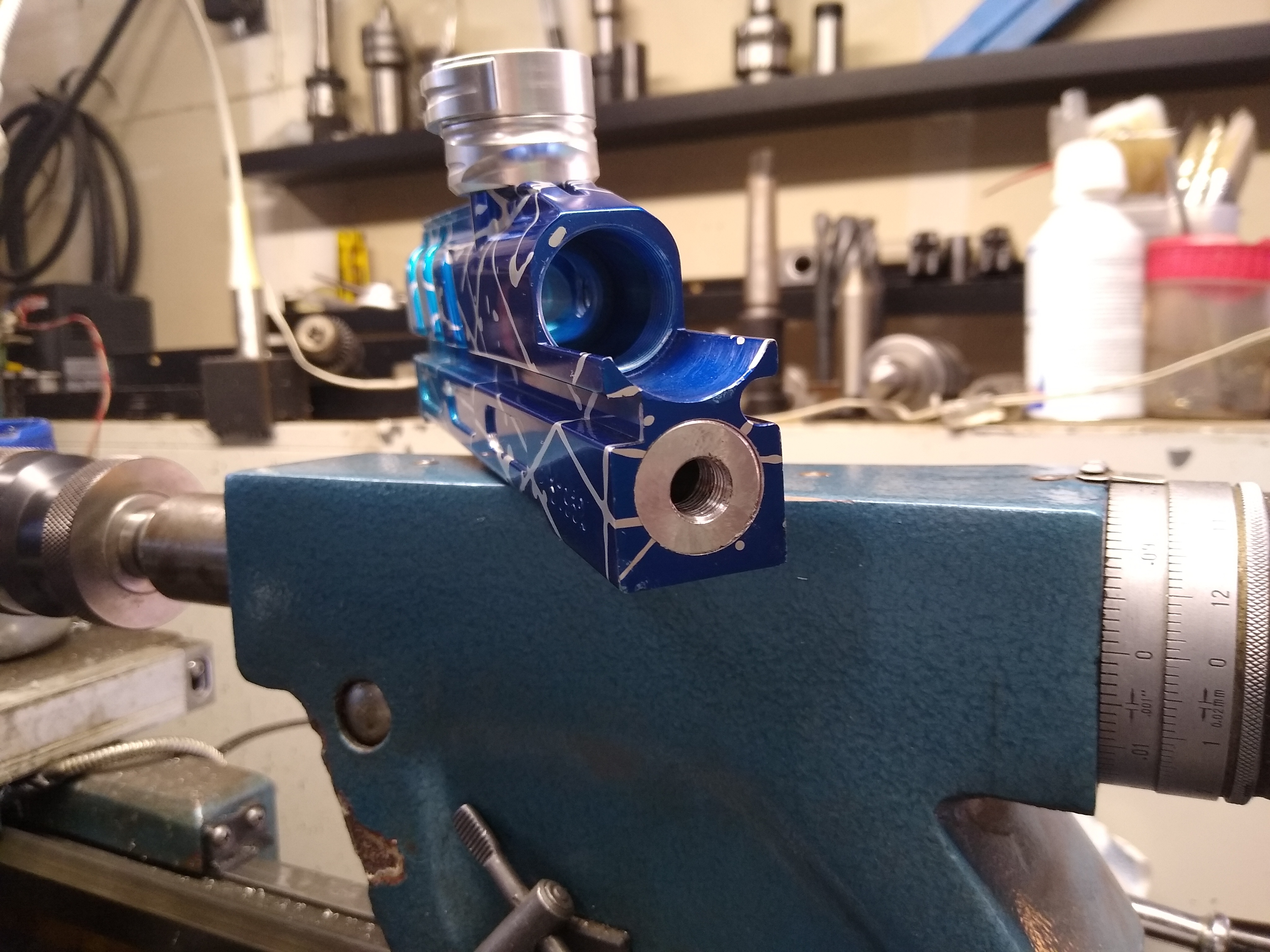

So I drilled and reamed the lower tube of a pre 2k cocker I have. Plugged the front so I can use the original front block.

It's shooting 320fps at 230psi with reballs. I'm running a delrin hammer from the morph valve and blue madman hammer spring. I'm getting a little bit of farting but that's the lightest hammer spring I have.

Who makes the lightest hammer springs?

[Cdn_Cuda]

Good to know. I'd emailed them a few days ago and the guy thought it should have been sent out already and got a shipping notice today.

[superman]

you were not forgotten, still waiting on mine and i ordered right after they fixed the price on the website.

[Cdn_Cuda]

And FreeFlow just shipped it now... me thinks I was forgotten.

[superman]

i reread the comment and now im not sure if he is referring to the red chamber. either way i am sure it can be fixed to work.

[euangelion]

I was about to ask here if anyone had tried it in a meteor yet.

Wonder if an updated red chamber could be made that allows the valve to be installed.

[Trbo323]

Tried putting one in my Meteor last night. Valve guide plug is to large for the recess on the valve. Trying to source a different one that I can make work. I thought this might be an issue. Might even have to enlarge the cut on the valve itself.

Man, I'd be out in the garage on the bench grinder making that plug shorter before you could pull out your phone to make this post.

Regardless, I wouldn't modify the valve. Screws are easy to mess with and cheap to replace. Not so much with the valve body

Sent from my motorola edge 5G UW (2021) using Tapatalk

[Roger7pball]

Ah got ya.

[superman]

he is referring to the redtube in the meter bodies not the screw.

[Roger7pball]

Tried putting one in my Meteor last night. Valve guide plug is too large for the recess on the valve. Trying to source a different one that I can make work. I thought this might be an issue. Might even have to enlarge the cut on the valve itself.

You have options. 5/16-24

[Shecki]

Tried putting one in my Meteor last night. Valve guide plug is to large for the recess on the valve. Trying to source a different one that I can make work. I thought this might be an issue. Might even have to enlarge the cut on the valve itself.
